Equipped With

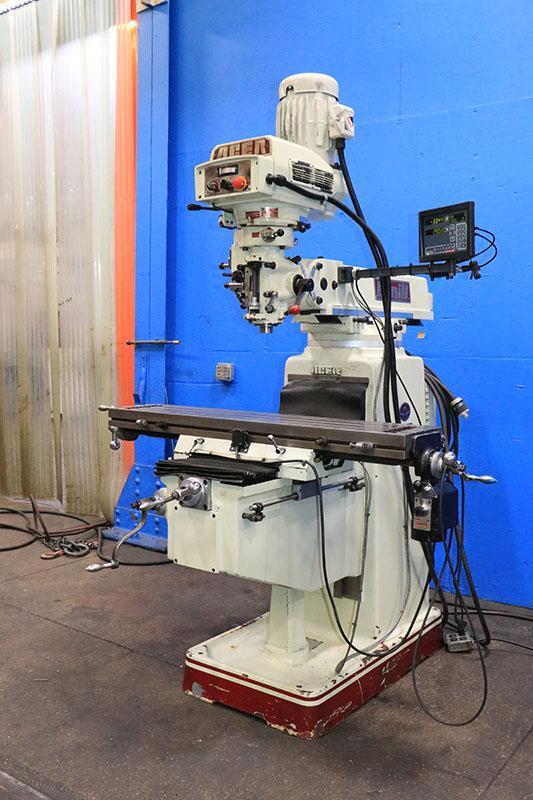

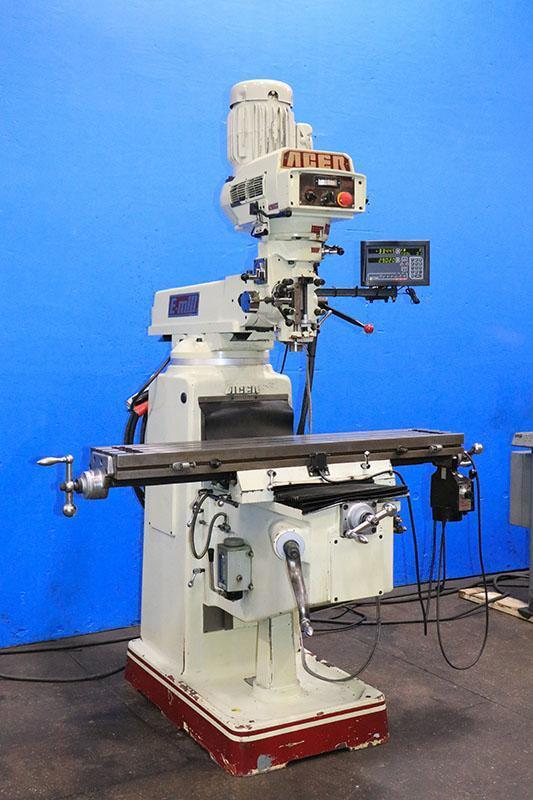

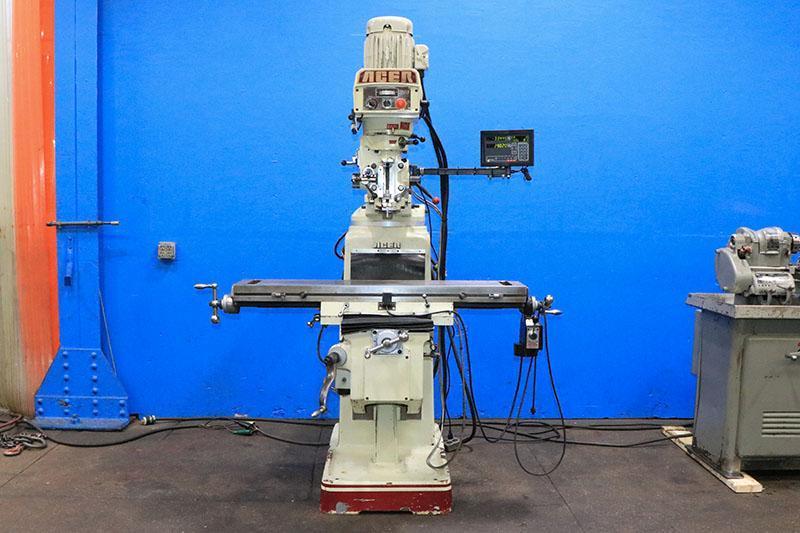

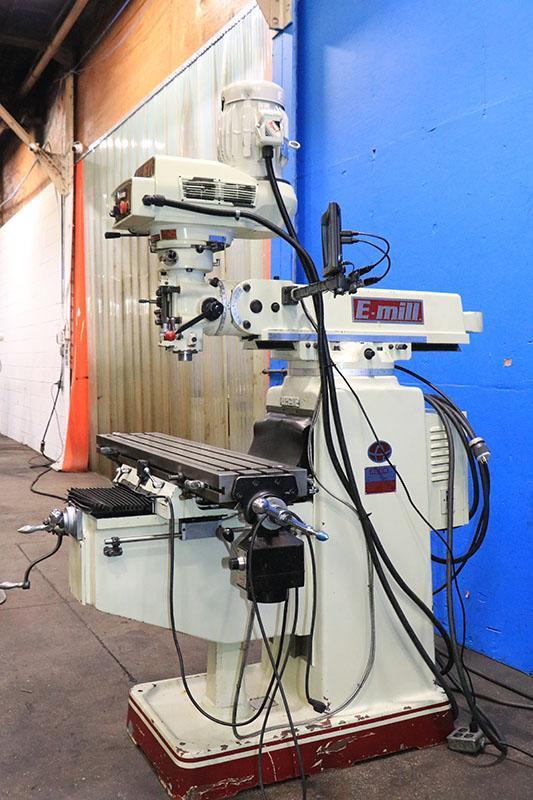

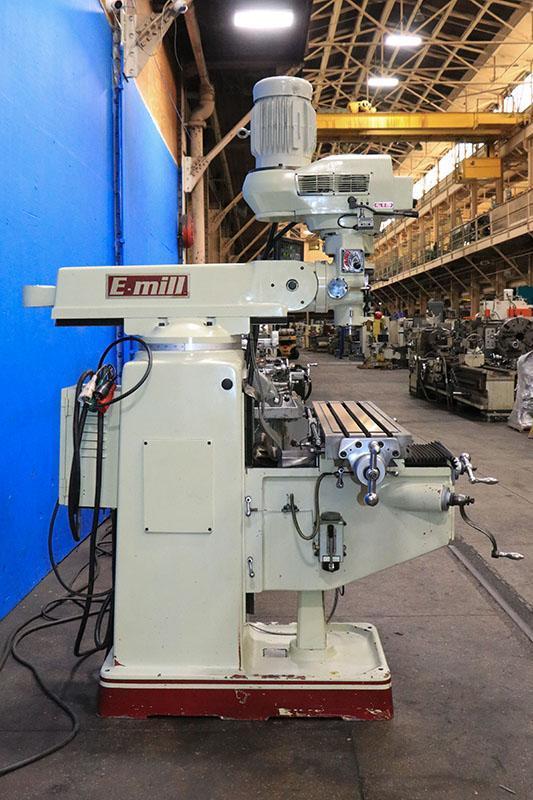

ACER MODEL EVS-3VK VERTICAL MILLING MACHINE
New 1999

SPECIFICATIONS:

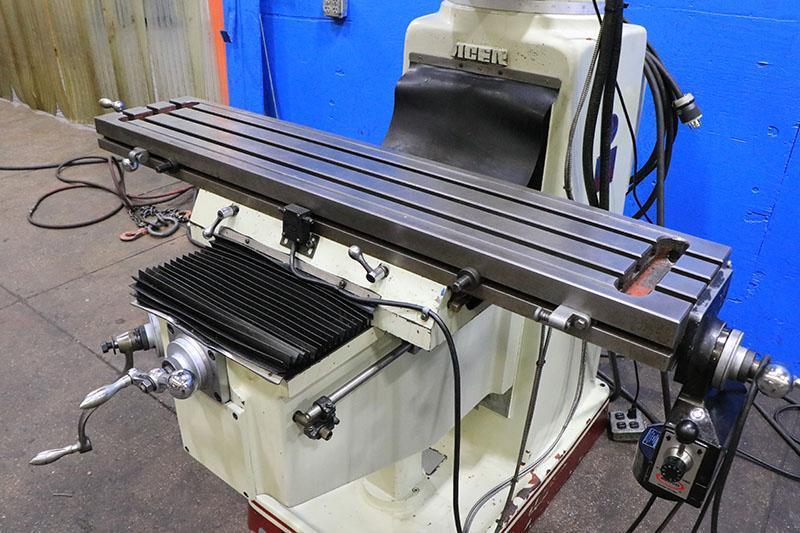

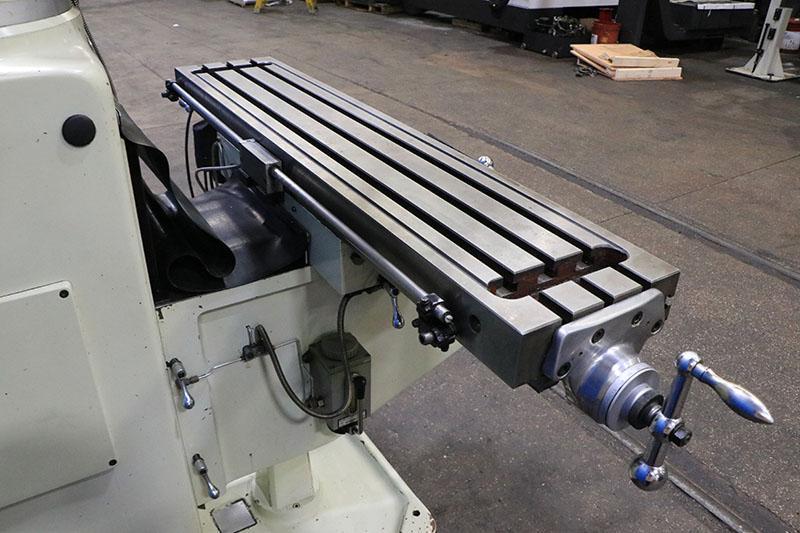

TABLE WORKING SURFACE ......................... 10" X 50"

NUMBER OF T-SLOTS (WIDTH) ..................... 3 (5/8")

RANGE: LONGITUDINAL, MANUAL (X) ............... 34"

             CROSS (Y) ........................ 16"

             VERTICAL, KNEE ................... 20"

             QUILL (Z) ........................ 5"

RAM TRAVEL .................................... 20"

HEAD TILT, LEFT AND RIGHT ..................... 90 DEGREES

HEAD TILT, FRONT TO REAR, EACH WAY ............ 45 DEGREES

TURRET ROTATION ............................... 360 DEGREES

MAX/MIN DISTANCE, SPINDLE NOSE - TABLE TOP .... 18"/2"

(3) POWER QUILL FEEDS ............ .0015, .003, .006 I.P.R.

QUILL DIAMETER ................................ 3-3/8"

INFINITELY VARIABLE SPINDLE SPEEDS ............ 60 - 4,500 RPM

SPINDLE TAPER ................................. R-8

MAXIMUM COLLET CAPACITY ....................... 3/4"

APPRROXIMATE DIMENSIONS .................. 79" x 74" x 90"H

APPROXIMATE WEIGHT ............................ 3,100 LBS.

EQUIPPED WITH:

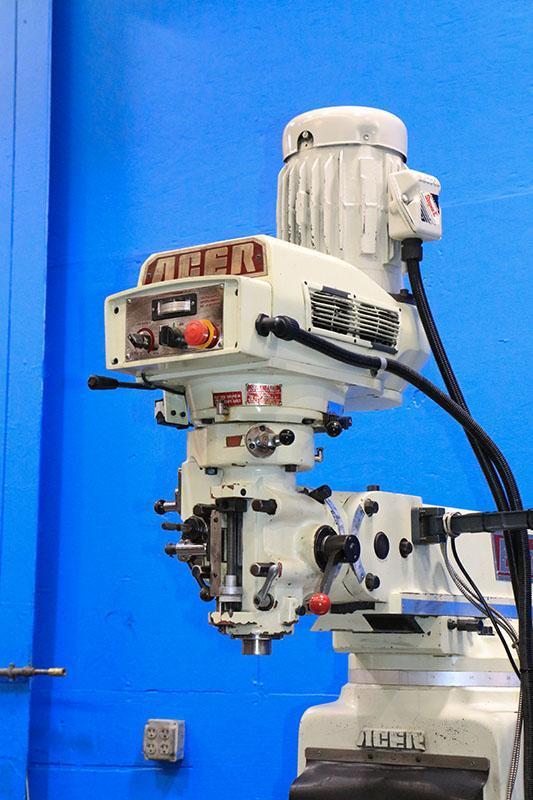

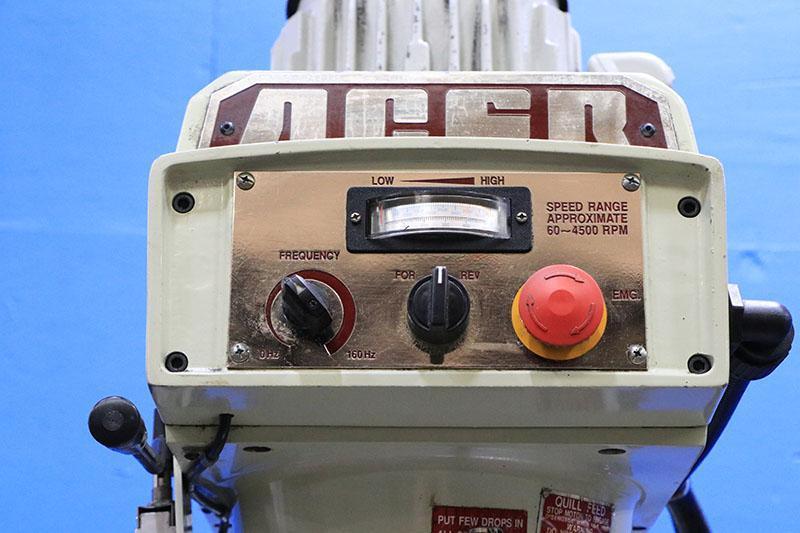

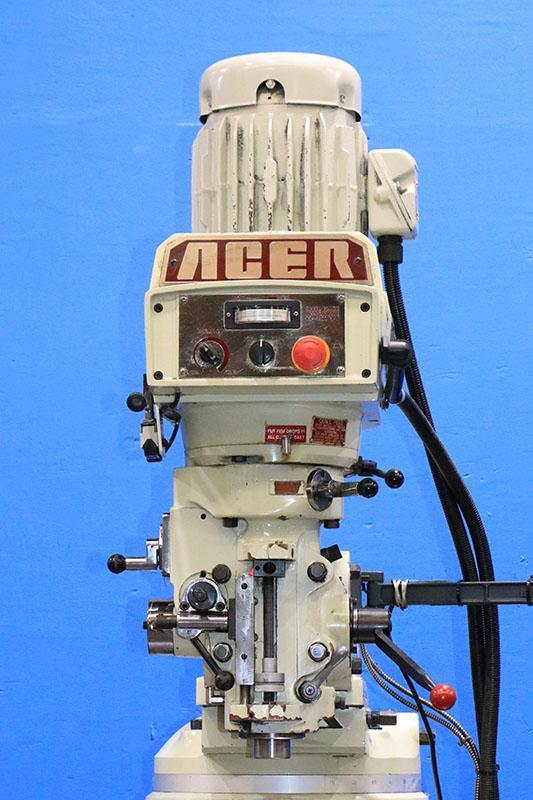

AC FREQUENCY INVERTER SPINDLE DRIVE

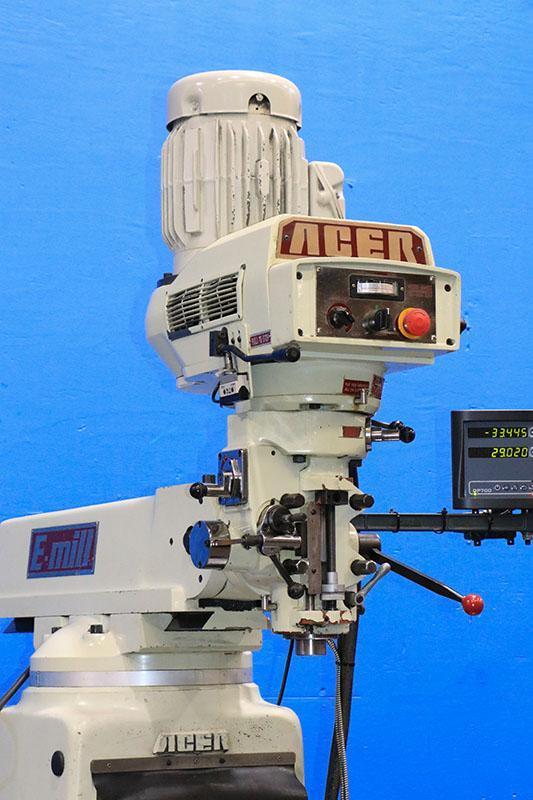

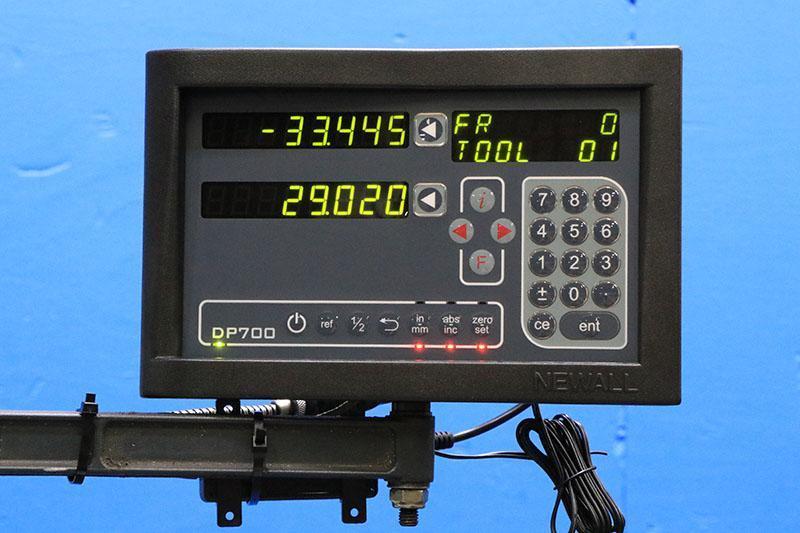

NEWALL TWO-AXIS DIGITAL READOUT

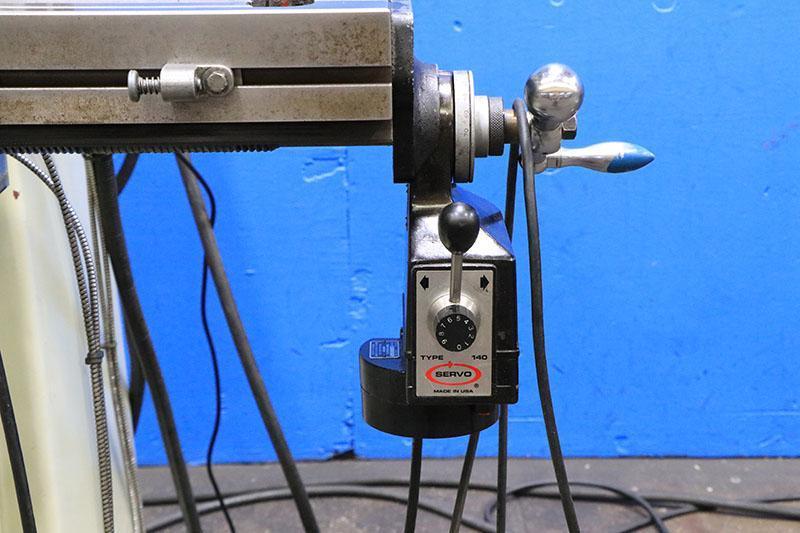

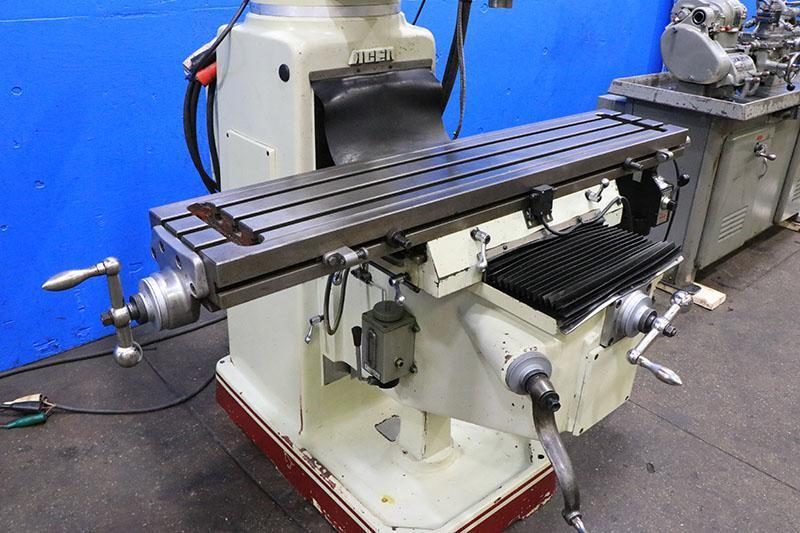

SERVO POWER FEED FOR LONGITUDINAL TABLE TRAVEL

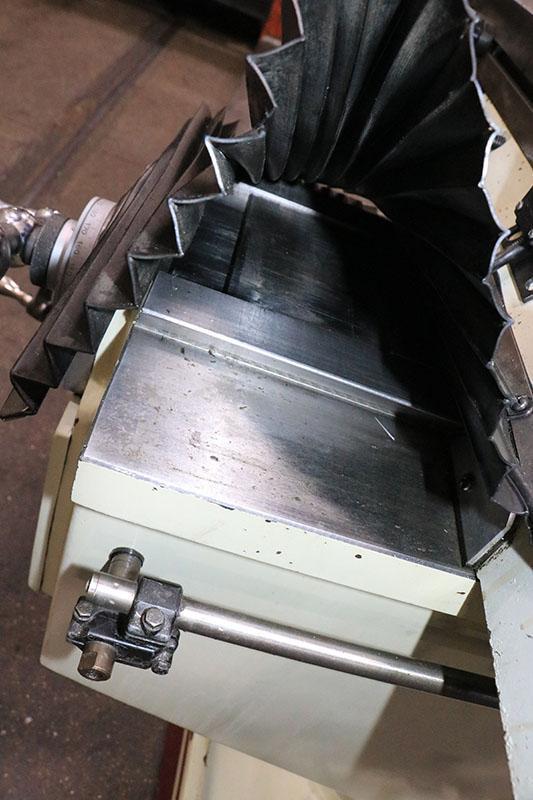

HARDENED AND GROUND DOVETAIL WAYS FOR X & Y AXES

MEEHANITE CASTING

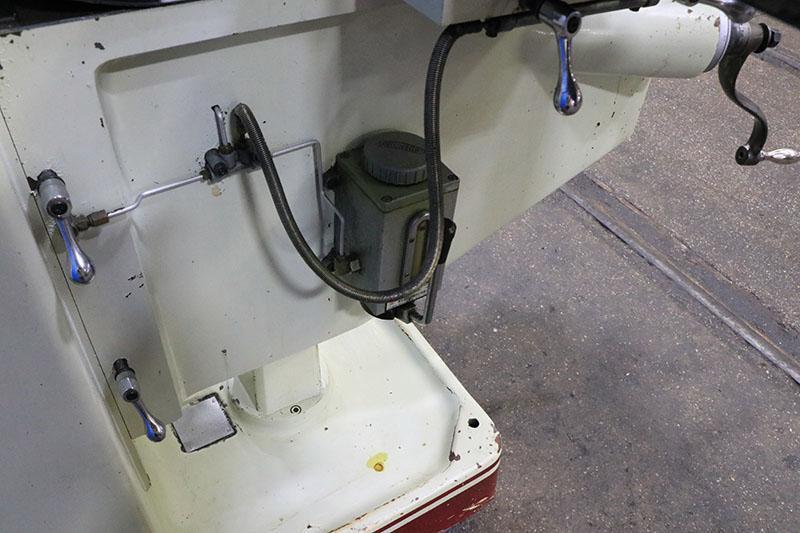

ONE-SHOT LUBRICATION SYSTEM

3 HORSE POWER SPINDLE DRIVE MOTOR
