AGIE CHARMILLES ROBOFIL 240CC WIRE EDM MACHINE

Manufacturer

Not provided

Model

240CC

Year

2008

Stock #

19412

Condition

Excellent

Request A Quote

Keep Scrolling To Learn More

Specifications

Equipped With

AGIE CHARMILLES ROBOFIL FI-240CC WIRE EDM MACHINE

New 2008

12,500 Hours

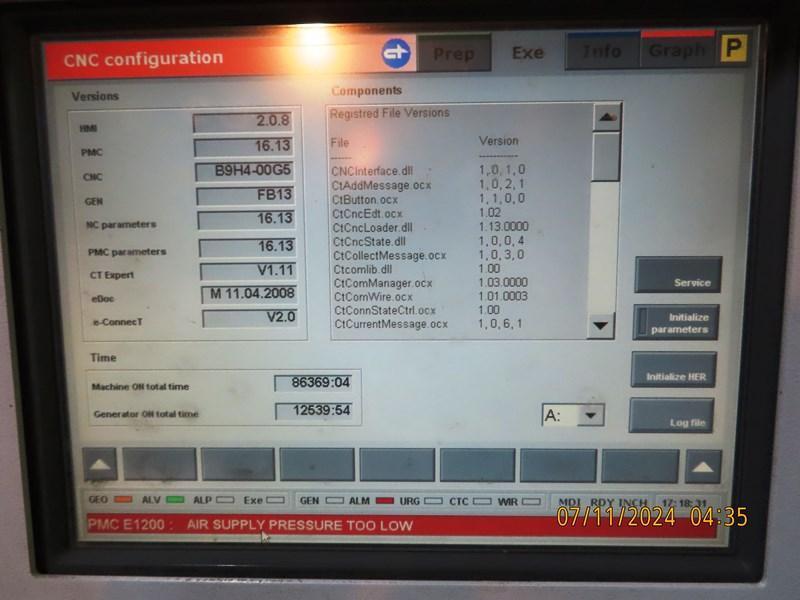

EQUIPPED WITH: Charmilles CNC Controls w/ Color CRT & Graphics Windows NT Operating System. Pentium Processors Anti-Collision Protection )ICP) STD. On All 5-Axis "Clean Cut" HIgh Speed Generator, Linear Glass Scales with 20 Millionths Resolution of an Inch Resolution of An Inch Resolution. AC Servo Motors, Fully Submerged Machining, Automatic Wire Threading.

SPECIFICATIONS:
Max. Part Size
Width                                                        39.7"
Depth                                                        21.65"
Height                                                       8.66"
Max. Weight of Workpiece                       1,653 Lbs.
Max. Workpiece Dimensions                    39.37" x 21.65" x 8.66"
Table Dimensions                                     26.77" x 17.72"
X - Axis Travel                                           13.77"
Y - Axis Travel                                           8.66"
Z - Axis Travel                                           8.66"
U/V Axis Travel                                         13.33" &  8.66"
Max. Taper                                               +/- 30 Degrees
Wire Diameter                                          0.004" - 0.12"
Total Volume of Dielectric                        201 Gallons
Approximate Dimensions                         79.53" L-R x 80.71" F-B x 78.75" H
Approximate Weight                                5,400 Lbs.

Attachments

There are no files attached to this listing currently. If you Have any further questions regarding this listing, please contact us for more information.
