Equipped With

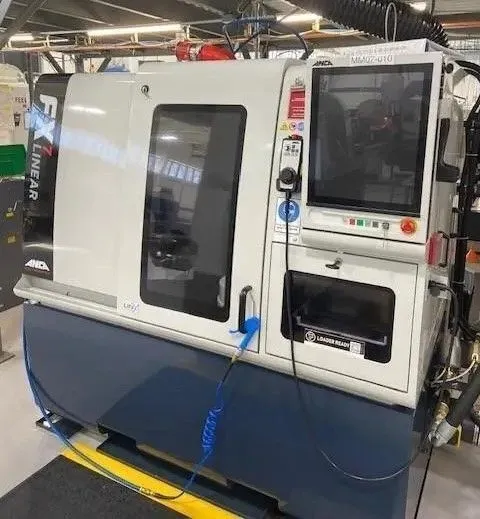

Anca FX7 Linear Tool & Cutter Grinder

New 2021



SPECIFICATIONS:
Number of Axes: 8-Axis
X AXIS TRAVEL:: 15.1”
Y AXIS TRAVEL:: 12.5”
Z AXIS TRAVEL:: 8.6”
C AXIS ROTATIONAL TRAVEL:: 230
WORKPIECE DIAMETER:: 7.8”
GRINDING SPINDLE:: 19 kW 25.4 HP
GRINDING SPINDLE RPM RANGE:: 0 to 10,000 RPM
GRINDING SPINDLE TAPER:: HSK40F
SPINDLE TYPE:: SINGLE ENDED INDUCTION
WHEEL PACKS:: 2 x 8” max.
TOOL LENGTH: (VARIABLE BY TOOL DESIGN): 8”

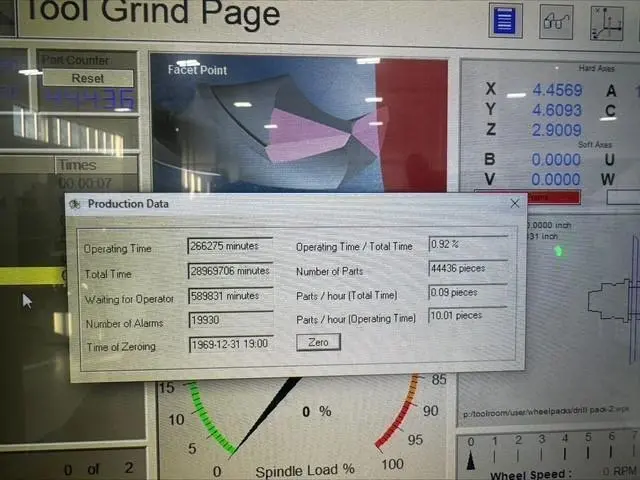

Cut Time in Minutes: 266275 Minutes (4438 Hours)
Electrical Capacity: 16 KVA

Equipped With:

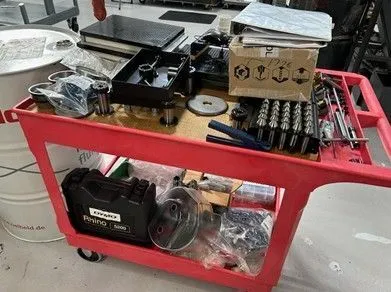

(2) Machines Available, 8-Axis, Fanuc Robot Loader, Tool Pallets, Misc. Tooling,
LOADER TYPE: FANUC
The Fanuc Robot Loader is a versatile automation solution that is located completely within the FX Linear machine. It provides automatic tool loading, enabling extended periods of unmanned operation, for maximized productivity.

• Can be used to auto-load up to 6 wheel packs & their coolant manifolds • Operator access from front of machine
• Does not increase machine footprint
• One gripper set for the entire diameter range

• Ideal for loading tools Ø2 - 20 mm (1/16” - 3⁄4”) • Tool length range 30 - 250 mm (11⁄4” - 10”)
• Double gripper, tool change for load/unload
• Loading time of 9 seconds

• The pallet capacity ranges from 840 tools with Ø2 mm (1/8”) shank, 520 tools with Ø6 mm (1⁄4”) shank and 96 tools for Ø20 mm (3⁄4”) shan

LINEAR MOTOR DRIVE on X & Y AXES

LINEAR SCALES on X,Y, and Z AXES

ANCA PATENTED SOFTWARE FOR A,V,U,and W AXES

TOUCH SCREEN MONITOR

REMOTE HANDHELD PENDANT

CONFIGURED:

AUTOMATION : PALLET TOP PLATES

AUTOMATION : ROBO TEACH SOFTWARE

WORK HOLDING: PREMIERPLUS PCA W20 COLLET ADAPTER

WORK HOLDING: MISC. SCHAUBIN W20 COLLETS

TOOL SUPPORT: LONG STEADY BED

TOOL SUPPORT: AUTOMATIC POP UP STEADY

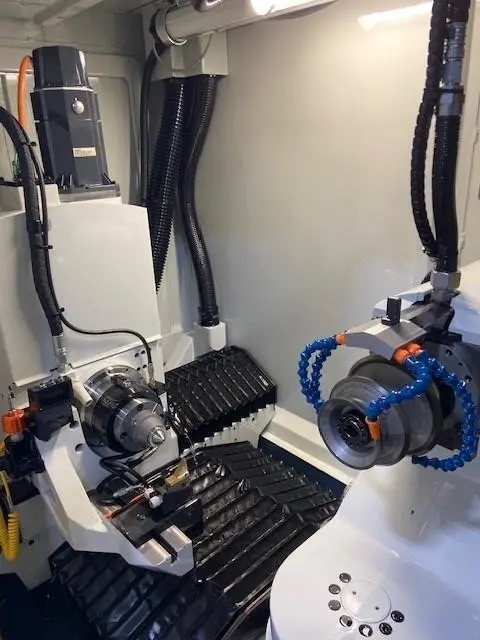

WHEEL ARBORS: (8) HSK40F WHEEL ARBORS

DRESSING: AUTOSTICK ONE STATION

MEASUREMENT: AUTO WHEEL QUALIFICATION

COOLANT SYSTEM SOLD SEPERATELY:

MACHINE WAS CONNECTED TO A SHARED EBBCO COOLANT SYSTEM MISC. COOLANT MANIFOLDS

SOFTWARE
