Year
1999
Stock #
16781
Condition
Very Good
Keep Scrolling To Learn More
Citizen E-32 CNC Screw Machine | Chip Conveyor,Live Tools, Barfeed
New 1999

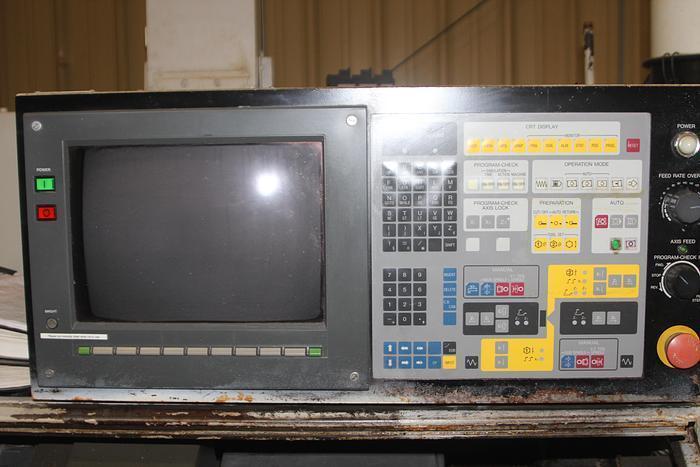

CONTROL: MITSUBISHI MELDAS 500L
7 CONTROLLED AXES: (X1, X2, Z1, Z2, Z3,C1,Y)
MAXIMUM MACHINING DIAMETER: 1-1/4
MAXIMUM MACHINING LENGTH: 12.6
SPINDLE SPEED: 130-6000 RPM
ROTARY TOOLS:
MAXIMUM DRILLING / THREADING DIAMETER: .393 / 5/16
SPINDLE SPEED: 225-4460 RPM
BACK-WORK:
MAXIMUM CHUCKING DIAMETER OF BACK-WORK SPINDLE: 1-1/4
MAXIMUM BACK-WORK LENGTH: 12.5
MAXIMUM DRILLING / THREADING DIAMETER: .5 / 1/2
BACK-WORK SPINDLE SPEED: 150-5000 RPM
NO. OF TOOLS INSTALLABLE: 20
NO. OF TURRET INDEXES: 10 x 2 PER TURRET
(20 ASSIGNABLE POSITIONS WITH HALF-INDEX)
TOOL SIZE: 3/4 x 3/4 x 3.5
MAIN SPINDLE MOTOR DRIVE: 5.5KW / 7.5 HP
POWER SUPPLY: 16 KVA
REQUIRED FLOOR SPACE: 64 x 120 X 72H
WEIGHT (APPROX.): 9500 LBS.
EQUIPPED WITH :

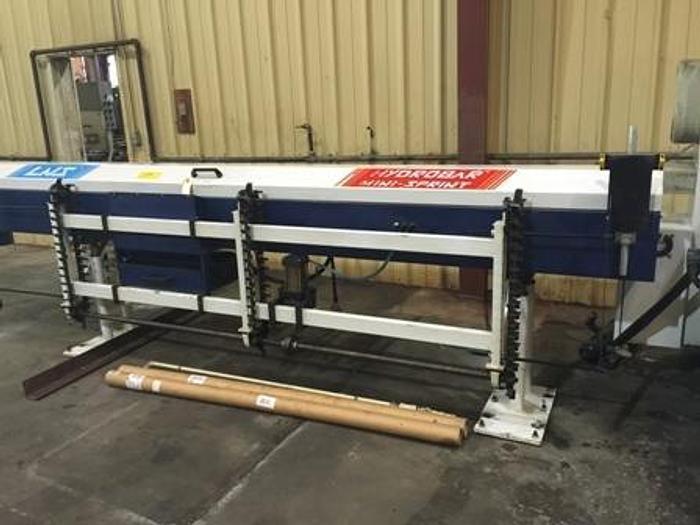

12' Magazine LNS Hydra Bar Mini Sprint Bar Feed
Tool Pre Setter

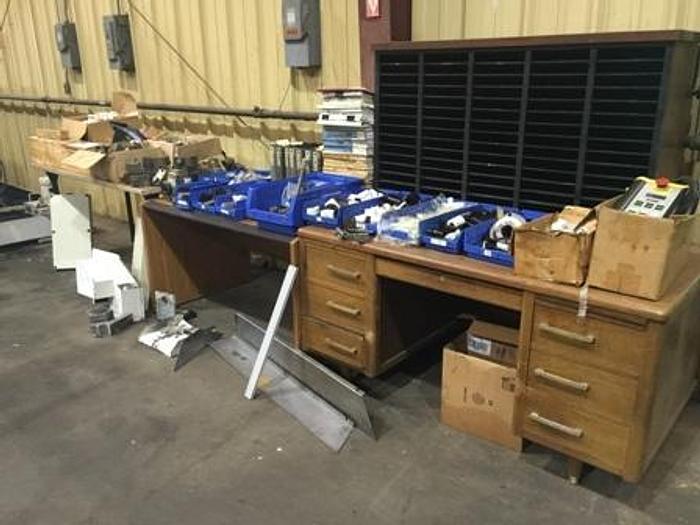

Tooling

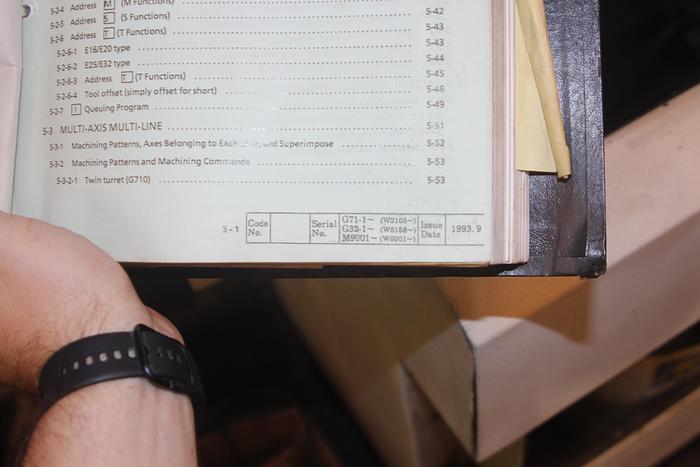

Manuals
Live Tooling (radial & Axial)
Chip Conveyor
Royal Mist Collector
Parts Catcher
Coolant
Twin Turrets, 10 station each
32mm Sub Spindle
Barfeed Accesories
Misc Spare Parts
There are no files attached to this listing currently. If you Have any further questions regarding this listing, please contact us for more information.
