Equipped With

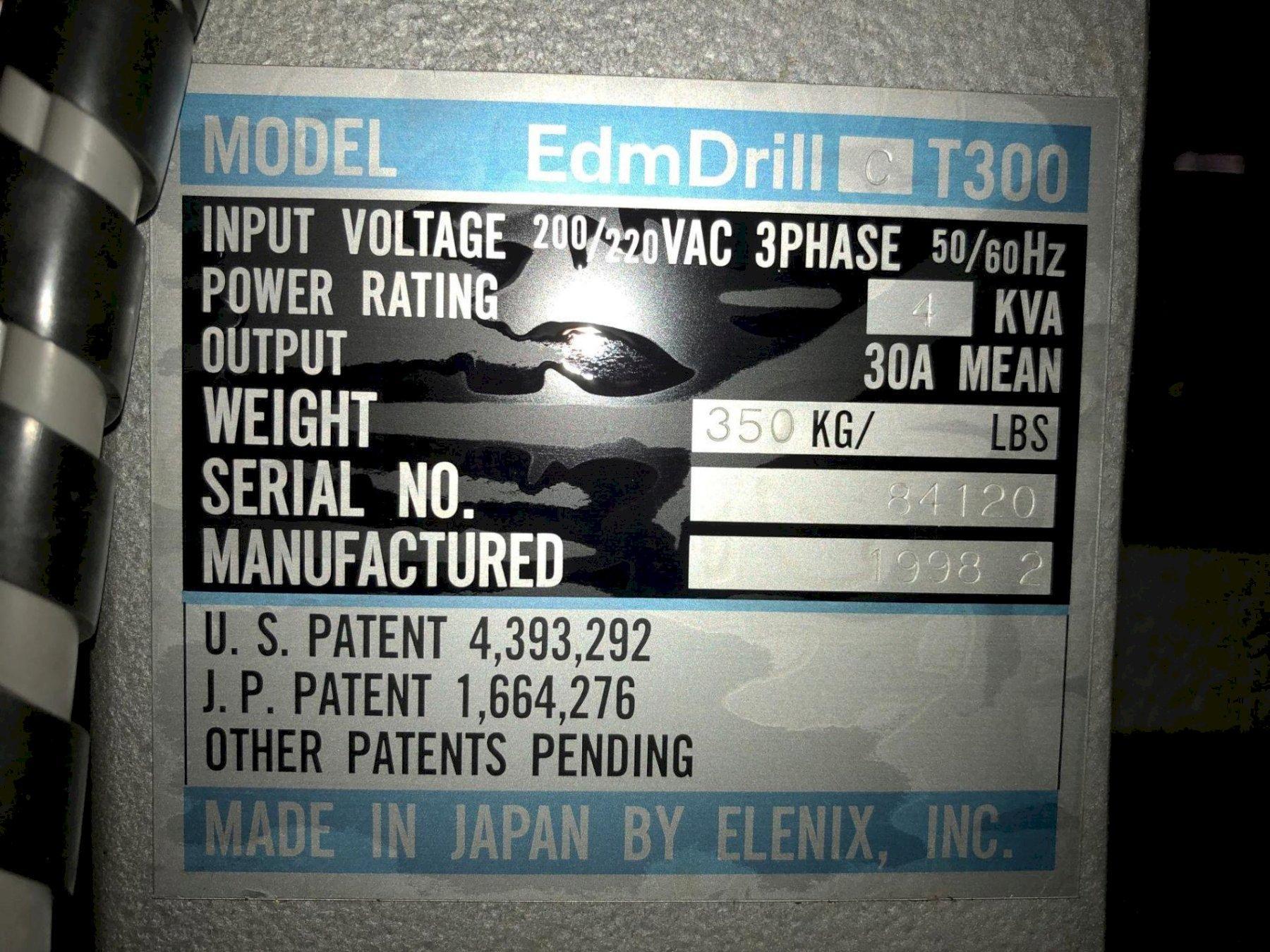

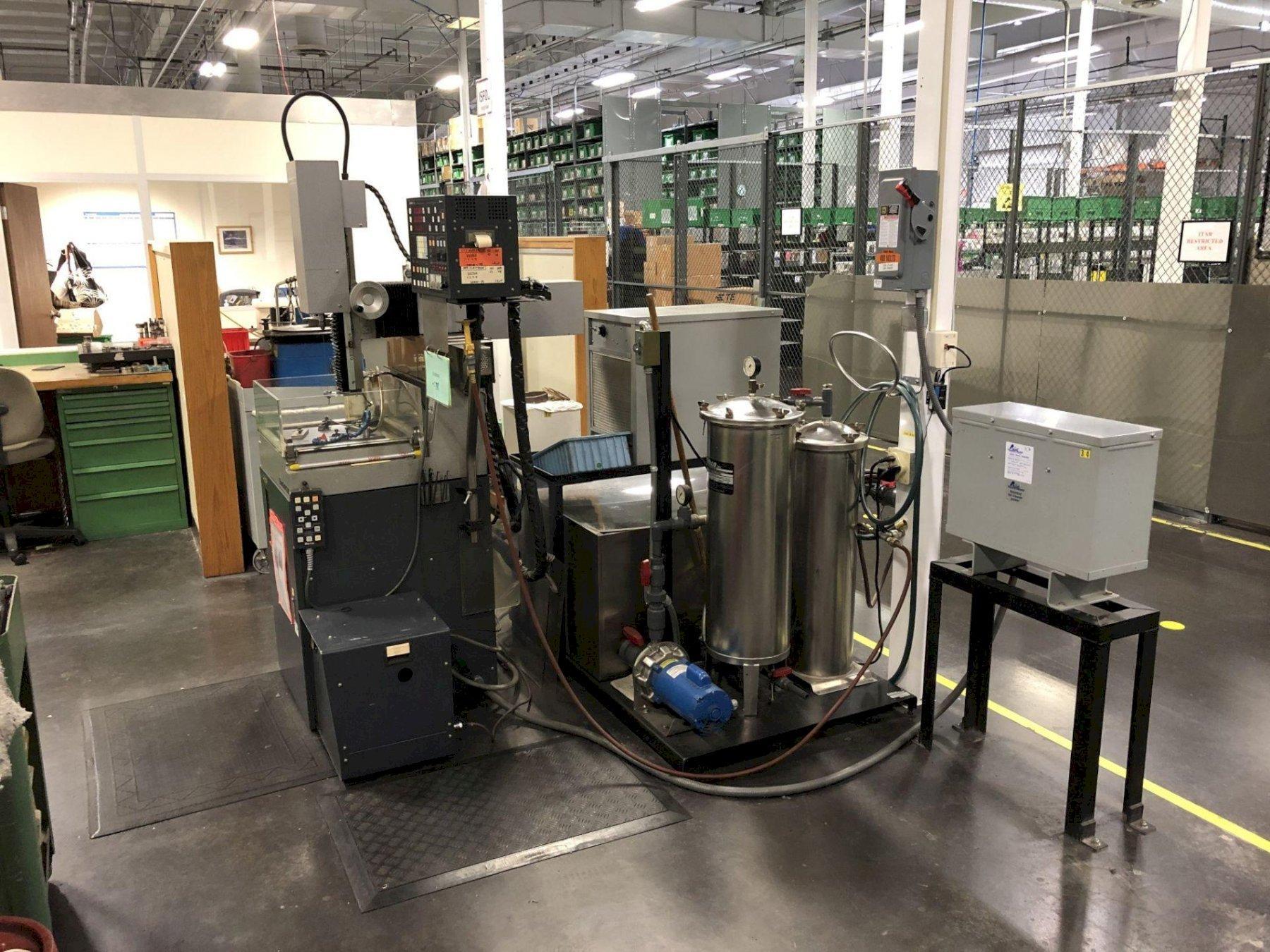

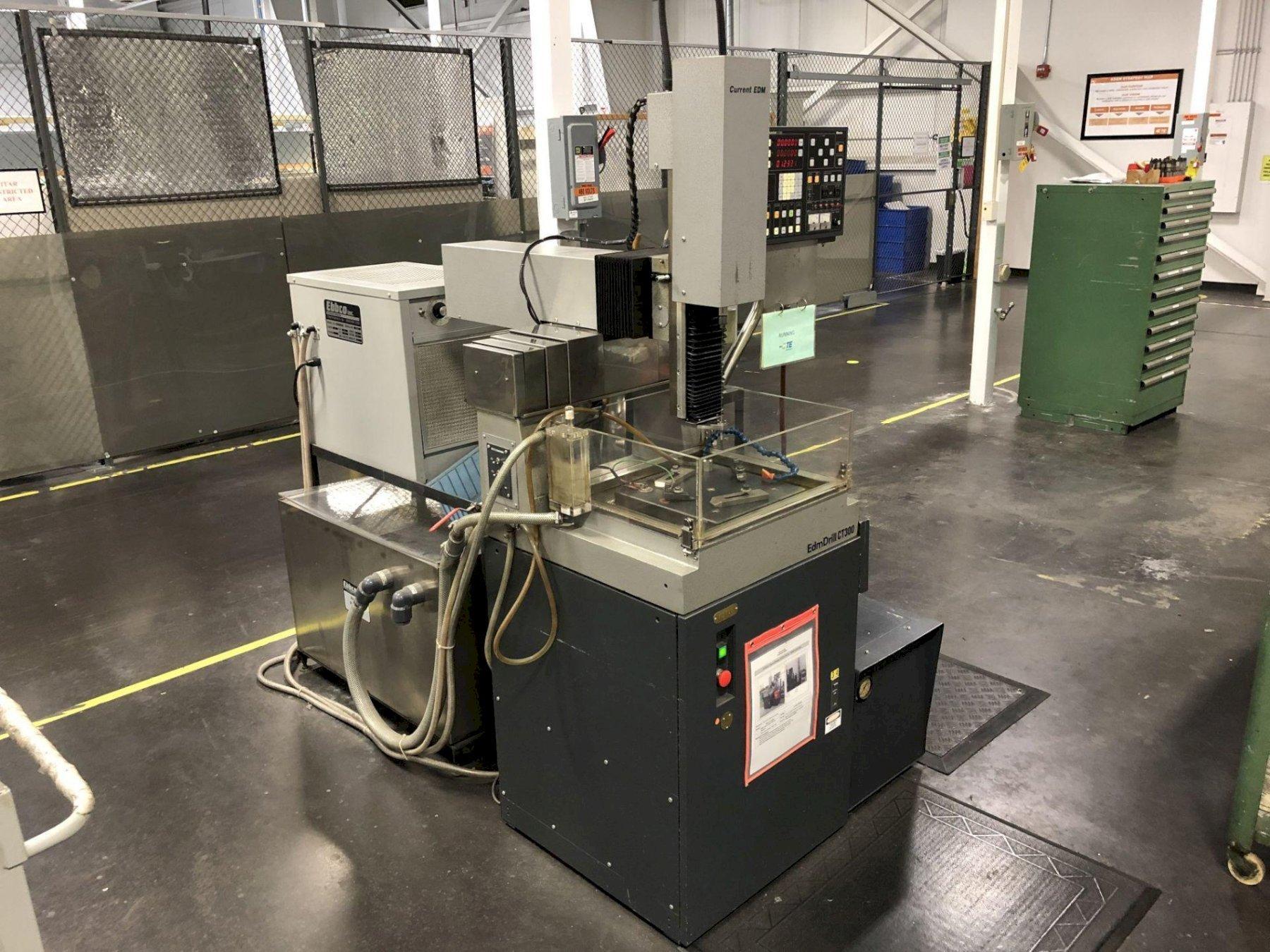

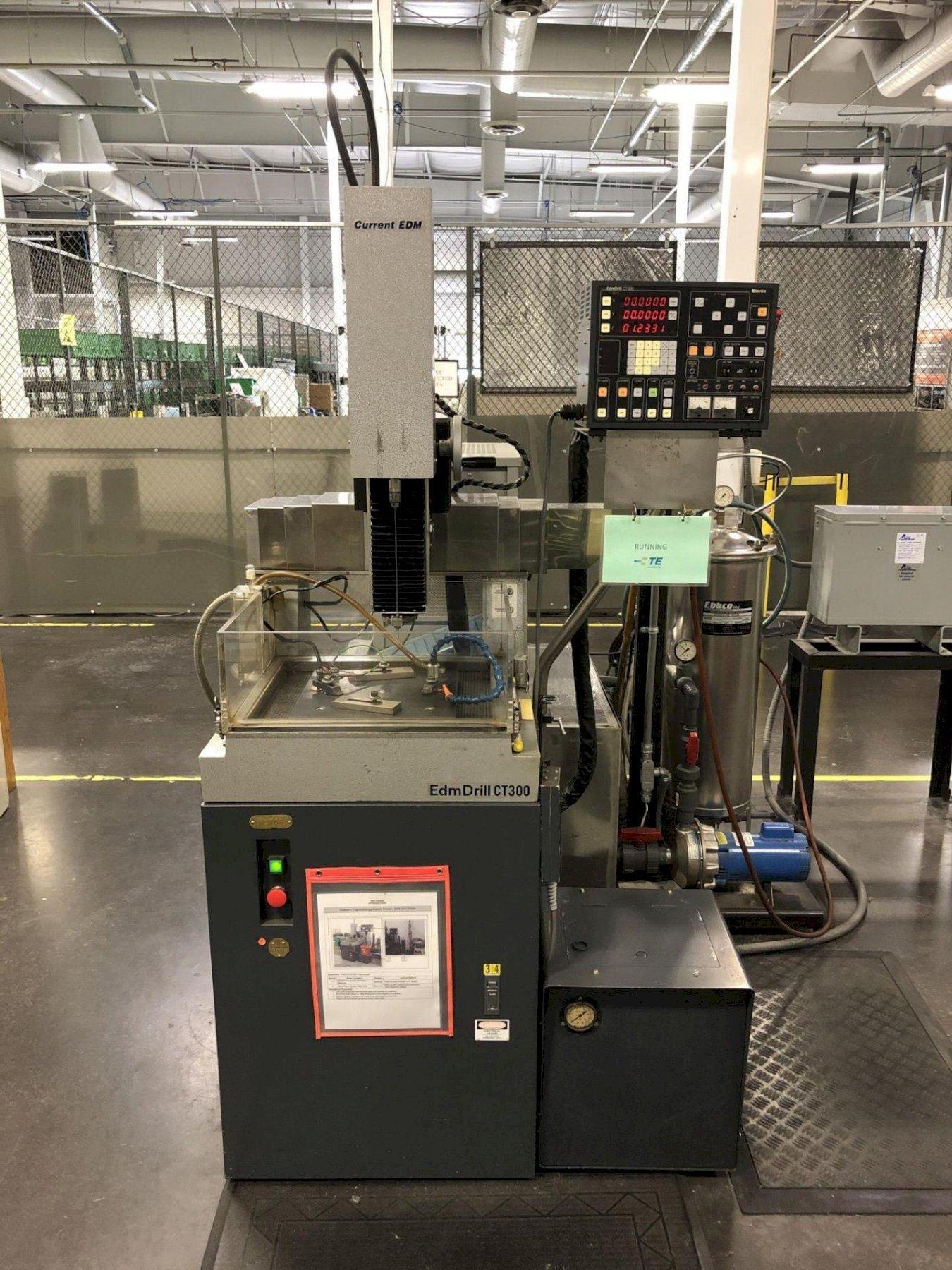

CURRENT (Made in Japan) "High Accuracy" MODEL CT300 CNC EDM Hole Driller

New 1998

X-axis travel 300 mm (12")

Y-axis travel 200 mm (8")

Z-axis travel 300 mm (12")

Guide axis travel (G-axis) 250 mm (10")

Throat distance (min) 10 mm (0.4")

Throat distance (max) 210 mm (8.3")

Work table size 300 mm x 300 mm (12" x 12")

Max workpiece weight 310 kg (682 lbs)

Feedback X/Y axis rotary encoders

Feedback Z axis encoder, direct shaft

Inch/metric display

RS232 machine input

200/230 volt three phase, 60 HZ, 3 KVA

Machine weight: (2,000 Lbs.)

Machine Features:

Single-cast, bridge construction with stainless steel head

 and precision ball screws provide years of reliable, accurate machining.

Predictable and consistent results using economical water dielectric fluid.

57 peak amp power supply effectively operates with electrode diameters

 from .004" to .256".   User friendly control programs 5-axis,

 giving you 9 coordinate systems, canned cycle routines and electrode

 wear compensation cycles for blind hole applications.

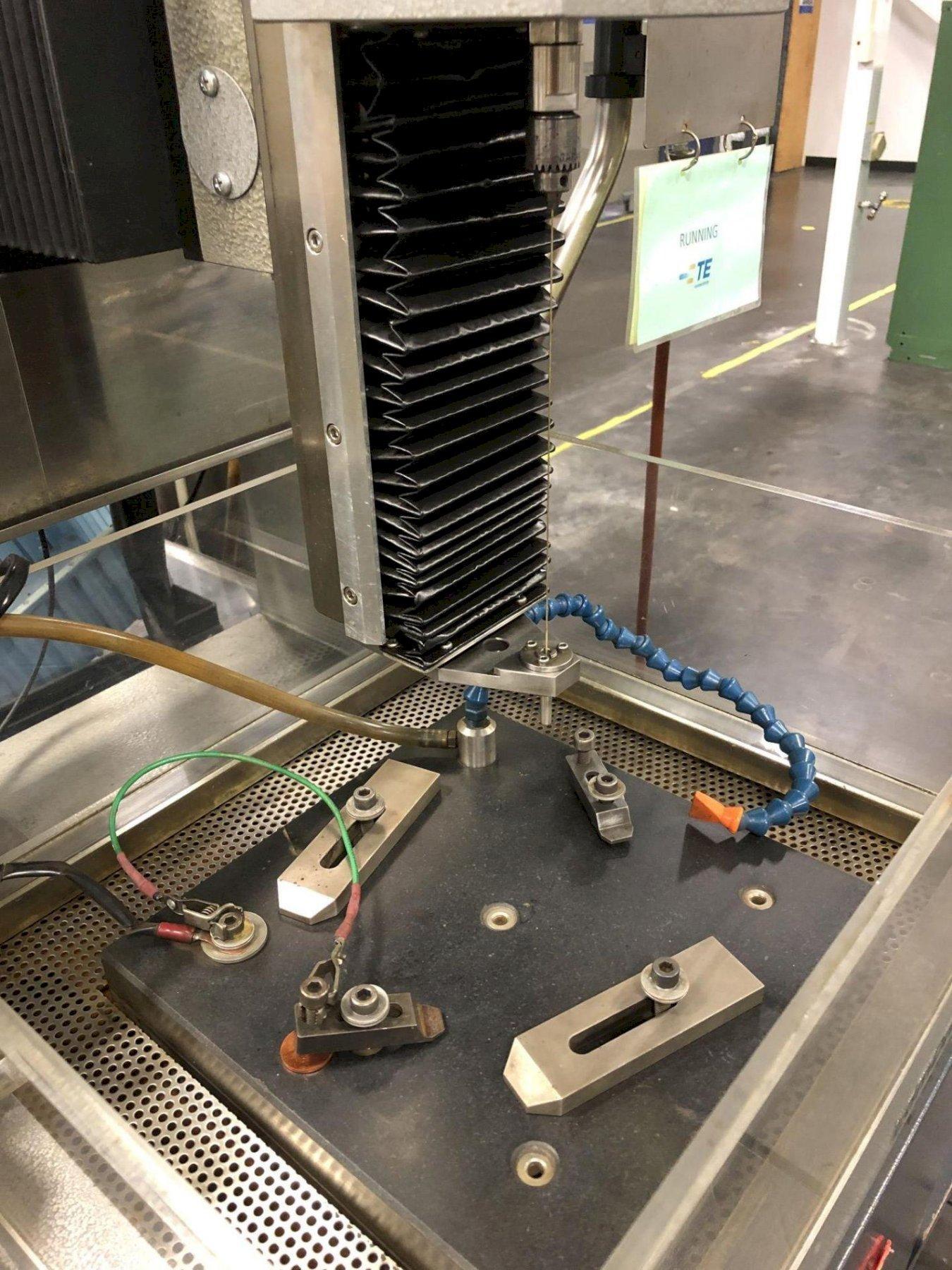

Granite Table with Tapped Insert Holes

Equipped With:

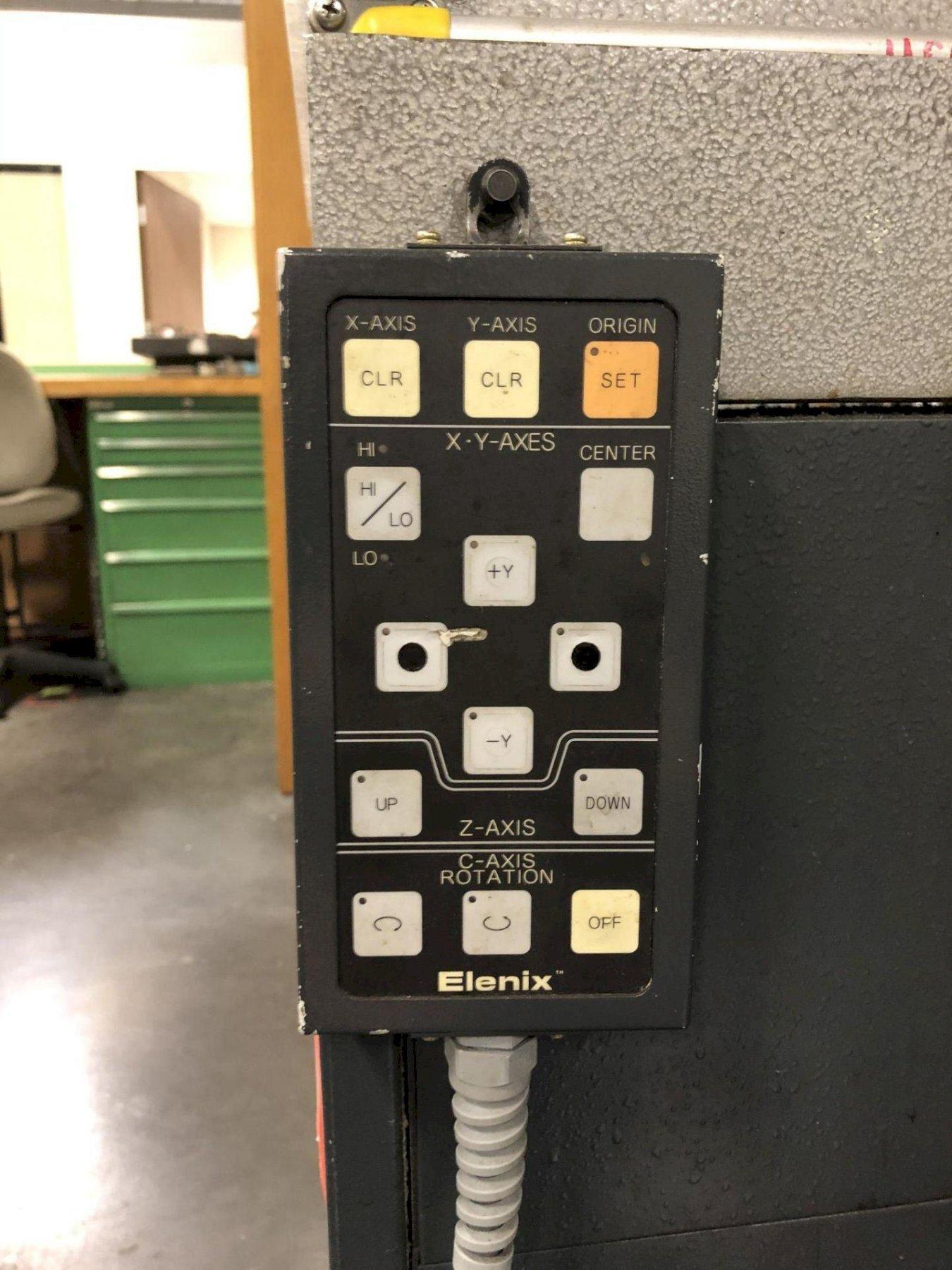

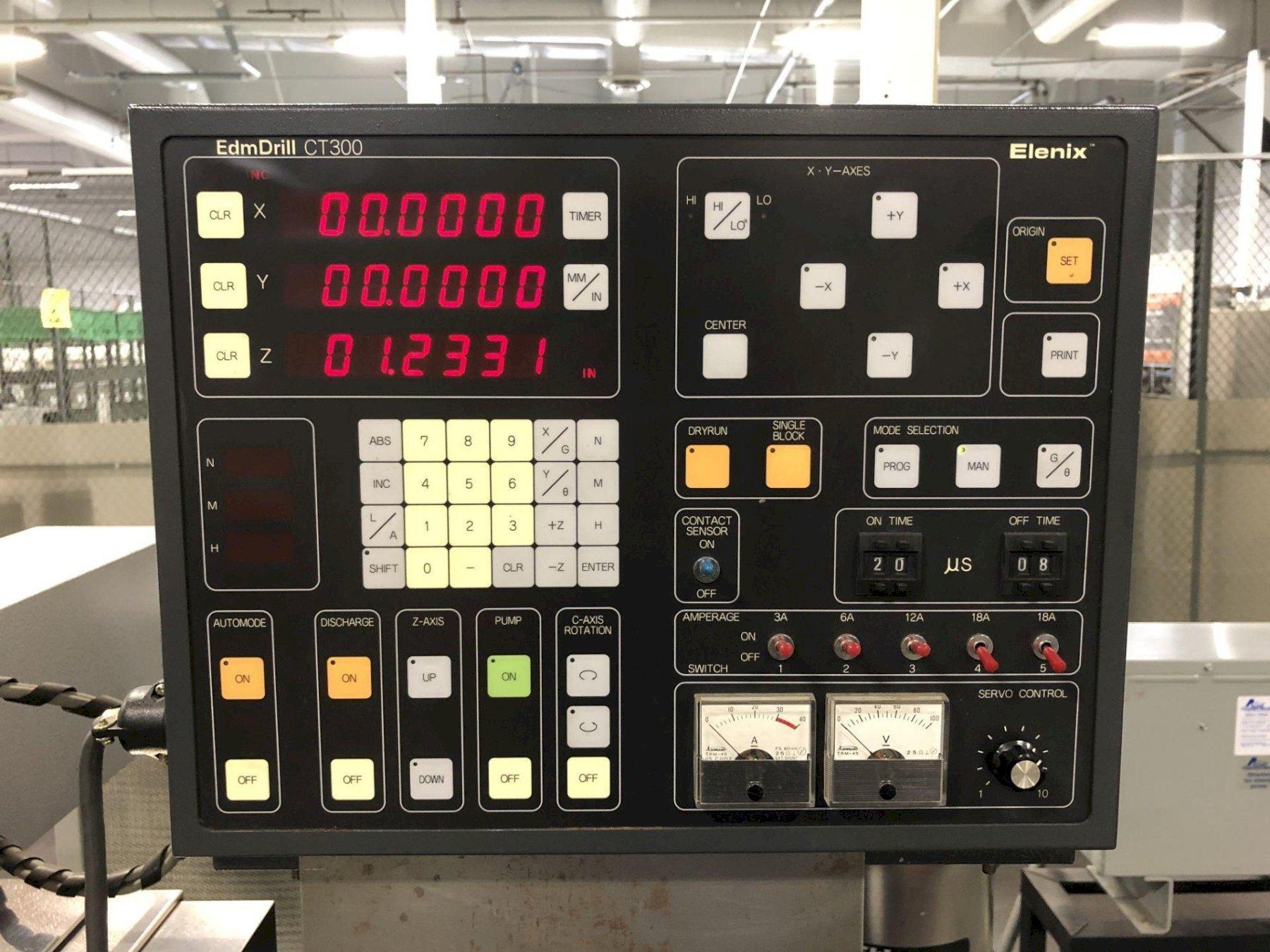

Current EDM CNC Control

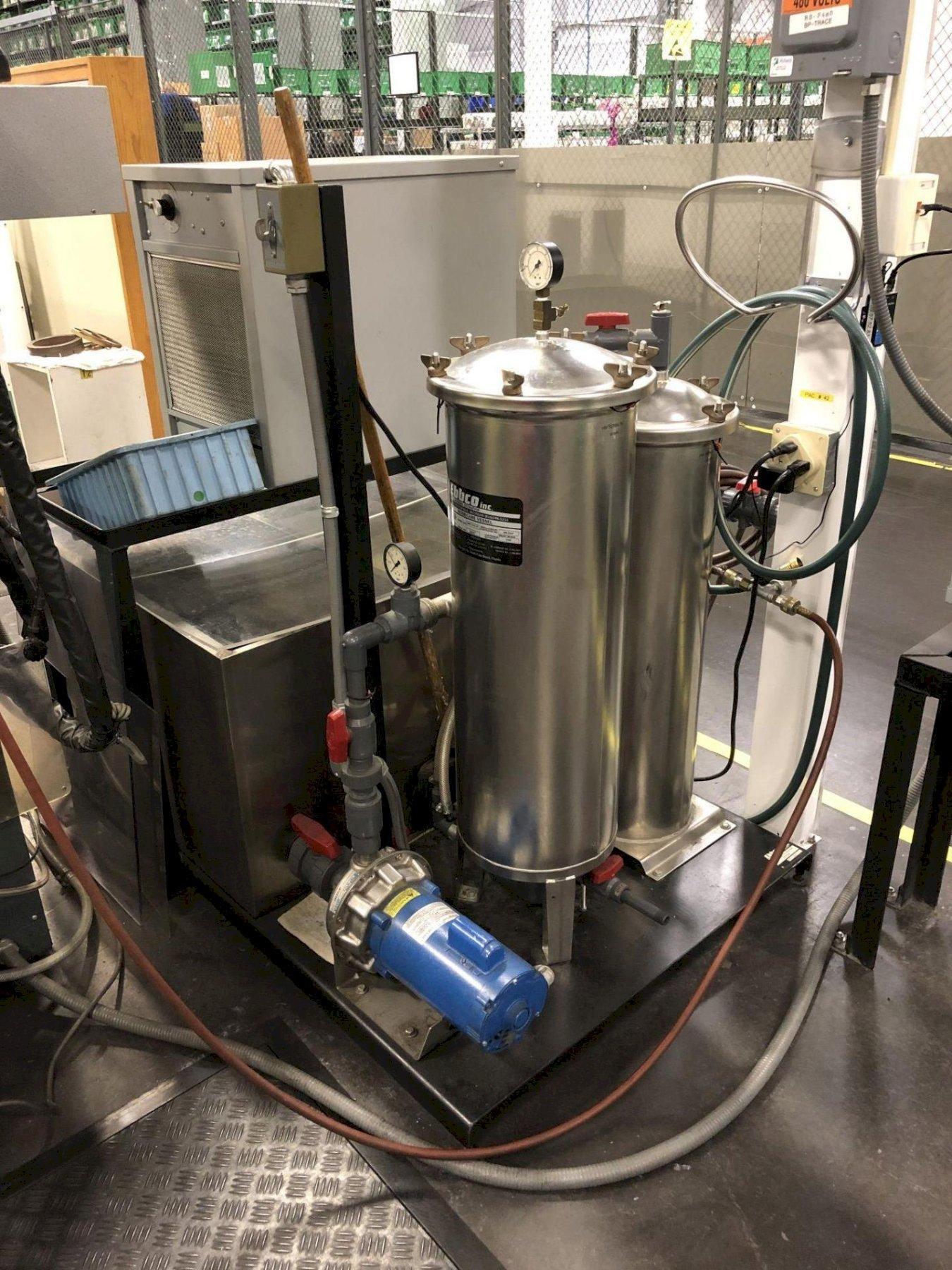

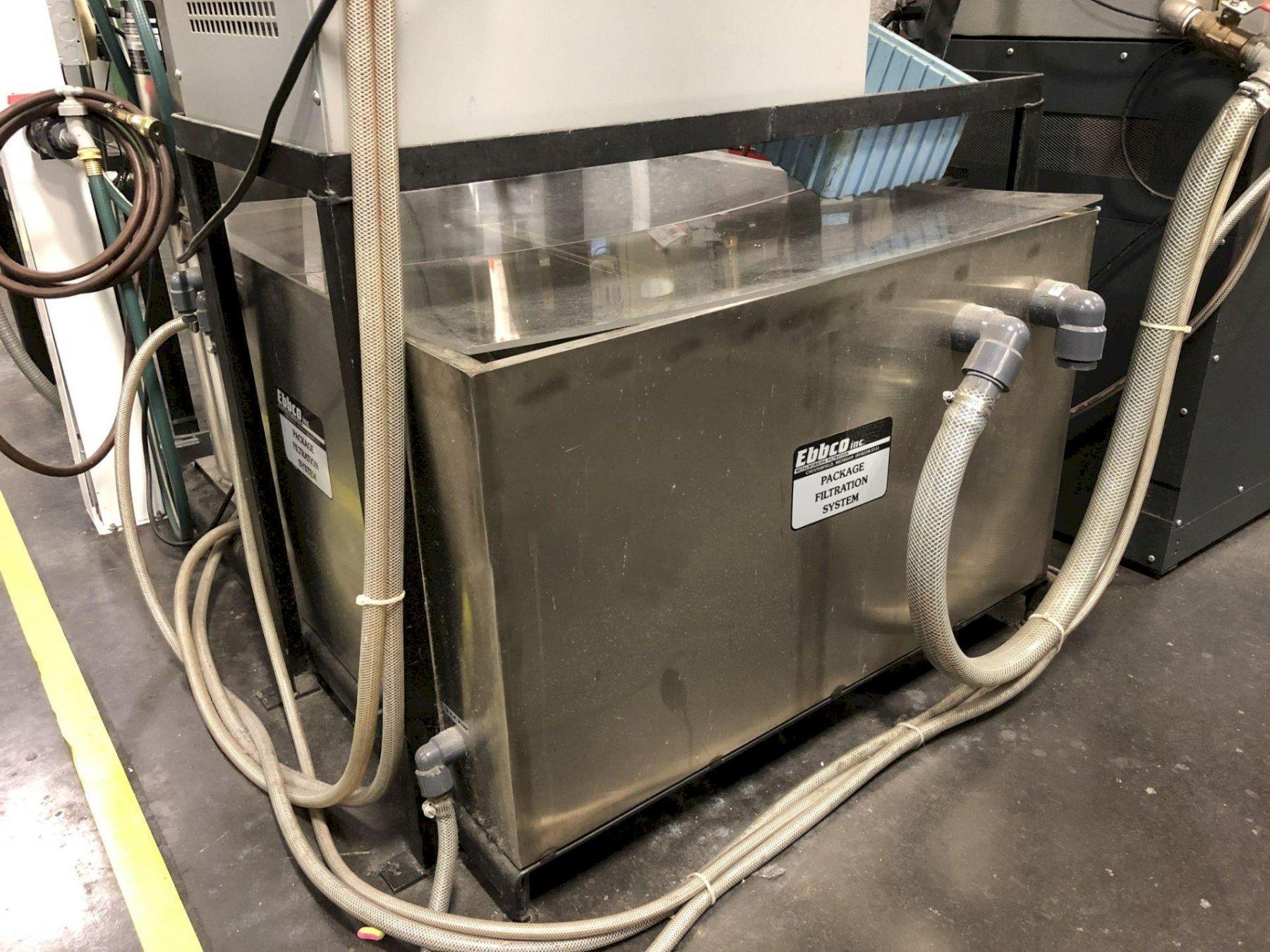

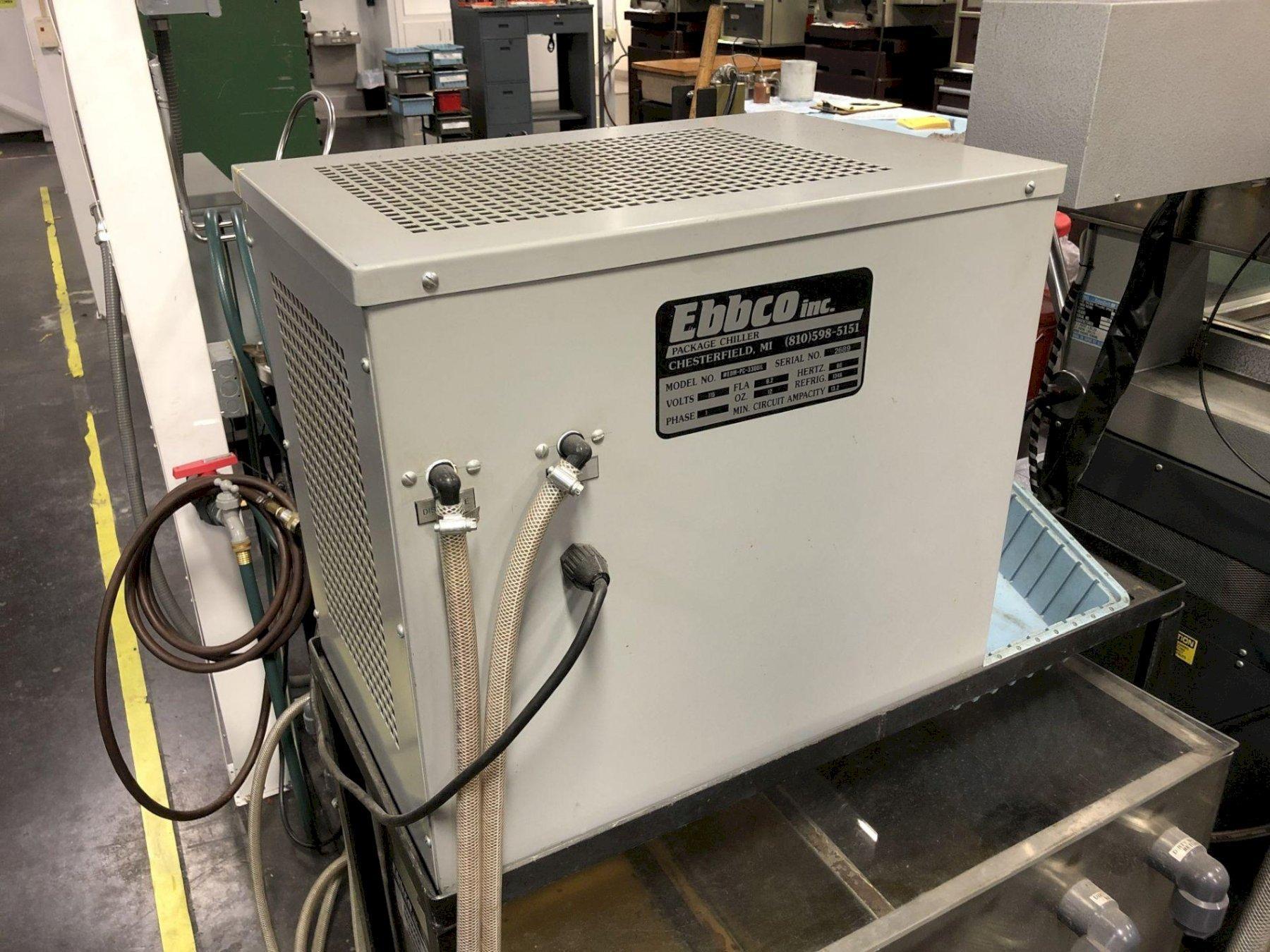

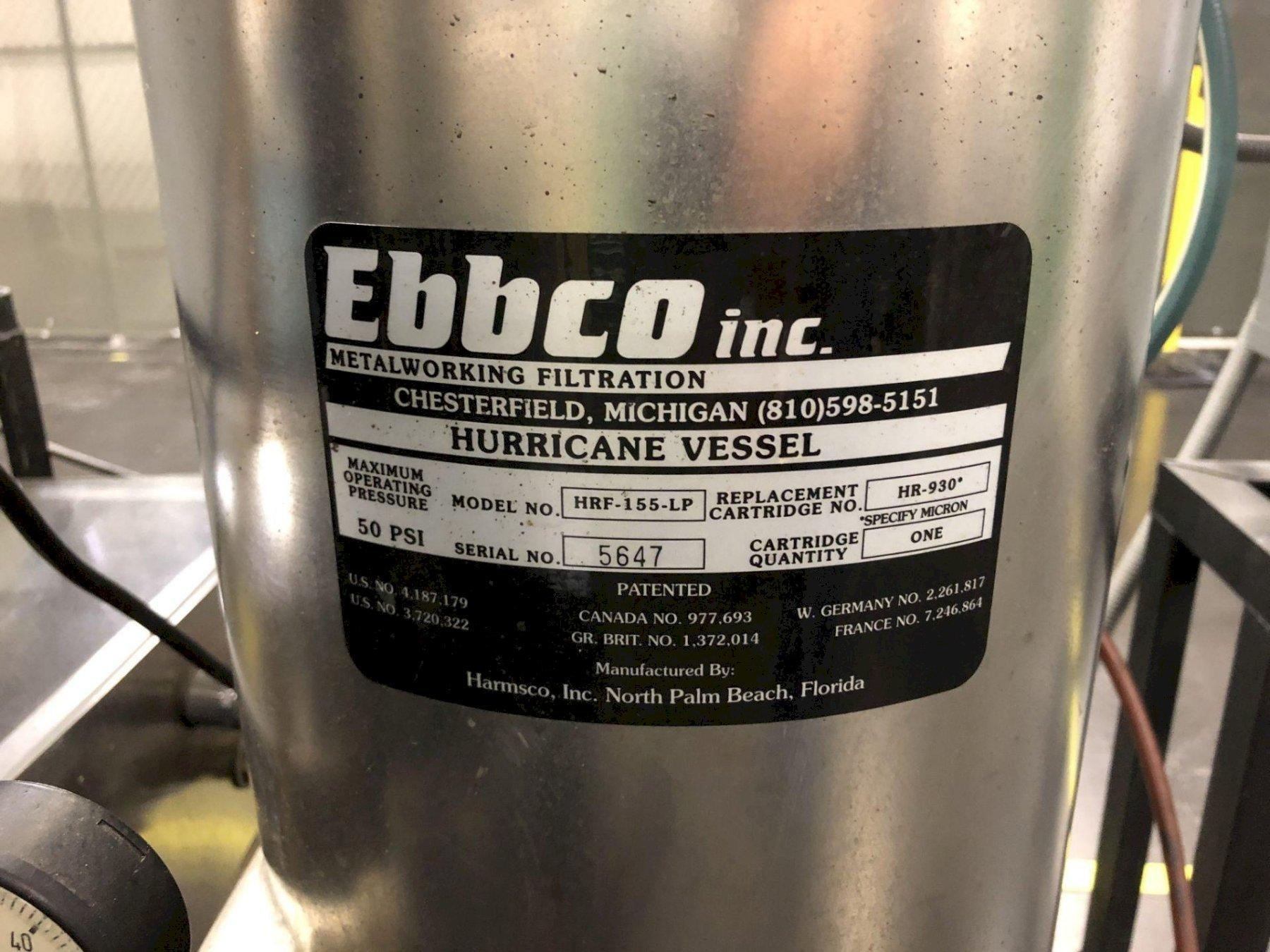

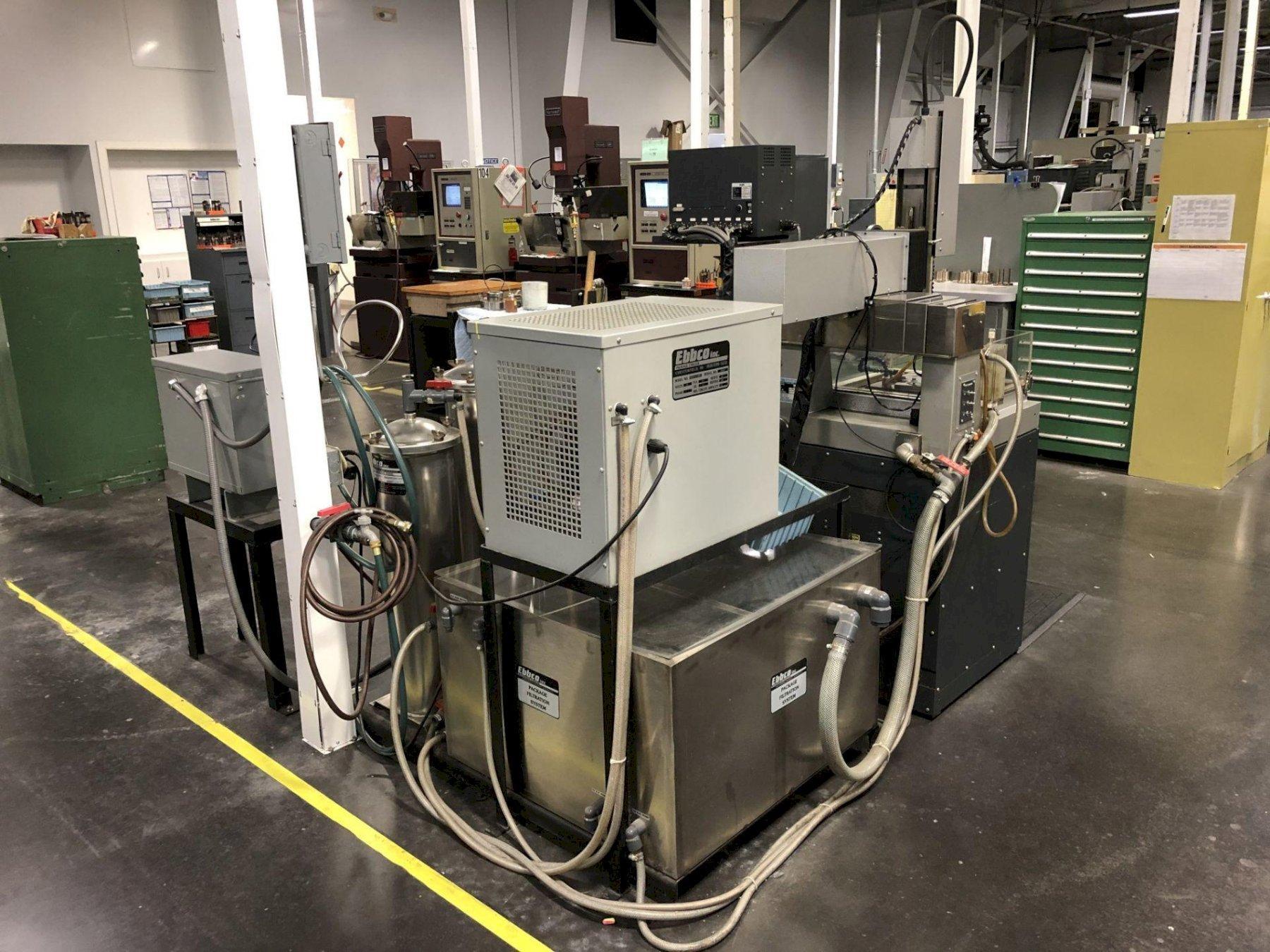

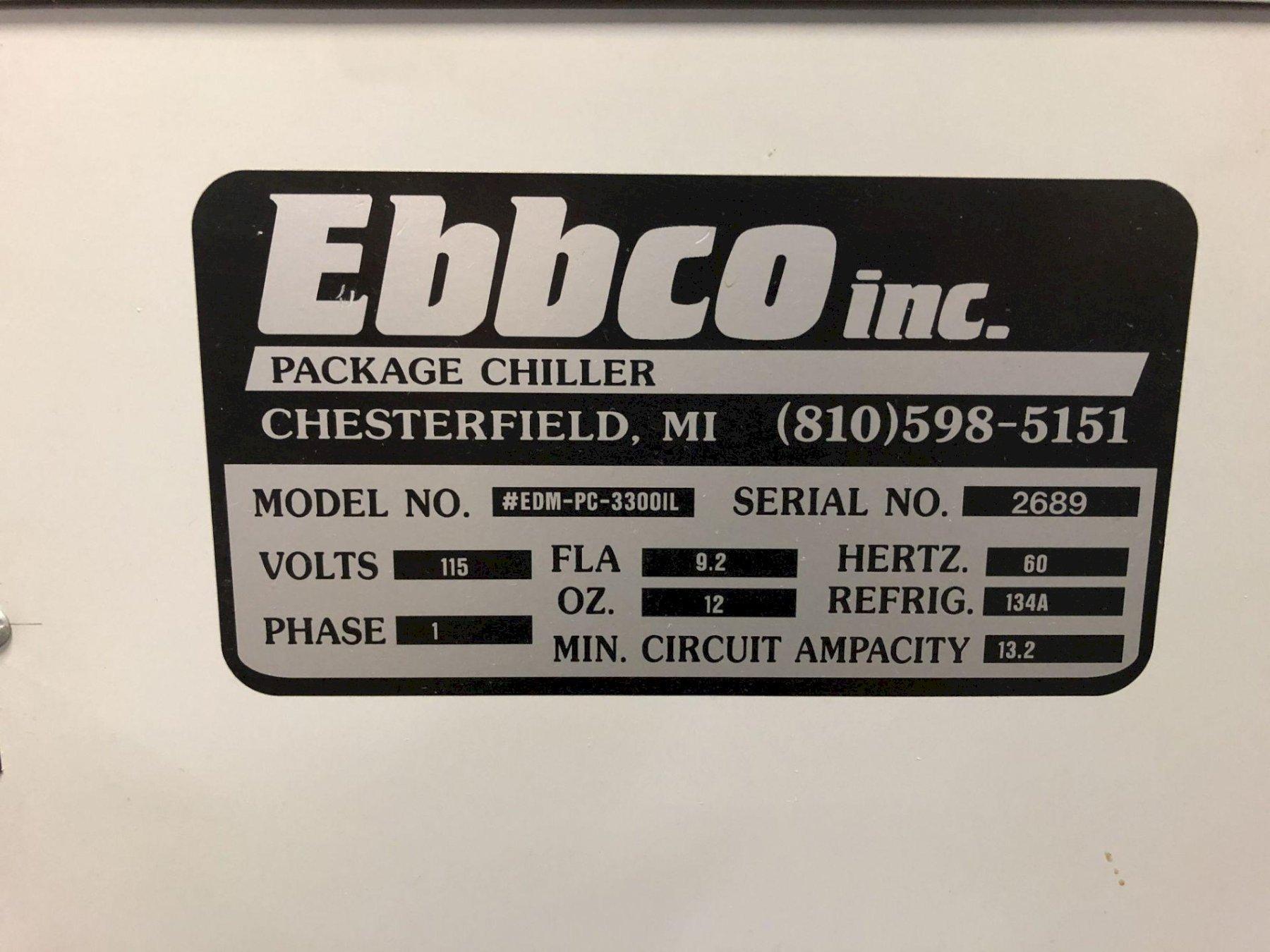

"Ebbco"  filtration system, sits behind the machine

Transformer to Allow use for 460 Volts
