Daewoo Puma 350MA CNC Lathe Turning Center with Live Milling

Manufacturer

Not provided

Model

PUMA 350MA

Year

1999

Stock #

17326

Condition

Not specified

Request A Quote

Keep Scrolling To Learn More

Specifications

Equipped With

Daewoo Puma 350MA CNC Lathe Turning Center with Live Milling
New 1999

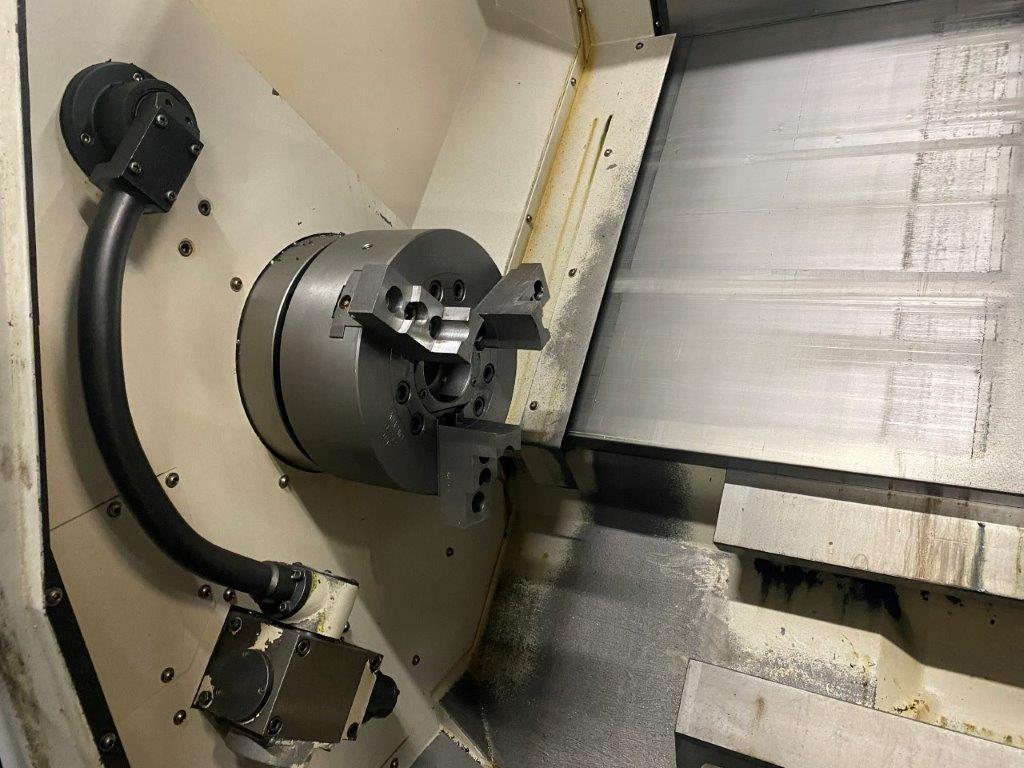

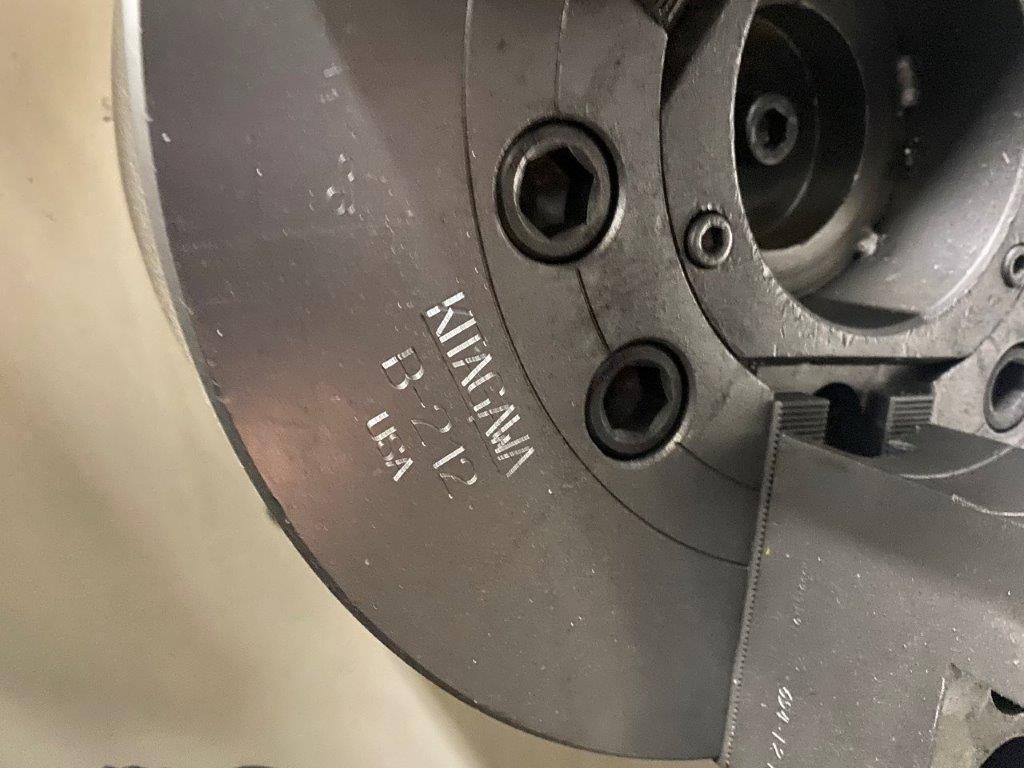

12" 3-Jaw Chuck

SPECIFICATIONS:

Max Swing Over Bed: 27.5"

Max Swng Over Saddle: 18.9"

Max Turning Diameter: 12.4 "

Max Turning Length: 41.4"

Spindle Speeds: 30 - 3000 RPM

Spindle Drive: 35 HP

Number of Steps: 2 Speed Geared

Spindle Nose: A2-8"

Max Bar Capacity: 3.58"

Hole Thru Spindle: 4.02"

Hole Thru Draw Tube: 3.85"

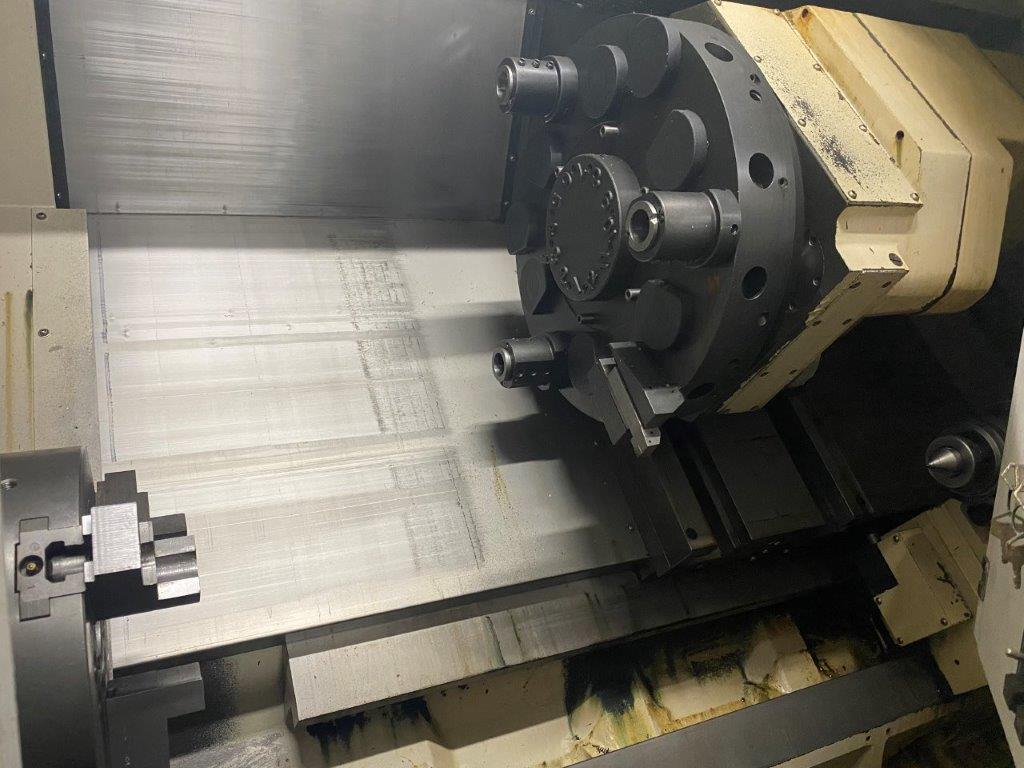

Turret Capacity: 12 Positions

Turret Travels (X,Z): 14.3" x 43.5"

Rapid Traverse Rate (X/Z): 630 / 790 IPM

Tailstock?: Yes

Tailstock Travel: 39.4"

Tailstock Quill Diameter / Taper: 4.7" / MT #5

Tailstock Quill Travel: 4.7"

Main Unit Approx Weight: 19000.00 lbs.

Main Unit Dimensions (in inches): Length: 153.00" Width: 98.00" Height: 96.00"

Components:

Chip Conveyor: Length: 144.00" Width: 48.00" Height: 64.00

Attachments

There are no files attached to this listing currently. If you Have any further questions regarding this listing, please contact us for more information.
