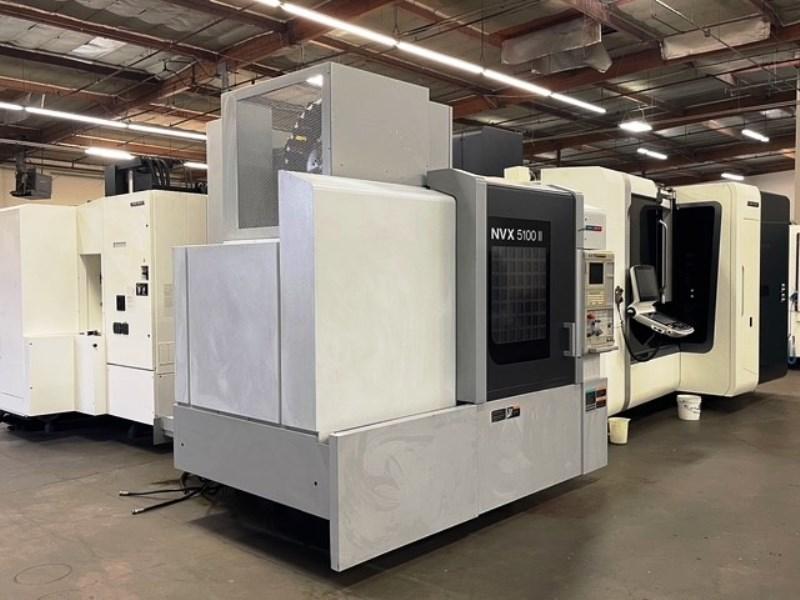

DMG MORI NVX-5100 II/40  VERTICAL MACHINING CENTER WITH 4th and 5th AXIS ROTARY TABLE

New 2013

SPECIFICATIONS:
Travel (XYZ)                                                41.3” x 20.9” x 20.1”
Spindle Nose to Table Top                       5.9” – 26”
Table To Floor Distance                           35.4”
Working Surface                                       53.1” x 23.6”
Table Load Capacity                                 2,640 lbs
Max. Spindle Speed                                  13,000 RPM
Spindle Taper                                            40
Rapid Traverse Rates XYZ Axes              1181.1 IPM
Spindle Drive Motor                                20/15 HP

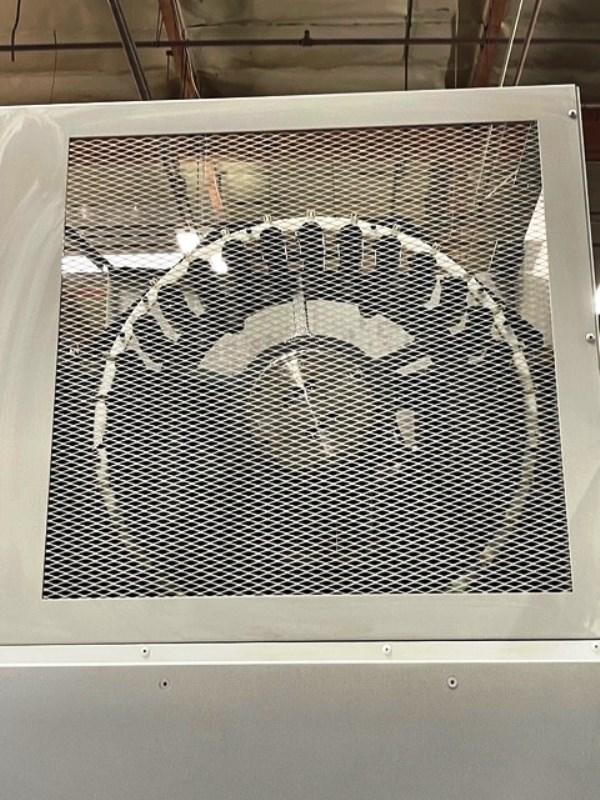

Tool Storage                                              30

EQUIPPED WITH:

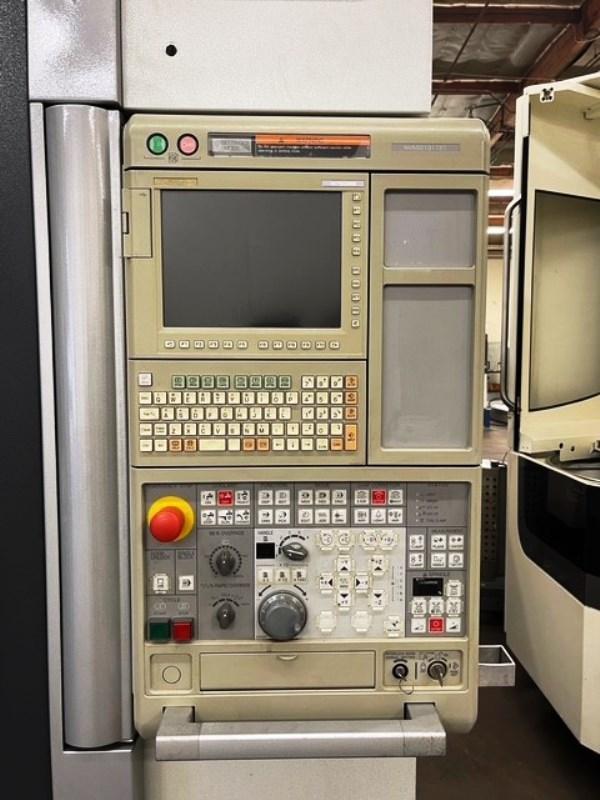

Mori Seiki M750BM Control

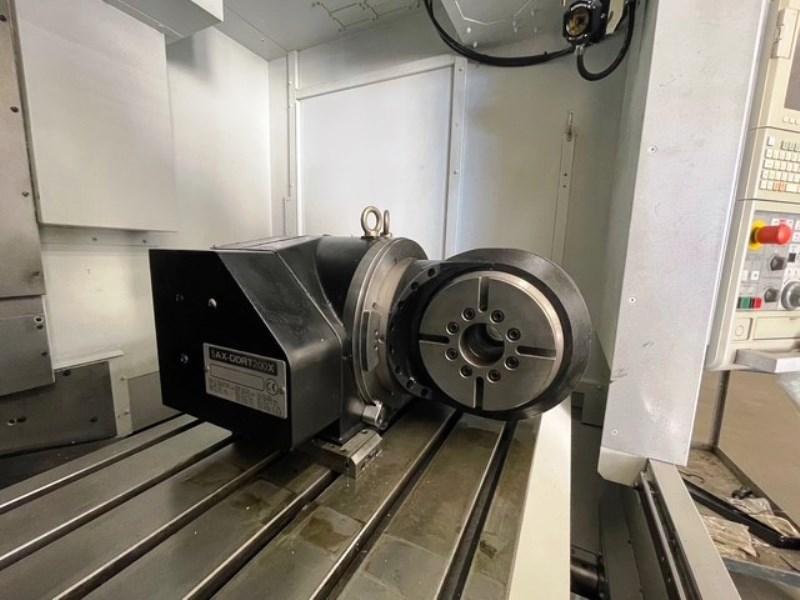

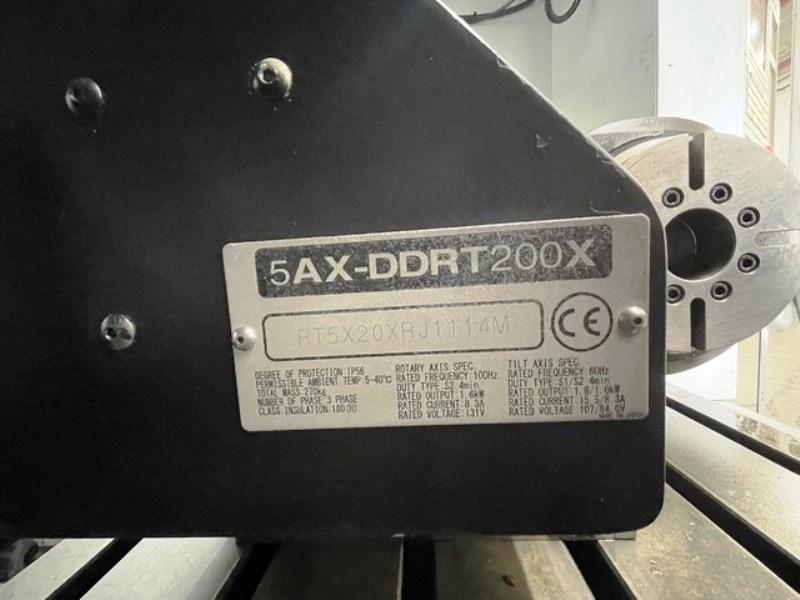

5AX-DDRT-200X 4TH and 5th Axis Rotary Table
DMG MORI Power Probe 60 (RENISHAW)

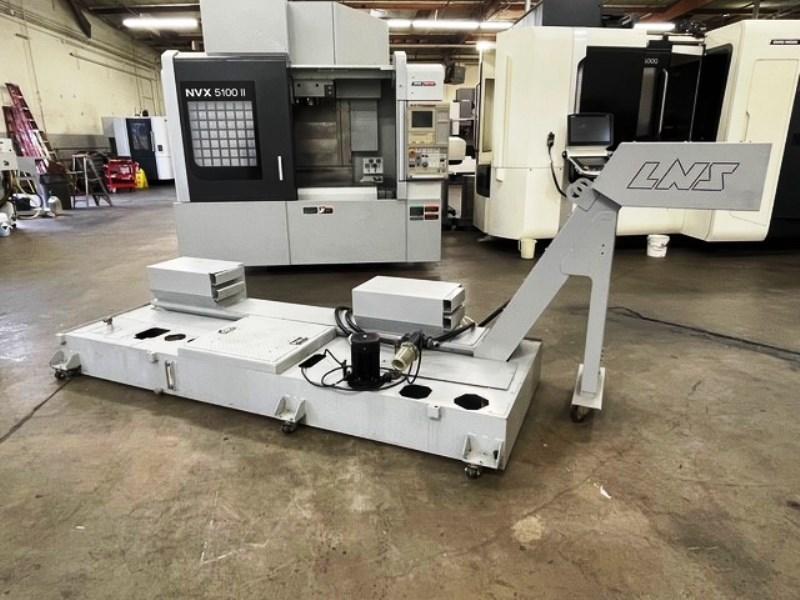

LNS Chip Conveyor / Coolant Tank
All Available Manuals
