Equipped With

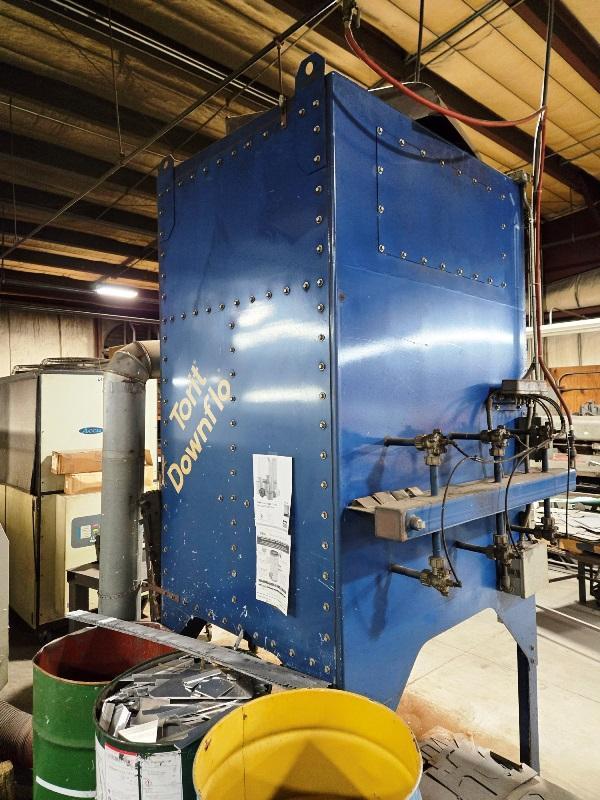

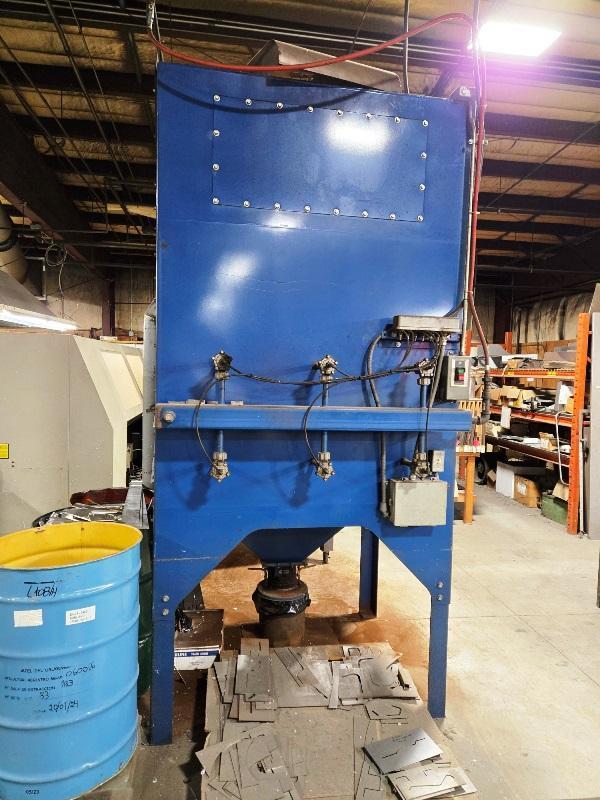

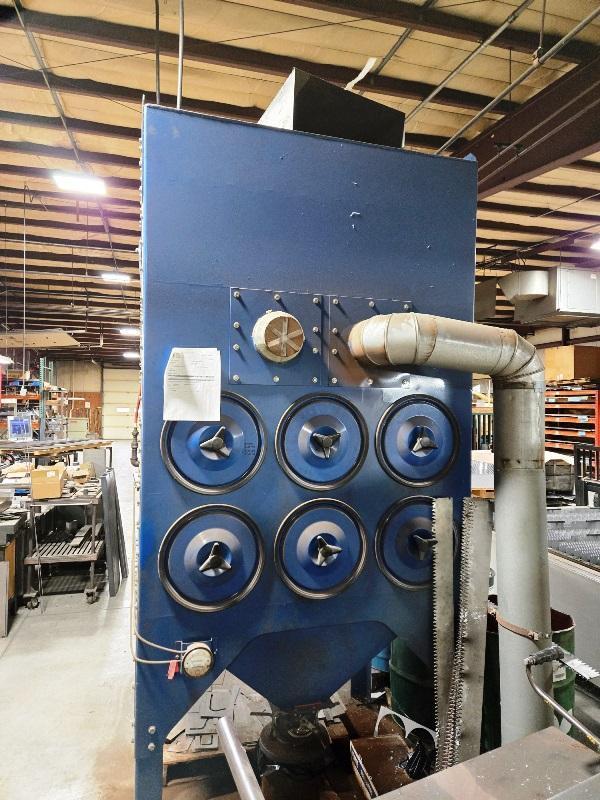

DONALDSON TORIT MODEL 2DF6 DOWNFLOW DUST COLLECTOR

EQUIPPED WITH:
(6) Filters, 7.5 HP Fan Motor, 2800 Max CFM, 22"x 22"" Inlet Area, 8" Blast Gate, Heavy Duty Steel Construction, Misc. New Filters

SPECIFICATIONS:
Air Flow........................................................... 2800 CFM
Blower Motor................................................... 7.5 HP
Inlet Area.........................................................22" x 22"
Blast Gate....................................................... 8" OD
Electrics ..........................................................230/3/60
Approximate Machine Dimensions................. 60" x 60"
Approximate Machine Height......................... 132"
Approximate Machine Weight........................ 2,500 LBS
