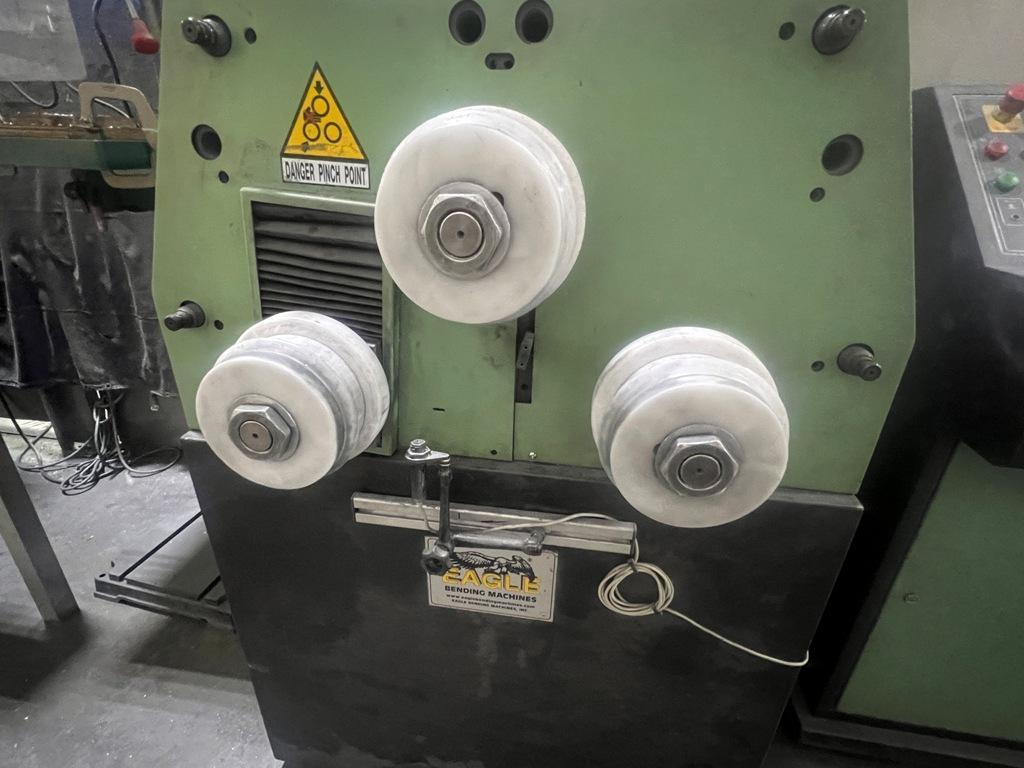

EAGLE BA50 cnc 2-1/4" PROGRAMMABLE 3-ROLL DRIVEN ANGLE ROLL BENDER

New 2017

Standard Features:

BA series roll benders produce parts in one pass using the hydraulic powered lower bending roll which moves upward toward the top roll to create the desired radius. This initial pinch design maintains in-feed material stock parallel to the shop floor for reduced material handling and enhanced safety. Machines can be used in automatic, semi-automatic or in manual mode. All are 3 rolls driven

Create programs easily using multiple methods via the HMI Graphic Interface. Input part length, radius, bend degree, arc length or other information and the CNC automatically creates the program. The machine calculates and interpolates blends and variable radius bends. Eagle’s Mirror Image and Repeat Shape programming features can further reduce programming time by over 75%. All movements are variable speed via digital interfaces and drivers

Machines use high precision MOOG Servo-Valves in a closed feedback loop for immediate response with variable speed micrometric movements. USB and RS232 Ports add flexibility with peripherals and information storage

Units are also standard with, air-oil heat exchangers to maintain contact oil temperature for higher precision rolling, vertical/horizontal operation, materials library, self-diagnostic software, industrial dust and moisture proof color LCD HMI screen, automatic timed energy saving sleep mode, integrated internal hydraulic unit, PC and PLC, pre-loaded programs such as arches, parabolas, spirals, ovals can be quickly modified to match your shape to further reduce programming time, short shafts to accept dedicated optional tooling will eliminate shaft tip interference common to most all other machine brands, and other versatile, leading edge technology and benefits

BA Series machines offer the highest repeat precision available in an affordable package designed for high volume production environment. Safety features include 24 VAC Low Voltage Controls, Dual E-Stop Palm Buttons, Flush Electrical Panels, Mobile Operator Console with trailing lead, “Anti-Pinch” Mill Scale Covers, and Large Format Pushbuttons and Touch Screen LCD Monitors

Flat Bar, Hard Way:                                           2 3/4″ x 1/2″, 20″ Min. Diameter

Flat Bar, Easy Way:                                          4″ x 5/8″, 14″ Min. Diameter

Solid Square:                                                   1 1/2″, 24″ Min. Diameter

Angle, Leg-Out:                                                 2 1/4″ x 1/4″, 30″ Min. Diameter

Angle, Leg-In:                                                   2 1/4″ x 1/4″, 38″ Min. Diameter

Channel, Leg-Out:                                             3 3/4″, 26″ Min. Diameter

Channel, Leg-In:                                              3 3/4″, 30″ Min. Diameter

Solid Round:                                                    1 1/2″, 24″ Min. Diameter

Round Pipe:                                                     2″, 36″ Min. Diameter

Round Tube:                                                     2 1/2″ x 10 Gauge, 34″ Min. Diameter

Square Tubing:                                                  2 1/4″ x 1/8″, 50″ Min. Diameter

Driven Rolls:                                                      3

Rolling Speed:                                                   16 FPM

Bending Adjustment:                                           Hydraulic

Working Plane:                                                  Vertical/Horizontal

Repeat Control:                                                   Auto Repeat
\
Approximate Dimensions                                   33″ x 44″ x 49″ H

Approximate Weight                                       1,650 Lbs.
