EAGLE MODEL CPS-20-REV VARIABLE SPEED UNIVERSAL VERTICAL/HORIZONTAL ANGLE BENDING MACHINE

New 2021

EQUIPPED WITH:
Hydraulic Adjust,
3- Drive Rolls
Programmable LED w/DP7 Touch Screen Auto-Repeat Controls
Operate in both Horizontal and Vertical Planes

·       Rugged steel frame, normalized, produced on CNC machining centers

·       High strength steel shafts, heat treated journaled in roller bearings

·       Oil bath speed reducer and TEFC bi-directional electric motor

·       Hydraulic powered forming roll moving on adjustable hardened slide-ways

·       Hydraulic power unit, overload relief and non-return valves

·       Dual lateral material guides, four way adjustable and heavily dimensioned.

·       Universal rolls, hardened high-grade tool steel, 15 components + calibrating  shims

·       Flush Mount Electrical Cabinet, space saving and safe

·       Low voltage controls 24Vac, warning indicator lamps and cast steel foot pedals

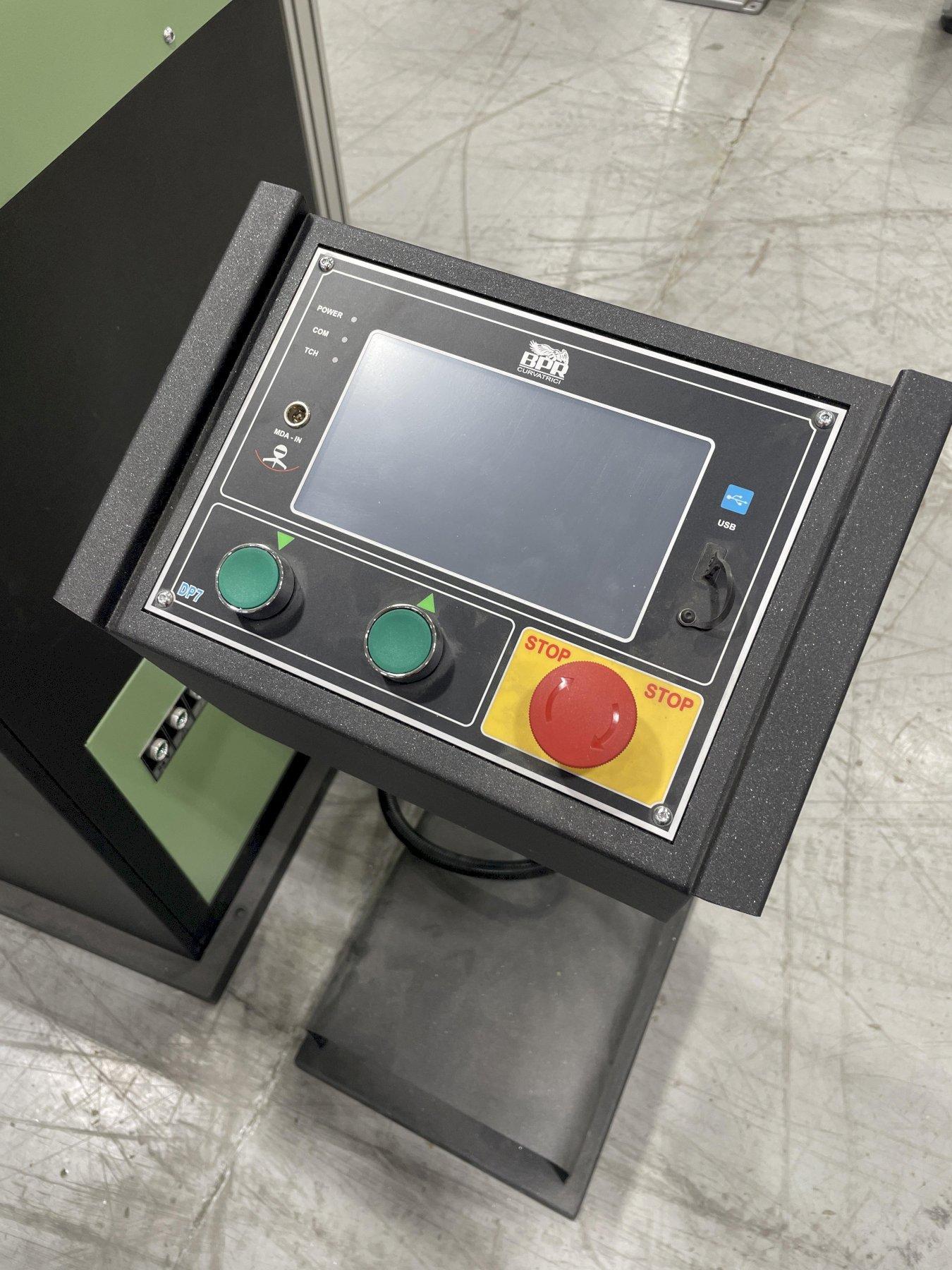

·       Detached mobile console with DP7 400 position touch screen Single Axis Programmable Control with on board calculator and direct radius input capability when used with our Optional digital radius instrument. Machine is complete with Dual Emergency Stops (1 on the operator console + 1 machine mounted).

·       Siemens brand motor controls and thermal overload reset warning lamp





SPECIFICATIONS:
Shaft Diameters                                           3/4"
Roll Diameters                                             3-1/4" Nominal
Drive Motor                                                 0.50 HP
Pump Motor                                                0.50 HP
Working Height                                           38"
Driving Rolls                                                3
Forming Roll Adjust                                     Hydraulic
Approximate Dimentions                            32" x 55" x 60" H
Approximate Weight                                   350 Lbs.
