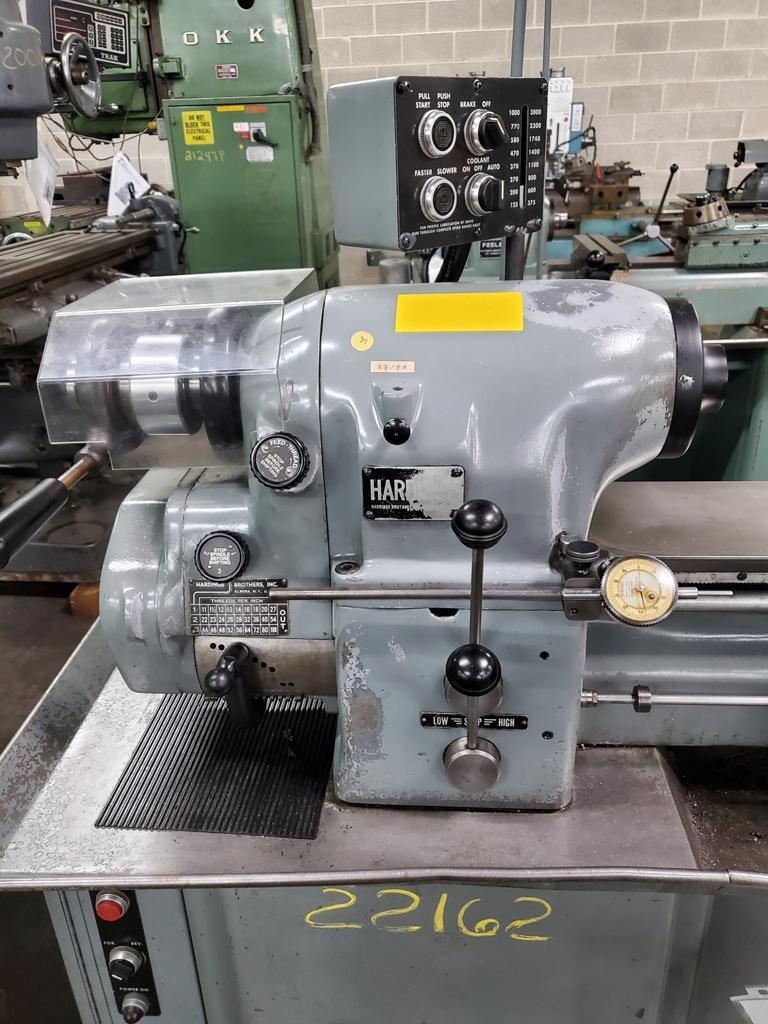

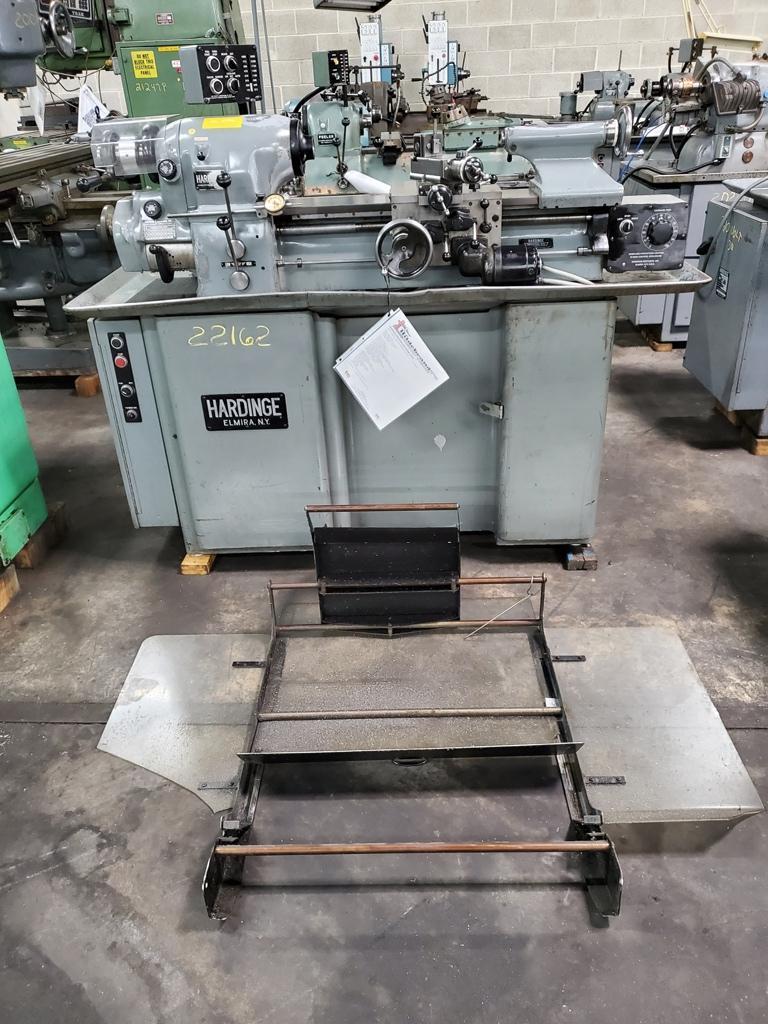

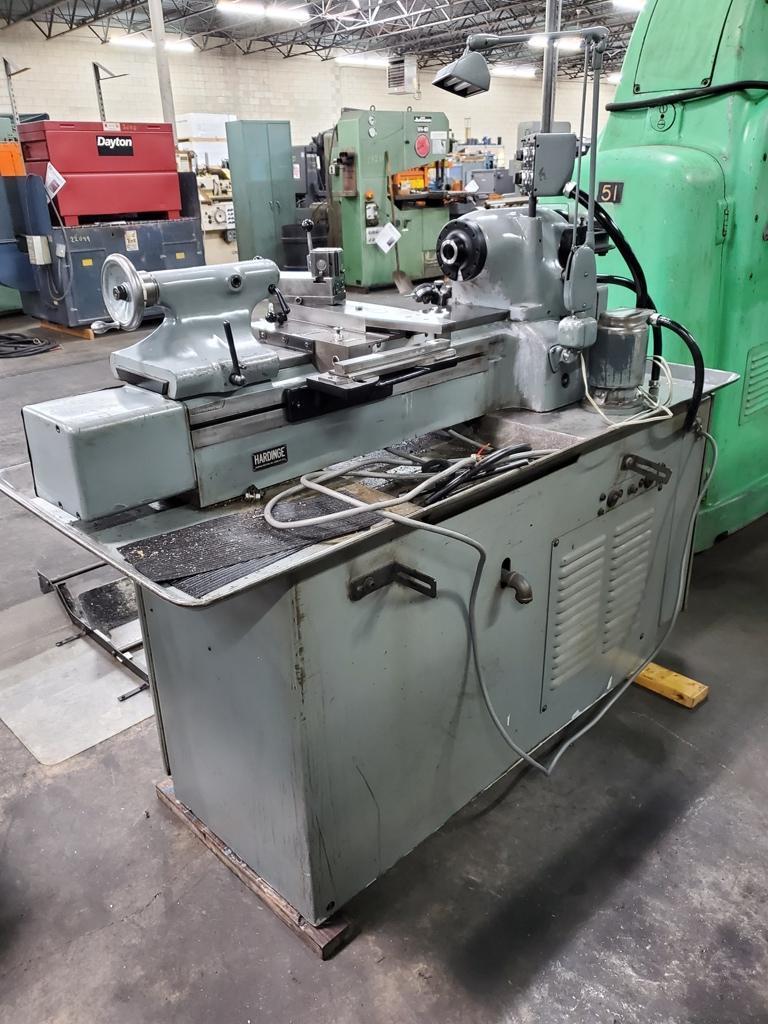

HARDINGE MODEL HLV-H PRECISION TOOL ROOM LATHE

New 1971

SPECIFICATIONS:

Swing Over Bed:  11"

Swing Over Carriage:  9"
Swing Over Cross Slide  6"

Distance Between Centers:  18"

Hole Thru Spindle:  1-1/4"

Spindle Speeds:  125 to 3,000 RPM, Variable

Spindle Nose:  External Hardinge Taper, 5C Internal Taper

Compound Slide Travel:  3"

Cross Slide Travel:  5-1/2"

Feed Range:  1/4 to 7 IPM, Variable

Collet Capacity:  1-1/16" Diameter, Round

Tailstock Quill Taper:  #2 Morse

Tailstock Quill Travel:  3-3/4"

(27) Threads:  11 to 108 TPI

EQUIPPED WITH:

FIMS Quick Change Tool Post

Assorted FIMS Quick Change Holders

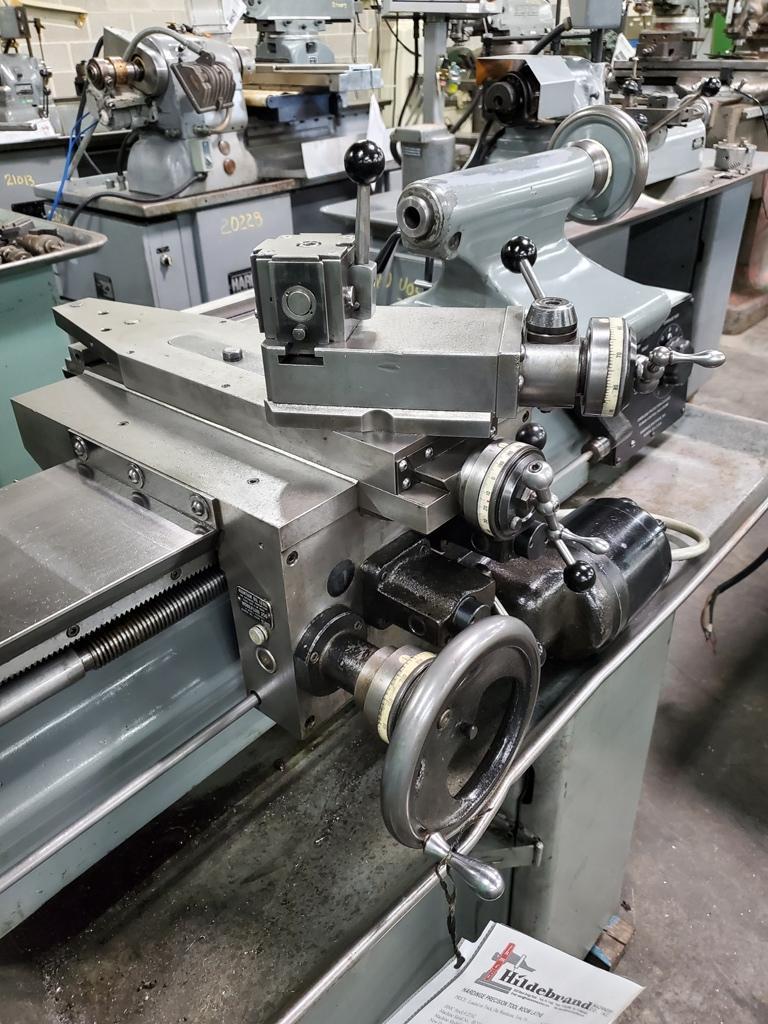

Taper Attachment

Follower Rest

Standard Hardinge Gear Banjo

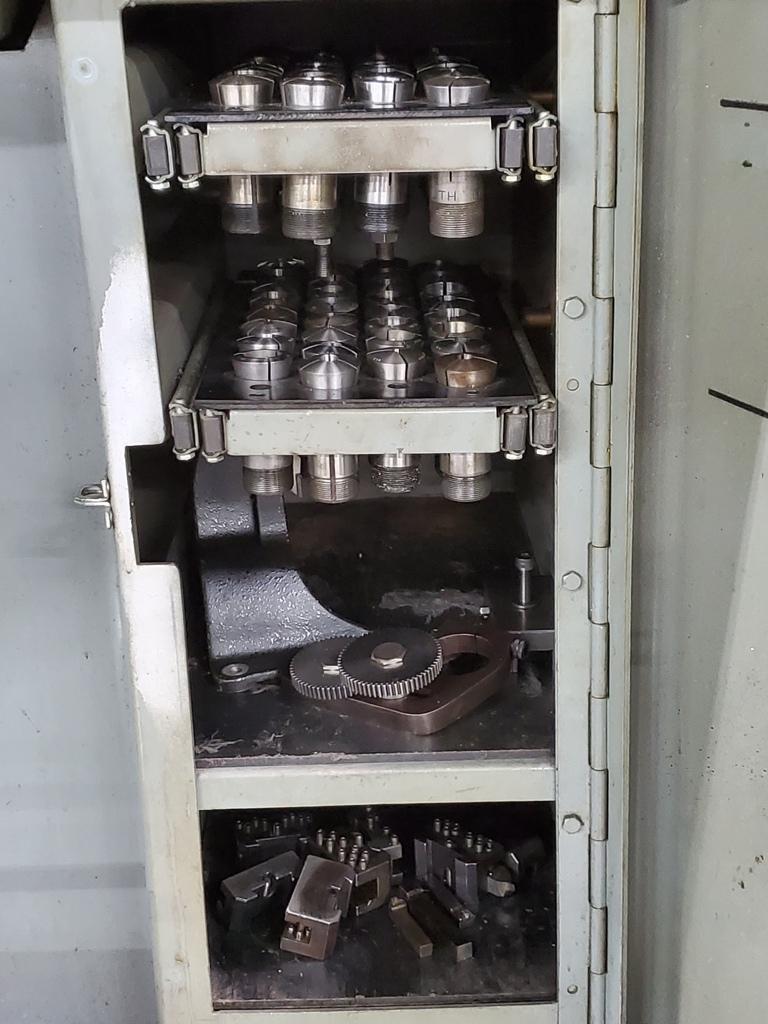

Assorted Hardinge 5C Collets

Rear Splash Guard

Work Light

Coolant Pump

1.5 HP Motor

Wired for 3 Phase, 60 Cycle, 220 Volts

Overall Size:  72" L-R x 30" F-B x 64" H x 1,875 Lbs.
