Year
1997
Stock #
16949
Condition
Good
Keep Scrolling To Learn More

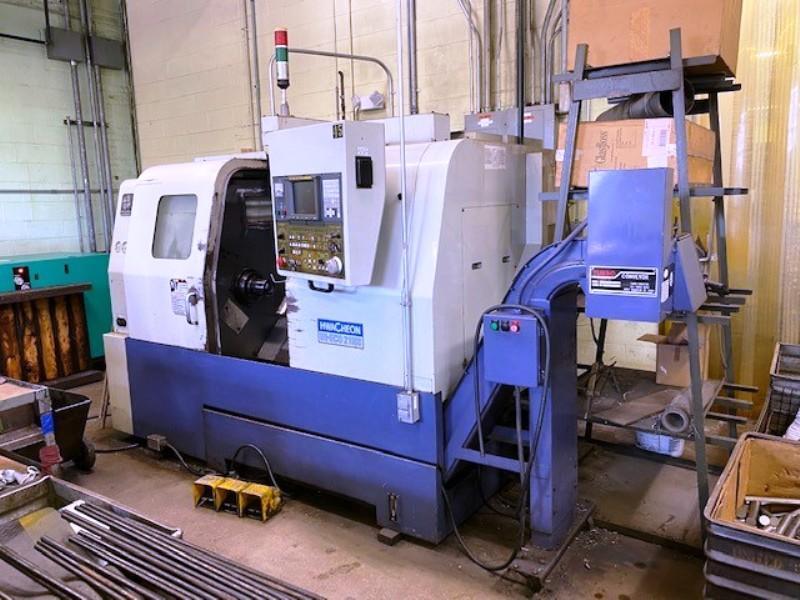

HWACHEON HI-ECO 21HS CNC TURNING CENTER
New 1997
Motor Driven with 15 HP, 3-Phase, 60 Cycle, AC Spindle Motor and Controls

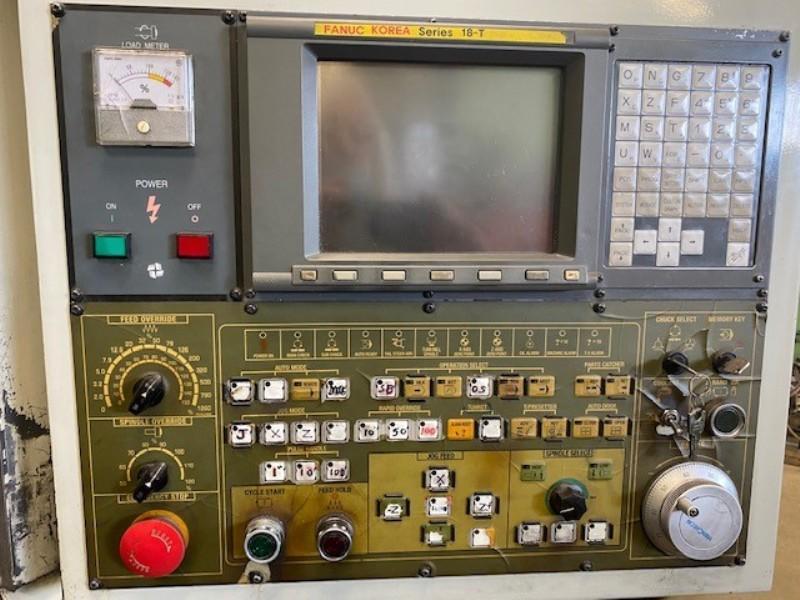

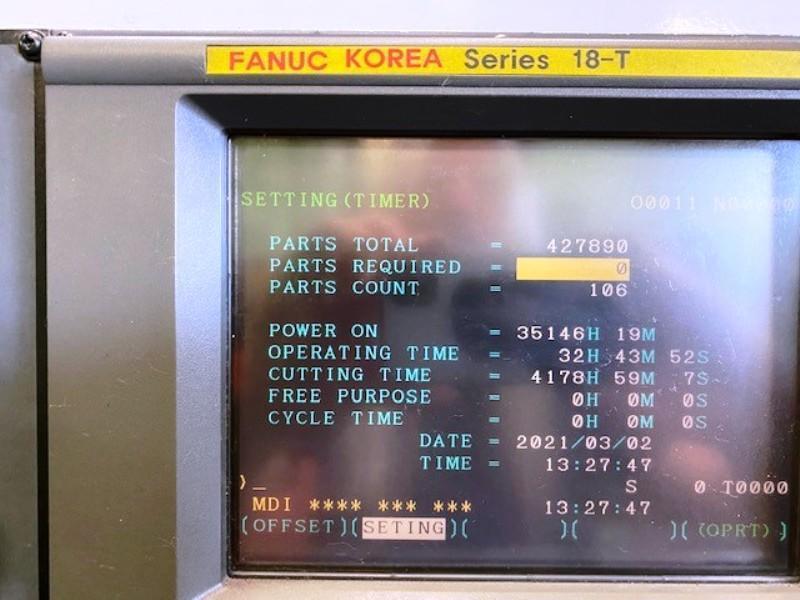

EQUIPPED WITH: Fanuc 18T CNC Controls, Collet Chuck, Programmable Tailstock, Coolant, MD Chip Conveyor
SPECIFICATIONS;
Max. Swing 22.83"
Max. Turning Diameter 11.02"
Max. Turning Length 15.74"
Travels
X - Axis 6.61"
Z - Axis 17.32"
Spindle Bore 2.4"
Max. Bar Capacity 2"
Spindle Nose A2-6
Spindle Speeds 40 - 4,000 RPM
Rapid Traverse X - Axis 1181 IPM
Rapid Traverse Z - Axis 1181 IPM

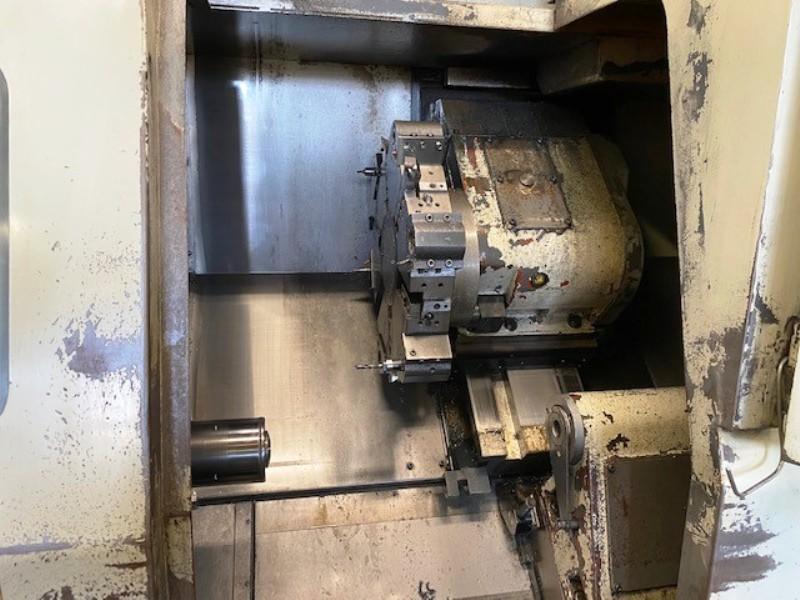

Number of Turret Positions 12
Tailstock Quill Stroke 3.93"
Tailstock Quill Diameter 3.14"
Tailstock Quill Taper 4 MT
Approximate Dimensions 101"L x 61"W x 74"H
Approximate Weight 8,900 Lbs.
There are no files attached to this listing currently. If you Have any further questions regarding this listing, please contact us for more information.
