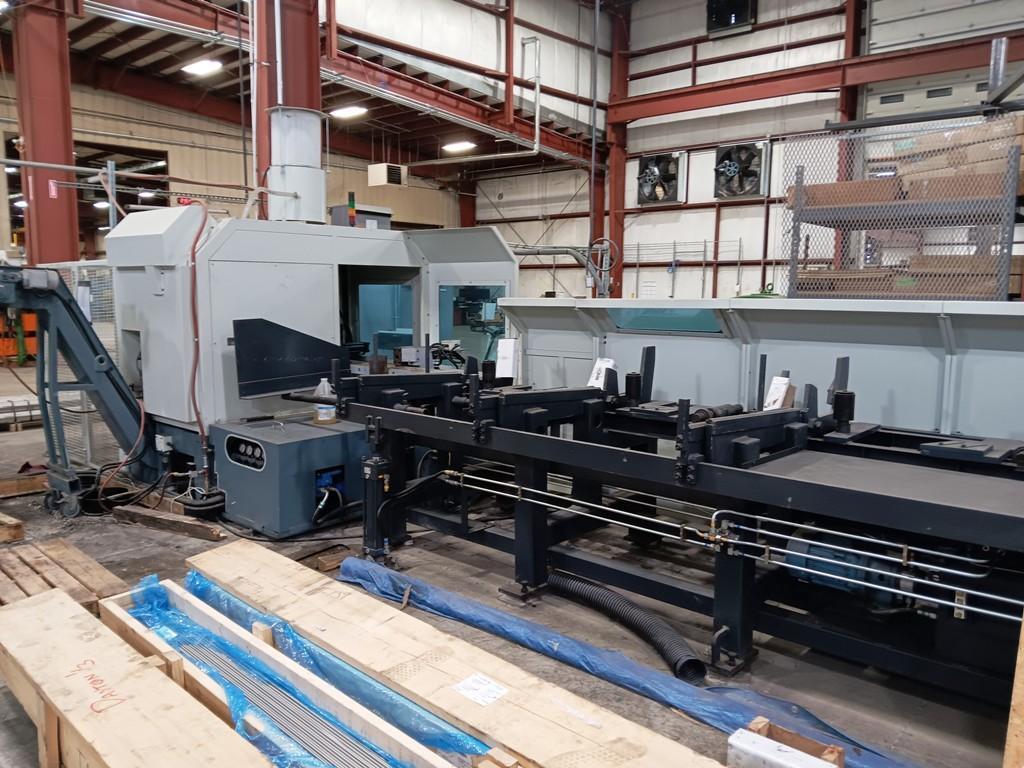

HYD-MECH CSNC-175 HIGH SPEED CNC CARBIDE CIRCULAR SAW

New 2019

Motor Driven with 40 HP, 3-Phase, 60 Cycle AC Motor & Controls, 3HP/5HP Hydraulic Drive Motor

EQUIPPED WITH:
Mitsubishi PLC Controller allowing for 200 Programs to be saved
Job Monitoring with Cycle Time, Job Duration, Parts Count and AMP Load Setting to Protect Saw Blade
Material Library with US Steel Grades Menu with the Ability to Add Custom Material Grades
Bar Feed with Roller Bed with Material Gripper Feed Carriage Indexing via Ball Screw and AC Servo Drive.
Shuttle Speed 7.87" Per Second
Mist Exhaust System
Universal Ball Loader
PLC Controlled Automatic Oil Lubrication System
Chip Conveyor
Large Quantity of Brand New Saw Blades

SPECIFICATIONS:
Capacity                                                           90 Degrees
Round                                                              1.96" - 7"/50-175 mm
Sauare                                                              1.96" - 7"/50-130 mm
Blade Size (Carbide/Cermet Tipped                 260 mm x 2.5 mm Body
Blade Speed                                                     45 - 165 MPM
Min. Cut Off Length                                          0.8"
Rement Length                                                  3.15:/80 MM + Cut Length + Cutter Thickness
Bar Stoch Length                                              10' to 20'
Cutting Axis                                                       20 Degree Slant Type
Programmable Trim Cut                                    0.8"  to 3.9"
Multi Index Single Stroke                                  39"
Approximate Dimensions                                  146" x 102" x 83" High
Approximate Weight                                          12,100 Lbs.
