Equipped With

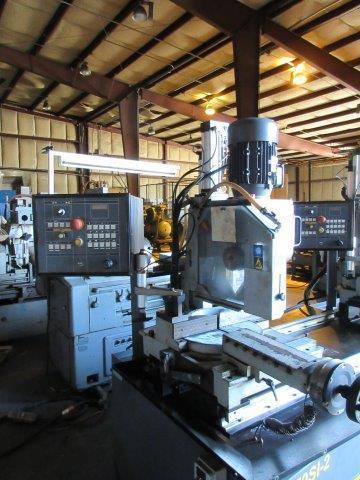

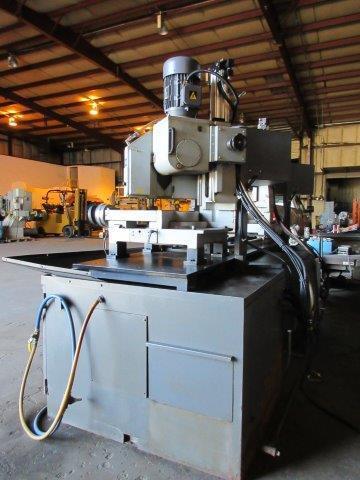

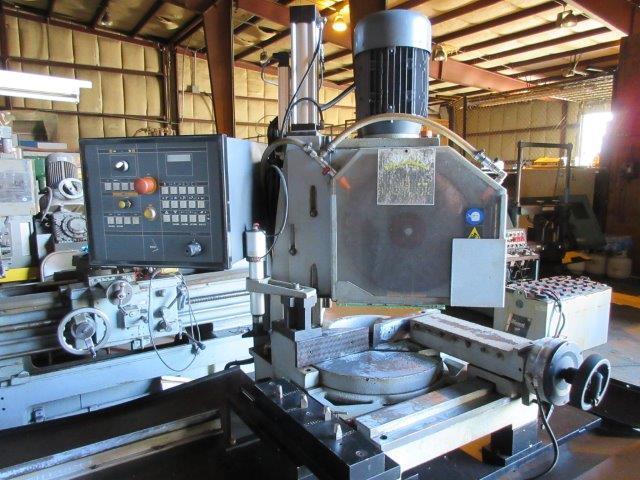

HYD-MECH MODEL C370-2SI 2 HEAD SEMI-AUTOMATIC COLD SAW

NEW 2008

SPECIFICATIONS:

             ROUND   SQUARE RECTANGULAR     ROUND  SQUARE RECTANGULAR

 CAPACITY    HOLLOW  HOLLOW HOLLOW L X H    SOLID  SOLID  SOLID L X H

 90 DEG      4-3/4"  4-1/3" 7" X 3-3/4"     4-1/2" 4"     7 X 3-3/4"

 45 DEG L&R  4-1/2"  4-1/3" 4-3/4" X 3-3/4" 2-3/4" 2-1/2" 2-3/4" X 3-3/4"

 60" LEFT    4-1/2"  3-1/2" 3-1/2" X 3-3/4" 2"     2"     2" X 3-3/4"

 BLADE: MAX 14.5", MIN 12"

 BLADE SPEED: 15-150 RPM

 MAX DISTANCE BETWEEN HEADS: 62"

 BLADE DRIVE: 7.5 HP

 COOLANT SYSTEM

 480 VOLT / 3 PHASE

 Weight, Approximate: 1408 Lbs.
