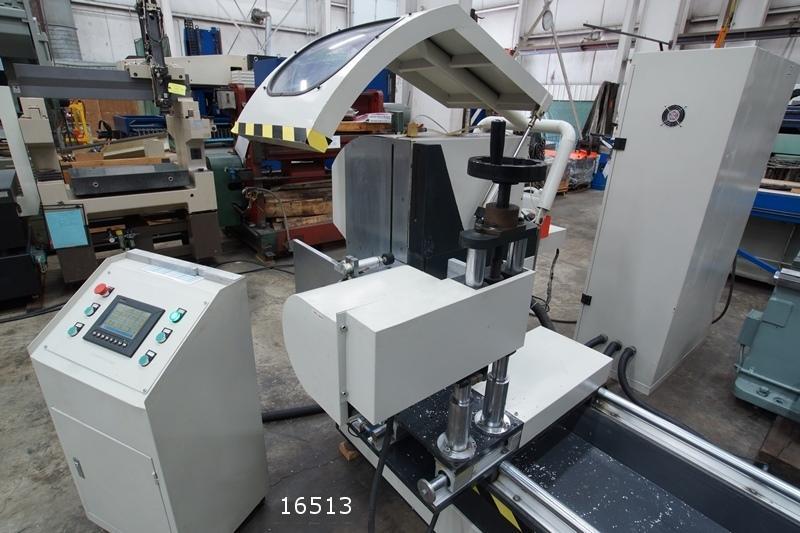

HYDRAPOWER DMS-500*7000 DOUBLE DIGITAL MITER SAW
New 2011
SPECIFICATIONS:
Height: 3/8" to 11.5"
Width: 3/8" to 5"
Length: 35" to 279" (14" W/O DRILL)
HP: 6.5
Voltage - Set: 220
Voltage - Dual: 230/460
Phase: 3-Phase
Machine Dimensions: 300" X 67" X 63"
Net Weight: 5,600
DIGITAL MITER SAW SYSTEM
CUTTING
- 90, 45 & 67.5 DEGREE PRESET ANGLES
- +/- 1/10 OF A DEGREE ANGLE TOLERANCE
- 3/8"-5" WIDTH
- 3/8"-11.5" HEIGHT
- 35"-279" LENGTH (14" WITHOUT DRILL)
- +/- 0.005" LENGTH TOLERANCE
0" TO 120"/MINUTE SAW FEEDING SPEED
500 X 4.4 X 30 X Z120 SAW BLADE
20" BLADE LENGTH
120 PSI AIR PRESSURE
20 L/MINUTE AIR CONSUMPTION
3400 RPM MOTOR ROTATION
6.5 HP, 230/460 VOLTS, 3 PHASE

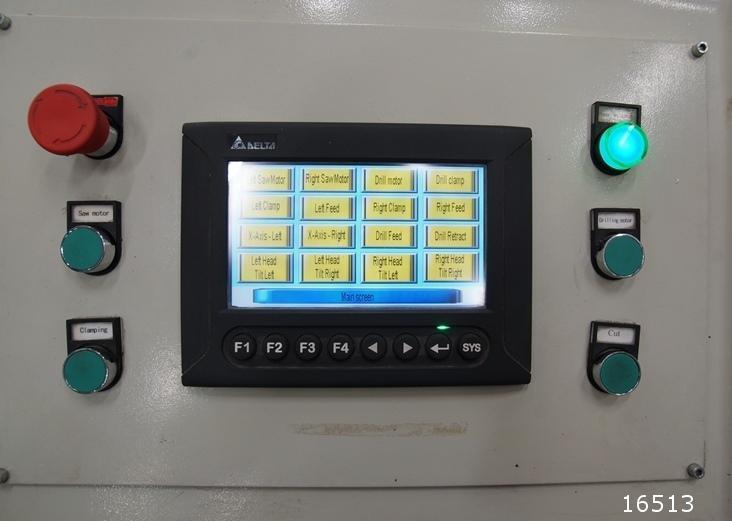

DELTA TOUCH SCREEN CONTROL
TOUCH SCREEN CONTROL OF CUT LENGTH, MITER ANGLES
AND AUTO FEED

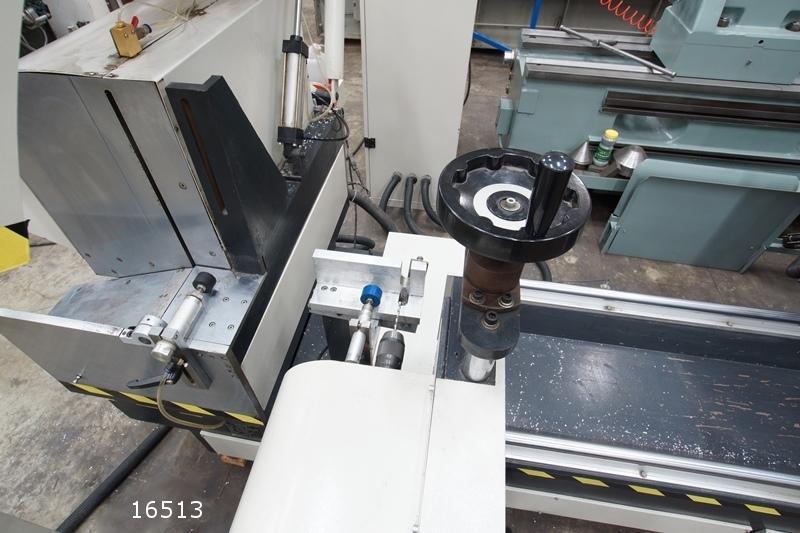

MITER HEADS
- PRESET ANGLES - 90, 45, 67.5 (22.5) DEGREES
- PNEUMATIC ACTUATORS & STOPS FOR EACH PRESET
- OTHER ANGLES CAN BE SET
- 2 HEADS OPERATE IN TANDEM OR INDIVIDUALLY
- LH HEAD - FIXED
- RH HEAD - POSITIONED BY RACK & PINION SERVO
DRIVE
OPERATOR STATION
- GLIDES ON A BALL SLIDE
- AUTO & MANUAL FEED & CYCLE RUN FUNCTIONS
- SELECTOR FOR LH, RH OR BOTH CUTTING HEADS
- HAS ALL OPERATING SECTORS AND BUTTONS
DIGITAL DISPLAY
- TOUCH SCREEN DISPLAY AND NC CONTROL SYSTEM
ENABLES ANGLES AND PROFILES TO BE ENTERED SO THE
SAW CAN CYCLE
CLAMPING
- CUSHIONED PNEUMATIC CLAMPS WITH PUSH BUTTON
- CLAMPS RELEASE AFTER EACH CUT
SAW HEAD
- FED BY PNEUMATIC CYLINDERS
- INFINITELY VARIABLE SPEED FOR FEED & RETURN
*DRILLING CAPABILITIES*
