Equipped With

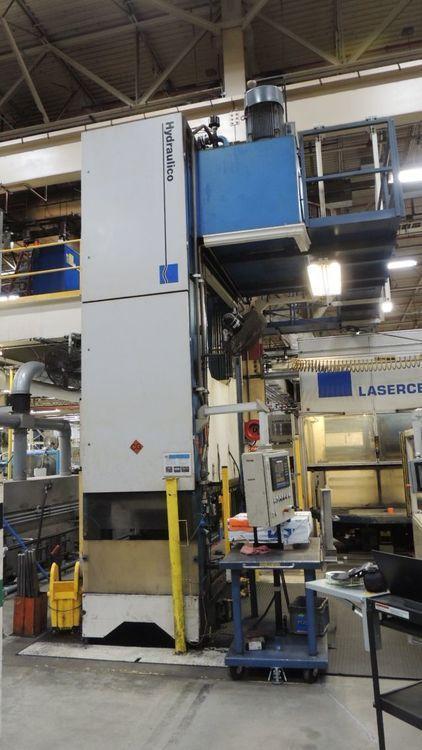

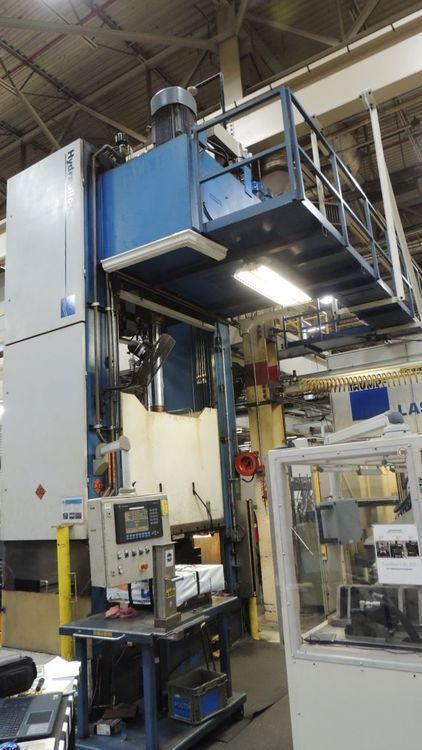

HYDRAULICO 330 TON 300/100/15/1830-1220 HYDRAULIC PRESS

New 1997

SPECIFICATONS:

45" Stroke.

65" Daylight.

72.90" x 48.61" Bed.

72.90 x 48.61" Ram.

3000 KN Max Pressing force.

T Slots Ram and Bolster.

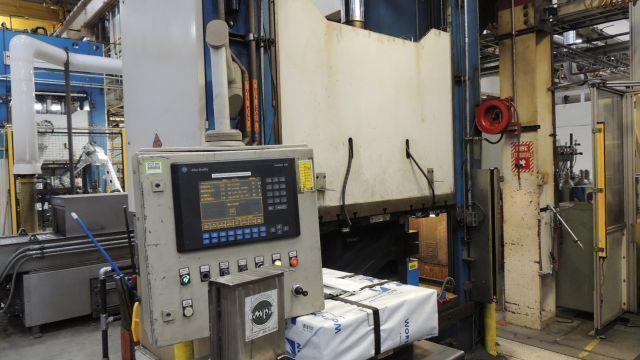

Allen Bradley Panel View 1000 Controls.

Palm buttons.

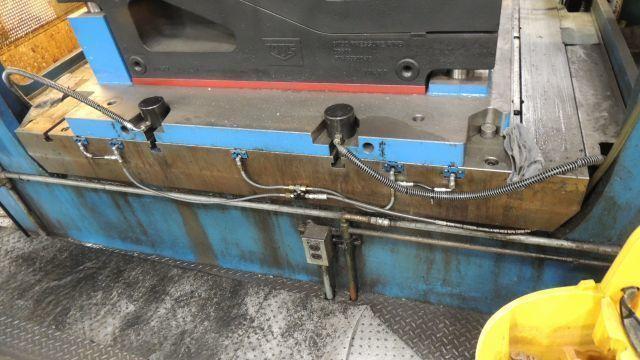

Hydraulic Die clamping.

New 1997.

Windows.



Descriptions:

Max Main Ram Force 330 US Ton

Speed of Approach 800"/min

Speed of Return 800"/min

Speed of Press 0-151"/min

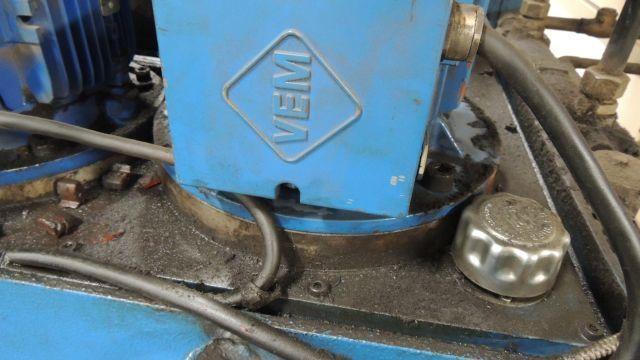

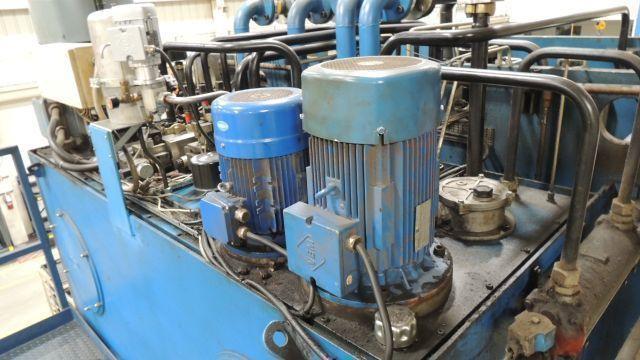

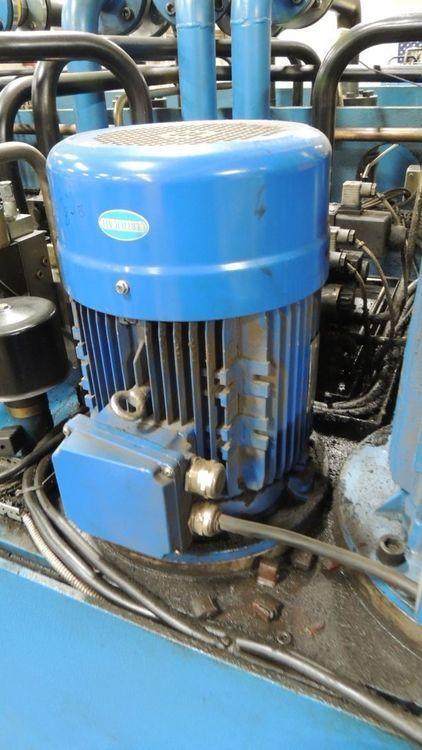

Motors:

              55 kW, 1700 RPM

              3x480V, 60Hz



              11 kW, 1700 RPM

              3x480 V, 60Hz



              5,5 kW, 1700 RPM

              3x480 V, 60 Hz



Description of Cushion:

              Max Cushion Force 110 US Ton

              Stroke fo Cushion 24"

              Cushion Area 55x33"

              Upstroke Speed 364"/min



Description of Knockout:

              Max Force Knockout 16.5 US Ton



Miscellaneous:

              Total Height 287.4"

              Total Width x Depth 111x105"

              Height of Bed Area 23"

              Weight 39.9 US Ton
