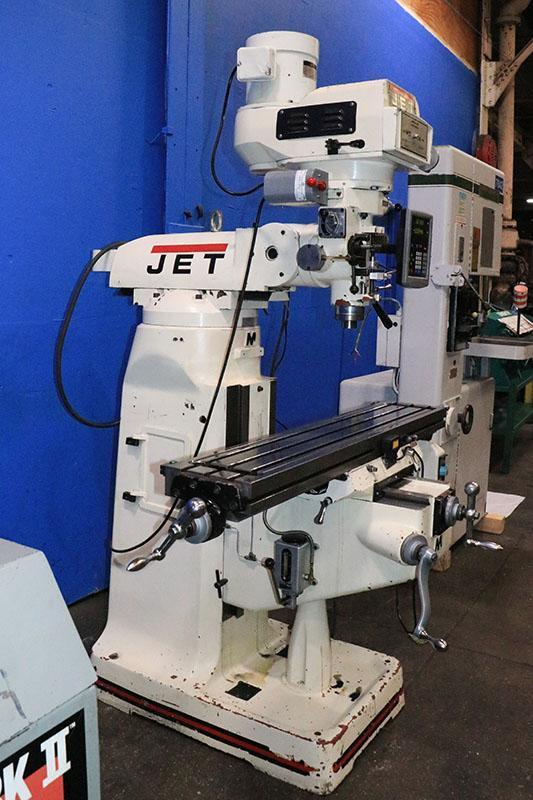

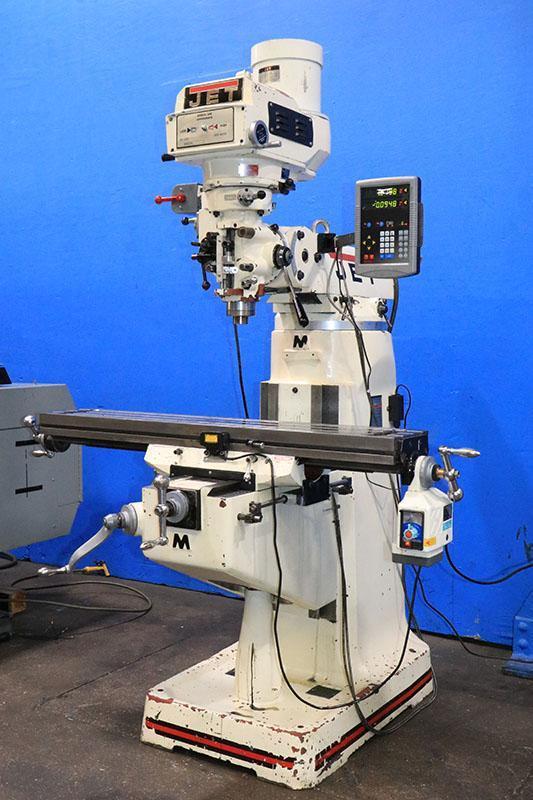

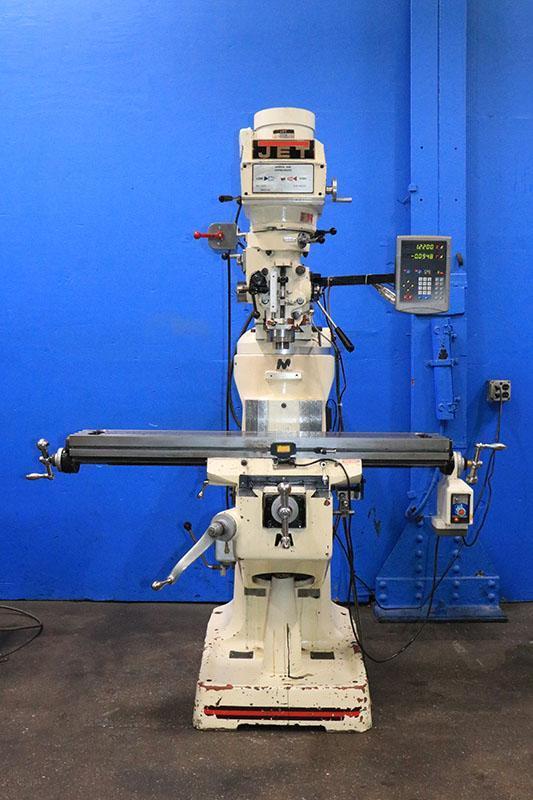

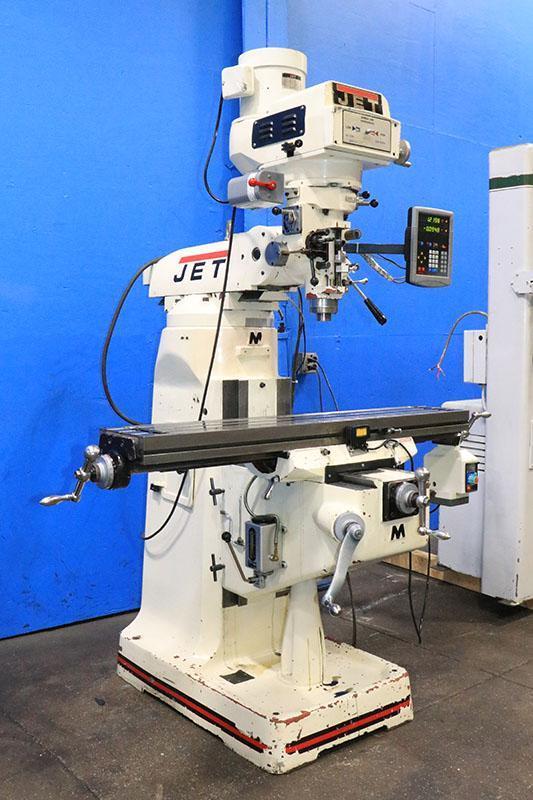

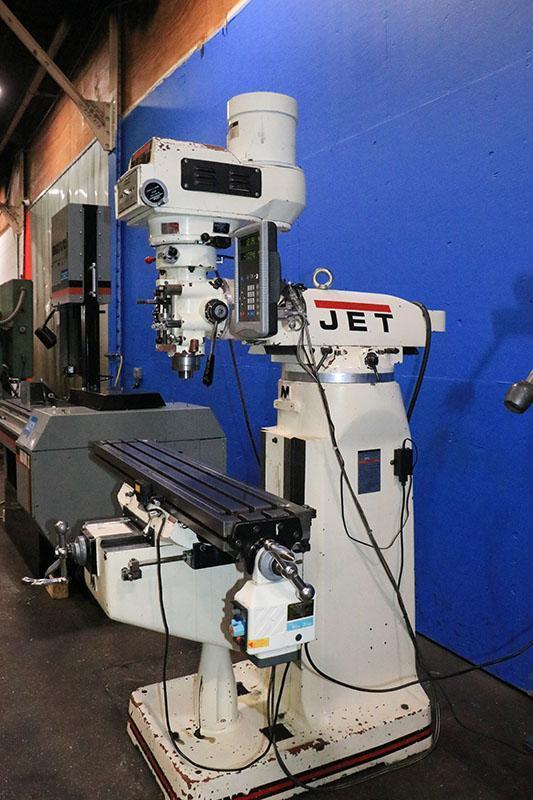

SPECIFICATIONS:

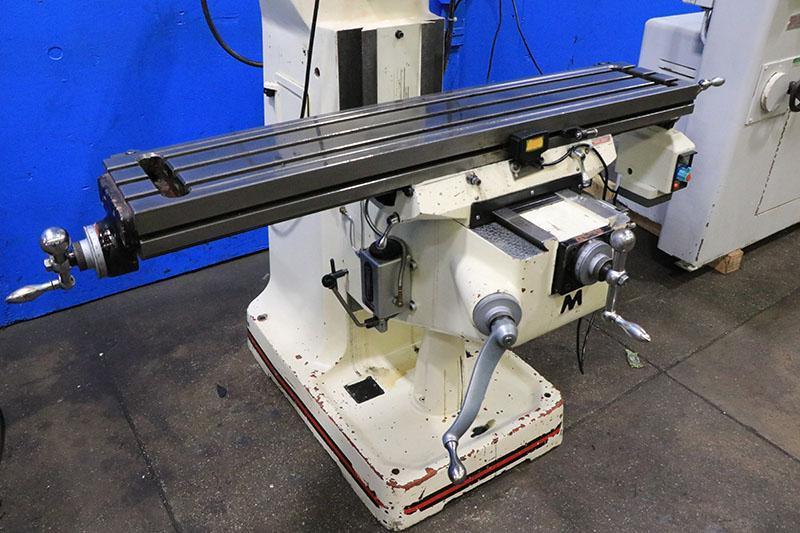

TABLE SIZE ............................ 9" X 49"

NUMBER OF T-SLOTS ..................... 3

LONGITUDINAL TABLE TRAVEL ............. 34"

SADDLE TRAVEL ......................... 12"

QUILL TRAVEL .......................... 5"

KNEE TRAVEL ........................... 14-1/2"

RAM TRAVEL ............................ 12-1/4"

TAB LOAD CAPACITY ..................... 660 LBS.

HEAD TILT, LEFT & RIGHT ............... 90 DEGREES

HEAD TILT, FRONT & REAR ............... 45 DEGREES

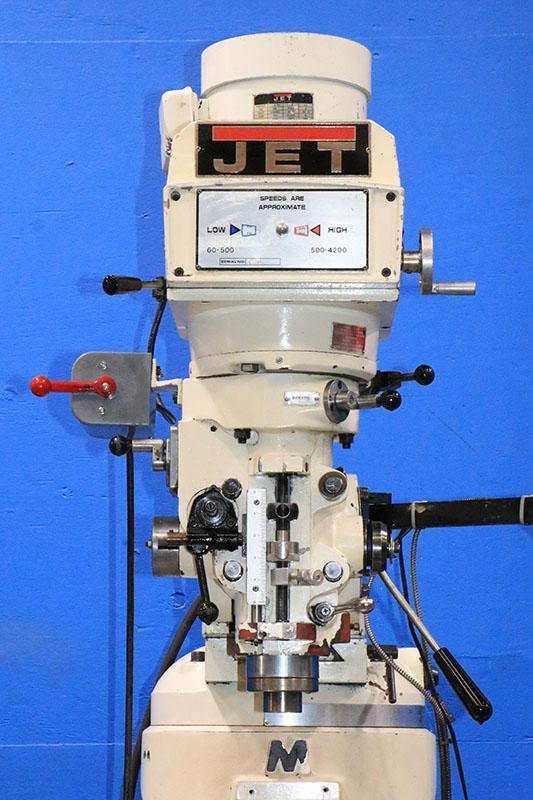

INFINITELY VARIABLE SPEED RANGE ....... 60 - 4,200 RPM

SPINDLE TAPER ......................... R-8

QUILL DIAMETER ........................ 3-3/8"

QUILL FEEDS ....................... 0.0015", 0.003", 0.006"

APPROXIMATE WEIGHT .................... 2,420 LBS

EQUIPPED WITH:

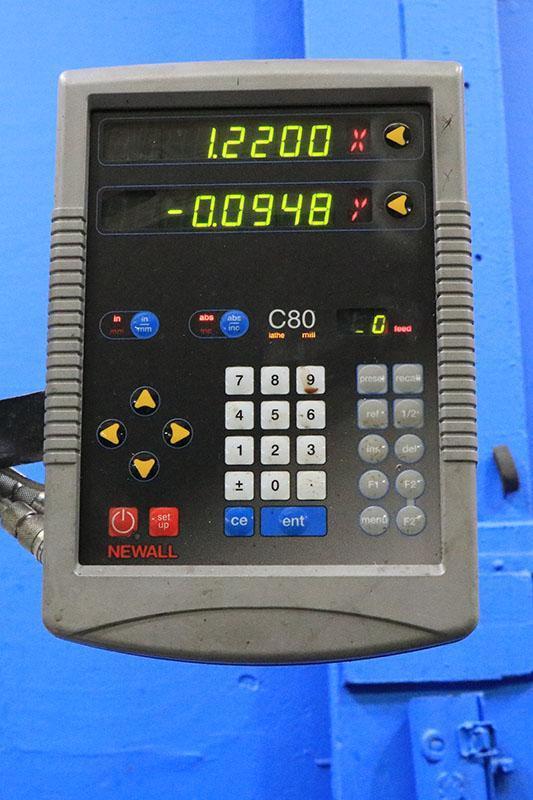

NEWALL TWO AXIS DIGITAL READOUT

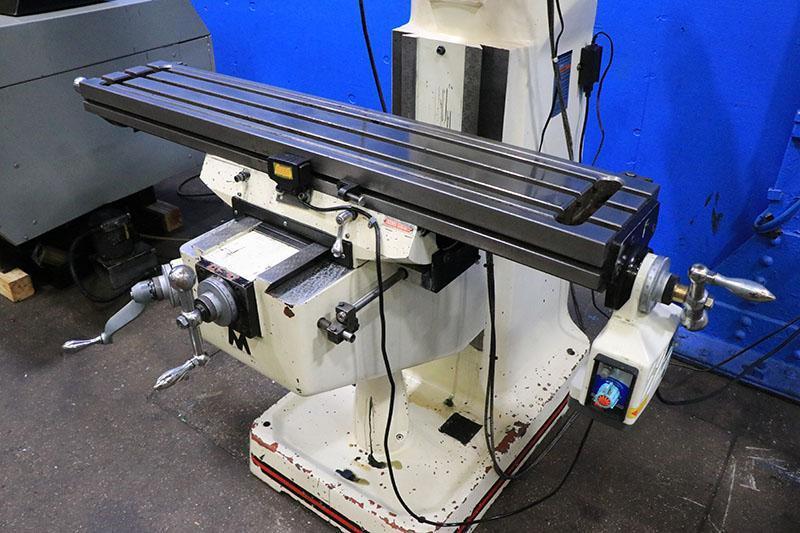

POWER FEED FOR LONGITUDINAL TABLE TRAVEL

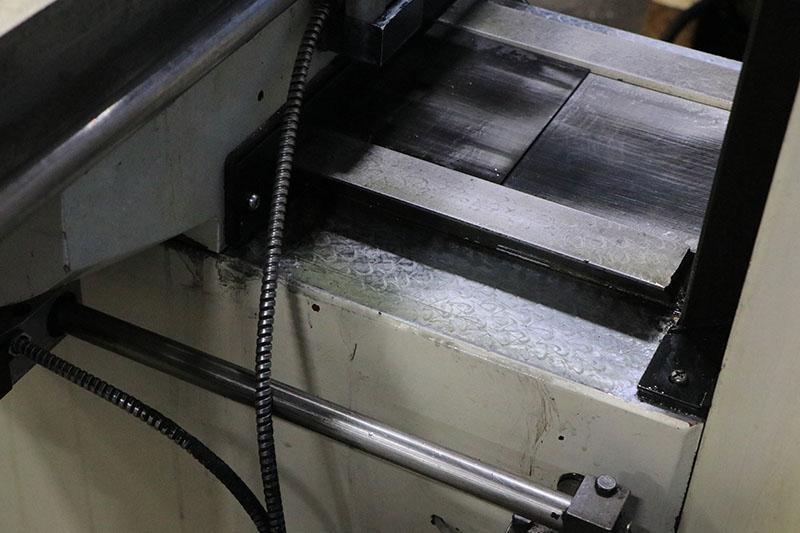

HARDENED & GROUND DOVETAIL WAYS

MEEHANITE CASTING

ONE-SHOT LUBRICATION SYSTEM

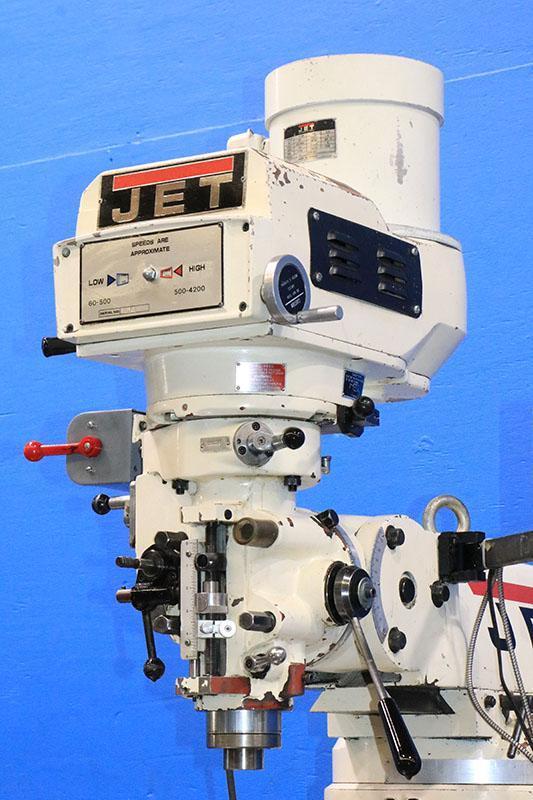

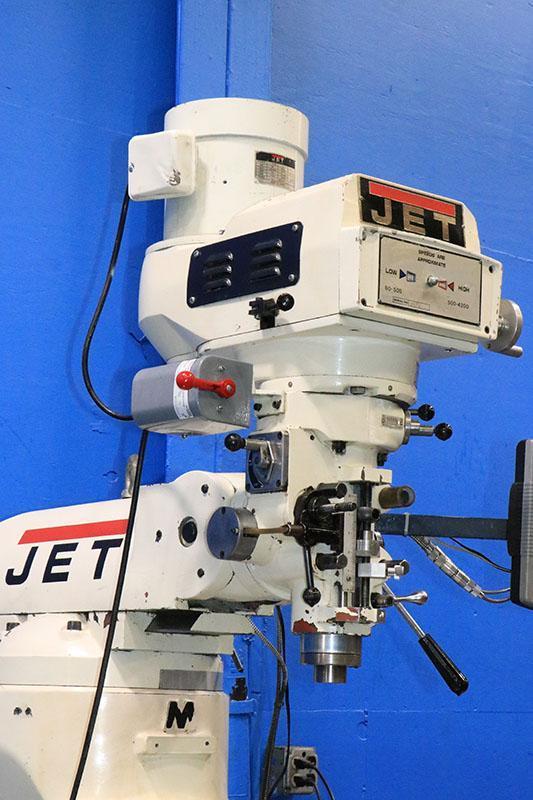

3 HORSE POWER MILLING HEAD
