Year
1955
Stock #
18022
Condition
Very Good
Keep Scrolling To Learn More

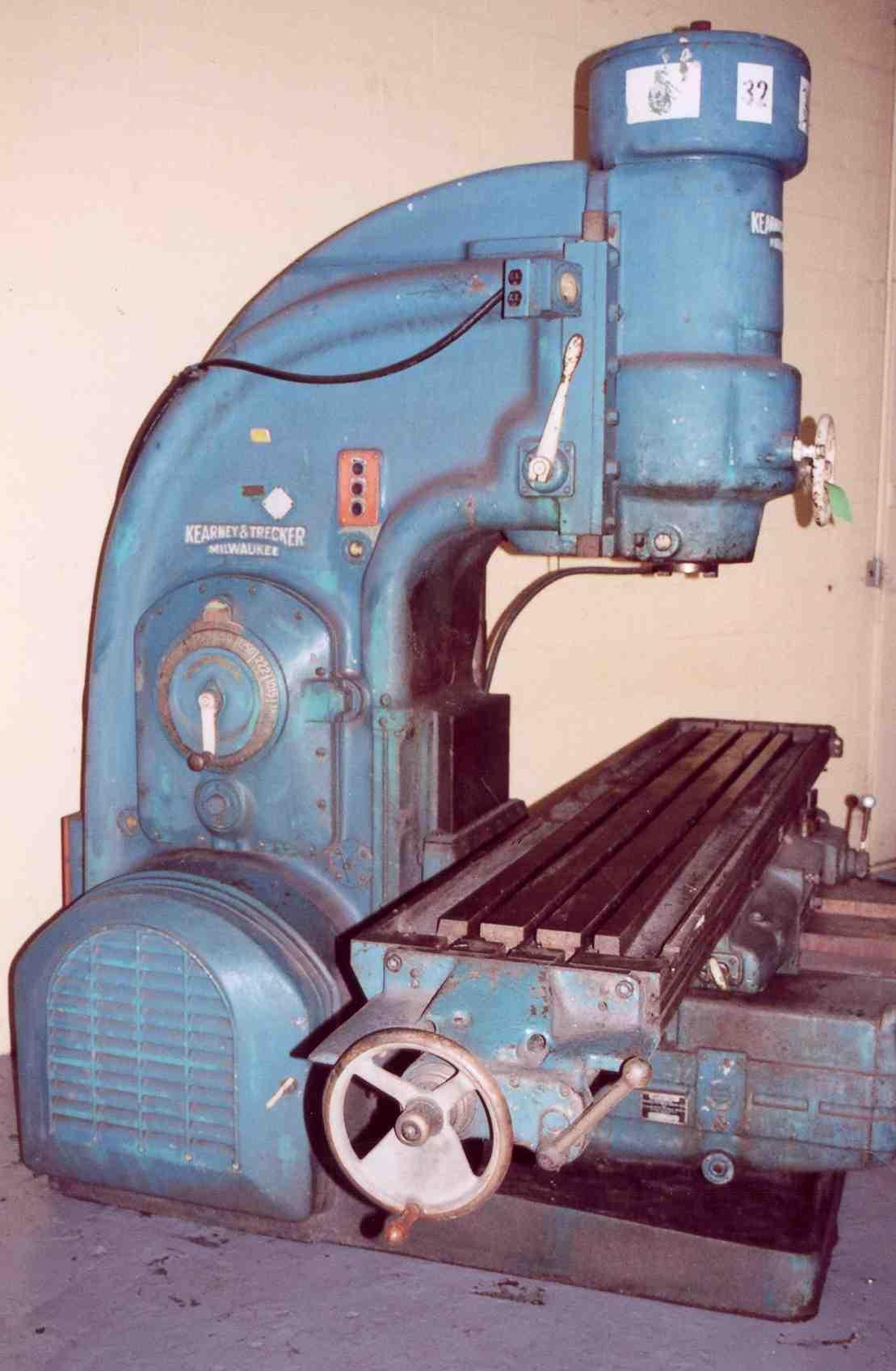

KEARNEY & TRECKER MODEL 5CSM-50/25 VERTICAL MILL
NEW 1955
SPECIFICATIONS:
AREA OF TABLE .............................. 98" X 18"
SPINDLE SPEEDS ............................. (32) 25 TO 1250 RPM
LONGITUDINAL AND CROSS FEEDS ............... (32) 3/8 TO 90 IPM
VERTICAL FEEDS ............................. (32) 3/16 TO 45 IPM
LONGITUDINAL TRAVEL ........................ 50"
CROSS TRAVEL ............................... 16"
VERTICAL KNEE TRAVEL ....................... 20"
VERTICAL TRAVEL OF SPINDLE ................. 4"
DISTANCE SPINDLE TO TABLE .................. 0" MIN, 21-3/4" MAX
RAPID TRAVERSE ............................. 150 FPM
TAPER IN SPINDLE ........................... #50NS
DUAL CONTROLS .............................. YES
COOLANT .................................... YES
SPINDLE MOTOR, HORSEPOWER .................. 50
There are no files attached to this listing currently. If you Have any further questions regarding this listing, please contact us for more information.
