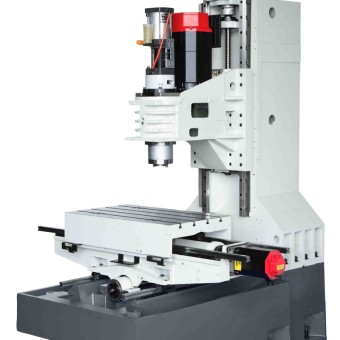

KENT USA KVR-2418 LINEAR GUIDE WAY VERTICAL MACHINING CENTER - NEW
Year
Not provided
Stock #
12808
Condition
New
Keep Scrolling To Learn More
Specifications
Equipped With
KENT USA KVR-2418 LINEAR GUIDE WAY VERTICAL MACHINING CENTER - NEW
SPECIFICATIONS
X Axis Travel 24"
Y Axis Travel 18"
Z Axis Travel 18"
Spindle Taper Cat 40
Spindle Speed 10,000 RPM
Rapid Traverse 1,417 IPM

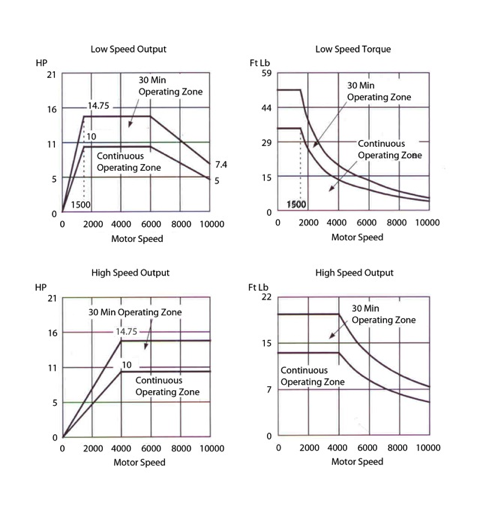

Spindle Motor 15 HP
ATC (Double Arm) Carousel Type 16 Tool (Opt. Arm Type 24-ATC)
Machine Weight 8287 Lbs
Machine Dimensions 93" x 87" x 97"
- Roller Linear Ways versus ball linear ways on competitors’ machines
- Six linear blocks on Z-Axis for Extra Rigidity
- 15 HP Peak Servo Spindle Motor
- 4-Axis Capable
- AICC High Speed Machining

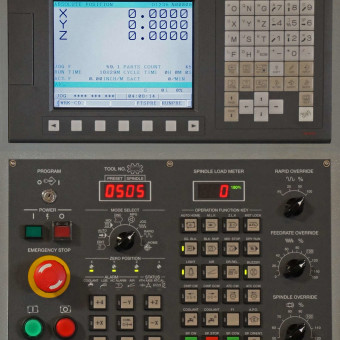

- Fanuc OiMD CNC Control
- Chip Flush and Oil Skimmer
- Spindle Chiller
- Chip Auger
- Proven Kent USA service/support for over 30 years
SPECIFICATIONS
X Axis Travel 24"
Y Axis Travel 18"
Z Axis Travel 18"
Spindle Taper Cat 40
Spindle Speed 10,000 RPM
Rapid Traverse 1,417 IPM
Spindle Motor 15 HP
ATC (Double Arm) Carousel Type 16 Tool (Opt. Arm Type 24-ATC)
Machine Weight 8287 Lbs
Machine Dimensions 93" x 87" x 97"
Attachments
There are no files attached to this listing currently. If you Have any further questions regarding this listing, please contact us for more information.
