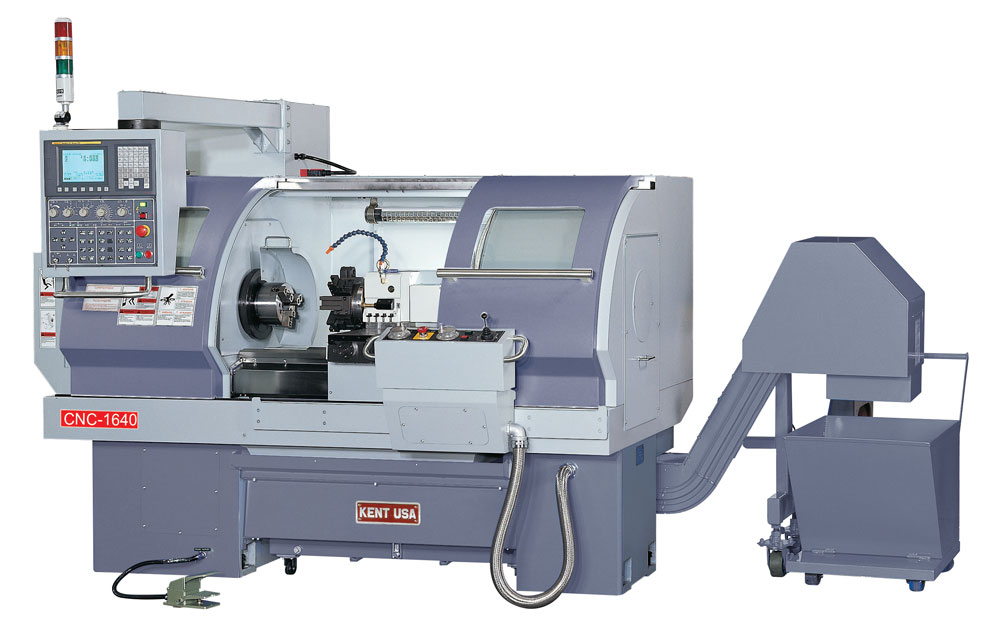

KENT USA MODEL CRL-1640 CNC PRECISION LATHE - NEW
Year
Not provided
Stock #
12853
Condition
New
Keep Scrolling To Learn More
Specifications
Equipped With
KENT USA MODEL CRL-1640 CNC PRECISION LATHE - NEW
OPTIONAL ACCESSORIES
PRODUCT FEATURES
- 10 HP Peak Fagor Servo Spindle motor
- Manual and CNC mode
- Rigid Meehanite castings with extra ribbing
- Induction hardened and ground ways
- 2 speed semi-automatic gearbox with alloy steel gears that are hardened and ground
- Extra large precision ground ballscrews
- 25-3000 RPM range; electronic handwheels
- Auto Lube system with metered Check valves
- Automatic 4 position electric Turret
STANDARD ACCESSORIES
- Fagor 8055i CNC control
- Fagor AC servo spindle motor
- Auto lubrication unit
- Flood coolant system
OPTIONAL ACCESSORIES
- 3-jaw scroll chuck
- 4-jaw independent chuck
- Face plate
- Hydraulic chuck
- Hydraulic tailstock
- Follow rest
- Quick change toolpost
- Automatic 4 position electric toolpost
- Royal live center
- Swing Over Bed
- Swing Over Cross Slide
- Distance Between Centers
- Width of Bed
- Spindle Nose
- Spindle Bore
- Spindle Taper
- Spindle Speeds
- Longitudinal Travel (Z-Axis)
- Cross Slide Travel (X-Axis)
- Z-Axis Ballscrew Diameter
- X-Axis Ballscrew Diameter
- Z-Axis Rapid Traverse Speed
- X-Axis Rapid Traverse Speed
- Tailstock Quill Diameter
- Tailstock Quill Travel
- Tailstock Taper
- Spindle Motor
- AC Servo Motor (Z-Axis)
- AC Servo Motor (X-Axis)
- Net Weight
- Gross Weight
- Packing Dimension
-
CRL-1640
- 16"
- 9.05"
- 35"
- 10.23"
- Camlock D1-6 (Opt. ASA A1-6)
- 2.066"
- M.T. #6
- 30-2500 RPM (3 Steps)
- 33"
- 8.5"
- 1.259", 10 mm pitch
- 0.787”, 5 mm pitch
- 295"/min
- 200"/min
- 2.283"
- 5.5"
- M.T. #4
- 10 HP
- 1.13 HP
- 0.6 HP
- 4730 LBS
- 5830 LBS
- 125" x 79.7" x 86.6"
