KNUTH KHP 28 NC HYDRAULIC STRAIGHTENING AND DIE PRESSING MACHINE
Year
Not provided
Stock #
16246
Condition
New
Keep Scrolling To Learn More
Specifications
Equipped With
| Pressure force | 61,600 lbs |
| hydraulic pressure max. | 2,900 psi |
| Y-axis stroke | 7 in |
| piston diam. | 5 in |
| Bending speed | 0.1 - 0.4 in/s |
| Return speed | 0.79 in/s |
| Table size | 12x22 in |
| fastening holes in working table | 4 positions |
| diameter fastening holes | 3 in |
| Motor rating main drive | 5.4 Hp |
| Overall dimensions (length x width x height) | 46x30x44 in |
| Weight | 1,430 lbs |
| Part No. | 131547 |
- The horizontal bending and straightening press features a stamp and a 4-channel die for machining up to 8 inch wide material
- The work table can be set up for a wide range of applications, depending on the type of tools placed on the table and installed in the tool mounts
- The work table features an angle scale that simplifies alignment of the bending process
- The hydraulic system can be regulated via pressure and flow valves, allowing the user to control the pressing force and work speed according to requirements
- The integrated pressure gauge provides an exact indication of the current bending force

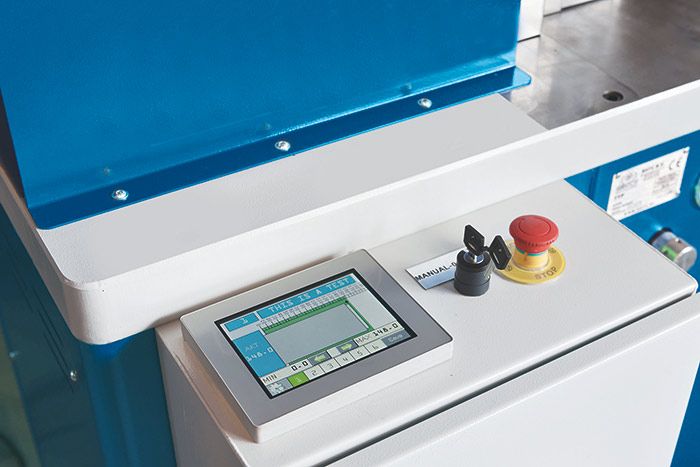

- Practically arranged control panel, and easy to read LED display showing the work cylinder positions
- The operator can choose between manual or automatic control, and up to 4 different programs can be stored
- The hydraulic press is controlled via a safety foot switch
- stamps and dies
- material stop
- operator manual
