KNUTH KKS T CIRCULAR SAW
Year
Not provided
Stock #
16245
Condition
New
Keep Scrolling To Learn More
Specifications
Equipped With
| KKS 315 T | KKS 250 T | KKS 275 T | KKS 350 T | |
|---|---|---|---|---|
| Working Area | ||||
| Max. saw blade diameter | 12 in | 10 in | 11 in | 14 in |
| Shaft diameter | 1.6 in | 1.3 in | 1.3 in | 1.3 in |
| Speed | 18/36 rpm | 42 rpm | 42 rpm | 18/36 rpm |
| Width of vise | 6 in | 4 in | 4 in | 6 in |
| Working height | 38 in | |||
| Cutting Capacities | ||||
| Cutting capacity 90¡ round | 4 in | 2 in | 3 in | 5 in |
| Cutting capacity 90¡ - square | 4 in | 2 in | 3 in | 4 in |
| Cutting capacity 90¡ - flat | 6x4 in | 3x2 in | 4x2 in | 6x4 in |
| Cutting capacity 45¡ (round) L | 4 in | 2 in | 3 in | 4 in |
| Cutting capacity 45¡ (square) L | 4 in | 2 in | 2 in | 4 in |
| Cutting capacity 45¡ (flat) L | 4x4 in | 2x2 in | 3x2 in | 4x4 in |
| Cutting capacity 45¡ (round) R | 4 in | 2 in | 3 in | 4 in |
| Cutting capacity 45¡ (square) R | 4 in | 2 in | 2 in | 4 in |
| Cutting capacity 45¡ (flat) R | 4x4 in | 2x2 in | 3x2 in | 4x4 in |
| Drive Capacity | ||||
| Main motor rating | 0,75 / 1,3 Hp | 1,1 Hp | 1,1 Hp | 1 / 1,7 Hp |
| Measures and Weights | ||||
| Overall dimensions (length x width x height) | 37x23x71 in | 37x19x68 in | 37x19x71 in | 39x23x73 in |
| Weight | 499 lbs | 315 lbs | 326 lbs | 519 lbs |

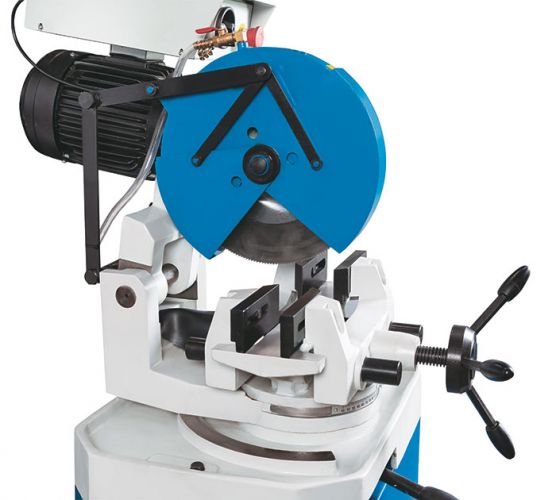

- Easy operation, rugged design, and precise angular cuts make this circular cold saw a Òmust-haveÓ basic for any workshop
- The entire series is ideally suited for cutting solid materials, tubes, and sections of steel, iron, and light metals
- The operator guides the cut via a hand-lever, where the ON/OFF switch is integrated ergonomically into the hand grip
- The models KKS 250 and 275 T provide a rigid vise with quick-action clamping feature and are ideal for small batch productions
- KKS 315 T / KKS 350 T feature a self-centering dual vise that hold the workpiece firmly on both sides of the saw blade
- The miter can be adjusted up to +/- 45 degrees by rotating the gear head
- The selected angle adjustment is fixated via a central clamping lever that is integrated into the machine frame
- All models have high-torque motors, and the KKS 315 and 350 T also have reversible poles and 2 speeds
- A large idler gear runs in an oil bath for low maintenance and minimal wear
- The rugged machine base allows a space-saving machine setup
- An integrated coolant system is part of the standard equipment on all models

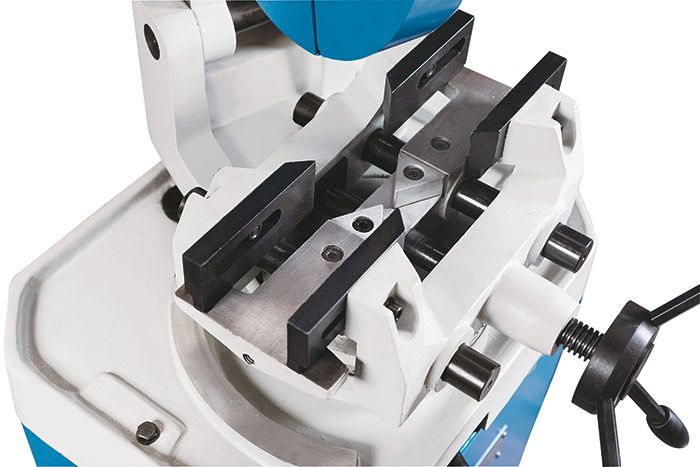

- Self-centering vise
- base
- coolant system
- 1 saw blade
- linear stop
