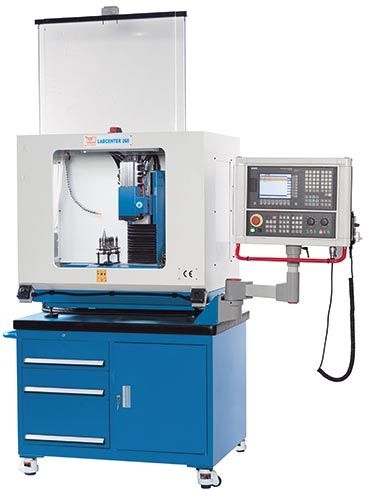

KNUTH LABCENTER 260 CNC MACHINING CENTER
Year
Not provided
Stock #
16285
Condition
New
Keep Scrolling To Learn More
Specifications
Equipped With
| Table dimensions | 16x6 in |
| Table load capacity | 44 lbs |
| Number of T-slots | 3 positions |
| T-slots, width | 0.5 in |
| T-slots, spacing | 1.6 in |
| Spindle nose-to-table surface distance | 2 - 9 in |
| Throat | 7 in |
| Travel X-axis | 9.9 in |
| Travel Y-axis | 6 in |
| Travel Z-axis | 7 in |
| Spindle speed | 5,000 rpm |
| Spindle mount | ISO 20 |
| Rapid Feed X-axis | 78.74 in/min |
| Rapid Feed Y-axis | 78.74 in/min |
| Rapid Feed Z-axis | 78.74 in/min |
| Work feed X-axis | 39 in/min |
| Work feed Y-axis | 39 in/min |
| Work feed Z-axis | 39 in/min |
| Max. torque feed motor X-axis | 19.47 ft.lb. |
| Max. torque feed motor Y-axis | 19.47 ft.lb. |
| Max. torque feed motor Z-axis | 19.47 ft.lb. |
| Number of tool stations | 4 positions |
| Tool size ¯ x L (max.) | 0.39x4.33 in |
| Tool weight max. | 1 lbs |
| Tool-change time tool/tool | 10 sec |
| Positioning accuracy X-axis | ± 0,015 in |
| Positioning accuracy Y-axis | ± 0,015 in |
| Positioning accuracy Z-axis | ± 0,015 in |
| Repeatability X-axis | ± 0,01 in |
| Repeatability Y-axis | ± 0,01 in |
| Repeatability Z axis | ± 0,01 in |
| Motor rating main drive | 1.3 Hp |
| Overall dimensions (length x width x height) | 56x36x73 in |
| Weight | 946 lbs |
| Part No. | 181615 |
- Precisely machined frame made of high-quality cast iron
- Dovetail guides and preloaded ball screws with servo drives on all axes
- Max. spindle speeds up to 5000 rpm
- Electronic hand-wheel for efficient and professional set-up
- 4-station tool changer ensures flexibility and optimum productivity
- Modern safety concept provides easily accessible enclosure and pneumatically opened door

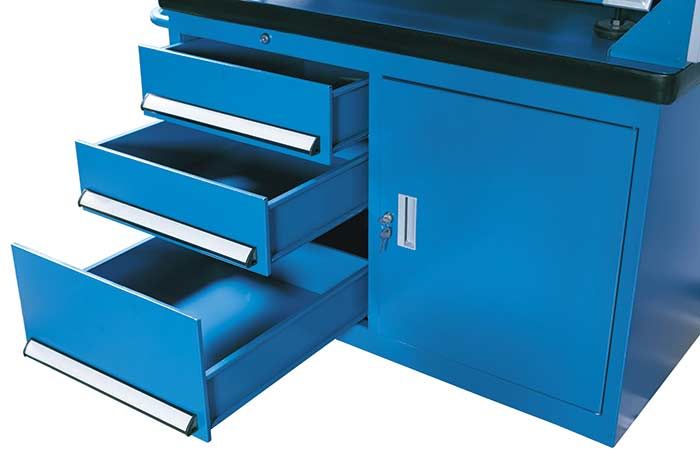

- Mobile base with storage room for tools and materials
Compact and User-friendly solution for milling applications
Highlights
- Easy to use, dialog-guided user interface
- Comprehensive bandwidth of technology cycles
- High performance and precision
- The CNC SINUMERIK 808D Milling comes preconfigured and is perfectly suited for standard milling machine applications. The SINUMERIK 808D Milling features the Advanced Surface smart motion control from the SINUMERIK MDynamics technology suite. Also included is the Look Ahead function, which allows optimum speed control to ensure superior surface quality.
SINUMERIK Operate BASIC
- Easy, intuitive user interface with dialog-guided user support. The menu structure of the completely updated Sinumerik Operate Basic has been closely adapted to the larger Sinumerik Operate system's menu
SINUMERIK programGUIDE BASIC
- The "programGuide Basic" simplifies programming by adding graphically supported cycle masks and a practical contour calculator
SINUMERIK MDynamics
- Includes the new Advanced Surface functionality for smart motion control - ensures perfect workpiece surfaces combined with significantly reduced machining times
What makes the Siemens 808D so great?
- Self-explanatory use and powerful CNC functions ensure highest workpiece precision and short machining times
- Allows re-using of part programs from other controls that support ISO code
- DIN and ISO programming code can be alternated within one program
- The USB port at the front panel provides a connector for USB memory sticks for easy transfer of parts programs and tool data during everyday operation
- Just as the high/end Siemens CNCs, this series features ergonomically designed rotary override switches
- Microswitch keys of the membrane keyboard ensure excellent tactility
Precision and Productivity
- Calculations are performed with 80-Bit NanoFP accuracy without any internal rounding errors
- The 808D comes with the intelligent MDynamics motion control, including smart "Look-Ahead" function for optimized speed guidance - allowing increased productivity and perfect surface quality
- The 808 series features powerful computing capacity and advanced technology cycles for superior performance
- Siemens 808D Advance control
- electronic hand-wheel
- 4-station tool changer
- pneumatic door
- mobile base
- central lubrication
- work lamp
- operating tools
- operating manual and programming instructions
