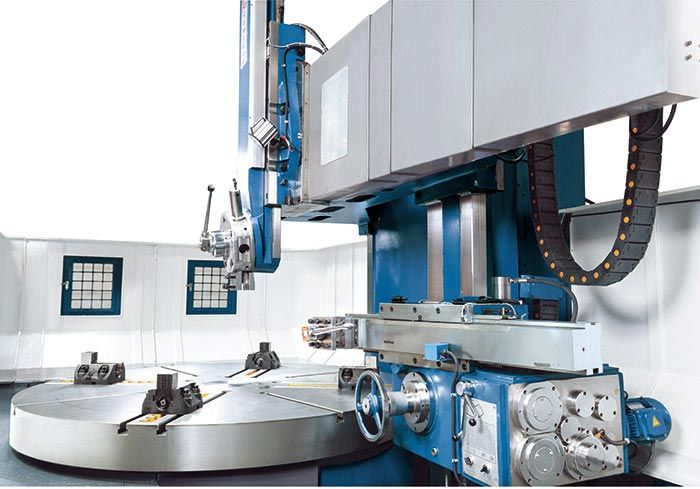

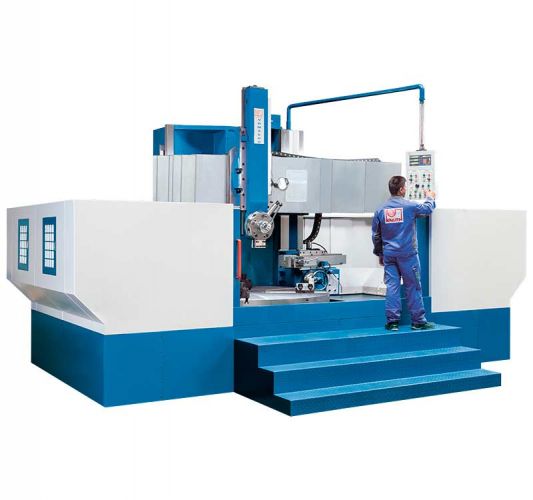

KNUTH VDM S VERTICAL LATHE
Year
Not provided
Stock #
16277
Condition
New
Keep Scrolling To Learn More
Specifications
Equipped With
| VDM 800 S | VDM 1000 S | VDM 1250 S | VDM 1600 S | VDM 2300 S | VDM 2600 S | |
|---|---|---|---|---|---|---|
| Working Area | ||||||
| Rotating diameter (max.) | 31 in | 39 in | 49 in | 63 in | 91 in | 102 in |
| Turning diameter of upper tool holder | 31 in | 39 in | 49 in | 63 in | 91 in | 102 in |
| Turning diameter of side tool holder | 28 in | 35 in | 39 in | 55 in | 79 in | 91 in |
| Machining height (max.) | 31 in | 31 in | 39 in | 39 in | 53 in | 59 in |
| Swivel range of upper tool holder | ± 30¡ | |||||
| Workpiece length (max.) | 31 in | 31 in | 39 in | 39 in | 53 in | 59 in |
| Work piece weight (max.) | 2,640 lbs | 4,400 lbs | 7,040 lbs | 11,000 lbs | 17,600 lbs | 22,000 lbs |
| Travels | ||||||
| Travel X1 axis, upper support | 22 in | 26 in | 28 in | 36 in | 45 in | 51 in |
| Travel Z1 axis , upper support | 24 in | 24 in | 26 in | 31 in | 39 in | 39 in |
| Travel W-axis, traverse | 23 in | 23 in | 26 in | 26 in | 39 in | 43 in |
| Travel X2 axis , side support | 20 in | 20 in | 25 in | 25 in | 25 in | 29 in |
| Travel Z2 axis , side support | 31 in | 31 in | 35 in | 35 in | 39 in | 46 in |
| Headstock | ||||||
| Speed range | (16) 10 - 315 rpm | (16) 8 - 250 rpm | (16) 6.3 - 200 rpm | (16) 5 - 160 rpm | (16) 3.2 - 100 rpm | (16) 1.4 - 45 rpm |
| Spindle Torque (max.) | 88,500 ft.lb. | 110,625 ft.lb. | 154,875 ft.lb. | 221,250 ft.lb. | 283,200 ft.lb. | 283,200 ft.lb. |
| Rotary table diameter | 28 in | 35 in | 39 in | 55 in | 79 in | 91 in |
| Rapid Feed | ||||||
| Rapid feed of upper support | 71 in/min | |||||
| Rapid feed of side support | 71 in/min | |||||
| Feed | ||||||
| Feed speed X-axis | 0 - 3 in/min | |||||
| Feed speed Z-axis | 0 - 3 in/min | |||||
| Feed speed W-axis | 17 in/min | |||||
| Tool Head | ||||||
| Tool holder | 1.2x1.6 in | |||||
| Tool weight max. | 110 lbs | |||||
| Drive Capacity | ||||||
| Motor rating main drive | 29.5 Hp | 29.5 Hp | 29.5 Hp | 40.2 Hp | 49.6 Hp | 49.6 Hp |
| Motor rating X-axis | 1.7 Hp | |||||
| Motor rating Z-axis | 2.41 Hp | |||||
| Measures and Weights | ||||||
| Overall dimensions (length x width x height) | 193x138x164 in | 193x142x164 in | 209x150x166 in | 256x166x174 in | 300x197x213 in | 312x209x213 in |
| Weight | 14,300 lbs | 15,620 lbs | 19,800 lbs | 27,500 lbs | 41,800 lbs | 60,500 lbs |
- Infinitely variable feed control via servo-motor
- Optimum tooling and easy access for cranes and forklift trucks
- Heavy-duty column with wide, hardened guideways
- Hydraulic clamping of cross traverse
- Rigid guide construction ensures maximum rigidity and accuracy of the vertical boom
- Spindle runs in a high-precision two-row roller bearing and is adjustable
- Reduction gear drive ensures high torque and a speed range of 10 - 315 rpm
- Servo motor technology ensures powerful, infinitely variable feed of the vertical boom
- 3-axis position indicator
- fully enclosed housing
- chip conveyor
- tool holder vertical
- tool holder horizontal
- automatic central lubrication
- work lamp
- anchor bolts
- operating tools
- operator manual
