Specifications (subject to buyer verification):

Diameter ø 1/4 - 3-1/8'' (6-80 mm)

Bar length (limited to headstock length) 14'' - 63'' (350 – 1600 mm)

Loading system Side load rack

Loading capacity 26'' (650 mm)

Loading Front/rear

Headstock type Fixed

X or Z axis retraction 23'' (600 mm)

Diameter set up 10 sec (automatic)

Total changeover 2 min (for pusher)

Motor Servo

Drive Notched belt

Parts library 500 parts program storage

Equipped With (subject to buyer verification):

Automatic diameter changing system with linear motors and LNS servo motor technology

Centerline and bar loading fingers adjust automatically as the new bar diameter is entered in the prompting

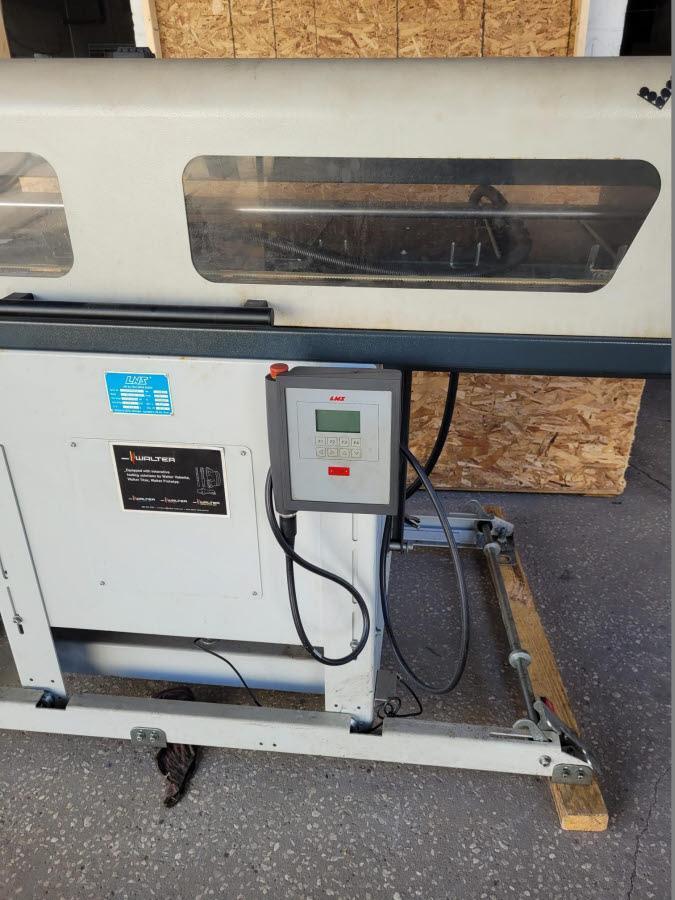

remote HMI

No manual adjustments are required reducing changeover time to a minimum

Special Notes per LNS: Please remember that the maximum length of bar to be run is the length of the headstock plus the length of the work holding. A spindle liner will be required for every diameter of bar stock to be run. Also, please remember that if there is a gap over 7” between the back of the sheet metal of the lathe and the back of the spindle of the lathe, then 6” extensions on your Steel Spindle liners and an Extended Coolant Collector is required.
