LNS QUICK LOAD SERVO S3 AUTOMATIC BAR FEED
Year
2004
Stock #
19600
Condition
Used
Keep Scrolling To Learn More
Specifications
Equipped With
LNS QUICK LOAD SERVO S3 AUTOMATIC BAR FEED
New 2004
Specifications (subject to buyer verification):
Minimum/Maximum Barstock Diameter: 1/4" to 4-3/4"
(Restricted by spindle or chuck thru-hole capacity)
Minimum/Maximum Barstock Length: 4-1/2" to 62" Restricted
(Restricted to bar length contained within machine)
Bar Magazine Storage Tray Length: 39"
STANDARD FEATURES: Easy Setup by:
- Z or X Axis Retract System Permitting Barfeed to be moved
up to 23" for Spindle Access.

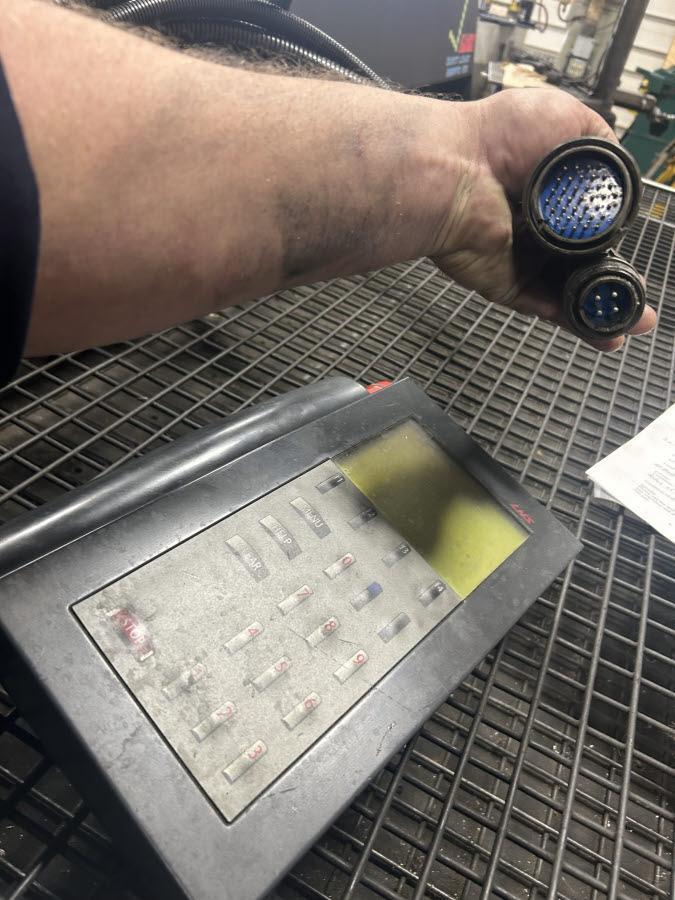

- Icon Remote Prompting Control for Easy Operations.
- Automatic Torque and Feed Rate Adjustment by Bar Dia.
- Barstock Load and Positioning by Servo Drive With or
Without Turret Stop.
- Automatic Bar Centerline Adjustment by Remote Control.
NOTE: A Spindle Liner is Required for Each Size Barstock,
Size to be Specified.
