Equipped With

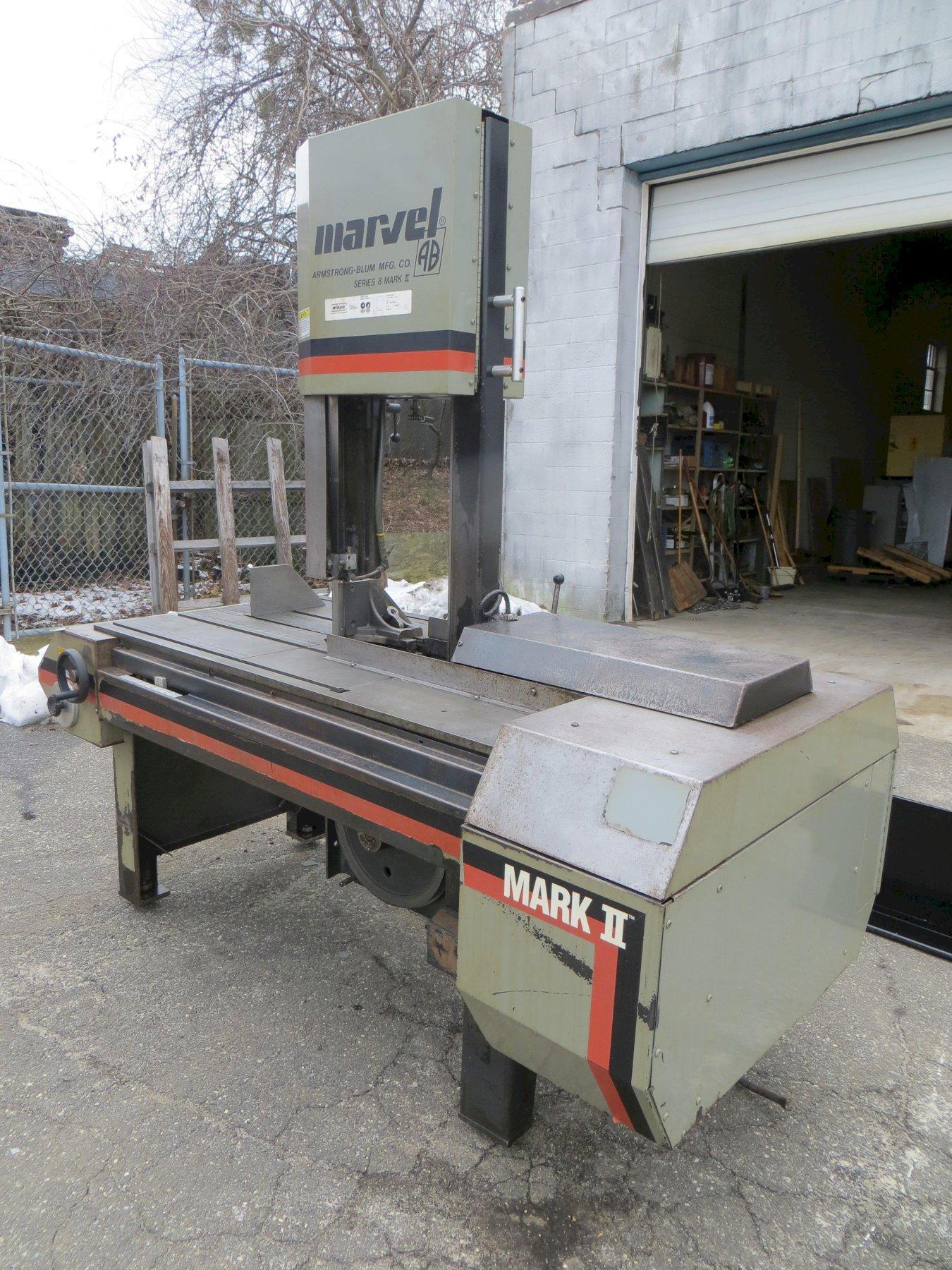

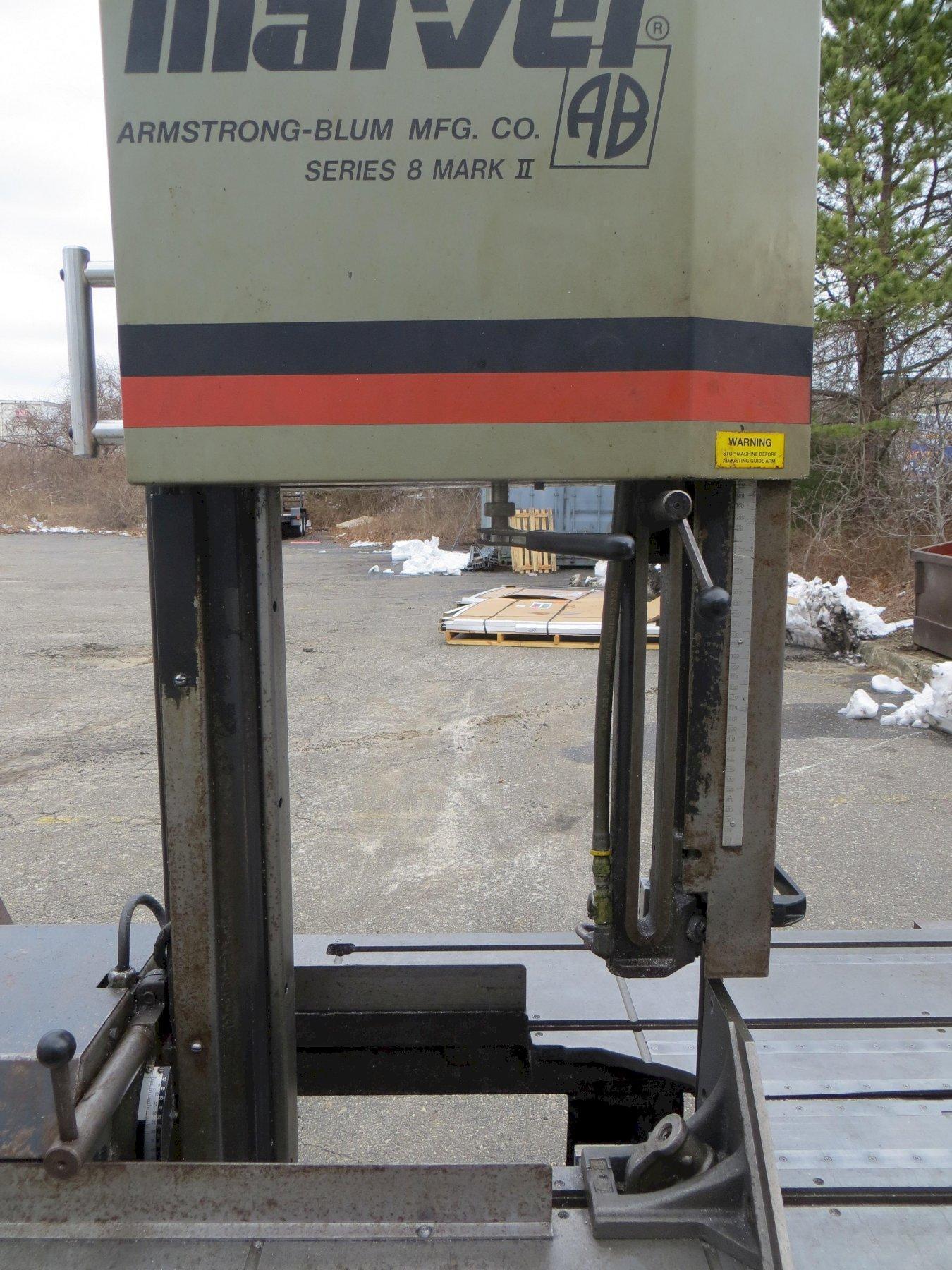

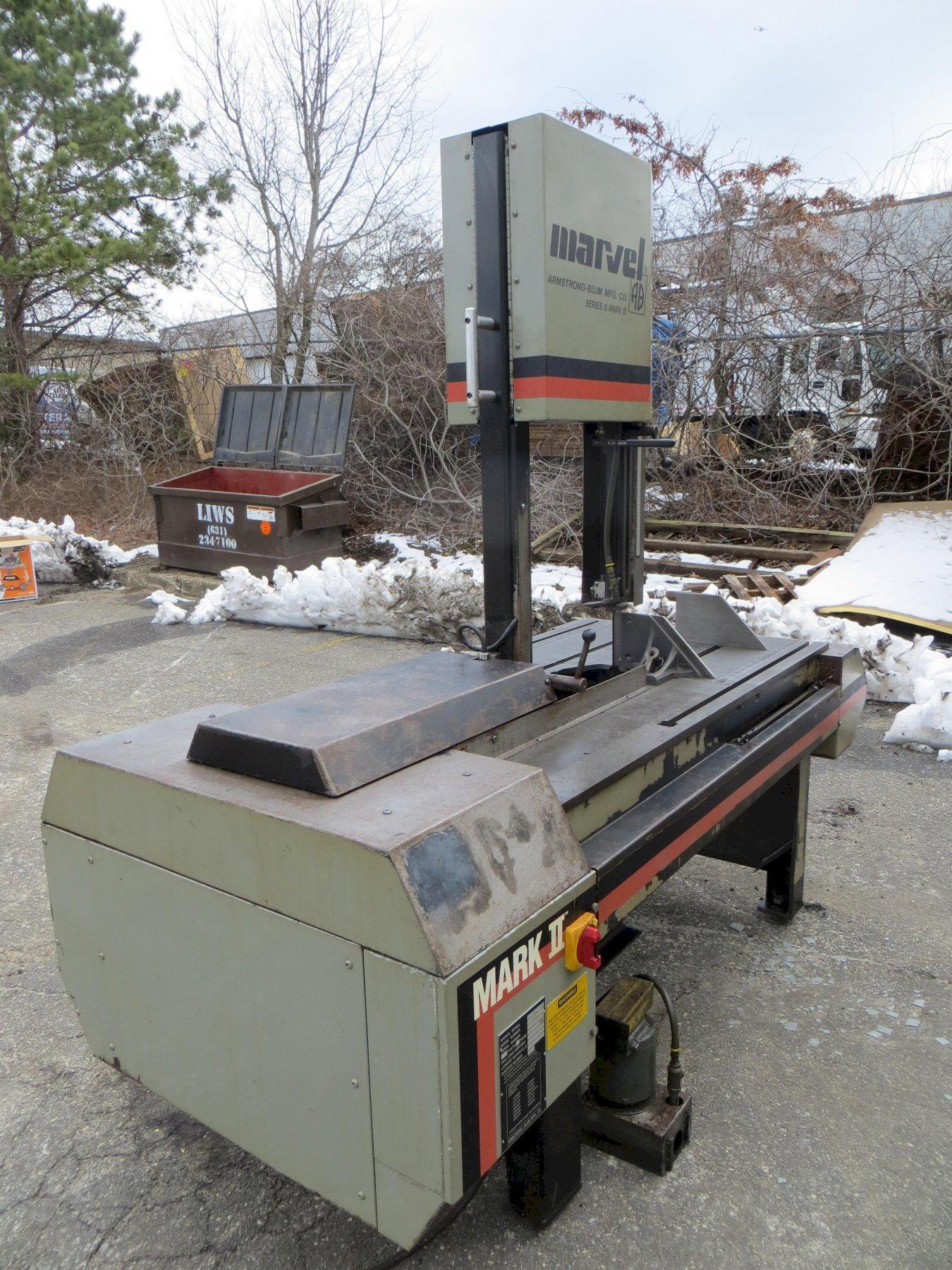

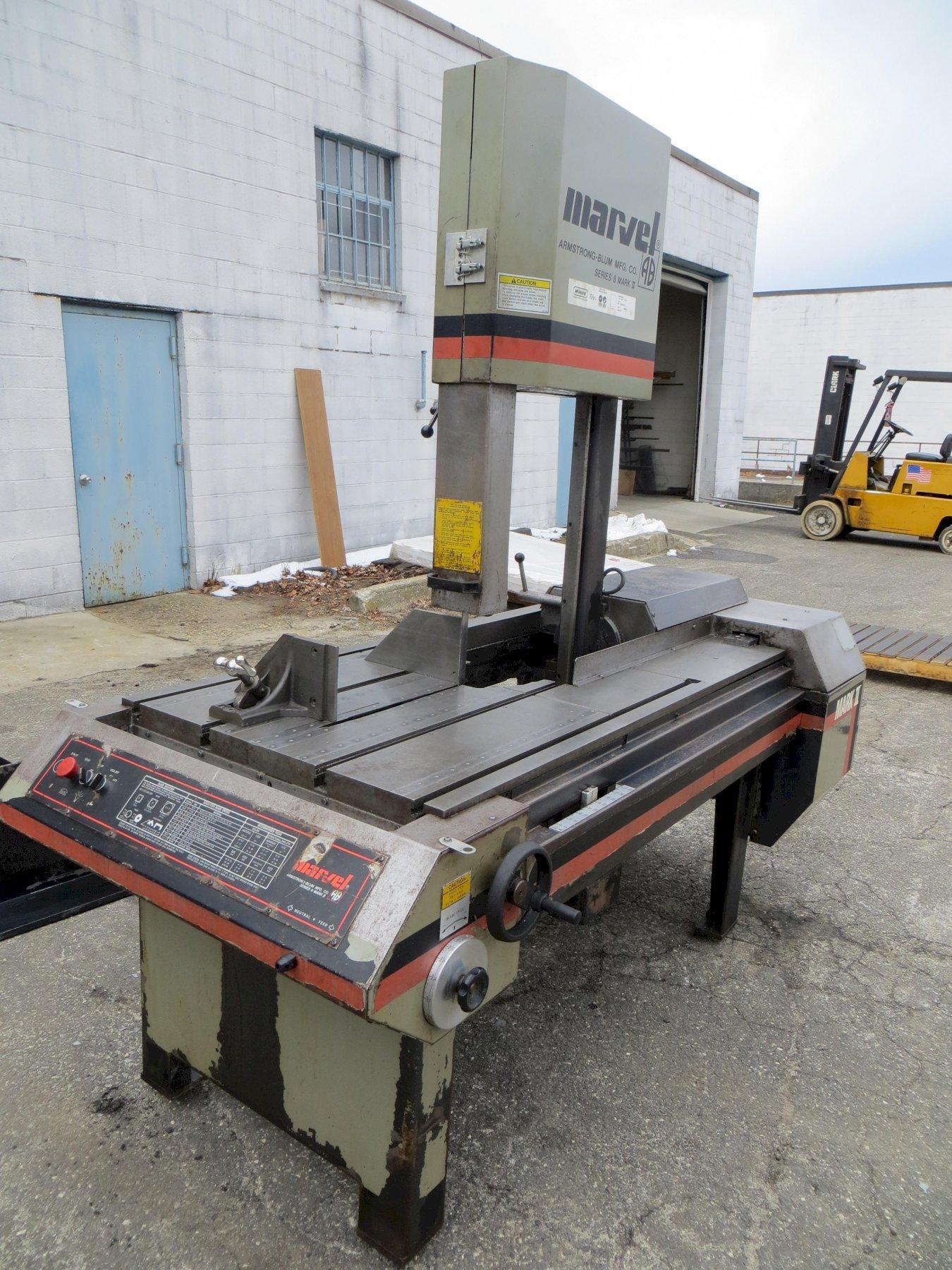

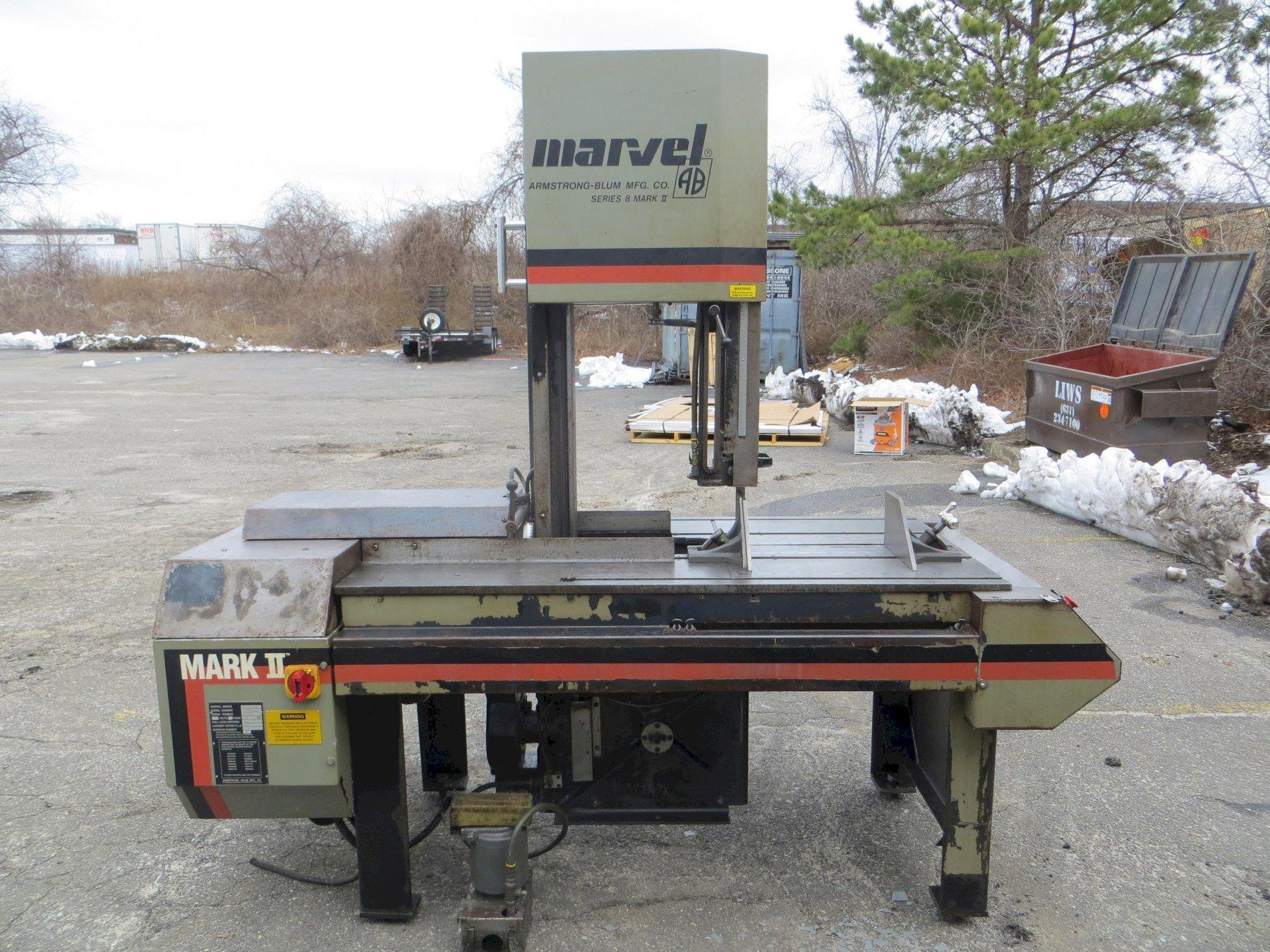

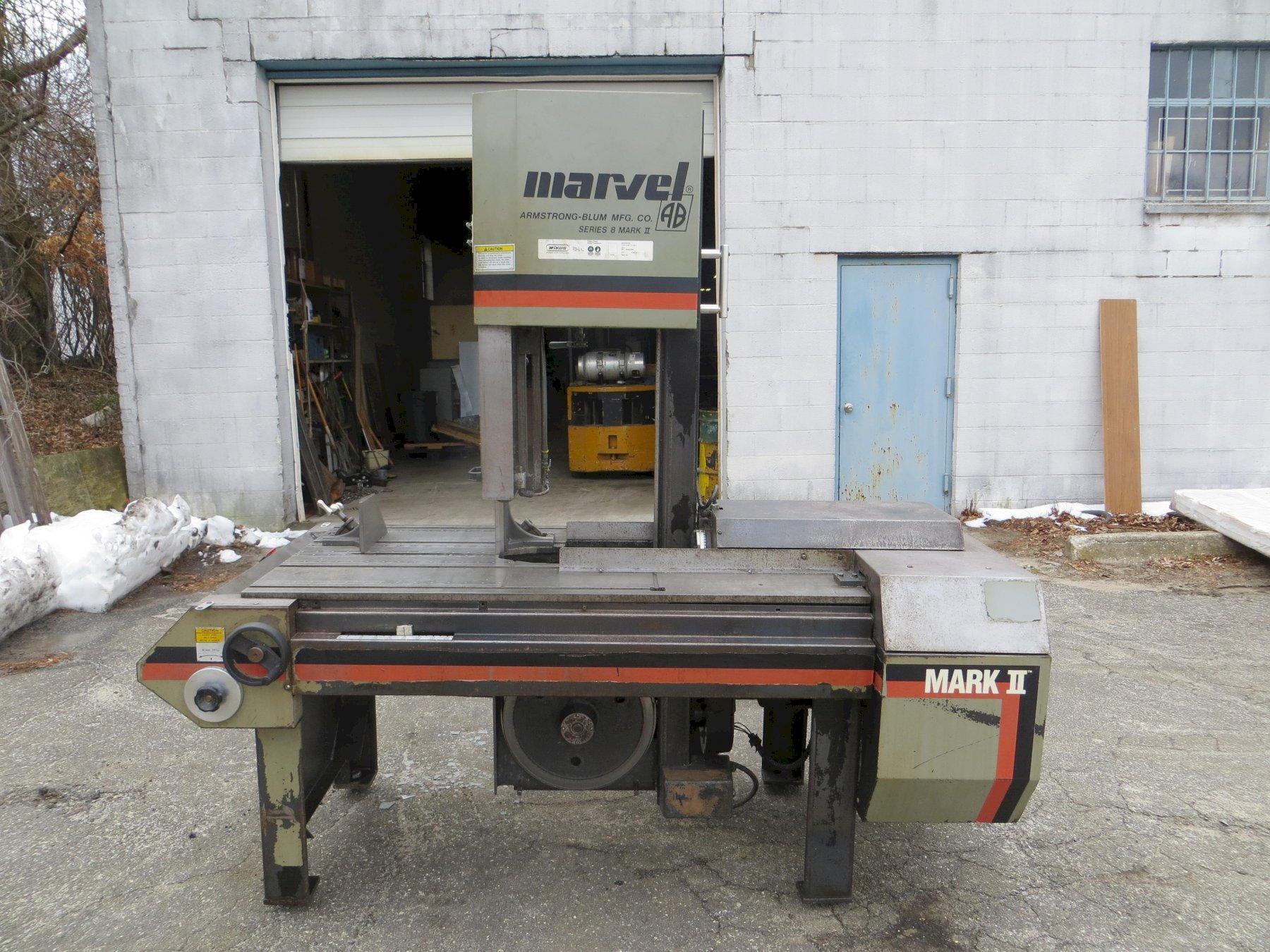

MARVEL TILT FRAME SERIES 8 MARK II VERTICAL BAND SAW

Serial No. 827779

SPECIFICATIONS:
CAPACITY:
      MAXIMUM .................................................................................................18" X 22"
      BLADE AT 45 DEGREES, MAXIMUM ................................................ 18" X 12-3/4"
TABLE WORKING SURFACE, T-SLOTTED ............................................... 33" X 24-1/4" T
ABLE HEIGHT ................................................................................................... 34-1/2"
BLADE SIZE ....................................................................................................... 174" X 1" X .035"
FEED FORCE ..................................................................................................... 0 TO 140 LBS.
MAXIMUM VISE OPENING ........................................................................ 21"
HEIGHT/WIDTH OF VISE JAWS ................................................................. 6"

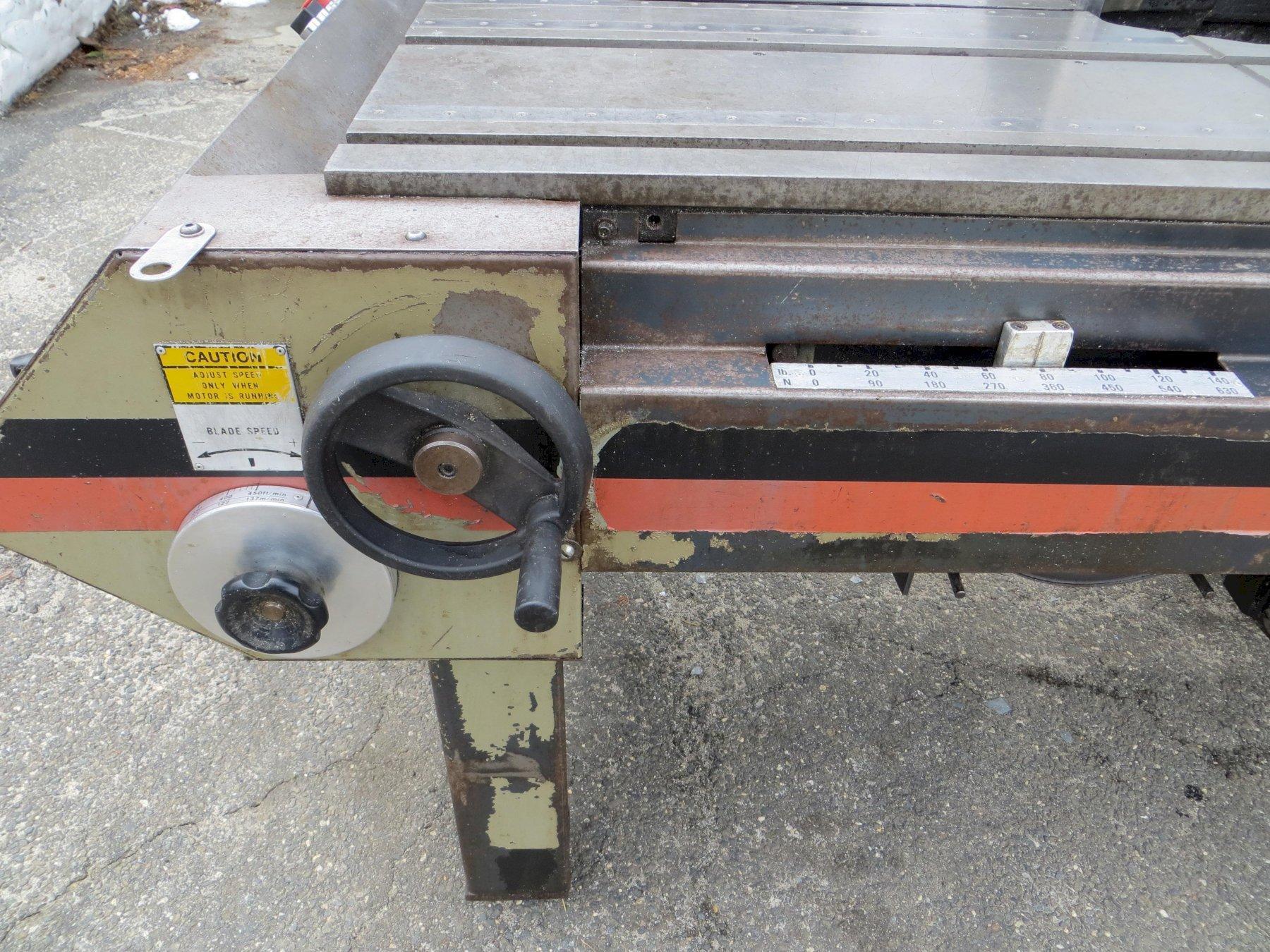

BLADE SPEEDS, INFINITELY VARIABLE ................................................... 50-450 FPM
FEED PRESSURE RANGE, INFINITELY VARIABLE ................................. 0-140 LBS
APPROXIMATE WEIGHT .............................................................................. 2,870 LBS.
APPROXIMATE DIMENSIONS......................................................... .......... 90" F-B X 55" L-R X 85" H

EQUIPPED WITH: -
MANUAL TILT OF COLUMN 45 DEGREES LEFT AND RIGHT FOR MITER CUTTING -

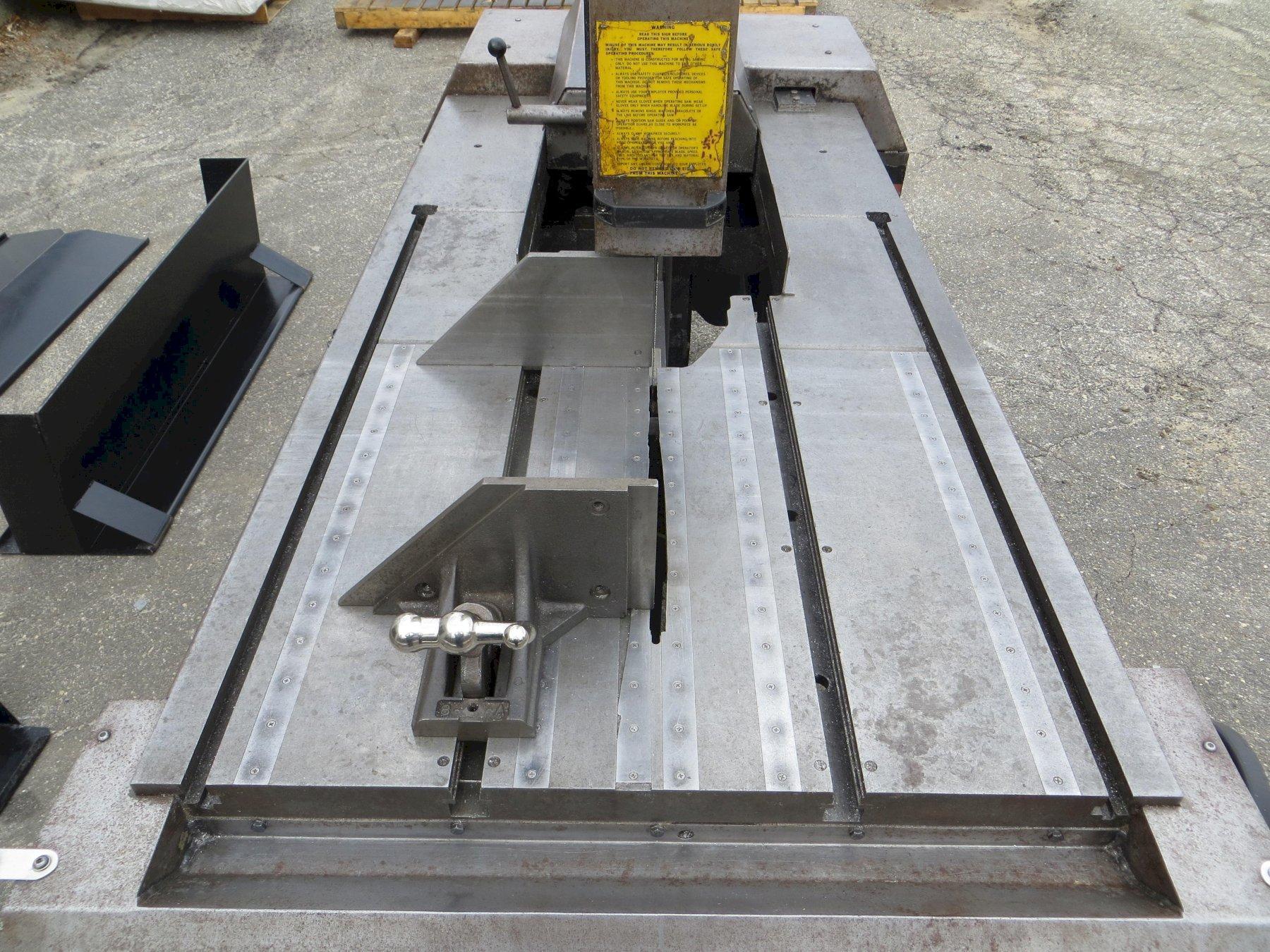

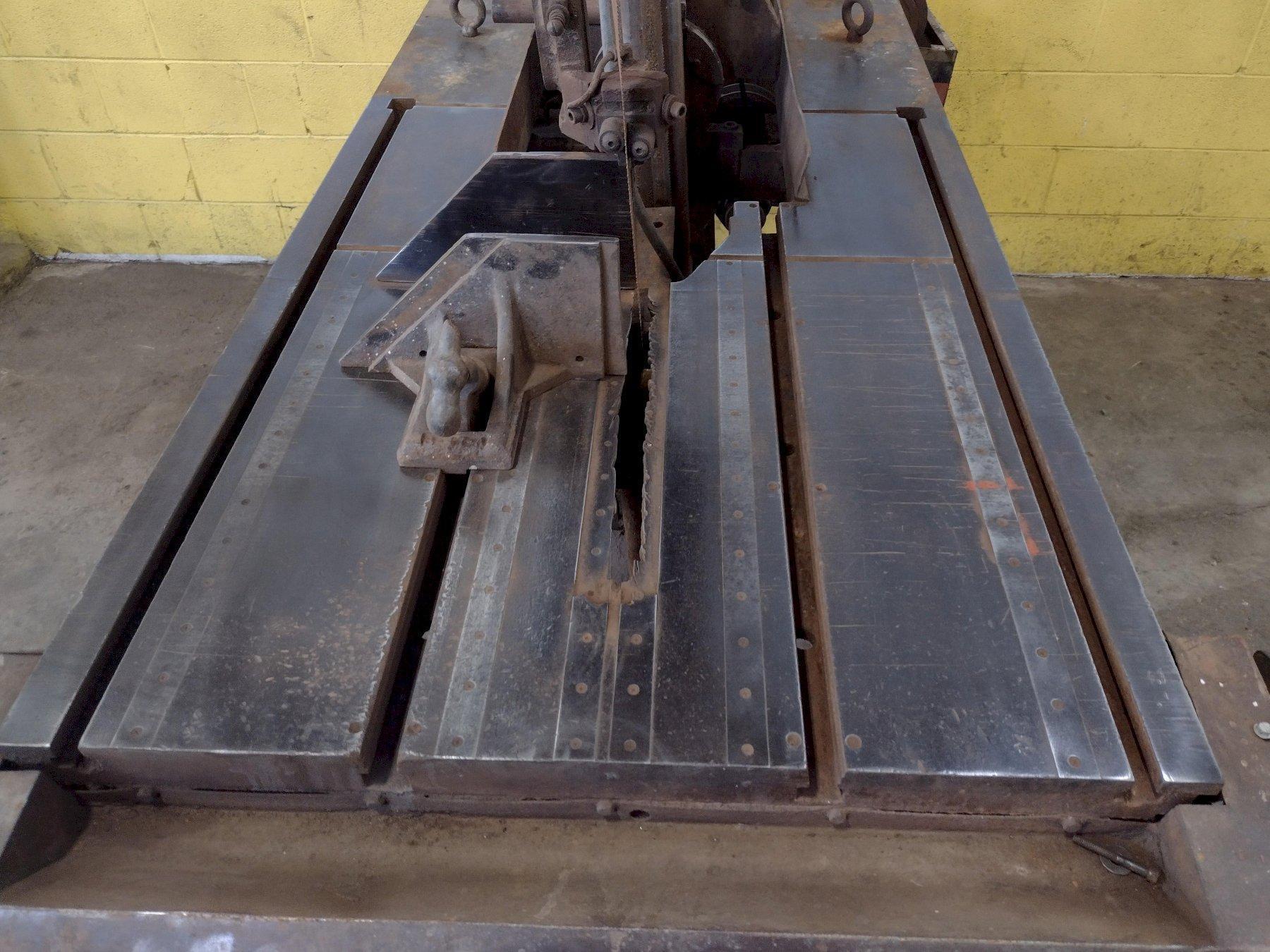

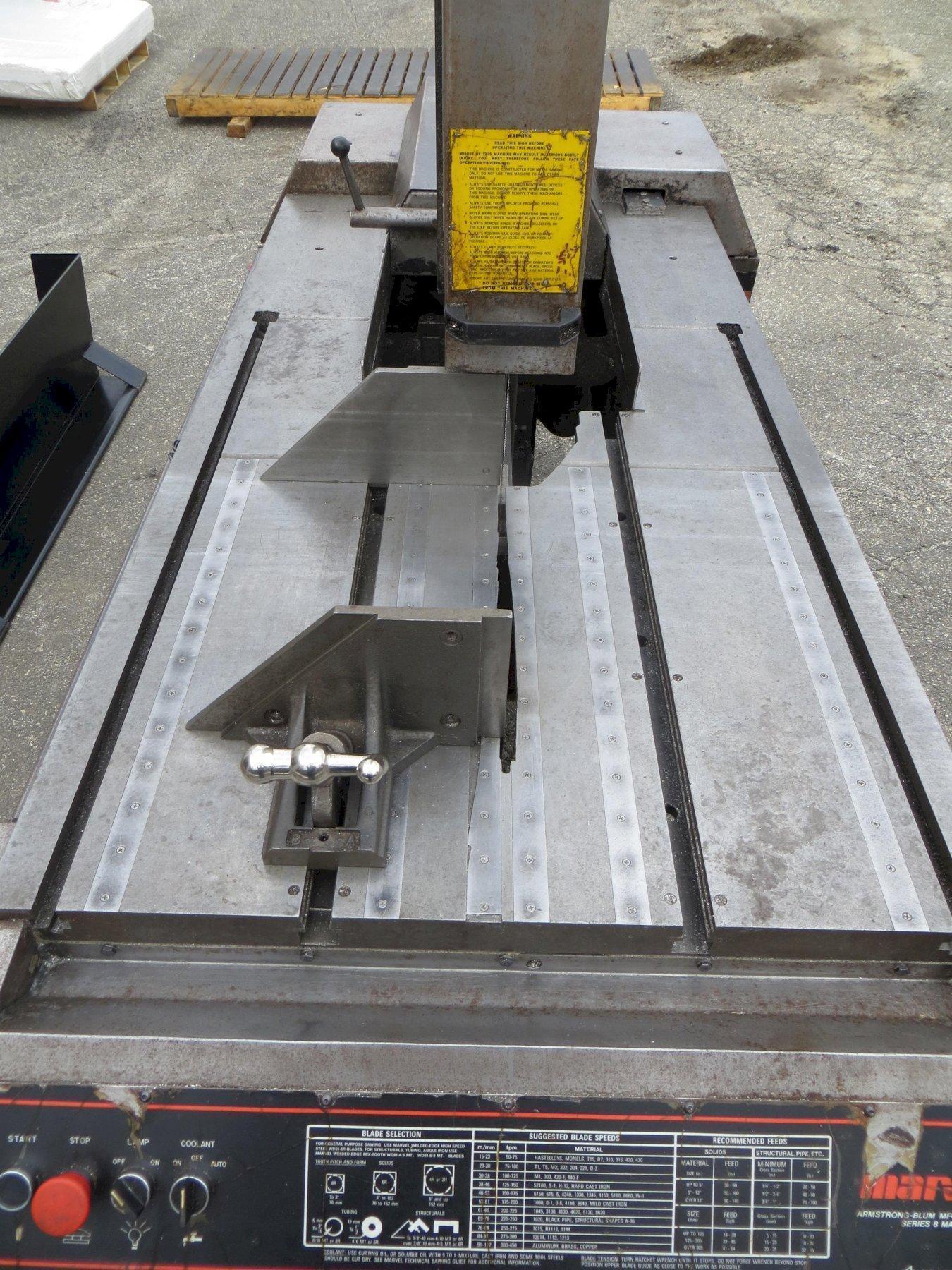

T-SLOTTED TABLE -
QUICK ACTING WORK VISE -

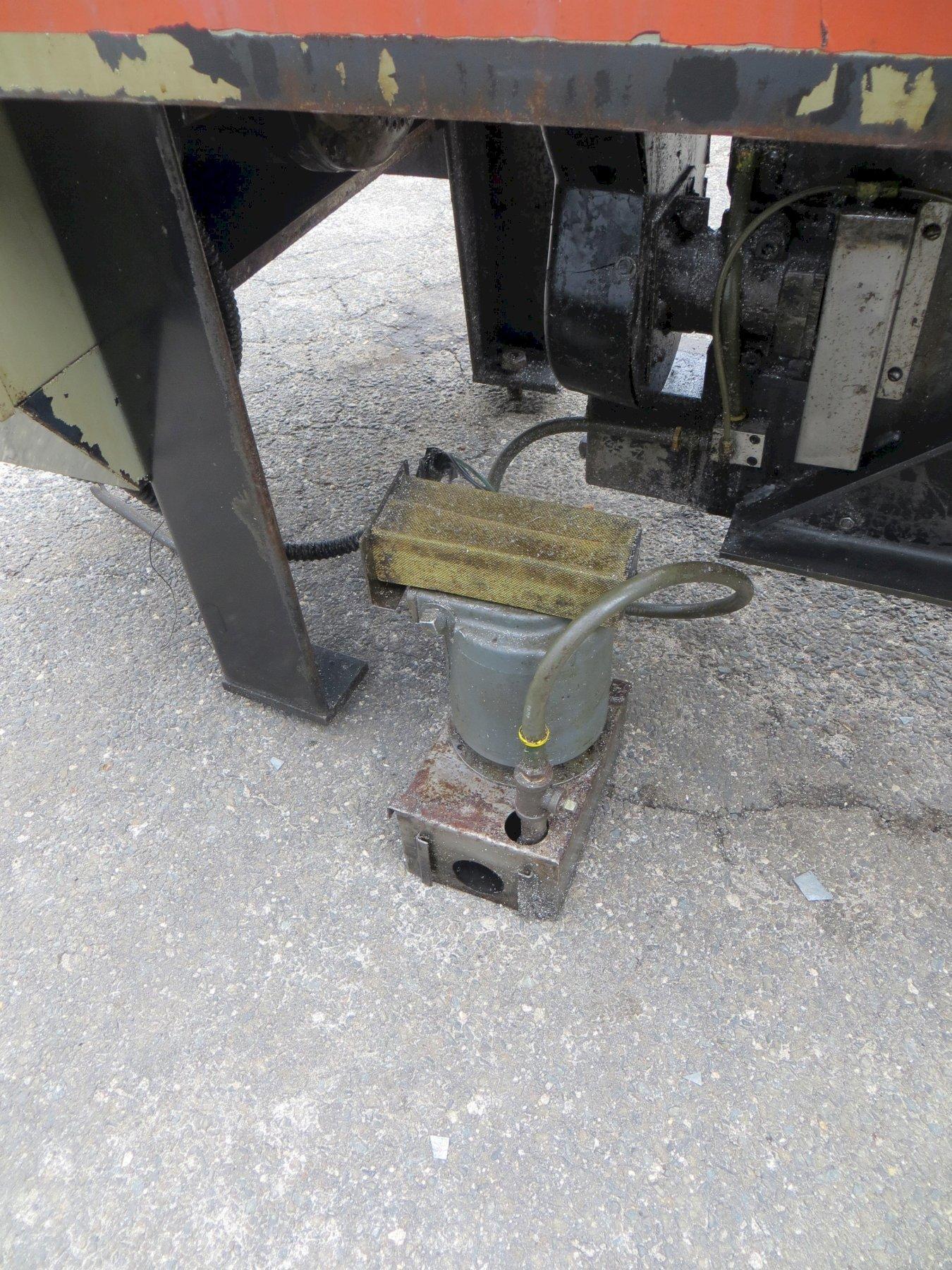

COOLANT PUMP AND PAN -

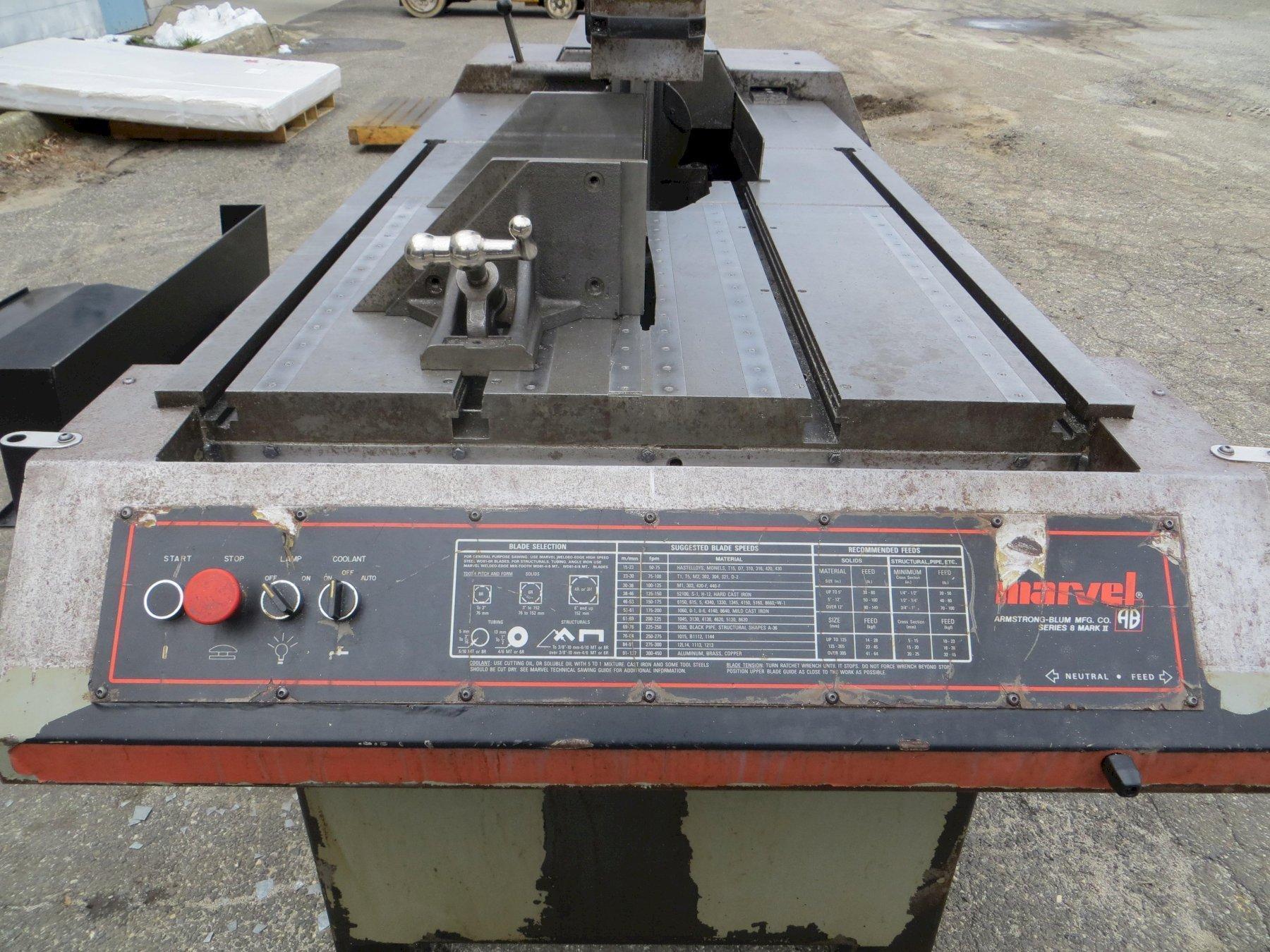

2 H.P. 3/60/230-460 VOLT MAIN DRIVE MOTOR AND ELECTRICAL CONTROLS PRESENTLY WIRED FOR 230 VOLT OPERATION.
