Year
2013
Stock #
17249
Condition
Excellent
Keep Scrolling To Learn More

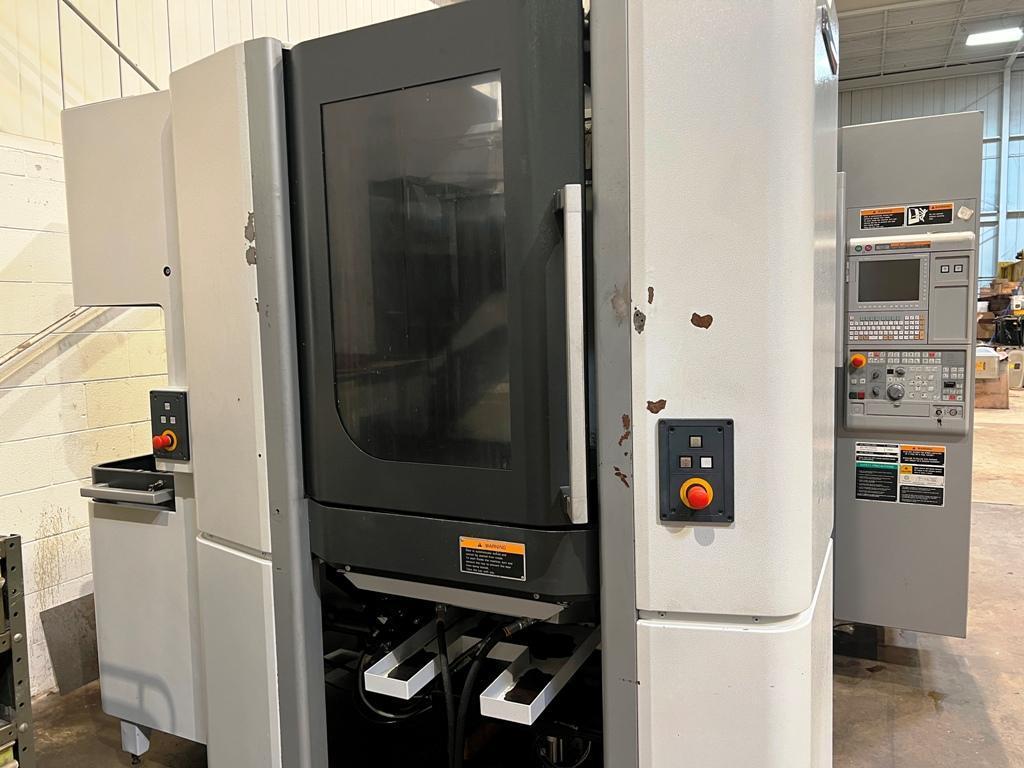

MORI SEIKI NHX4000 HORIZONTAL MACHINING CENTER
New 2013

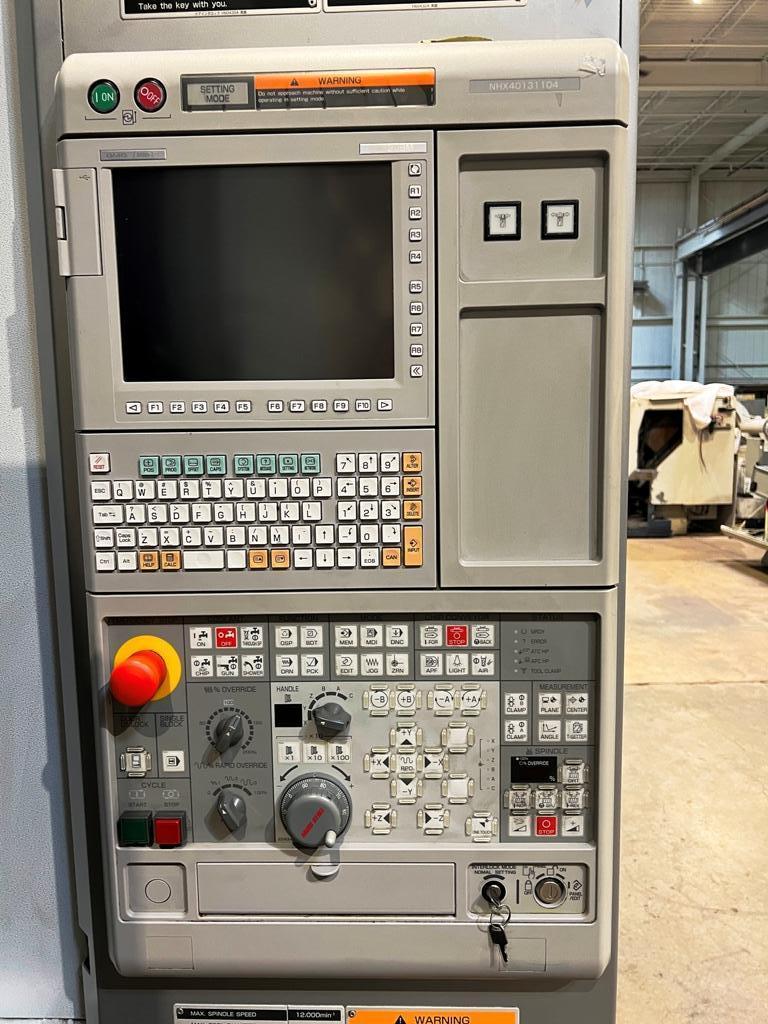

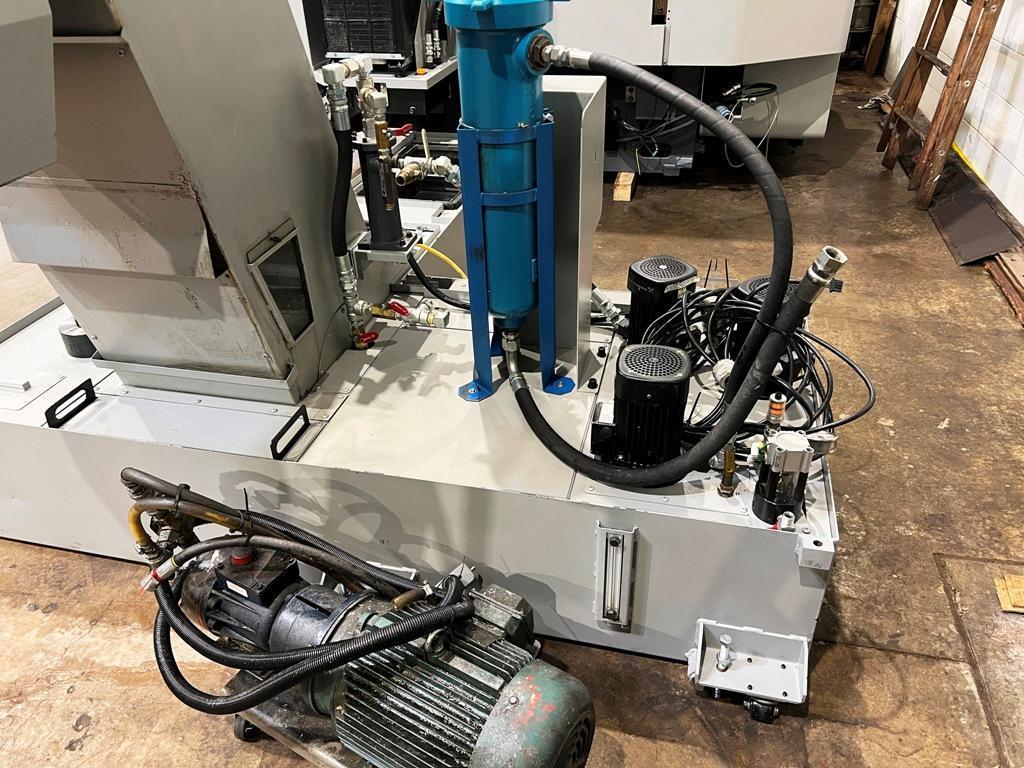

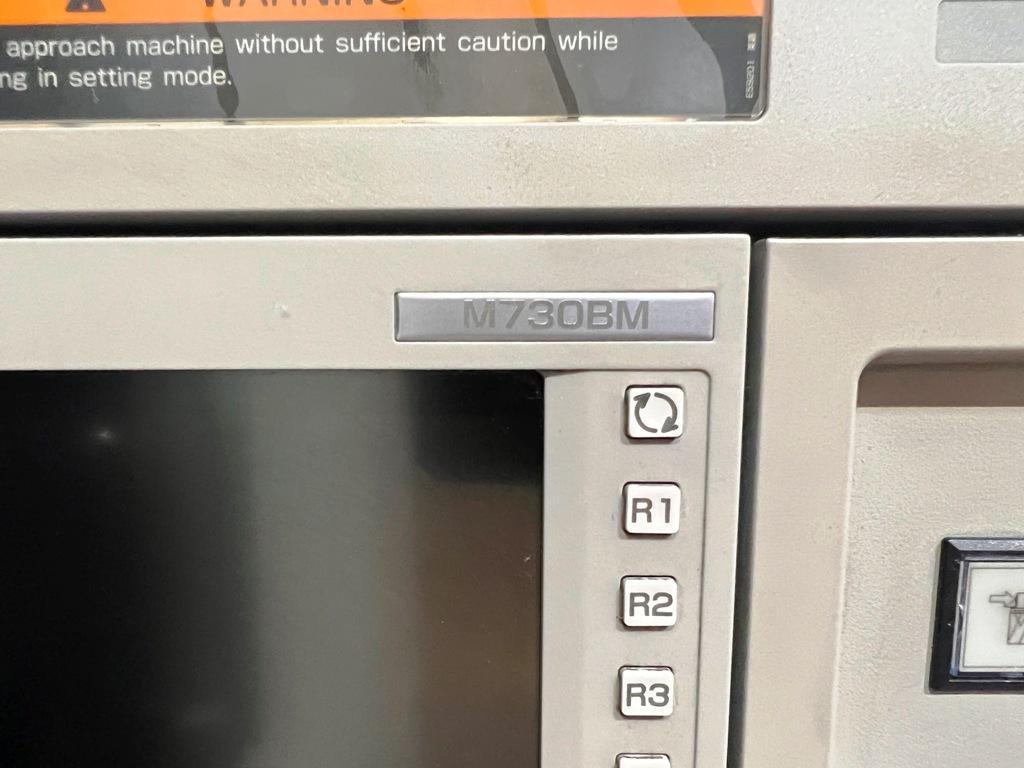

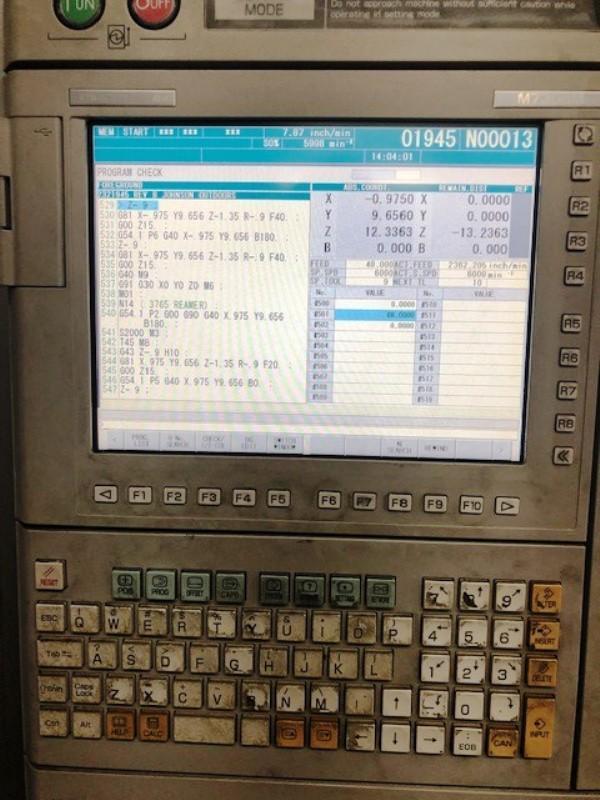

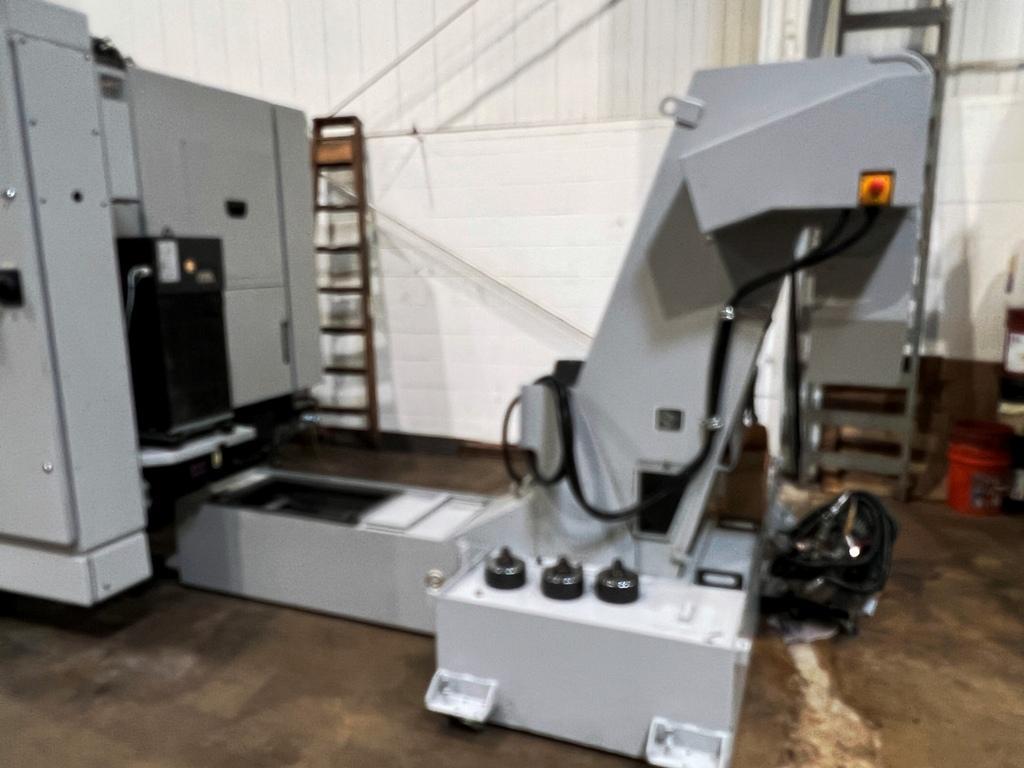

EQUIPPED WITH: Mori Seiki CNC Controls, Coolant Thru Spindle, 60 Tool Automatic Tool Changer, MD Chip Conveyor
SPECIFICATIONS:

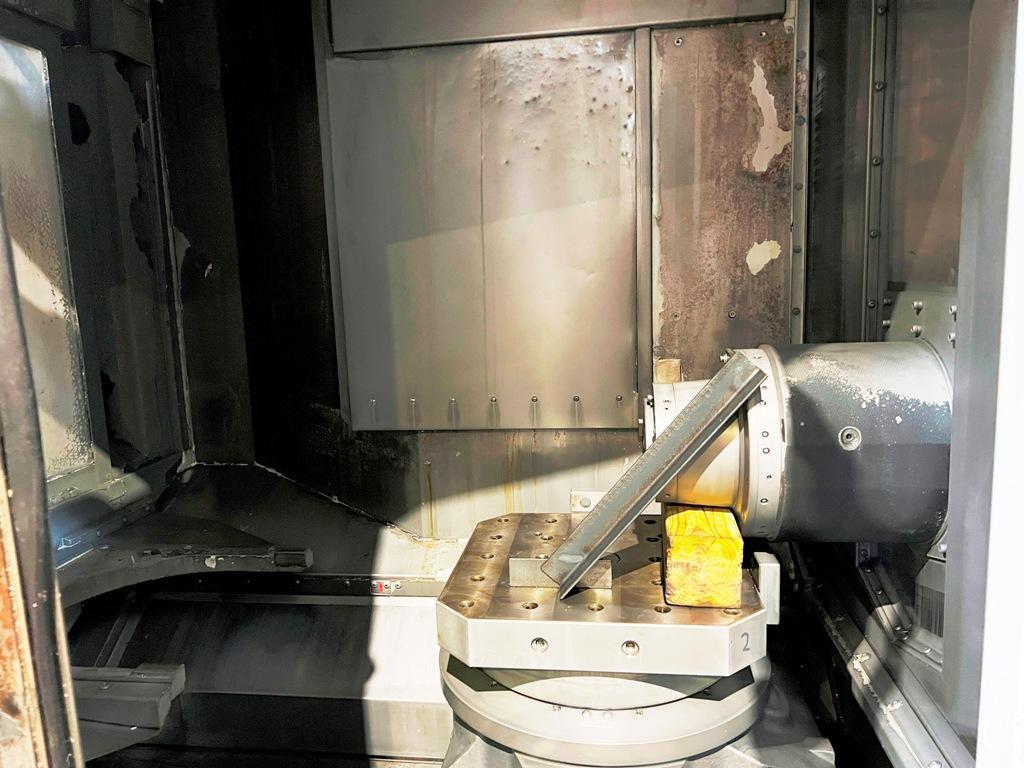

Pallets (2) 15.7" x 15.7"
Table Indexing .001 Degree Rotary
Table Load Capacity 880 Lbs.
Pallet Index Time 1.49 Seconds
Travels
X - Axis 22"
Y - Axis 22"
Z - Axis 26"
Spindle Nose CAT 40
Spindle Speed 12,000 RPM
Spindle Speed Ranges 1 Range
Spindle Motor 40 HP
Maximum Part Size (D x H) 24.8" x 35.4"

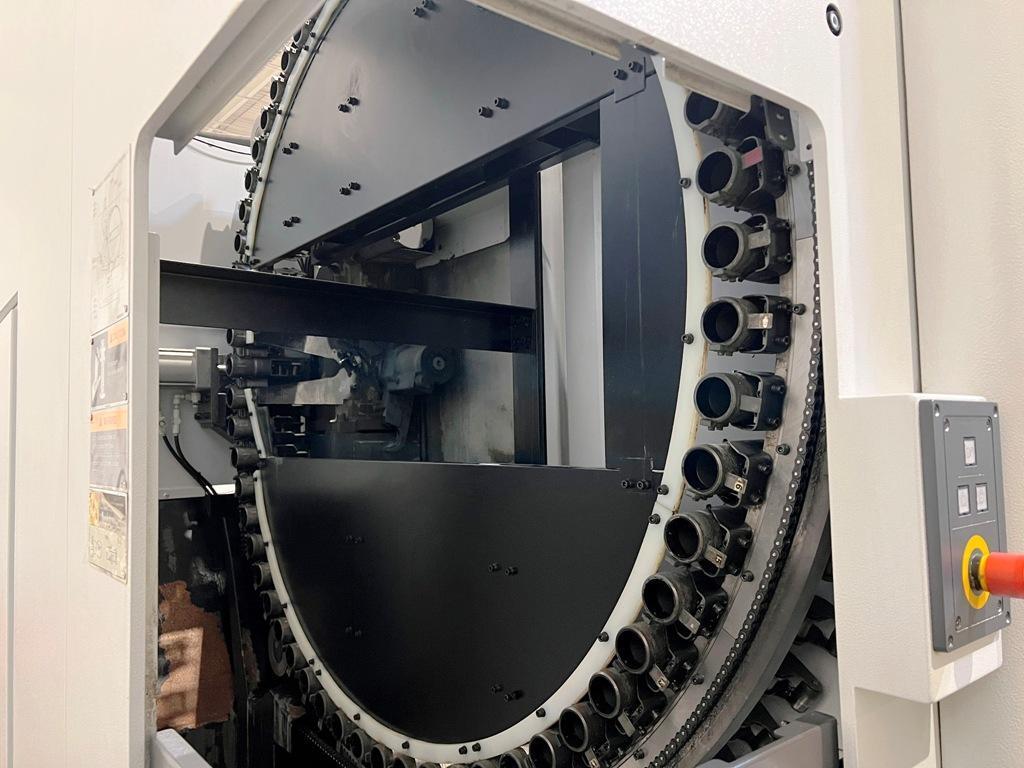

Tool Magazine Capacity 60 ATC
Maximum Tool Length 15.7"
Maximum Tool Weight 17.6 Lbs.
Rapid Traverse Rates
X - Axis 2362 IPM
Y - Axis 2362 IPM
Approximate Dimensions 107.1" x 165.9" x 108" H
Approximate Weight 18,000 Lbs.
There are no files attached to this listing currently. If you Have any further questions regarding this listing, please contact us for more information.
