Equipped With

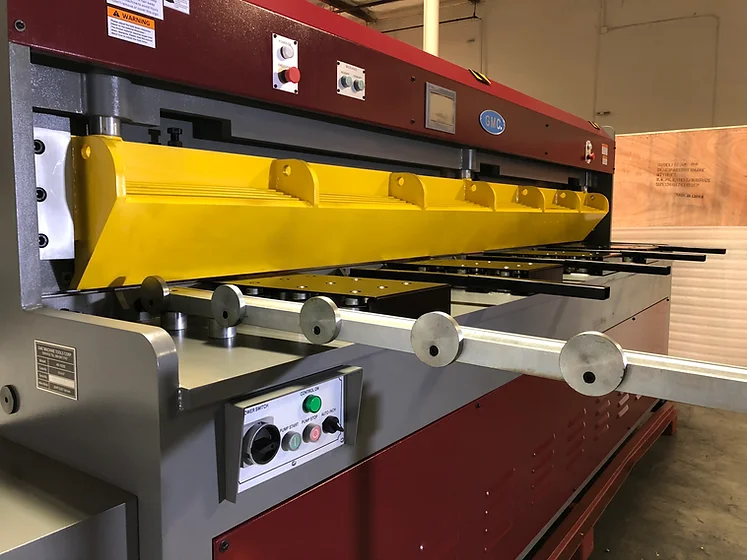

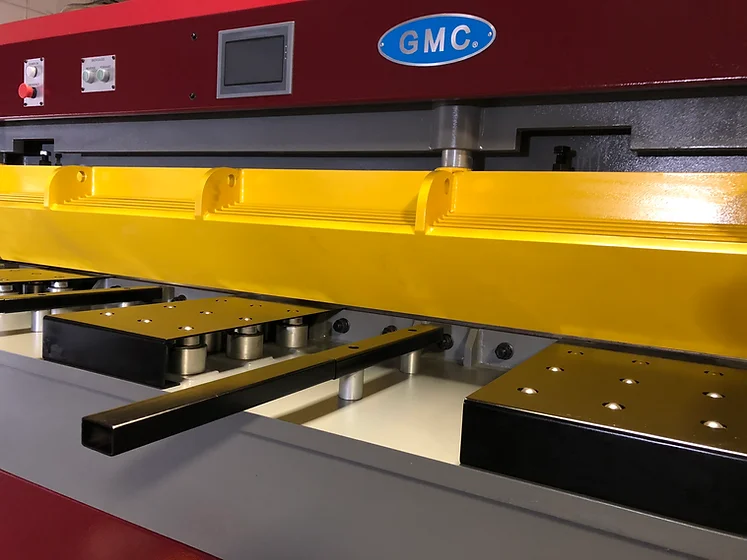

NEW 10' X 14 GAUGE GMC MODEL HS-1010E HYDRAULIC SHEAR

Standard Features:

·         ISO 9001 certified

·         Taiwan machines

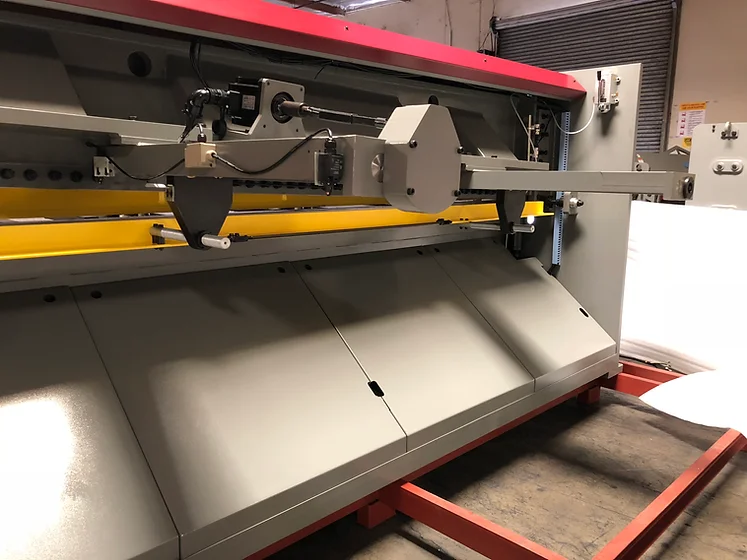

·         HS-1010E comes with 36” German SIKO Front Operated power back gauge w/ micro

adjustment 0.004” , inch/mm digital display

·         Quick Change Blade Gap Adjustment (BGA), with gap dial

·         Shadow line for accurate straight cutting

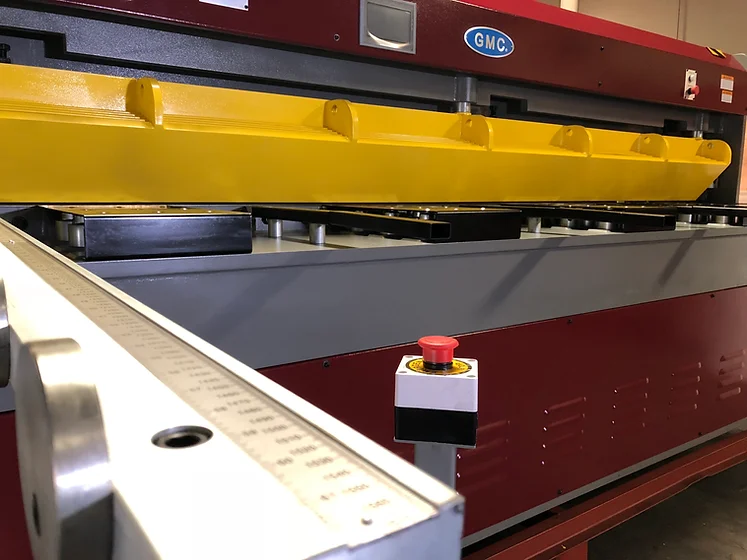

·         60” squaring arm with inlaid inch/metric dual scale

·         CE standard “OMERO” electric control system

·         Meet OSHA safety standard code

·         Adjustable cutting length and stroke

·         Ball transfer plates on worktable for easy loading workpiece

·         Well balanced and sturdy all steel machine frame

·         German made Hydraulic logic system centrally located and quiet

·         Hydraulic hold-downs with anti-mar neoprene

·         Shear blades are high grade carbon/chrome alloy steel and hardened

to 60 HRC, 2-edge indexable upper blade and 2-edge indexable bottom blade

·         Full length viewable safety finger guard to protect operator from cutting hazard

·         Removable safety foot pedal, automatic blade raise up on removal of foot from  pedal

·         Hydraulic, electrical overload protection

·         Compact operator control panel

·         All motors are overload protected & low voltage control system

·         Jog or continuous auto cycle cutting operation modes

·         One year industrial warranty for parts

Standard Equipment:

·         HS-1010E comes with 36” German SIKO Front Operated power back gauge w/ micro

adjustment 0.004” , inch/mm digital display

·         1 each 60” squaring arm with inlaid inch/metric dual scale

·         Quick change blade gap adjustment (BGA)

·         Shadow line for accurate straight cutting

·         Material support and drop back chuter

·         Upper and bottom blade set with 2-edge on bottom & 2-edge on upper

·         2 each 24” front support arms

·         Hydraulic hold-downs with anti-mar neoprene

·         Full length viewable finger guard

·         Removable safety foot pedal

·         Tool box

Optional Equipment:

·         Safety fence for enclosure of the back side of the machine……  $1,150.00

·
