Specifications:

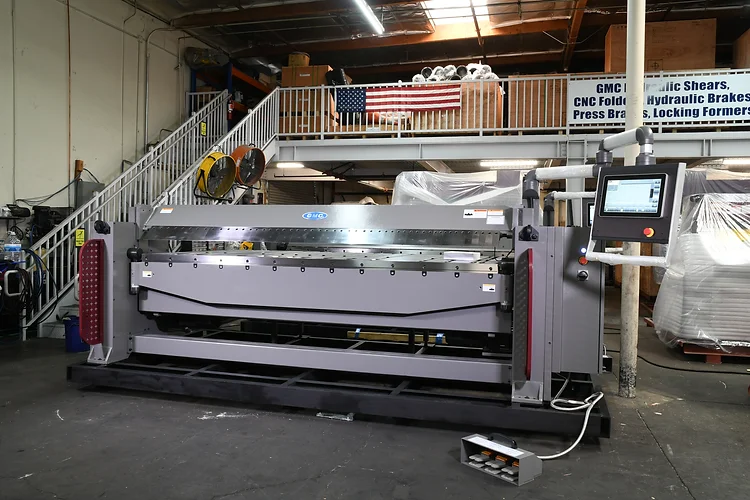

        GMC EBB-1014CNC

Capacity

Mild Steel

Stainless Steel

Close hemming with one piece finger

Open hemming

                  14Ga.

                  18Ga.

                  26Ga.

                  24Ga.

Bending length capacity

                  10’1”

Bend Angle Degree, programmable

              0- 135 degree

Max depth of box or pan

                  4”

Large Beam Opening/clamping opening

                  4-7/8”

Min. Reverse Bend

                  1/2”

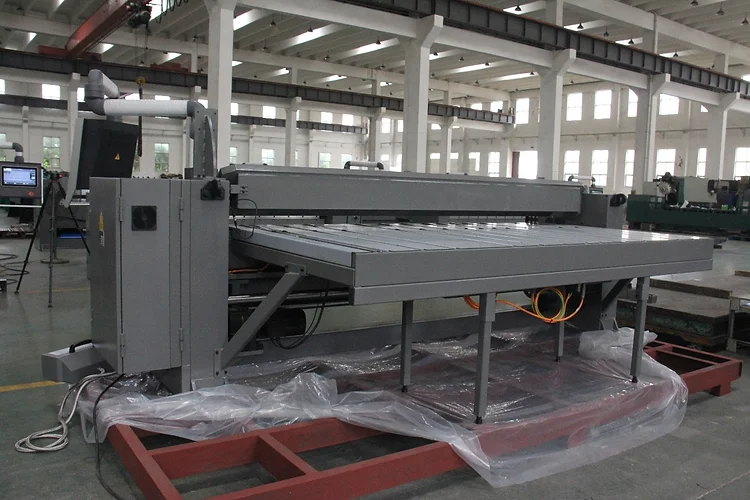

Max. Table Back Gauge Distance

Min. Table Back Gauge Distance

                48-3/8”

                     1/2”

Back Gauge Repeatability

                0.0039”

Back Gauge Table height

                35-3/4”

Motor for bending leaf

          4HP, 220V,3phase

Servo motor for back gauge

Clamping motor

          2HP ,220V, 3phase

           1-1/2HP , 220V, 3phase

Amperage Draw

                  35A

Machine weight , LBS

Shipping weight

Machine dimensions, LWH

Shipping dimensions

              9,850 LBS

               10,150 LBS

              168x79x67”

              174x80x71”
