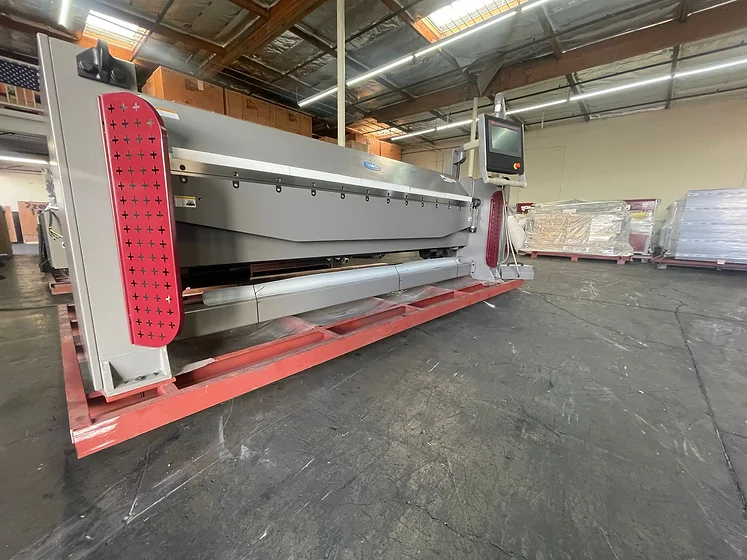

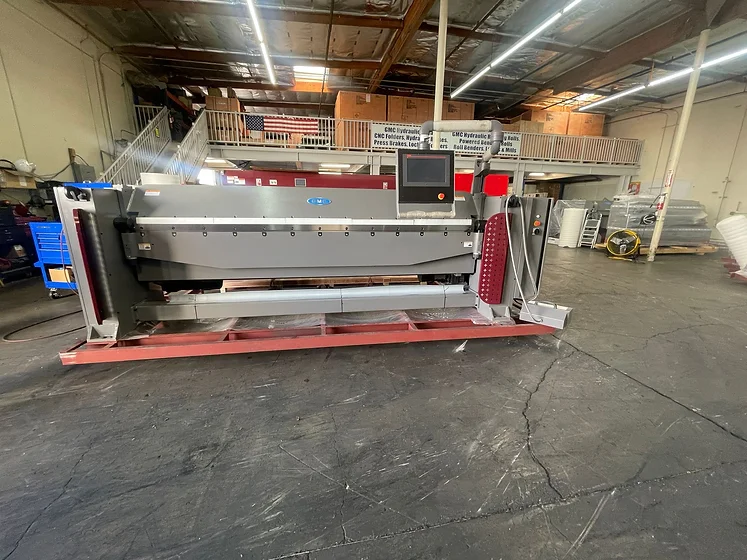

NEW 10' X 14GA - GMC MODEL EFM-1014CNC SHEET METAL FOLDER
Year
Not provided
Stock #
19096
Condition
New
Keep Scrolling To Learn More
Specifications
Equipped With
NEW 10' X 14GA - GMC MODEL EFM-1014CNC SHEET METAL FOLDER
- ISO 9001 certified
- Designed in US and Taiwan quality Machine
- Meet OSHA and CE safety standard
- ESA CNC control, made in Italy
- Max. 99 bends per program
- Upto 2000 Programs Storage
- Profiles library with graphics
- Programmable Radius Bend
- Programmable Angle/ Angle Correct
- 48” CNC back gauge with table and fingers
- Hardened nose bar and table, up to 48HRC
- Comes with one 1” Insert Bar and one ½” Insert Bar
- Yaskawa Servo motors and Drives
- Schneider electrical components
- All steel construction for maximum rigidity
- Meet OSHA standard, to start the program, need to press foot pedal twice
- Safety type foot pedal with handle and E-stop switch
- Safety 24V low voltage & overload protection
- Need a step up transformer if power supply is 208V 3-Phase
- One year industrial warranty for parts
OPTIONAL EQUIPMENT
- 1/2” thick insert bar for ½” min. reverse bend,capacity mild steel 28-20Ga - $1,950.00

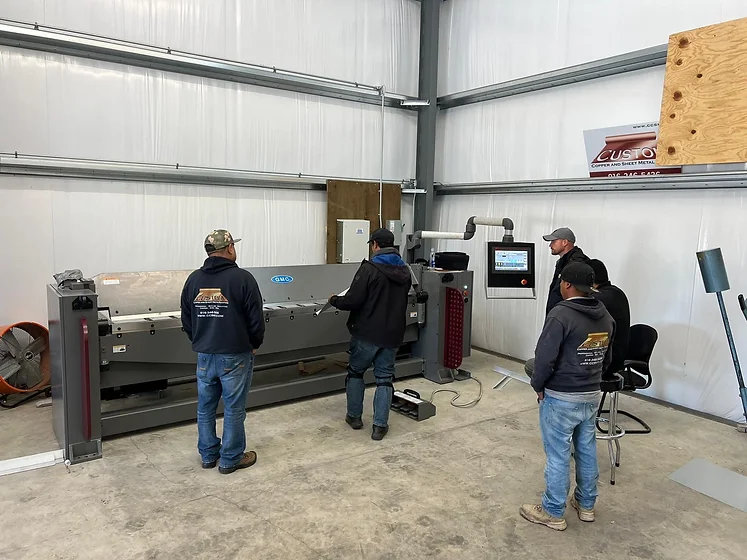

- One day on-site training - $4,995.00
SPECIFICATIONS
|
Capacity: Mild Steel |
14 Ga. |
| Stainless Steel | 18 Ga. |
| Close hemming | 26 Ga. |
| Open hemming | 24 Ga. |
| Bending Length Capacity | 10'1" |
| Bend Angle Degree, programmable | 0-135 degree |
| Hemming capacity, mild steel | 20 Ga. |
| Hemming capacity, stainless steel | 24 Ga. |
| Large Beam Opening/clamping opening | 4-7/8" |
| Min. Reverse Bend | 1/2" |
| Max, Table Back Gauge Distance | 48-3/8" |
| Min. Table Back Gauge Distance | 1/2" |
| Back Gauge Repeatability | 0.0039" |
| Back Gauge Table Height | 35-3/4" |
| Motor for Bending Leaf |
4 HP 3 Phase 35A Prewired: 220VAC |
| Servo motor for back gauge |
2 HP 3-Phase 220VAC |
| Clamping Motor |
1-1/2 HP 3-Phase Prewired: 220VAC |
|
Machine Weight: Shipping Weight: |
9,850 LBS 10,150 LBS |
|
Machine Size (LxWxH) Shipping Dimensions: |
168" x 79" x 67" 174" x 80" x 71" |
