NEW 125 TON x 10' US INDUSTRIAL MODEL USHB125-10HM HYDRAULIC PRESS BRAKE
Year
Not provided
Stock #
14326
Condition
New
Keep Scrolling To Learn More
Specifications
Equipped With
NEW 125 TON x 10' US INDUSTRIAL MODEL USHB125-10HM HYDRAULIC PRESS BRAKE WITH FRONT OPERATED BACKGAUGE AND POWER RAM ADJUST
Base Price POR
STANDARD EQUIPMENT
Power Front Operated Back Gauge, Motorized With Fine Adjustment Hand Wheel
Power Ram Depth Control, Motorized With Fine Adjustment Hand Wheel

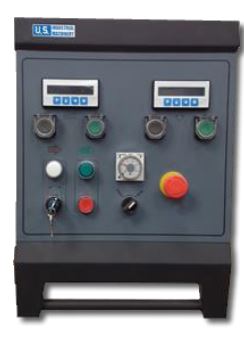

Digital Displays For Backgauge Position and Ram Position
All Steel Construction
SICK deTec2 Core Light Curtain
Ram Takes Standard American Tang Tooling (1/2" x 5/8")
Space Between Ram Tool Clamps Allow For Deep Box Bending
Bed Has Slot For Standard American Tang Tooling
Bed Also Holds Tooling With Capture Clamps
Free Goosenext Punch & Multi-Opening Die For Up To 90º Forming In 10 Gauge Mild Steel
Sick Model 4000 Light Curtain System
OPTIONAL EQUIPMENT
Fiessler Aklas II Laser Guarding $7,995.00
Pilz PSENvip LED Safety Guarding System $8,495.00
On Site Training (Less Than 300 Miles From Memphis, TN) $2,995.00
On Site Training (More Than 300 Miles From Memphis, TN) $3,995.00
On Site Training (Outside Continental USA) POR
SPECIFICATIONS
Warranty: 1 Year Parts & Labor
Special Note: The Gooseneck Punch and multi-opening Die included are general purpose tools to be used for training only. Precision tooling should be purchased to meet your specific needs. The punch is segmented and it is up to the customer to calibrate these if they want to use them for a particular purpose. There is NO warranty on these items.
Base Price POR
STANDARD EQUIPMENT
Power Front Operated Back Gauge, Motorized With Fine Adjustment Hand Wheel
Power Ram Depth Control, Motorized With Fine Adjustment Hand Wheel
Digital Displays For Backgauge Position and Ram Position
All Steel Construction
SICK deTec2 Core Light Curtain
Ram Takes Standard American Tang Tooling (1/2" x 5/8")
Space Between Ram Tool Clamps Allow For Deep Box Bending
Bed Has Slot For Standard American Tang Tooling
Bed Also Holds Tooling With Capture Clamps
Free Goosenext Punch & Multi-Opening Die For Up To 90º Forming In 10 Gauge Mild Steel
Sick Model 4000 Light Curtain System
OPTIONAL EQUIPMENT
Fiessler Aklas II Laser Guarding $7,995.00
Pilz PSENvip LED Safety Guarding System $8,495.00
On Site Training (Less Than 300 Miles From Memphis, TN) $2,995.00
On Site Training (More Than 300 Miles From Memphis, TN) $3,995.00
On Site Training (Outside Continental USA) POR
SPECIFICATIONS
| Working Pressure | 125 Tons |
| Overall Length Of Table | 125.9" |
| Distance Between Housing | 106.2" |
| Throat Depth | 12.5" |
| Stroke Adjustment Of Ram | 2.36" |
| Ram Travel | 5.5" |
| Open Height | 15.9" |
| Rapid Ram Travel Speed | 2.4"/Sec |
| Rapid Ram Retreat Speed | 2.0"/Sec |
| Pressing Speed | Dependent On Tool Load |
| Backgauge Travel | 24" |
| Motor Horsepower | 10 HP |
| Hydraulic Oil Capacity | 79 Gal |
| Approx. Overall Weight | 18,739 Lbs |
| Approx. Dimensions | 148" x 64" x 101"H |
Warranty: 1 Year Parts & Labor
Special Note: The Gooseneck Punch and multi-opening Die included are general purpose tools to be used for training only. Precision tooling should be purchased to meet your specific needs. The punch is segmented and it is up to the customer to calibrate these if they want to use them for a particular purpose. There is NO warranty on these items.
