NEW 15.7" KENT USA MODEL KRGH-600 CNC ROTARY SURFACE GRINDER
Year
Not provided
Stock #
19389
Condition
New
Keep Scrolling To Learn More
Specifications
Equipped With
NEW 23.6" KENT USA MODEL KRGH-600 CNC ROTARY SURFACE GRINDER
FEATURES
- Z-axis W/ double V, longitudinal V & flat Turcite way
- AC servo motor drive for 3 axes,
- 10″ color touch screen with CNC controlled
- Auto wheel dressing with compensation
- Open top splash guard
- Auto lubrication system
SPECIFICATIONS
Rotary Magnetic Chuck Diameter 23.6"
Max Grinding Radius 12.9"
Distance Table Surface To Spindle Surface 13.7"
Rotary Magnetic Chuck Speed 10-100 RPM
Rotary Magnetic Chuck Motor 2 HP
Spindle Motor 10 HP
Spindle Speed 1750 RPM
Auto Downfeed Power 2 HP
Vertical Downfeed Graduation 0.00004"
Wheel Size 14" x 1.5" x 5"
Net Weight 13,220 Lbs
Gross Weight 13,550 Lbs

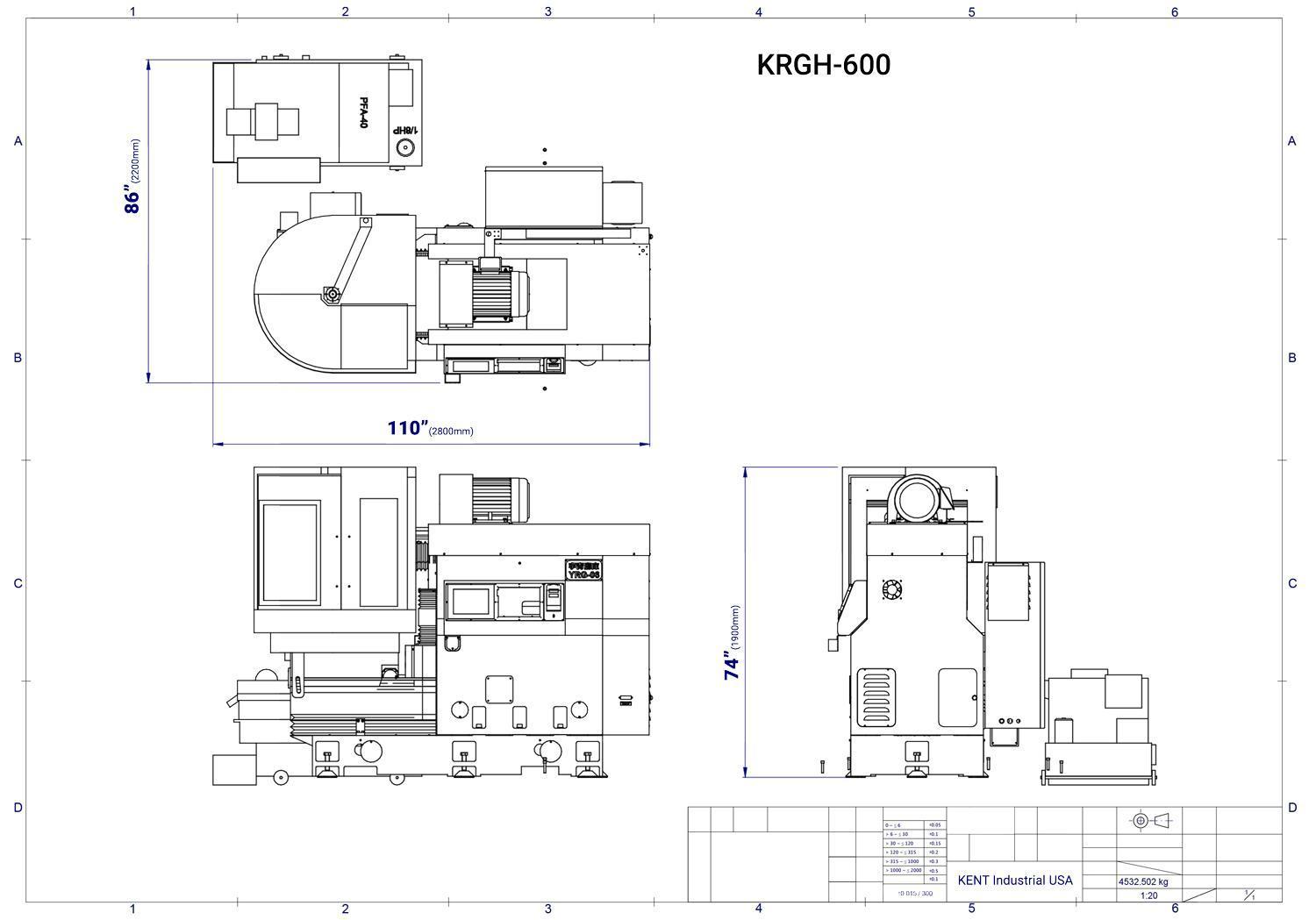

Approx. Dimensions 106" x 52" x 72"
Accessories
Standard Accessories
- Grinding wheel (Dia x Thickness x Bore) 14″x1.5″x5″ (60HZ)
- Grinding wheel adaptor (flange) & puller
- Arbor & nut for wheel balancing
- Diamond tool (1/4 carat) with a base
- Dust sweeping plate
- Halogen Working lamp (fitted on the machine)
- Leveling plates
- Leveling bolt with nuts
- Eyebolt
- T-Nut & screws Tool box & Tools
- Lubricant oil (4 liters, Mobile #1405 ) Plug (5/8″)
- Touch up paint
- Operation manual and inspection sheet
- Coolant system C/W a magnetic dust separator
- Automatic diamond wheel dresser with compensation
- Automatic demagnetizing controller for electro-magnetic chuck
- Electro-magnetic chuck (standard)
- Grinding wheel balancing apparatus
- Spare grinding wheel flange
- Spindle overload protection device
- Standard splash guard
Optional Accessories
- Spindle inverter(3 HP/ 440V/ 60Hz)
- Heidenhain” two axes DRO system
- Coolant system and paper filter (10.5 gal )
- Coolant system with paper filter and magnetic dust separator (10.5 gal)
- Cutting fluid cooler
- Auto dynamic balancer for grinding wheel on machine
- Grinding wheel flange (auto & dynamic)
