NEW 155 TON x 10' US INDUSTRIAL MODEL USHB155-10 CNC HYDRAULIC PRESS BRAKE
Year
Not provided
Stock #
14312
Condition
New
Keep Scrolling To Learn More
Specifications
Equipped With
NEW 155 TON x 10' US INDUSTRIAL MODEL USHB155-10 CNC HYDRAULIC PRESS BRAKE
Base Price POR
STANDARD EQUIPMENT
Ram Deflection Adjustment
Mechanical Ram Depth Control
Massive Torsion Bar For Parallelism
Forged Heavy Duty Cylinder & Cylinder Body
Three Speed Ram
Rapid Approach, Bending Cycle & Rapid Retreat
Bottom Time Delay
All Steel Constuction
Single, Continuous & Single Cycle
Ram Takes Standard American Tang Tooling (1/2" x 5/8")
Space Between Ram Tool Clamps Allow For Deep Box Bending
Bed Has Slot For Standard American Tang Tooling
Bed Also Holds Tooling With Capture Clamps
Free Goosenext Punch & Multi-Opening Die For Up To 90º Forming In 10 Gauge Mild Steel

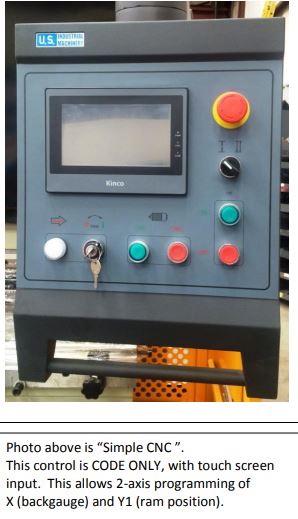

2-Axis Color Graphic CNC Back Gauge
Controls BOTH Bend Angle and Backgauge Position. Comes with 6” Color LCD touch screen. Code and Graphic programming included.
Graphic allows 10 bends per program/cross-section. Controls features a Tool library, Metric/Inch switchable, Auto bend sequence,
Auto retract of backgauge, Spread length, Interference bend alert, Calculated bend allowance,
Programmable ram dwell and much more. Control stores thousands of programs with USB Port, Ethernet and RS232 for program backup.
Sick Model 4000 Light Curtain System
OPTIONAL EQUIPMENT
Fiessler Akas II Laser Guarding $7,995.00
Pilz PSENvip LED Safety Guarding $8,495.00
Third Axis (Back Gauge Height) $4,995.00
CNC Controlled Mechanical Auto Crown $9,995.00
High Speed Servo Back Gauge $4,995.00
Training At US Industrial Factory No Charge
On Site Training (Less Than 300 Miles From Memphis, TN) $2,995.00
On Site Training (More Than 300 Miles From Memphis, TN) $3,995.00
On Site Training (Outside Continental USA) POR
SPECIFICATIONS
Warranty: 1 Year Parts & Labor
Special Note: The Gooseneck Punch and multi-opening Die included are general purpose tools to be used for training only. Precision tooling should be purchased to meet your specific needs. The punch is segmented and it is up to the customer to calibrate these if they want to use them for a particular purpose. There is NO warranty on these items.
Base Price POR
STANDARD EQUIPMENT
Ram Deflection Adjustment
Mechanical Ram Depth Control
Massive Torsion Bar For Parallelism
Forged Heavy Duty Cylinder & Cylinder Body
Three Speed Ram
Rapid Approach, Bending Cycle & Rapid Retreat
Bottom Time Delay
All Steel Constuction
Single, Continuous & Single Cycle
Ram Takes Standard American Tang Tooling (1/2" x 5/8")
Space Between Ram Tool Clamps Allow For Deep Box Bending
Bed Has Slot For Standard American Tang Tooling
Bed Also Holds Tooling With Capture Clamps
Free Goosenext Punch & Multi-Opening Die For Up To 90º Forming In 10 Gauge Mild Steel
2-Axis Color Graphic CNC Back Gauge
Controls BOTH Bend Angle and Backgauge Position. Comes with 6” Color LCD touch screen. Code and Graphic programming included.
Graphic allows 10 bends per program/cross-section. Controls features a Tool library, Metric/Inch switchable, Auto bend sequence,
Auto retract of backgauge, Spread length, Interference bend alert, Calculated bend allowance,
Programmable ram dwell and much more. Control stores thousands of programs with USB Port, Ethernet and RS232 for program backup.
Sick Model 4000 Light Curtain System
OPTIONAL EQUIPMENT
Fiessler Akas II Laser Guarding $7,995.00
Pilz PSENvip LED Safety Guarding $8,495.00
Third Axis (Back Gauge Height) $4,995.00
CNC Controlled Mechanical Auto Crown $9,995.00
High Speed Servo Back Gauge $4,995.00
Training At US Industrial Factory No Charge
On Site Training (Less Than 300 Miles From Memphis, TN) $2,995.00
On Site Training (More Than 300 Miles From Memphis, TN) $3,995.00
On Site Training (Outside Continental USA) POR
SPECIFICATIONS
| Working Pressure | 155 Tons |
| Overall Length Of Table | 125.9" |
| Distance Between Housing | 106.2" |
| Throat Depth | 12.5" |
| Stroke Adjustment Of Ram | 2.75" |
| Ram Travel | 5.9" |
| Open Height | 16.3" |
| Rapid Ram Travel Speed | 2.4"/Sec |
| Rapid Ram Retreat Speed | 2.0"/Sec |
| Pressing Speed | Dependent On Tool Load |
| Backgauge Travel | 24" |
| Motor Horsepower | 15 HP |
| Hydraulic Oil Capacity | 79 Gal |
| Approx. Overall Weight | 22,046 lbs |
| Approx. Dimensions | 148" x 64" x 101"H |
Warranty: 1 Year Parts & Labor
Special Note: The Gooseneck Punch and multi-opening Die included are general purpose tools to be used for training only. Precision tooling should be purchased to meet your specific needs. The punch is segmented and it is up to the customer to calibrate these if they want to use them for a particular purpose. There is NO warranty on these items.
