NEW 20" X 60" GMC MODEL GML-2060 HEAVY DUTY PRECISION GAP BED LATHE
Year
Not provided
Stock #
19115
Condition
New
Keep Scrolling To Learn More
Specifications
Equipped With
NEW 20" X 60" GMC MODEL GML-2060 HEAVY DUTY PRECISION GAP BED LATHE
- ISO 9001 certified
- 1-Year Parts Only Warranty
- Large spindle bore 3-1/8”
- Spindle D1-8
- Guideway width 12”
- Main motor 10HP

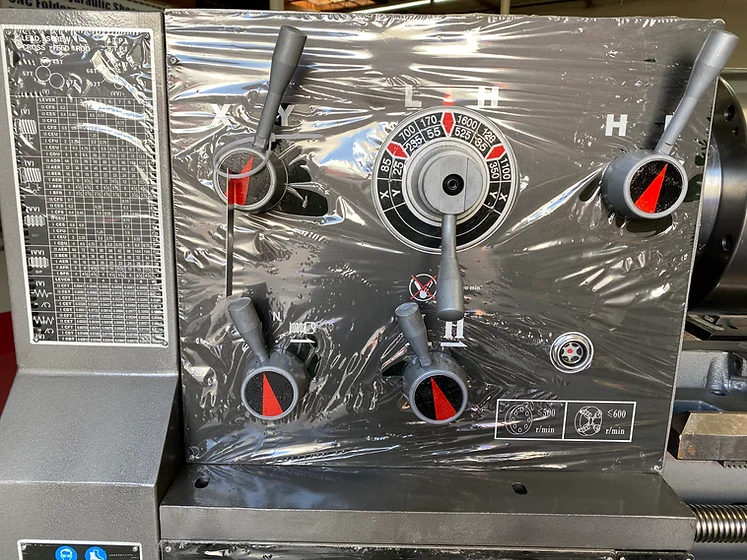

- 16 spindle speeds from 25-1,800 rpm, 12 speeds

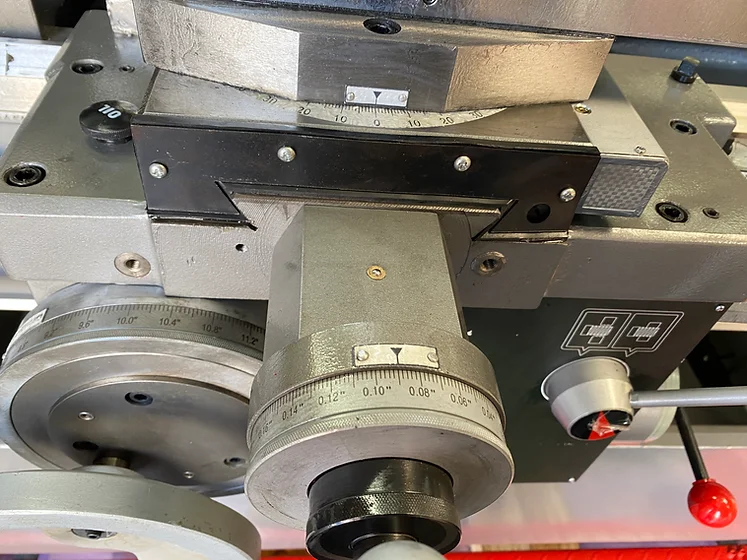

- 4-way rapid traverse on the carriage longitudinal and cross
- 60 kinds of inch threads, and 41 kinds of metric threads
- Threading and feeding rate change without changing gears
- Spindle is balanced, hardened and precision ground
- Spindle is supported at 3-point by high precision bearings
- All gears and shafts are hardened and precision ground
- Guideways induction hardened and precision ground
- Automatic lubrication system in headstock and feed box
STANDARD EQUIPMENT
- Free Taper turning attachment, , installed

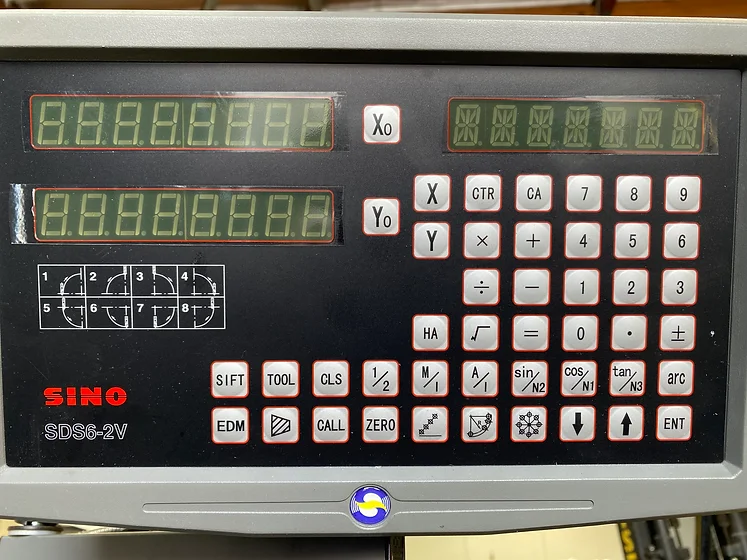

- Free SINO DRO, installed
- Chuck guard with safety shut off, made from metal
- Automatic kick-out longitudinal carriage stop system

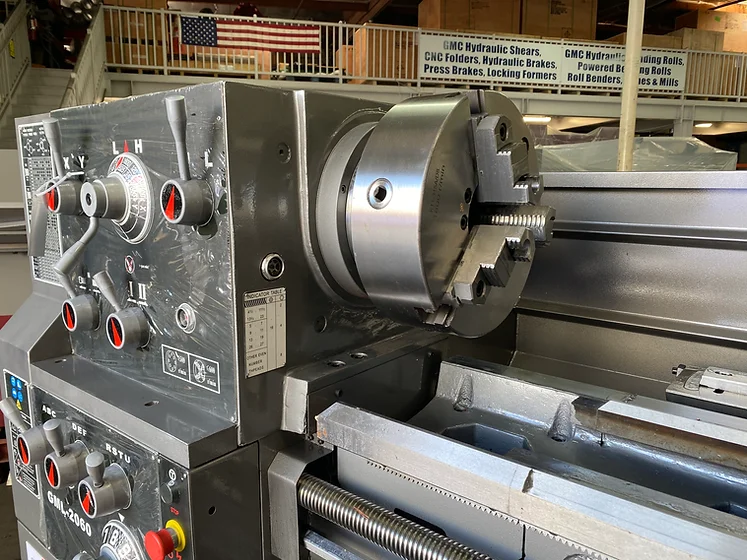

- 10” 3-jaw chuck with top reversible jaws, direct mount
- 12” 4-jaw chuck, direct mount
- 14” Face plate
- 1/2”-6” steady rest with roller jaws
- 7/8”-4-3/8” follow rest
- Removeable gap

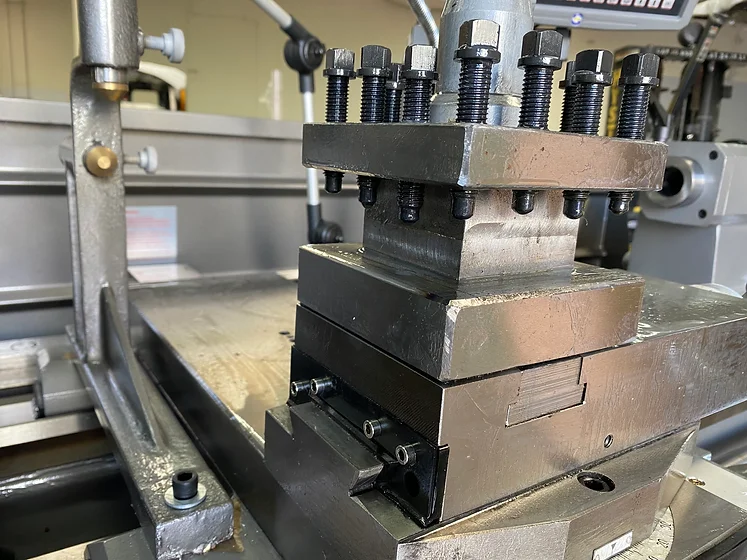

- 4-way tools post
- Foot brake
- Halogen Work light and coolant system

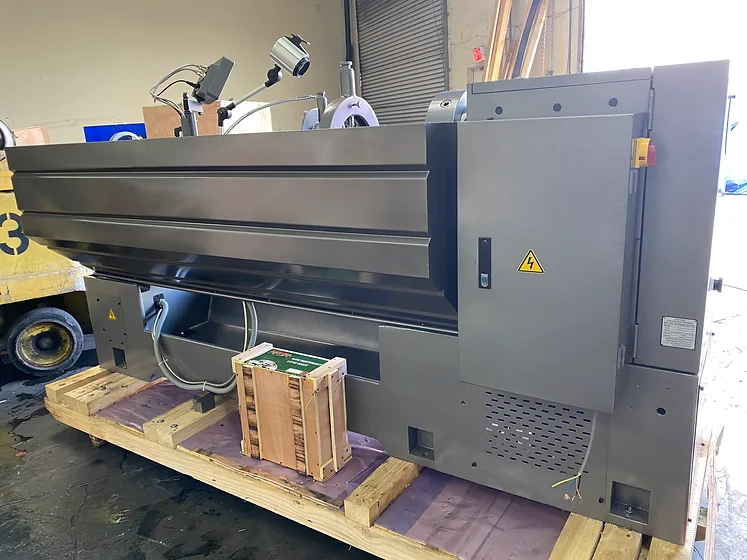

- Full length splash guard
- Dead centers
- Thread chasing dial
- Tool box and leveling pads
OPTIONAL EQUIPMENT
- 5-C Hand lever type collet closer, free install ....………………... $2,250.00
- 33 pc 5C collet set, from 1/16”-1-1/16” by 32nd, Part# 900-0014.. $360.00
- China ALORIS type QC tool post set # 3900-5260, 6 pcs …. $575.00
- Live Center MT4 #3900-5004 ............................................................ $165.00
- ¾ to 10-1/2” large steady rest with roller jaws …………………. $995.00
| Max. swing over bed | 20" |
| Max. length of workpiece | 60" |
| Max. swing over cross slide | 12 1/2" |
| Max. Swing in gap | 29-1/8" |
| Width of Bed | 12" |
| Effective length in gap to spindle | 6" |
| Effective length in gap to chuck jaws | 3 1/2" |
| Spindle bore | 3 1/8" | D1-8 |
| Taper of spindle center | MT7 |

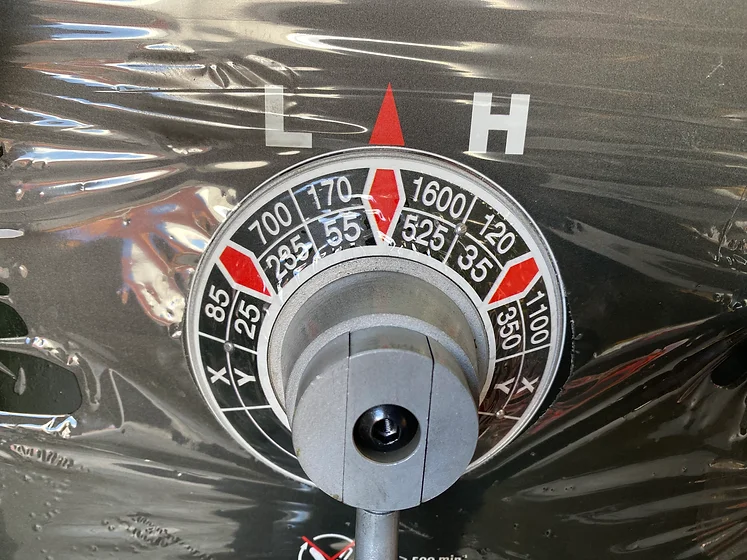

| Spindle speeds | 25-1,800 rpm / 12 steps |
| Longitudinal feeds | 0.0011-0.063 IPR, 42 kinds |
| Cross feeds | 0.0003-0.018 IPR, 42 kinds |
| Inch threads | 2-112 TPI, 60 kinds |
| Metric threads | 0.1-14 mm , 41 kinds |
| Diametral Pitch threads | 4-112DP , 50 kinds |
| Module threads | 0.1-7mm, 34 kinds |
| Max. travel of top slide | 5" |
| Max. travel of cross slide | 11 1/4" |
|
Spindle length w/o chuck Leadscrew length X TPI |
17-1/2" 1 1/4" x 4 TPI |

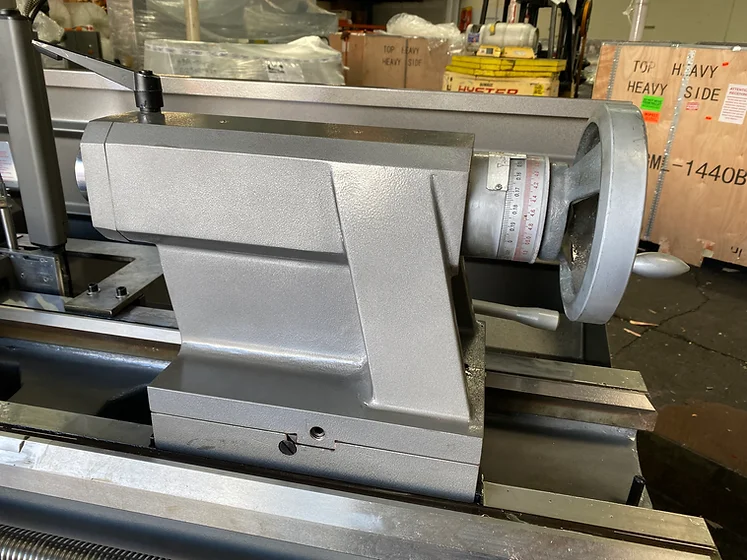

| Diameter of tailstock quill | 2-3/8” |
|
Max. travel of tailstock quill |
5-1/8” |
| Taper of tailstock quill center | MT4 |
|
Main motor |
10 HP 3 Ph. Prewired: 220VAC / 35A Optional: 440VAC / 20A
|
| Coolant pump |
1/8 HP 3 Ph. Prewired: 220VAC Optional: 440VAC |
| Net weight | 5,750 lbs. |
| Overall dimensions, LxWxH | 108" x 43" x 59" |
Please note that this lathe is incompatible with the use of a rotary phase converter. Any attempt to purchase, install, or employ one, whether carried out by you or a professional service company, will automatically void the warranty. It is crucial to understand that any such actions are entirely the responsibility of the buyer. This disclaimer is intended to clearly convey that the utilization of a rotary phase converter to power or operate this metal lathe is not supported.
