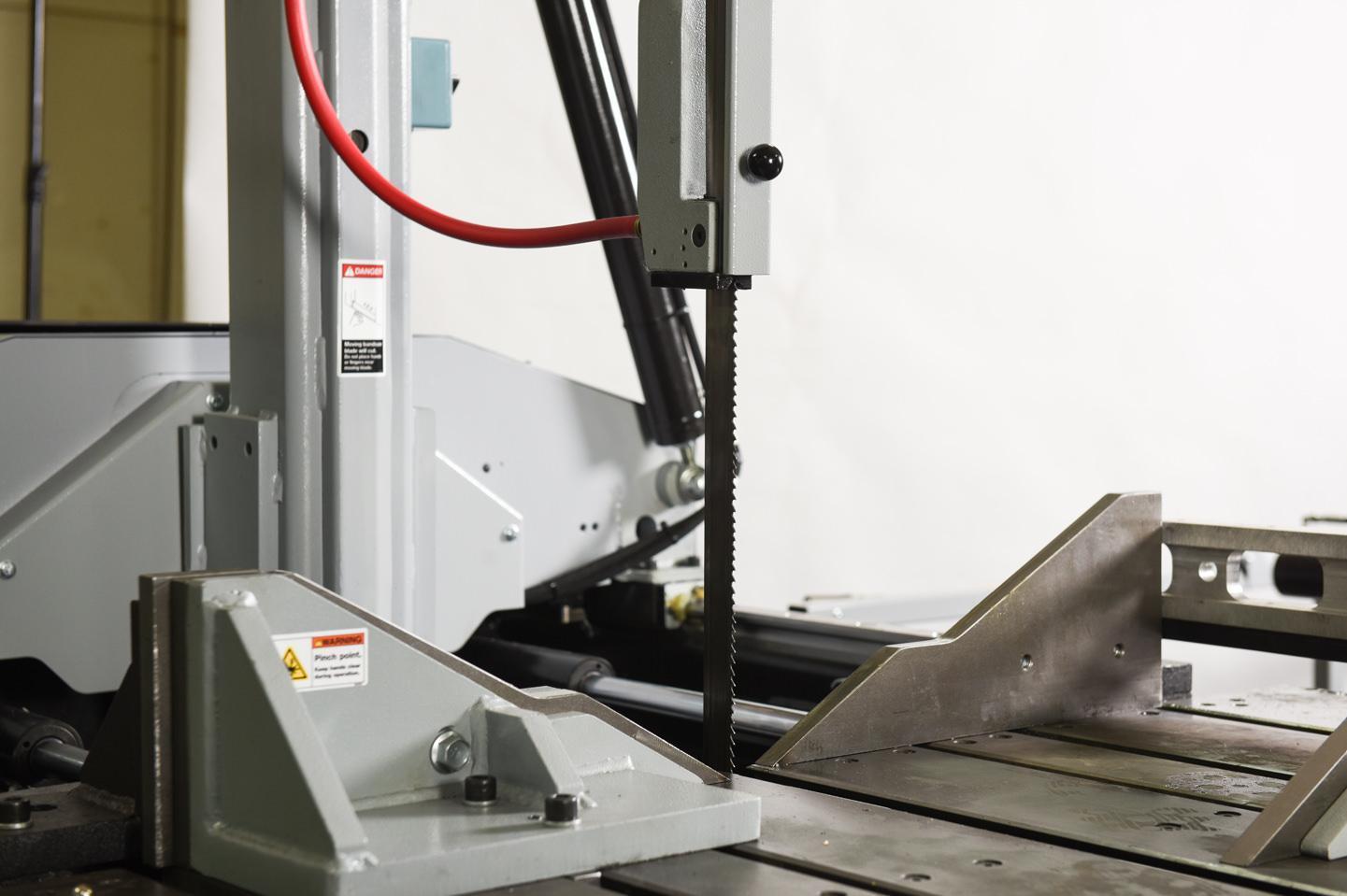

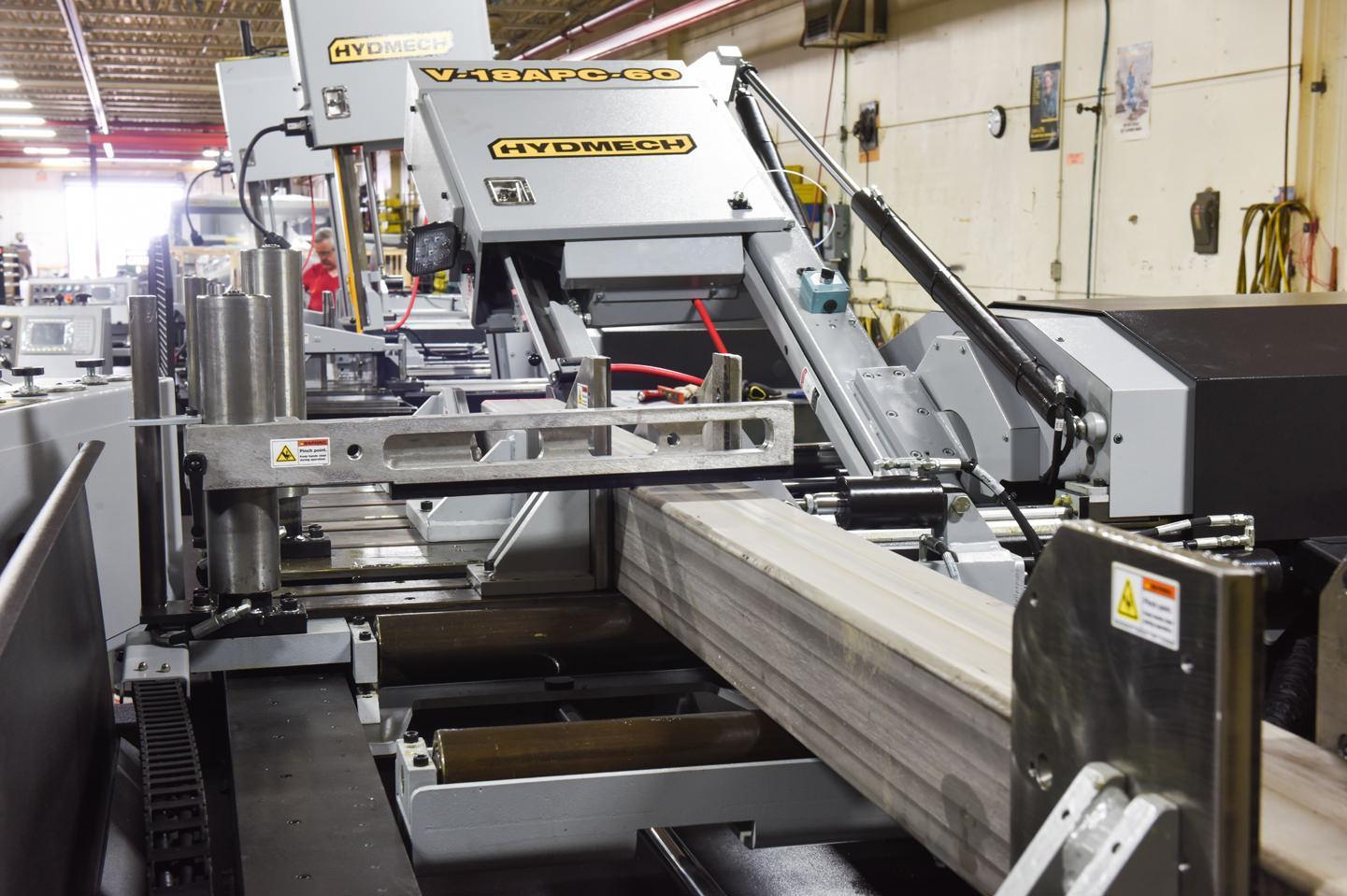

NEW - 18"H x 22"W HYD-MECH V-18APC-60 AUTOMATIC VERTICAL TILT FRAME BAND SAW

STANDARD FEATURES

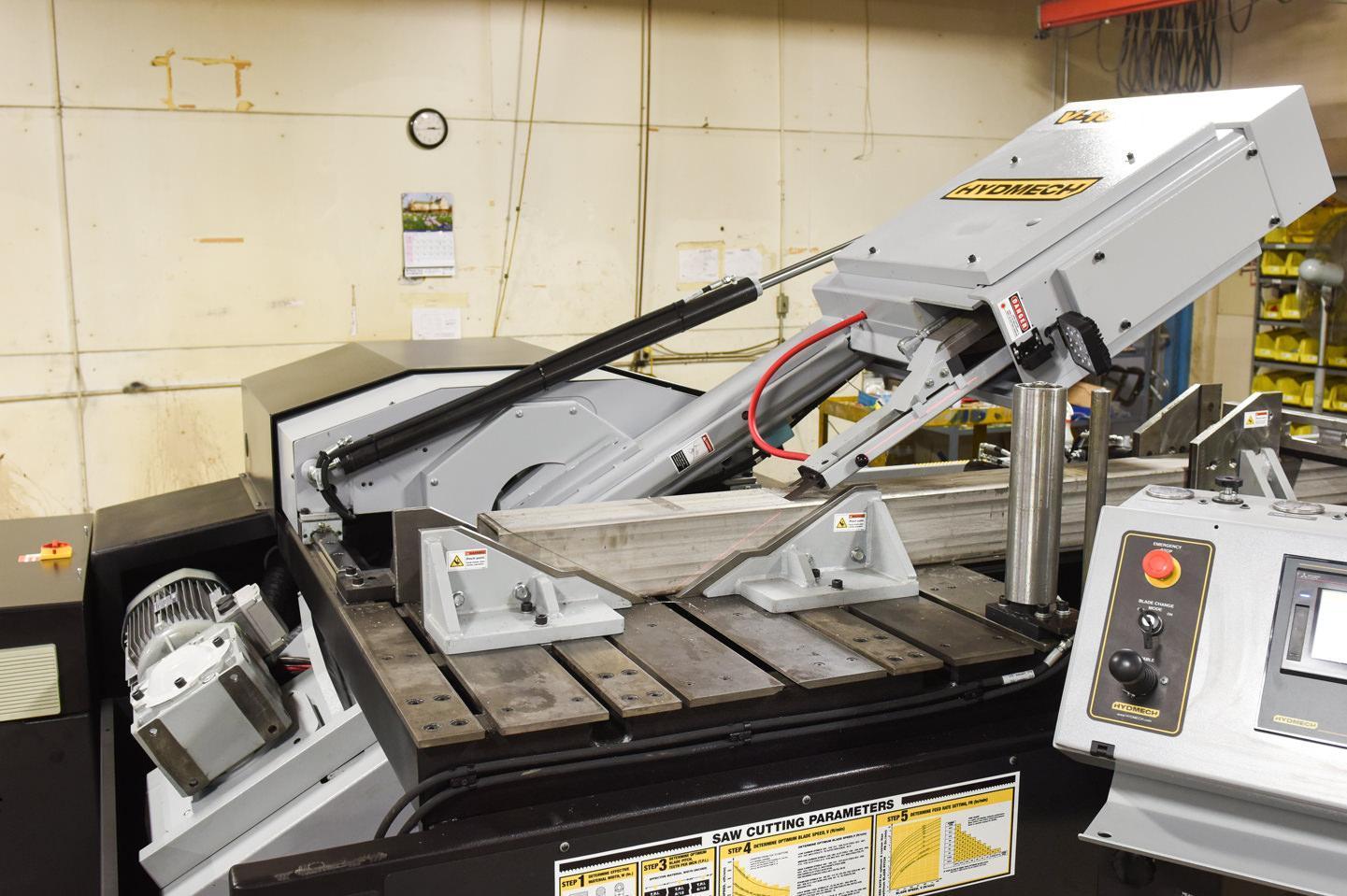

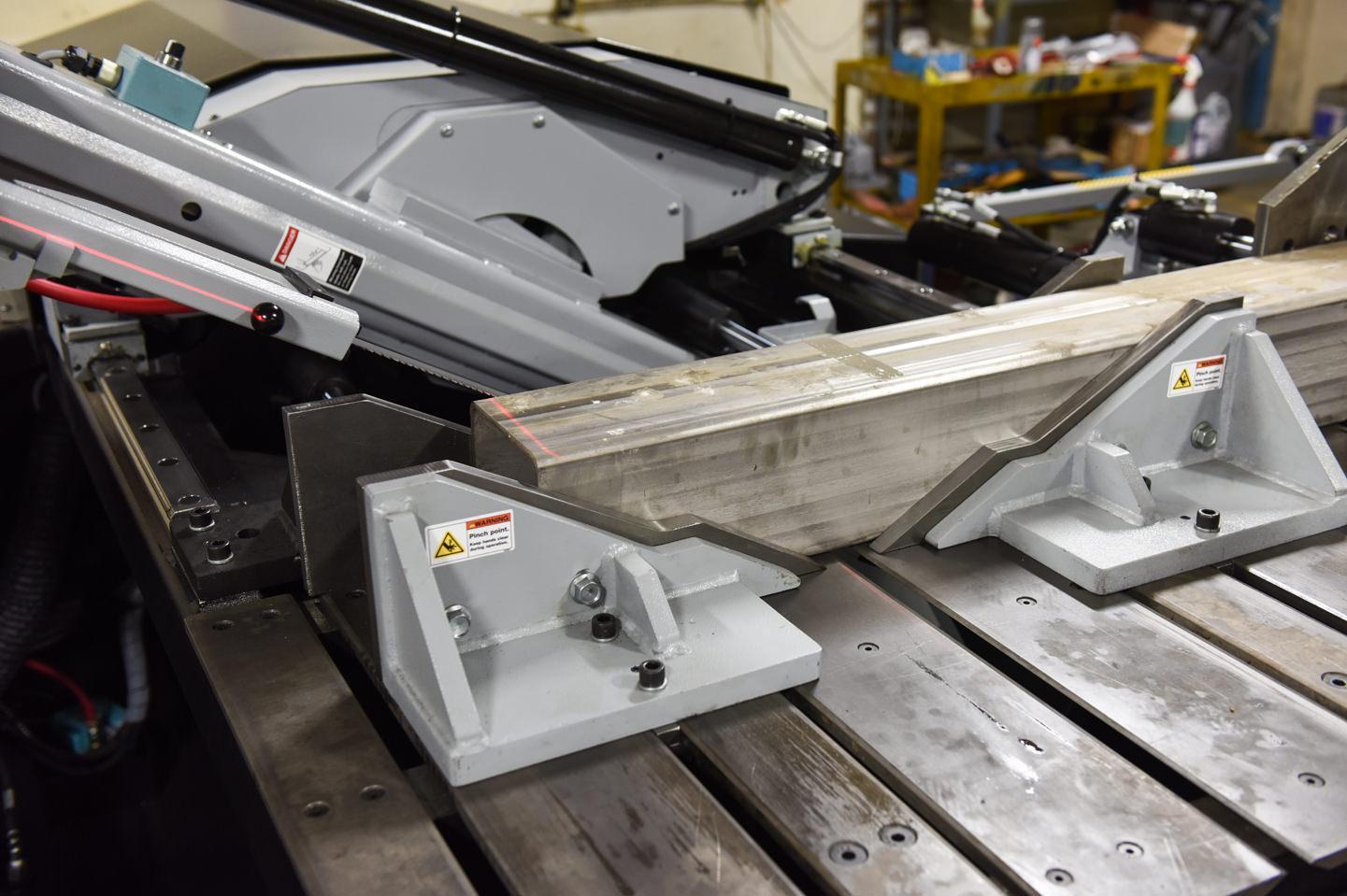

• Automatic programmable mitering with “go to” angle functionality from 60° left to 60° right

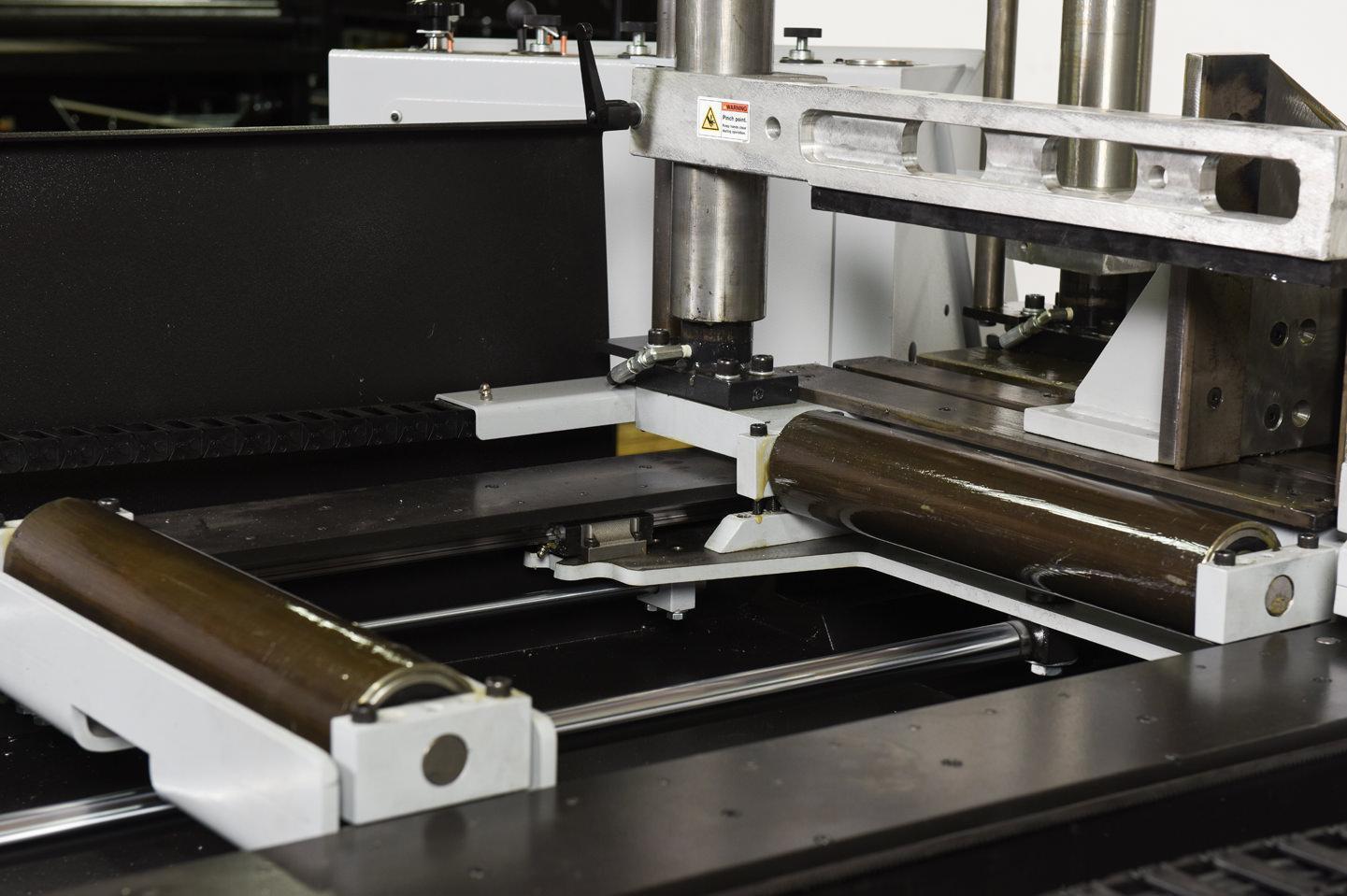

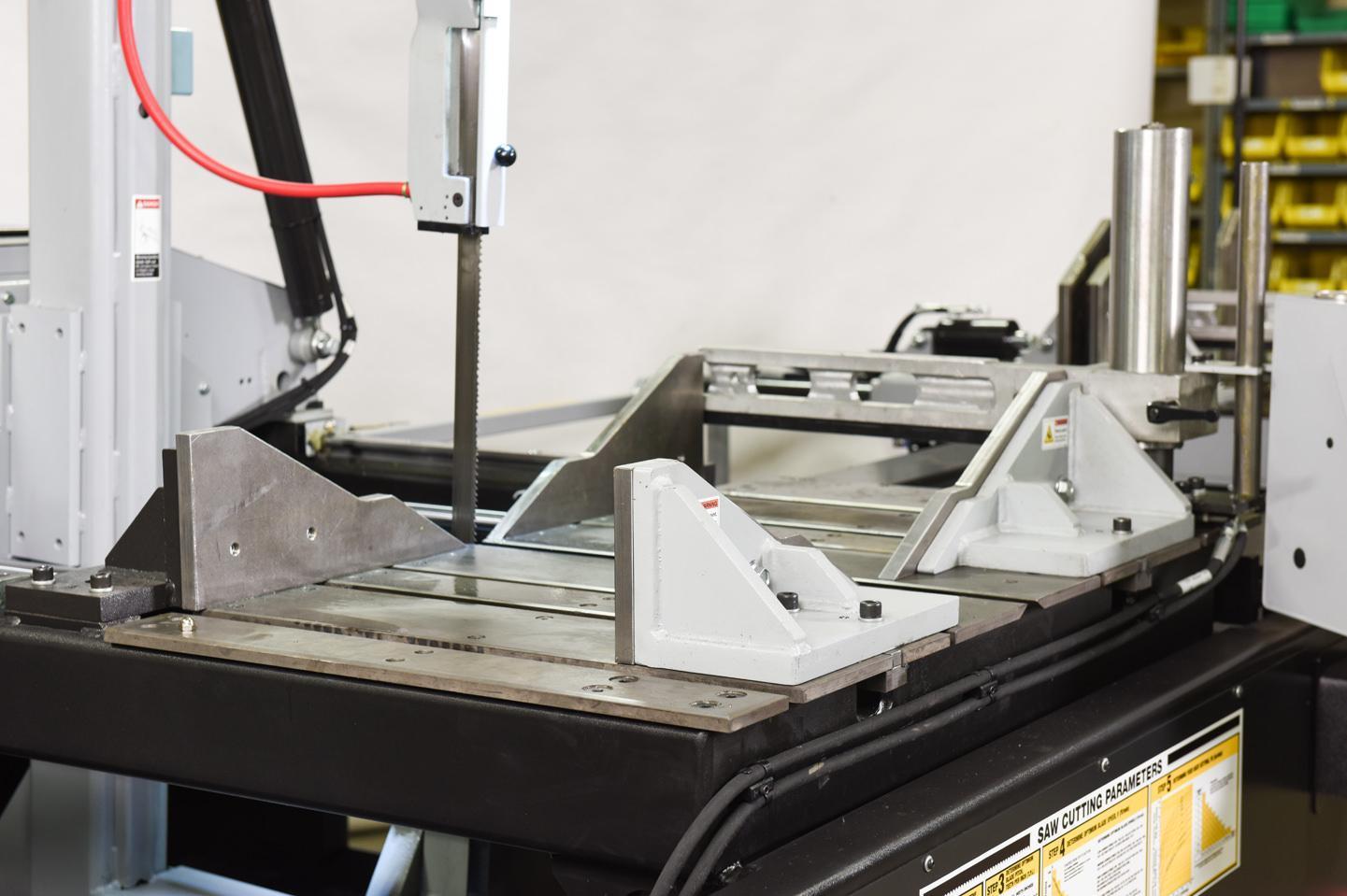

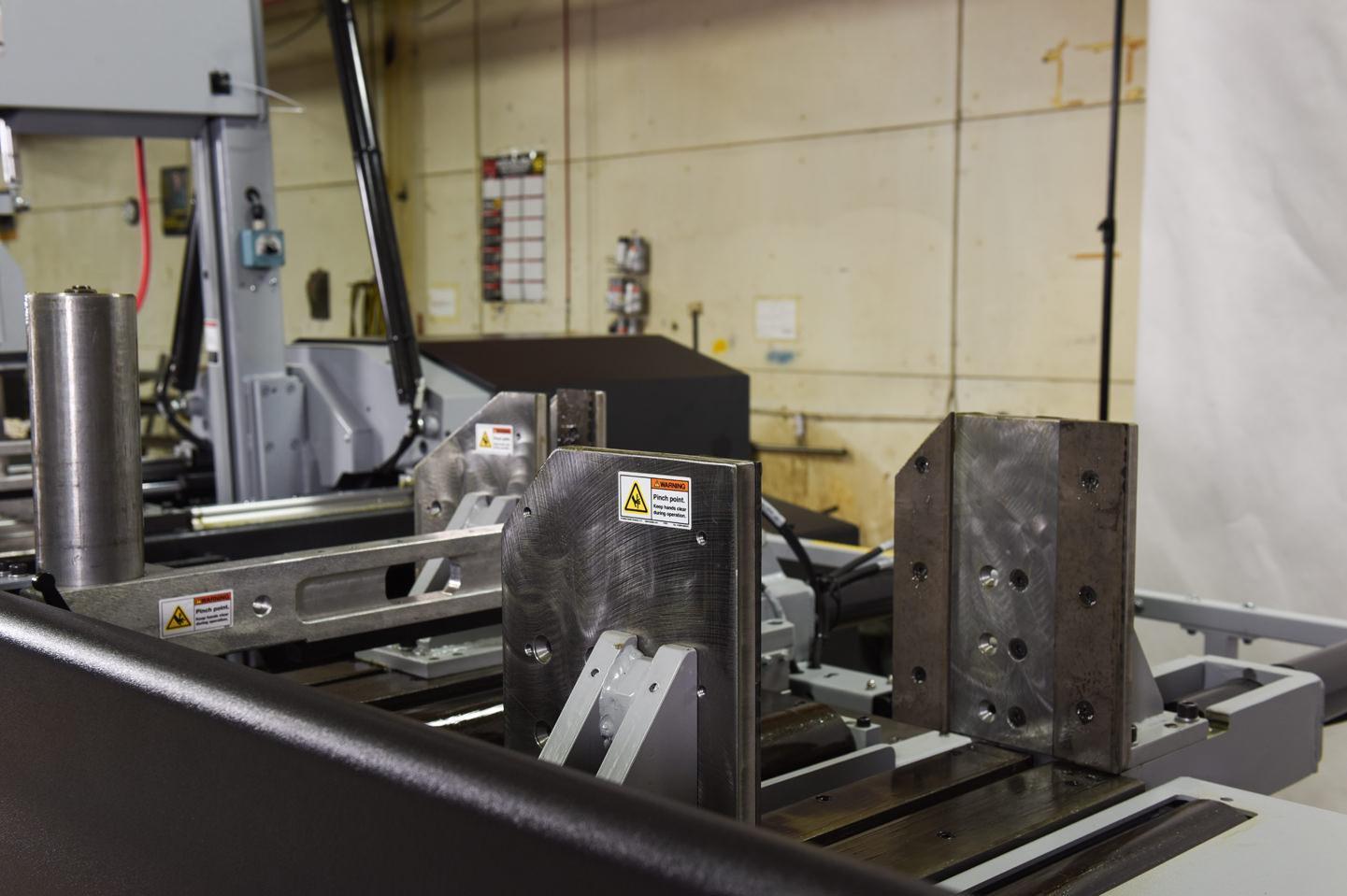

• Three full stroking hydraulic vises  (Feed, Main, and Outboard) and Third Squaring Vise
• Automatic multi-indexing up to 40” in a single stroke.
• Powered Movable Guide Arm

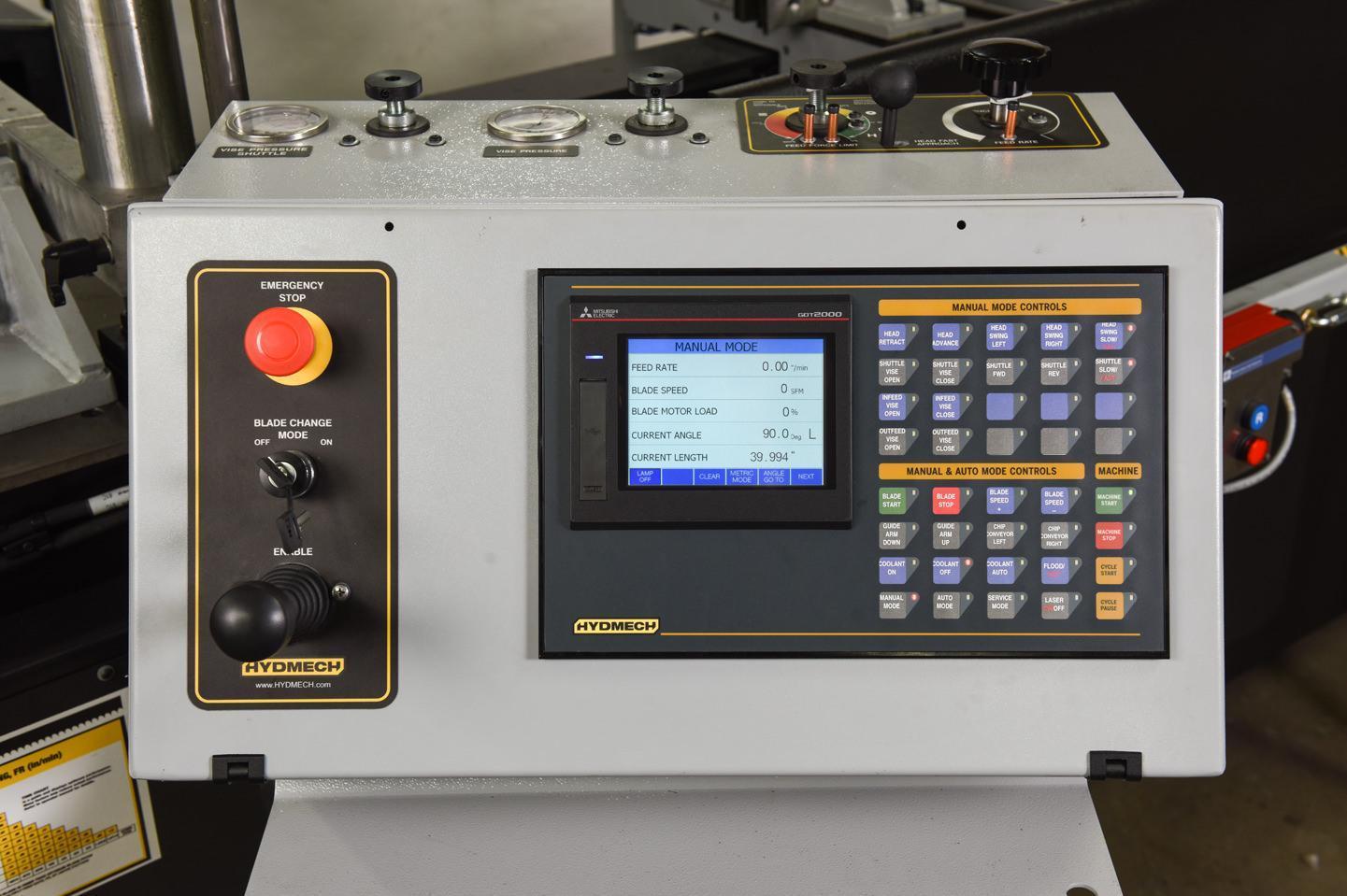

• Automatic PLC control programmable up to 99 jobs with 5 in queue.

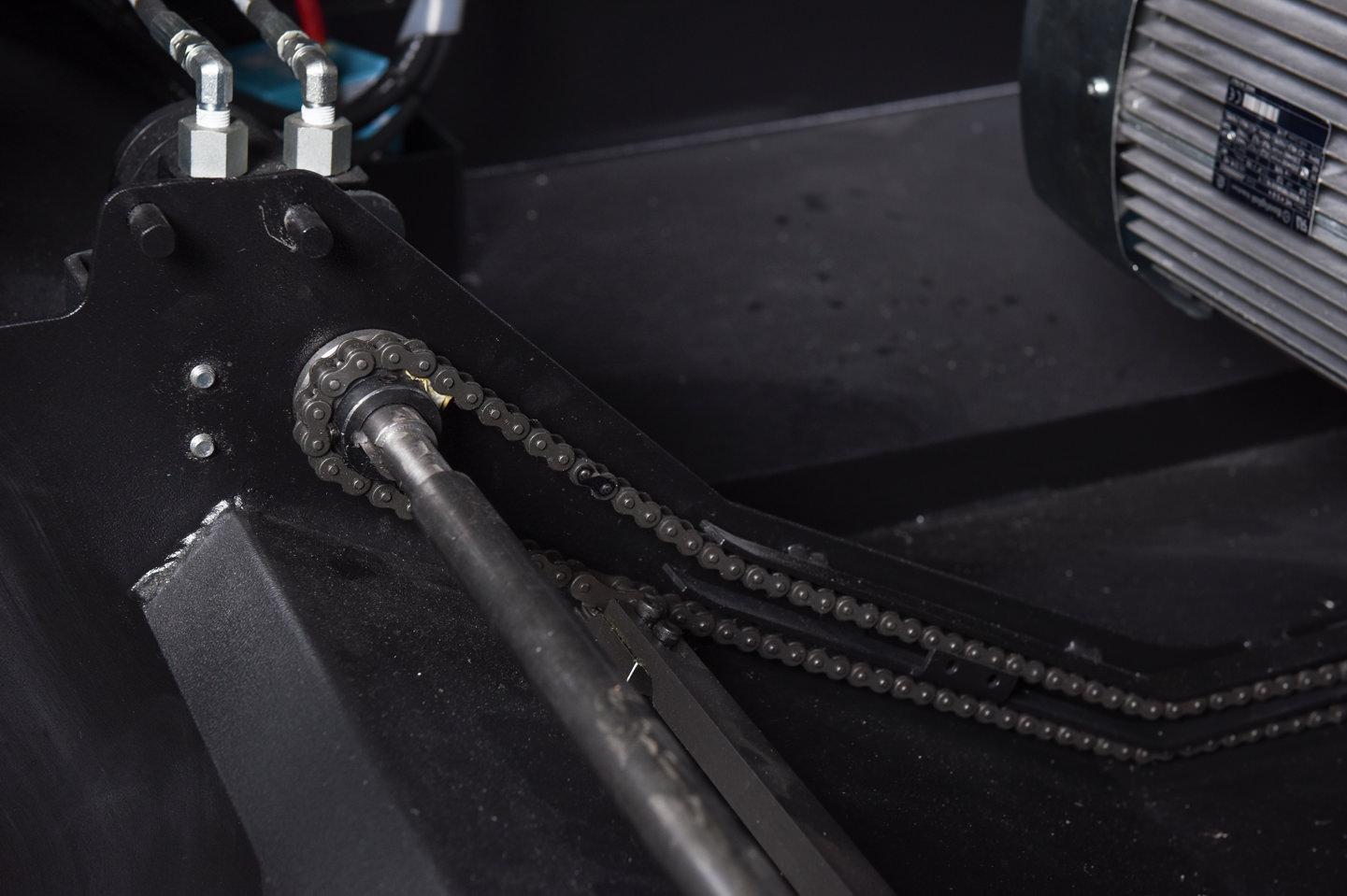

• Drag chain chip conveyor
• Hydraulic overhead bundling
• 7.5 HP VFD. True direct blade drive – no belts/pulleys
• Hydraulic positive down feed
• Blade chamber separates material from cut part
• Out of stock switch

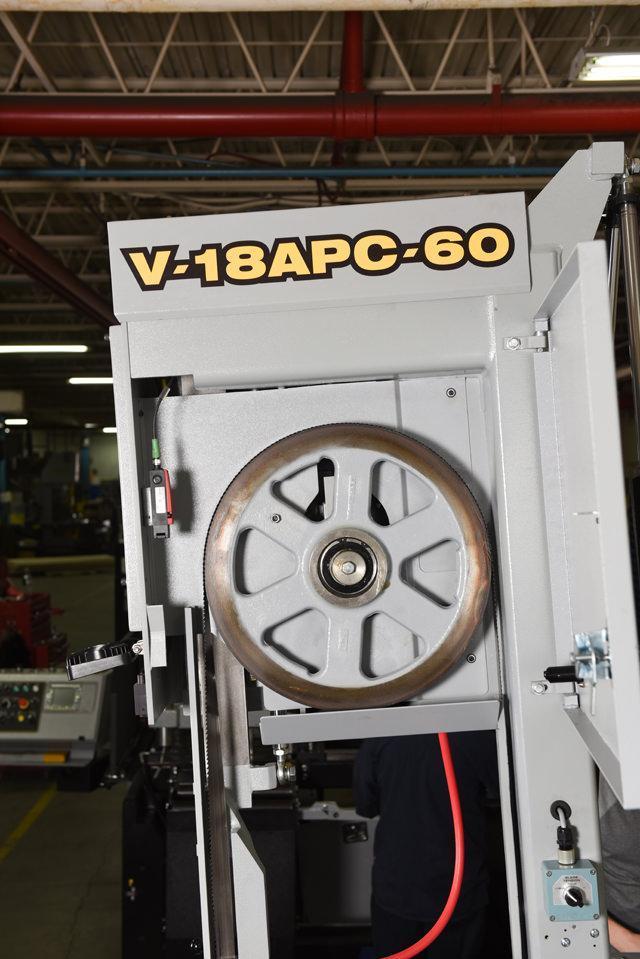

• Cast iron band wheels

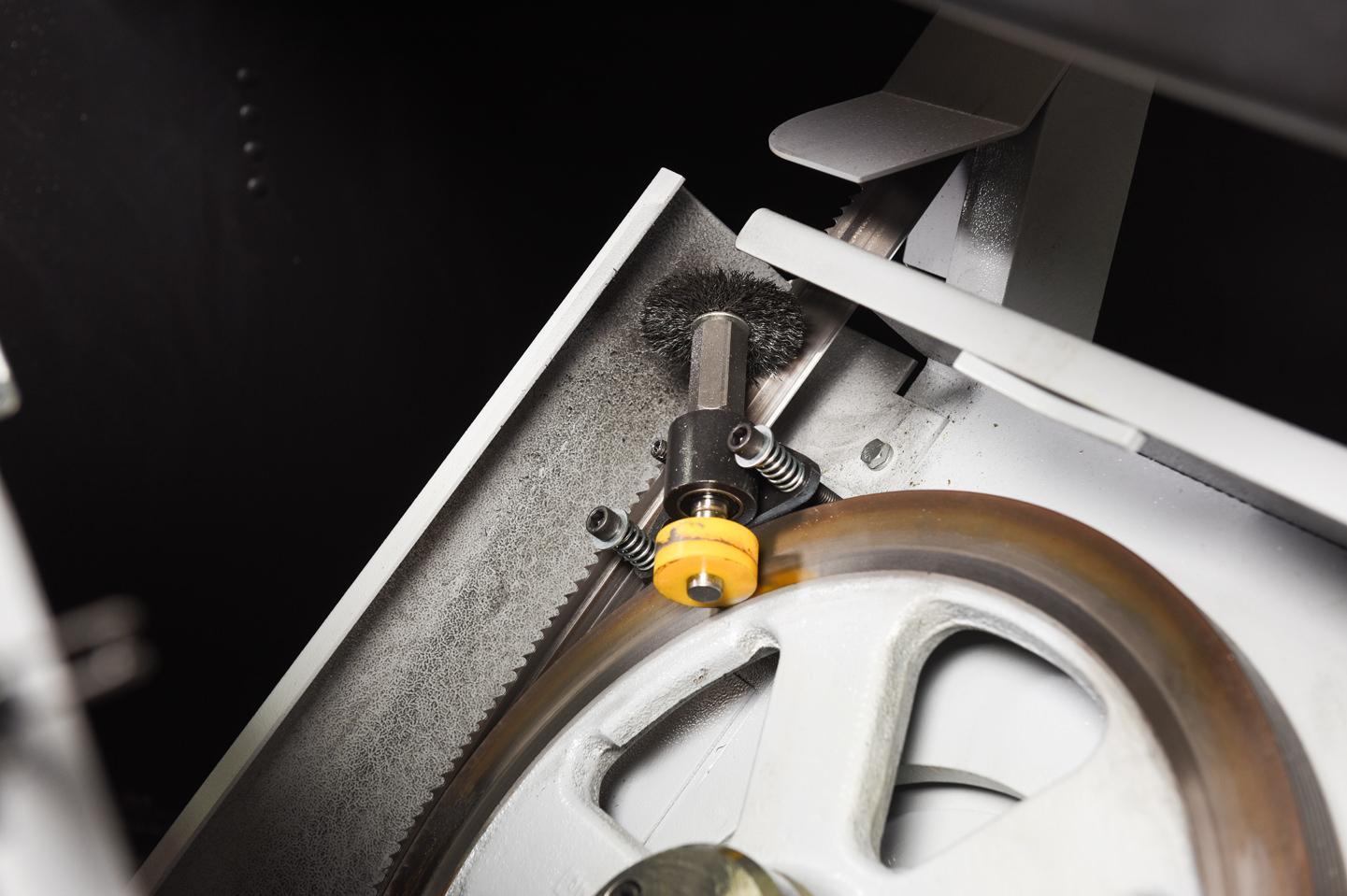

• Replaceable blade brush
• Robust steel base
• Easy access electrical panel and hydraulics
• Blade breakage switch
• You choose left or right side infeed

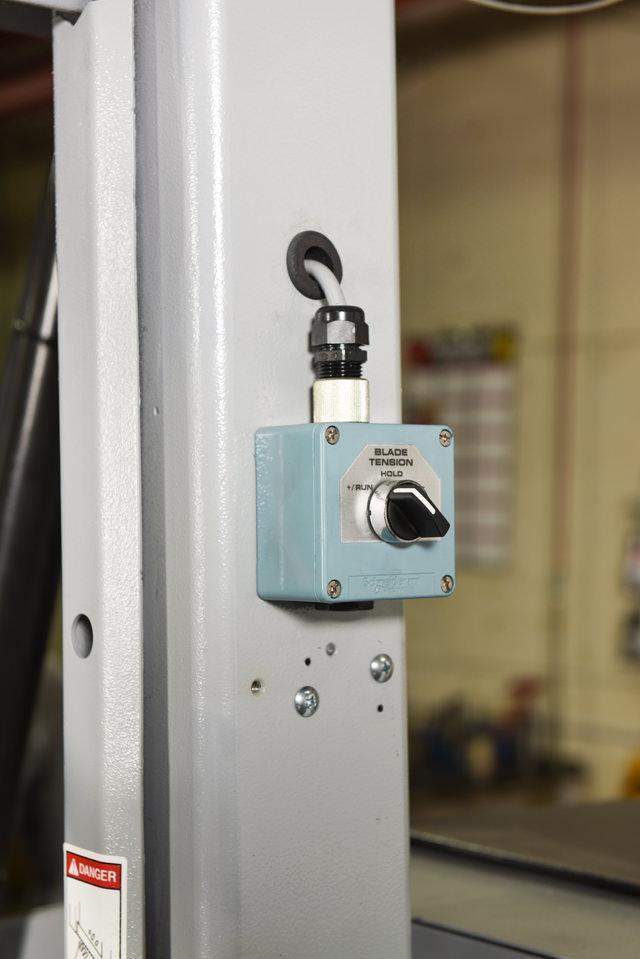

• Hydraulic band tensioning with digital readout
• Replaceable carbide guide inserts

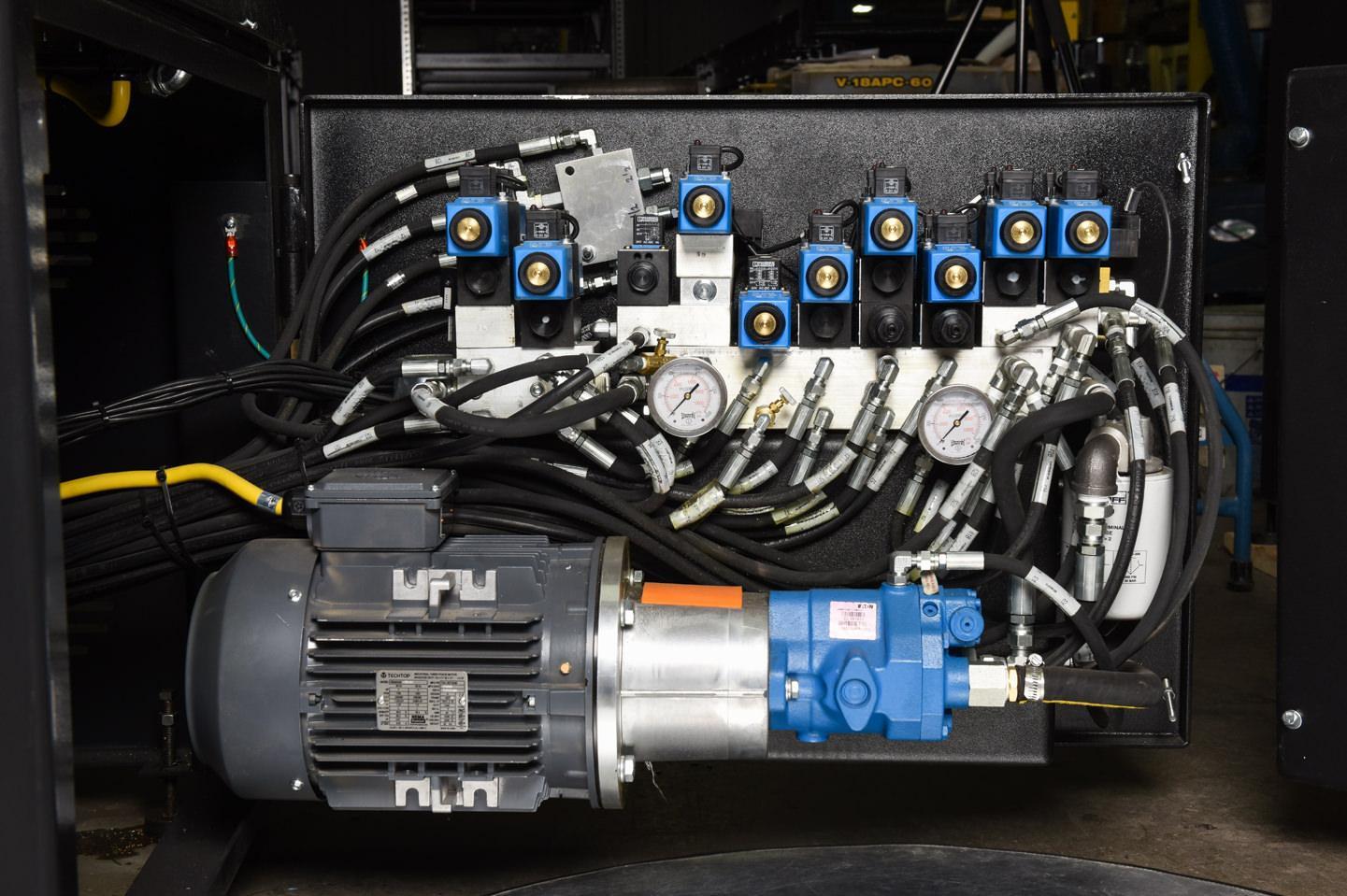

• 2 HP hydraulic pump provides system pressure
• Safety door interlocks
• Flood coolant with wash down hose

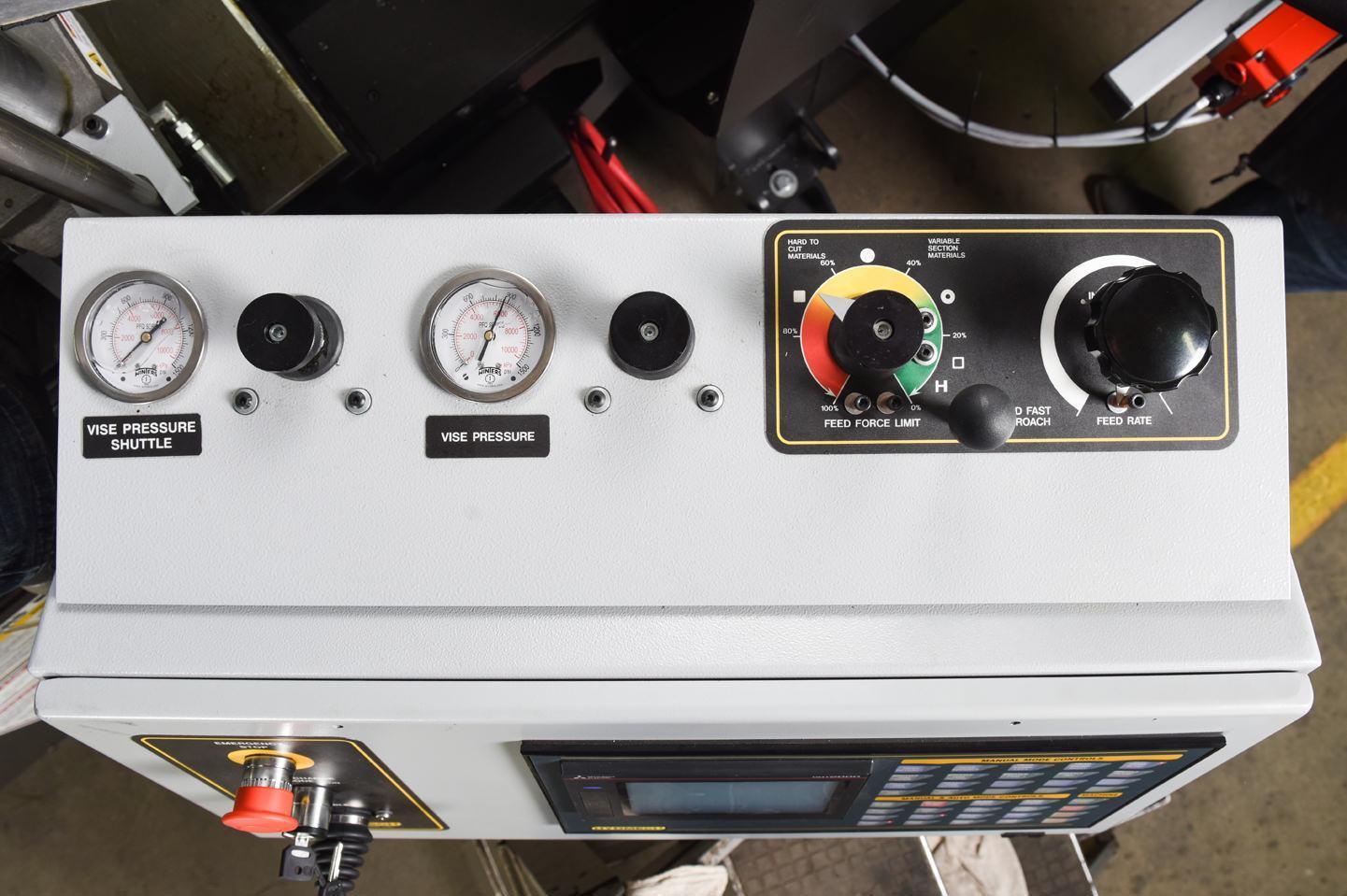

• Variable Vise Pressure

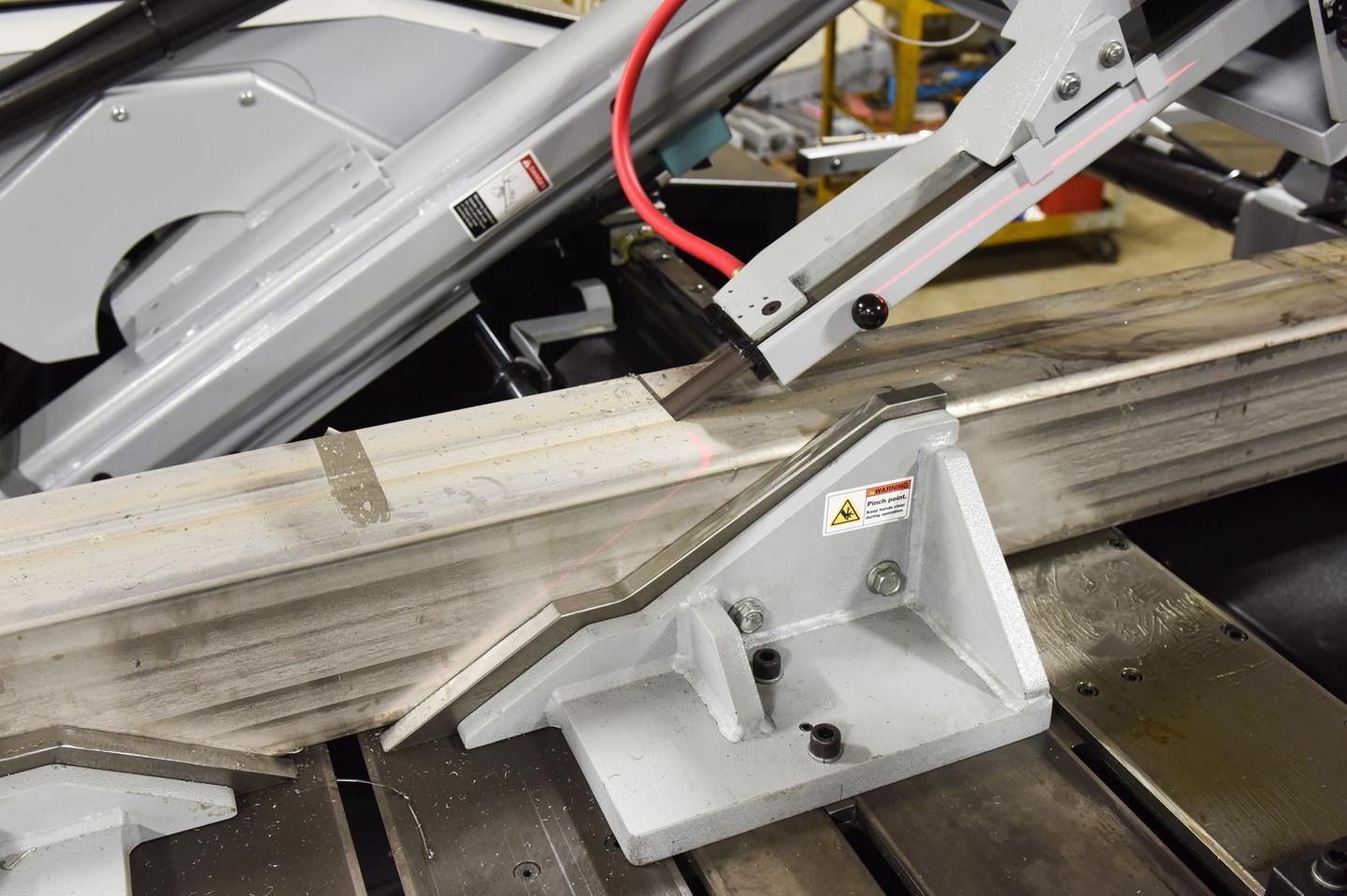

• Laser light

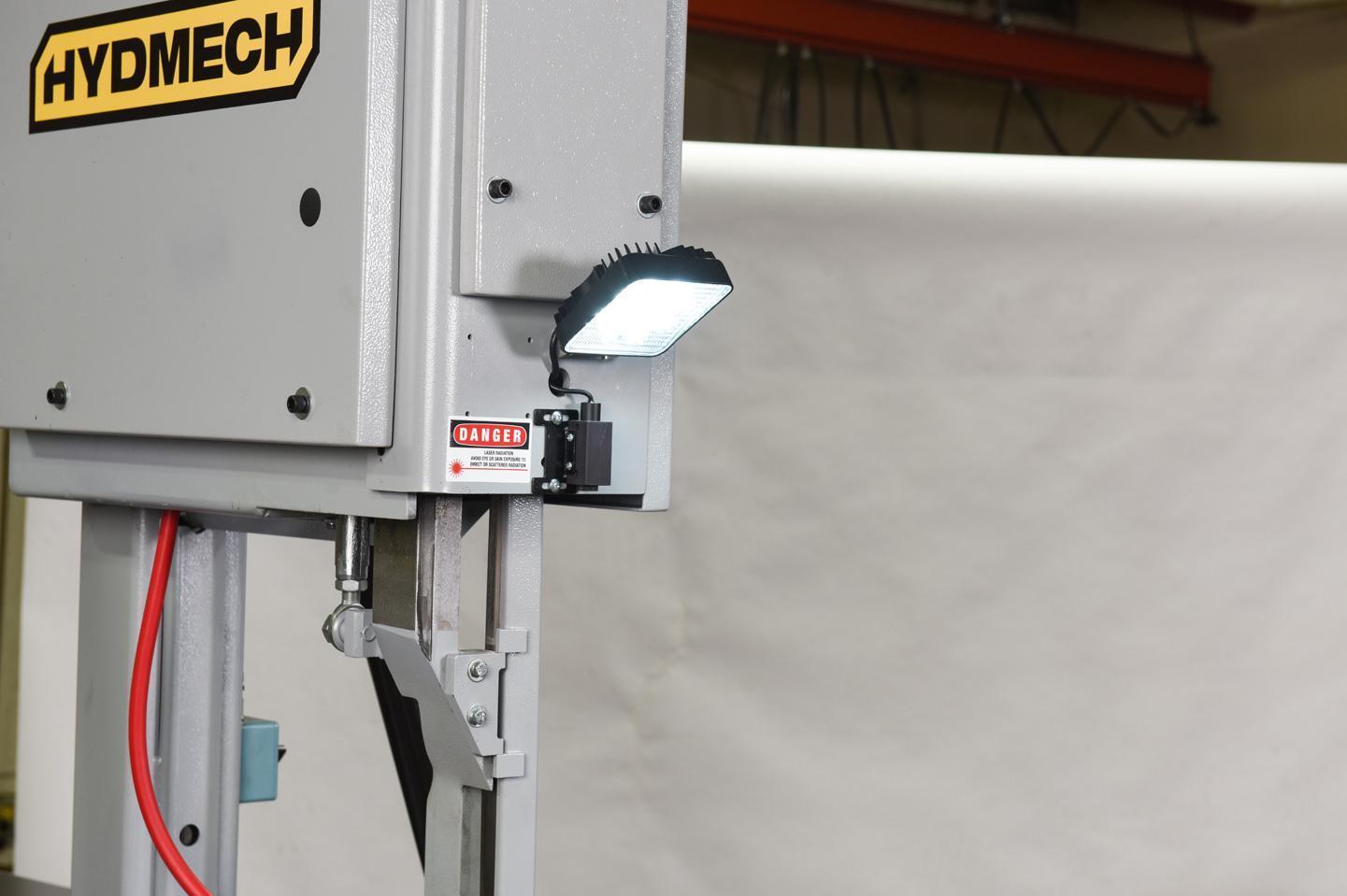

• Work light
• 3 Deg Canted Head
