NEW 22 TON x 4' US INDUSTRIAL MODEL USHB22-4S CNC HYDRAULIC PRESS BRAKE
Year
Not provided
Stock #
14304
Condition
New
Keep Scrolling To Learn More
Specifications
Equipped With
NEW 22 TON x 4' US INDUSTRIAL MODEL USHB22-4S CNC HYDRAULIC PRESS BRAKE
BASE PRICE: POR
STANDARD EQUIPMENT

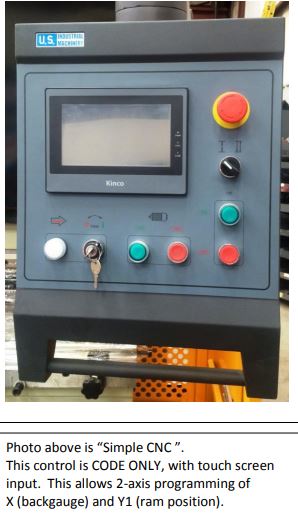

2-Axis "Simple CNC" For Backgauge & Ram Programming
Power Front Operated Back Gauge, Motorized With Fine Adjustment Hand Wheel
Power Ram Depth Control, Motorized With Fine Adjustment Hand Wheel
Digital Displays For Backgauge Position & Ram Positioning
All Steel Construction
SICK deTec2 Core Light Curtain
Ram Accepts Standard American Tang Tooling, 1/2" x 5/8"
Space Between Ram Tool Clamps Allow For Deep Box Bending
Bed Has Slot For Standard American Tang Tooling
Bed Also Has Capture Clamps For Tooling Without Tang
Free Gooseneck Punch & Multi-Opening Die For Up To 90º Forming In 10 Gauge Mild Steel
OPTIONAL EQUIPMENT
2-Axis Color Graphic CNC Back Gauge & Light Curtain Upgrade $5,995.00
Controls BOTH Bend Angle and Backgauge Position. Comes with 6” Color LCD touch screen. Code and Graphic programming included.
Graphic allows 10 bends per program/cross-section. Controls features a Tool library, Metric/Inch switchable, Auto bend sequence,
Auto retract of backgauge, Spread length, Interference bend alert, Calculated bend allowance,
Programmable ram dwell and much more. Control stores thousands of programs with USB Port, Ethernet and RS232 for program backup.
On Site Training (Less Than 300 Miles From Memphis, TN) $2,995.00
On Site Training (More Than 300 Miles From Memphis, TN) $3,995.00
On Site Training (Outside Continental USA) POR
Training At US Industrial (Memphis, TN) No Charge
SPECIFICATIONS
Warranty: 1 Year Parts & Labor
Special Note: The Gooseneck Punch and multi-opening Die included are general purpose tools to be used for training only. Precision tooling should be purchased to meet your specific needs. The punch is segmented and it is up to the customer to calibrate these if they want to use them for a particular purpose. There is NO warranty on these items.
BASE PRICE: POR
STANDARD EQUIPMENT
2-Axis "Simple CNC" For Backgauge & Ram Programming
Power Front Operated Back Gauge, Motorized With Fine Adjustment Hand Wheel
Power Ram Depth Control, Motorized With Fine Adjustment Hand Wheel
Digital Displays For Backgauge Position & Ram Positioning
All Steel Construction
SICK deTec2 Core Light Curtain
Ram Accepts Standard American Tang Tooling, 1/2" x 5/8"
Space Between Ram Tool Clamps Allow For Deep Box Bending
Bed Has Slot For Standard American Tang Tooling
Bed Also Has Capture Clamps For Tooling Without Tang
Free Gooseneck Punch & Multi-Opening Die For Up To 90º Forming In 10 Gauge Mild Steel
OPTIONAL EQUIPMENT
2-Axis Color Graphic CNC Back Gauge & Light Curtain Upgrade $5,995.00
Controls BOTH Bend Angle and Backgauge Position. Comes with 6” Color LCD touch screen. Code and Graphic programming included.
Graphic allows 10 bends per program/cross-section. Controls features a Tool library, Metric/Inch switchable, Auto bend sequence,
Auto retract of backgauge, Spread length, Interference bend alert, Calculated bend allowance,
Programmable ram dwell and much more. Control stores thousands of programs with USB Port, Ethernet and RS232 for program backup.
On Site Training (Less Than 300 Miles From Memphis, TN) $2,995.00
On Site Training (More Than 300 Miles From Memphis, TN) $3,995.00
On Site Training (Outside Continental USA) POR
Training At US Industrial (Memphis, TN) No Charge
SPECIFICATIONS
| Working Pressure | 22 Tons |
| Overall Length Of Table | 51.9" |
| Distance Between Housing | 40.1" |
| Throat Depth | 7.8" |
| Stroke Adjustment Of Ram | 2.75" |
| Ram Travel | 3.14" |
| Open Height | 9.64" |
| Rapid Ram Travel Speed | 2.4"/Sec |
| Rapid Ram Retreat Speed | 2.0"/Sec |
| Pressing Speed | Dependent On Tool Load |
| Backgauge Travel | 24" |
| Motor Horsepower | 7.5 HP |
| Hydraulic Oil Capacity | 21 Gal |
| Approx. Overall Weight | 4400 Lbs |
| Approx. Dimensions | 73" x 56" x 77"H |
Warranty: 1 Year Parts & Labor
Special Note: The Gooseneck Punch and multi-opening Die included are general purpose tools to be used for training only. Precision tooling should be purchased to meet your specific needs. The punch is segmented and it is up to the customer to calibrate these if they want to use them for a particular purpose. There is NO warranty on these items.
