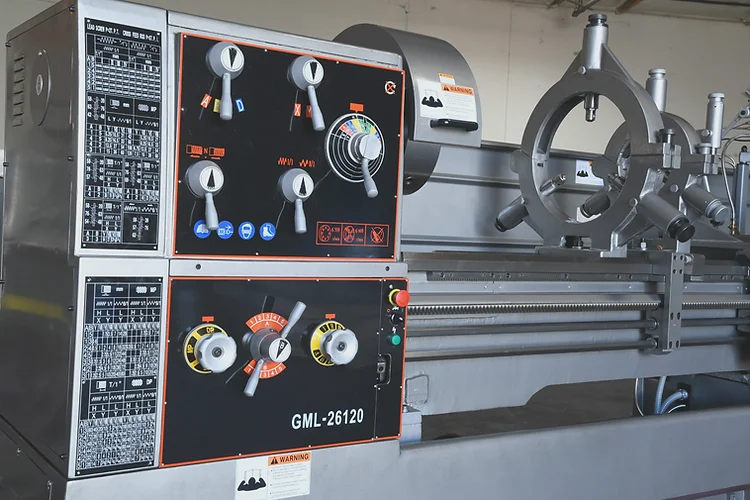

NEW 26" X 120" GMC MODEL GML-26120 HEAVY DUTY PRECISION GAP BED LATHE
Year
Not provided
Stock #
19118
Condition
New
Keep Scrolling To Learn More
Specifications
Equipped With
NEW 26" X 120" GMC MODEL GML-26120 HEAVY DUTY PRECISION GAP BED LATHE
- ISO 9001 certified
- Large spindle bore 4-1/8”
- Heavy Duty spindle D1-8
- Heavy Duty guideway width 16”
- Heavy Duty main motor 15HP
- 16 spindle speeds from 25-1,600 rpm, 16 speeds
- 54 kinds of inch threads, and 54 kinds of metric threads
- Threading and feeding rate change without changing gears
- Spindle is balanced, hardened and precision ground
- Spindle is supported at 3-point by high precision bearings
- All gears and shafts are hardened and precision ground
- Guideways induction hardened and precision ground
- Automatic lubrication system in headstock and feed box
- One year industrial warranty for parts
STANDARD EQUIPMENT
- Taper turning attachment

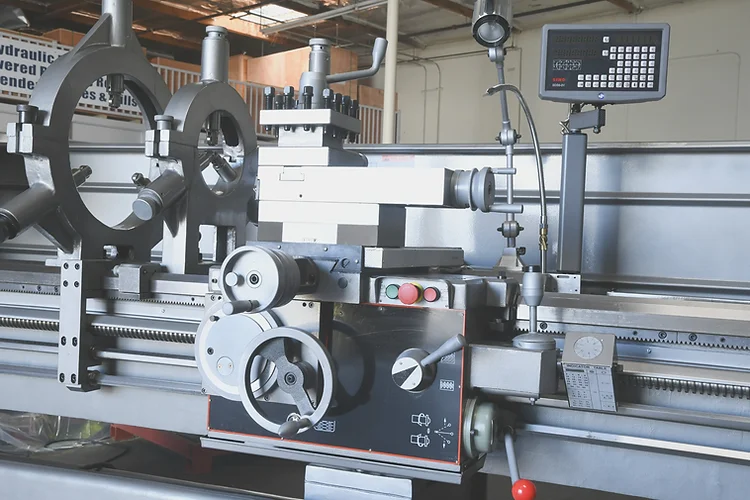

- SINO DRO + Glass Scales

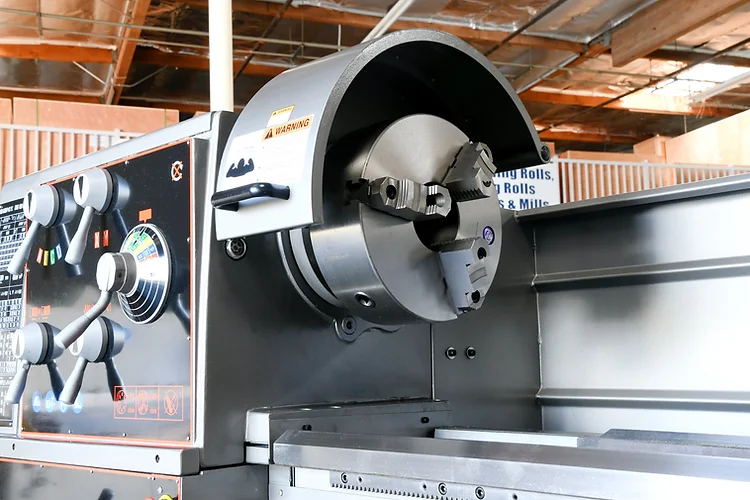

- Chuck guard with safety shut off
- Carriage Stop
- 12” 3-jaw chuck with top reversible jaws, direct mount
- 16” 4-jaw chuck, direct mount
- 18” Face plate
- 7-1/2” large steady rest with roller jaws
- 3” follow rest
- Removeable gap
- 4-way tools post
- Foot brake
- Halogen Work light and coolant system
- Full length splash guard
- Dead centers
- Thread chasing dial
- Tool box and leveling pads
OPTIONAL EQUIPMENT
- ALORIS type QC tool post set # 900-0051-500, 6 pcs .................. $1,850.00
- 15” large steady rest with roller jaws ................................... $1,850.00
- Live Center # 900-0050-05 ............................................................ $195.00
- Extra 7-1/2” large steady rest with roller jaws ........................ $995.00
| Max. swing over bed | 26" |
| Max. length of workpiece | 120" |
| Max. swing over cross slide | 17 1/4" |
| Max. Swing in gap | 35 3/8" |
| Width of Bed | 16" |
| Effective length in gap to spindle | 9" |
| Effective length in gap to chuck jaws | 4 1/2" |
| Spindle bore | 4 1/8" D1-8 |
| Taper of spindle center | M.T. #5 |
| Spindle speeds | 25-1,600 rpm / 16 steps |
| Longitudinal feeds | 0.0016-0.055 IPR, 25 kinds |
| Cross feeds | 0.0008-0.027 IPR, 25 kinds |
| Inch threads | 80-7/16 TPI, 54 kinds |
| Metric threads | 0.45-120 mm , 54 kinds |
| Diametral Pitch threads | 7/8-160 DP , 42 kinds |
| Module threads | 0.25-60mm, 46 kinds |
| Max. travel of top slide | 9" |
| Max. travel of cross slide | 14 1/2" |
|
Spindle length w/o chuck Leadscrew length X TPI |
20 1/2" 1 1/4" x 4 TPI |
| Diameter of tailstock quill | 3 1/2" |
|
Max. travel of tailstock quill |
9 1/4" |
| Taper of tailstock quill center | MT5 |
|
Main motor Rapid traverse motor |
15HP, 220V/40A or 440V/20A, 3 phase 1HP, 220V or 440V, 3 phase |
| Coolant pump | 1/8 HP, 220V, or 440V, 3 phase |
| Net weight | 9,850 lbs. |
| Overall dimensions, LxWxH | 187" x 46" x 72" |
