NEW 4' X 12 GAUGE GMC MODEL EPS-0412M HYDRAULIC SHEAR
Year
Not provided
Stock #
19137
Condition
New
Keep Scrolling To Learn More
Specifications
Equipped With
NEW 4' X 12 GAUGE GMC MODEL EPS-0412M HYDRAULIC SHEAR
- ISO 9001 certified
- 1-Year parts only warranty
- American design and Taiwan quality machine
- With material front out tray
- HD all steel construction for maximum rigidity
- Precision driven gearbox
- Full length 30 strokes per minute
- 60” long squaring arm with inch / mm scale
- Spring hold-downs
- High grade carbon/chrome alloy steel blades and hardened to 62 HRC
- 2-edge indexable top blade
- 4-edge indexable bottom blade
- Full length with full view finger guard
- Front supports and (2) side gauges
- Safety type foot pedal control
- Jog, single continuous auto operation modes
STANDARD EQUIPMENT

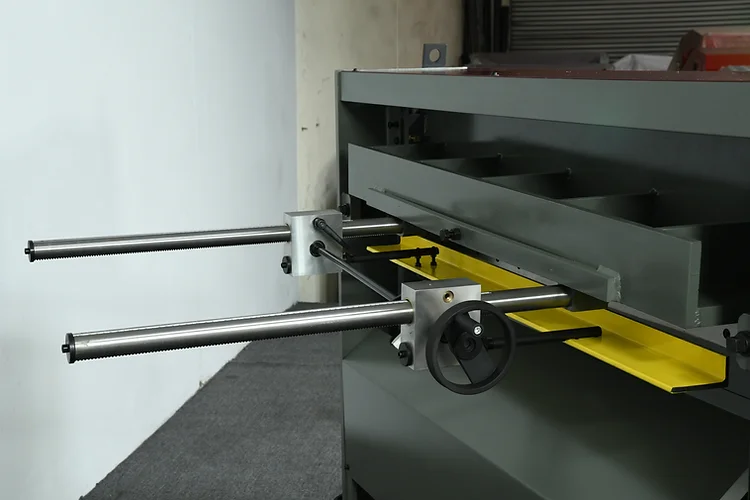

- 26” manual back gauge with one side operated handwheel

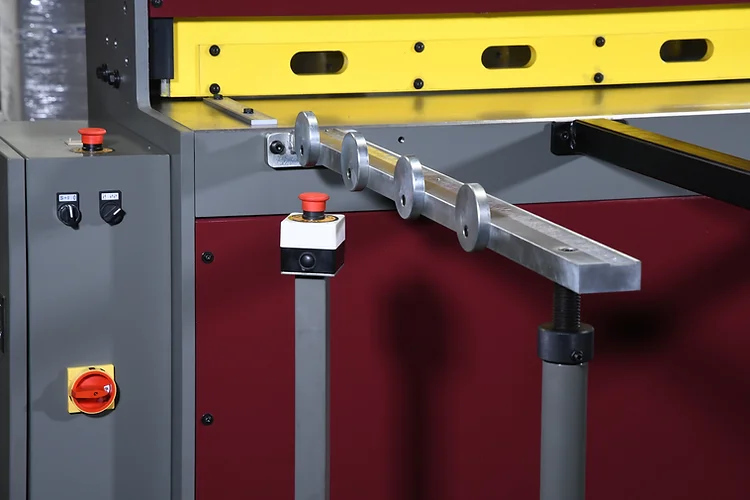

- 60” long squaring arm with inch / mm scale, mounted on right side of the table
- 2 - 24” front support arms
- Full length finger guard
- Removable safety foot pedal control
- One set of top & lower blades
OPTIONAL EQUIPMENT
- Safety fence for enclosure of the back side of the machine - $1,150
|
Cutting Capacity Mild Steel - HRS (tensile 60,000 PSI) Stainless Steel (tensile 85,000 PSI) Soft Aluminum (tensile 28,000 PSI) |
4' x 12 Ga. 4' x 16 Ga. 4' x 8 Ga. |
| Blade Length | 52" |
| Strokes per minute | 35 |
| Worktable height | 32" |
| Front support arm | 36" |
|
Go-to Back gauge |
26" manual back gauge |
|
Blade Rake Angle |
2 Degree |
|
Main Motor |
4HP, 3 Phase 15 AMP Prewired: 220VAC (7A/440VAC optional) |
|
Machine weight Shipping weight |
2,110 LBS 2,123 LBS |
|
Machine dimensions Shipping dimensions |
72" x 42" x 67" 80" x 35" x 61" |
