NEW 4' X 14 GAUGE GMC MODEL EPS-0410M HYDRAULIC SHEAR
Year
Not provided
Stock #
19136
Condition
New
Keep Scrolling To Learn More
Specifications
Equipped With
NEW 4' X 14 GAUGE GMC MODEL EPS-0410M HYDRAULIC SHEAR
- ISO 9001 certified
- American design and Taiwan quality machine
- With material front out tray
- HD all steel construction for maximum rigidity
- Precision driven gearbox
- Full length 30 strokes per minute

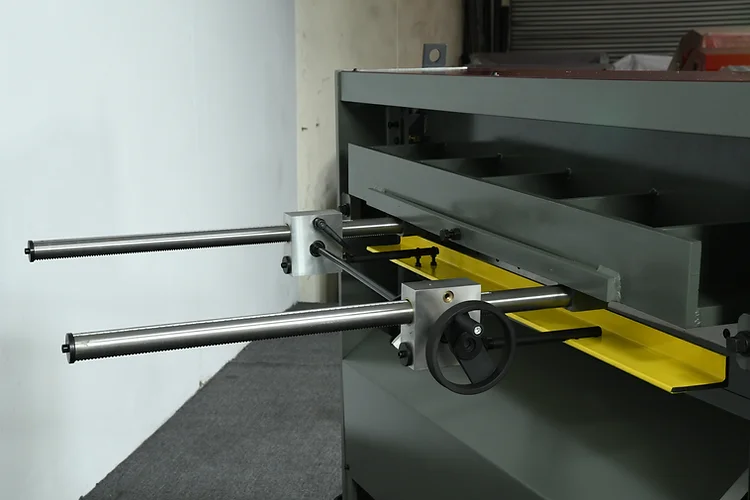

- 60” long squaring arm with inch / mm scale
- Spring hold-downs
- High grade carbon/chrome alloy steel blades and hardened to 62 hrc,
- 2-edge indexable upper blade and 4-edge indexable bottom blade
- Full length with full view finger guard

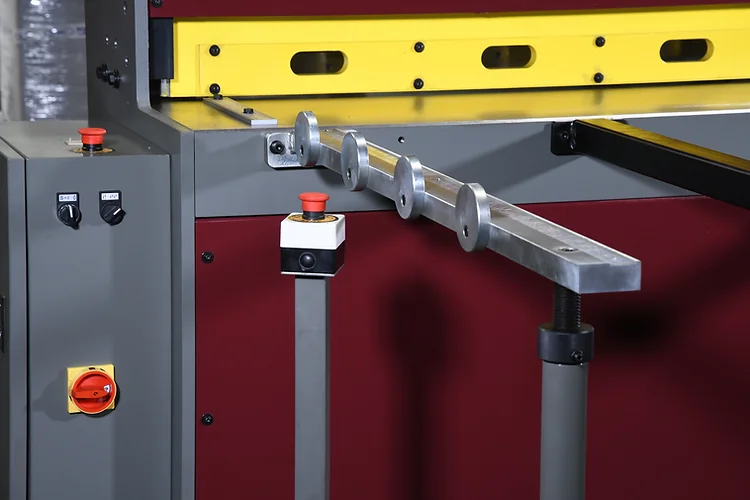

- Front supports and (2) side gauges
- Safety type foot pedal control
- Jog, single continuous auto operation modes
- One year warranty for parts
STANDARD EQUIPMENT
- 26” manual back gauge with one side operated handwheel.
- 60” long squaring arm with inch / mm scale, mounted on right side of the table
- 2 each 24” front support arms
- Full length finger guard
- Removable safety foot pedal control
- One set of upper & lower blades
OPTIONAL EQUIPMENT
Safety fence for enclosure of the back side of the machine - $1,150
|
Cutting Capacity Mild Steel - HRS (tensile 60,000 PSI) Stainless Steel (tensile 85,000 PSI) Soft Aluminum (tensile 28,000 PSI) |
4' x 10Ga. 4' x 14Ga. 4' x 1/4" |
| Blade Lenght | 52" |
| Strokes per minute | 30 |
| Worktable height | 32" |
| Front support arm | 36" |
|
Back gauge |
26" Manual Back gauge |
|
Blade Rake Angle |
2.2 Degree |
|
Main Motor |
5-1/2HP, 3 Phase 20A Prewired: 220VAC (10A/440VAC optional) |
|
Machine weight Shipping weight |
3,110 lbs. 3,150 lbs. |
|
Machine dimensions Shipping dimensions |
73" x 43" x 68" 80" x 40" x 62" |
