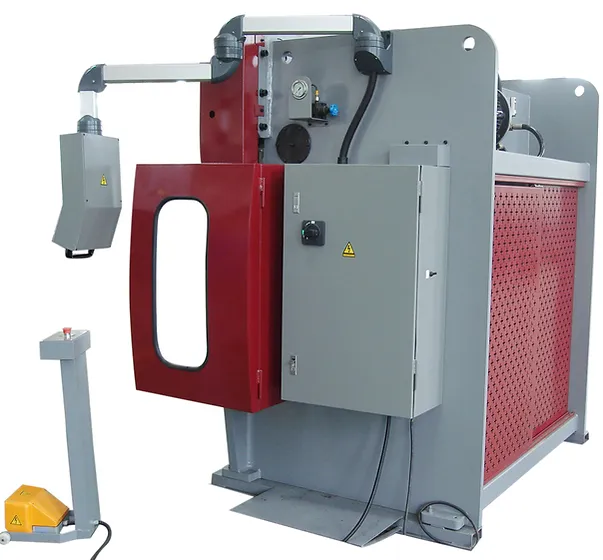

NEW 45 TON X 4' GMC MODEL HPB-4504CNC HYDRAULIC PRESS BRAKE
Year
Not provided
Stock #
19107
Condition
New
Keep Scrolling To Learn More
Specifications
Equipped With
NEW 45 TON X 4' GMC MODEL HPB-4504CNC HYDRAULIC PRESS BRAKE
- ISO 9001 certified
- Meet OSHA and CE safety standard

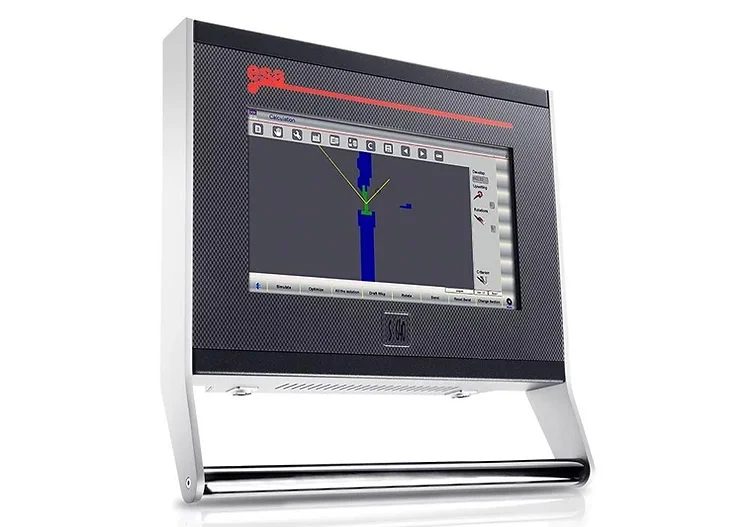

- ESA (Italy) Model 625, 2 Axis CNC Controller
- Die library, offline programming, stores thousands of programs
- Programmable Angle/ Angle Correct
- Germany Rexroth hydraulic system
- Yaskawa Servo motor and Drives
- Schneider electrical components
- Hydraulic crowning
- All steel construction for maximum rigidity
- Hydraulic logic system centrally located and quiet
- Safety type foot pedal with handle and E-stop switch
- Safety 24V low voltage & overload protection
- One year industrial warranty for parts
STANDARD EQUIPMENT
- ESA (Italy) Model 625, 2 Axis CNC Controller
- (2) 24” front support arms, Quick Release for easy positioning

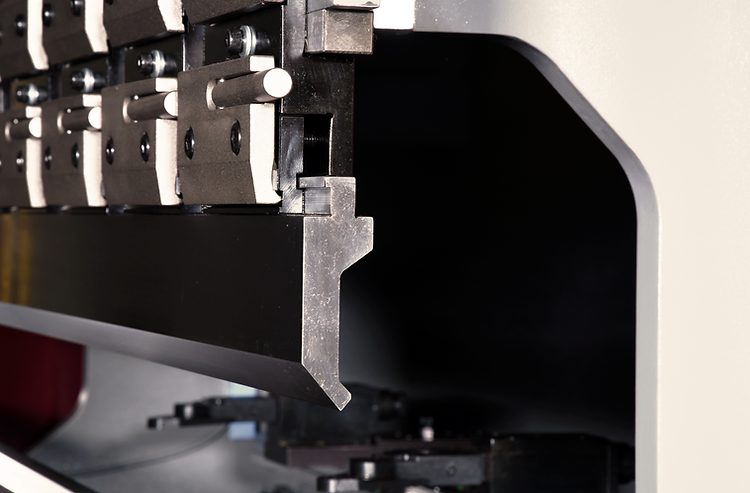

- Quick release segmented (American Style Tooling) punch holder
- Full Length Gooseneck Punch HRC 50 (Punch is rated for 10 gauge and lighter .062” radius punch) Additional Tooling may be required for thicker materials and purchaser’s specific products/parts - Ask your dealer for custom tooling quotes)

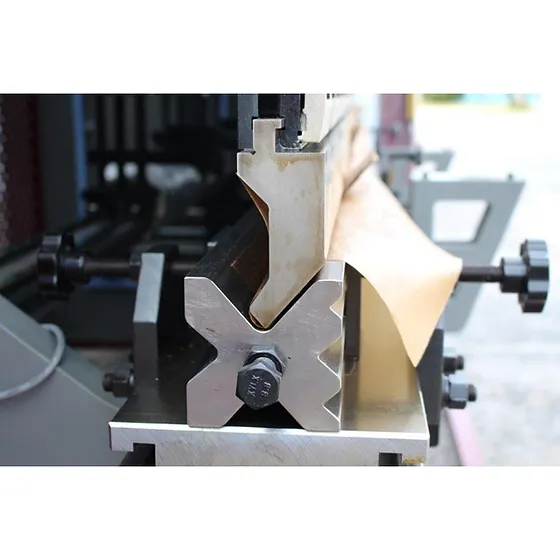

- Full Length Vee Die with 6 assorted sizes HRC 50
- Lntech Light Curtain System
- Side and Back Safety Fence
- Movable Foot Pedal with Estop meet OSHA safety standard
- One day on-site training - $4,995.00
| Maximum Pressure | 45 Tons |
| Bending Lenght Capacity | 59 1/4" (4'1") |
| Distance Between Uprights (housing) | 33 1/2" |
|
Ram Stroke Travel Cylinder Travel Adjustment (max) |
6" 2" |
| Table Width | 6" |
|
Distance Between Table and Ram Max Stacked Tooling Height |
13" 8-1/2" |
| Throat Depth | 8 1/2" |
| Back Gauge Distance | 24" |
| Back Gauge Repeatability | .0039" |
| Y-Axis Repeatability | .0039" |
|
Approach speed, inch / second Working speed, inch / second Return speed, inch / second |
3.54” 0.78” 2.75” |
|
Main motor:
Servo motor for back gauge:
Servo motor for bending angle setting: |
5-1/2 HP, 3 Phase, 25 AMP Prewired: 220VAC (+/- 10%) 1 HP, 3 Phase 220VAC (+/- 10%)
1/2 HP, 3 Phase 220VAC (+/- 10%) |
|
Hydraulic oil tank capacity:
Recommended Oil: |
25 Gal.
Hydraulic Oil Shell #68HD |
|
Machine weight: Machine size, L x W x H: Shipping dimensions: |
6,150 LBS 71" x 56" x 81” 79"x63"x89" |
Warranty for Rotary Phase Convertor Users : Electrical Parts Warranty is not available if A Rotary Phase Convertor is used. Mechanical parts warranty only
Note: the following models do not work with rotary phase converters:
All EPS models, HS-0825E,HS-0425E, HS-0625E,HS-1010E, HS-1025E, HBB-1010NC, GML-(ALL LATHES)
HPB-4504CNC, HPB-7006CNC, HPB-7006CNC-3R, and HPB-3305CNC
These models listed above cannot run on any phase converters, Warranty will be voided.
GMC will pre-wire the Phase converter to our machine and it is ready to use.
