NEW 5' X 3/16" GMC MODEL PBR-005316E PLATE BENDING ROLL
Year
Not provided
Stock #
19159
Condition
New
Keep Scrolling To Learn More
Specifications
Equipped With
NEW 5' X 3/16" GMC MODEL PBR-005316E PLATE BENDING ROLL
- SO 9001 certified
- Taiwan machines
- All (3) rolls are hardened rolls, up to 50-52 HRC
- 3-rollers are driven to perform high accuracy

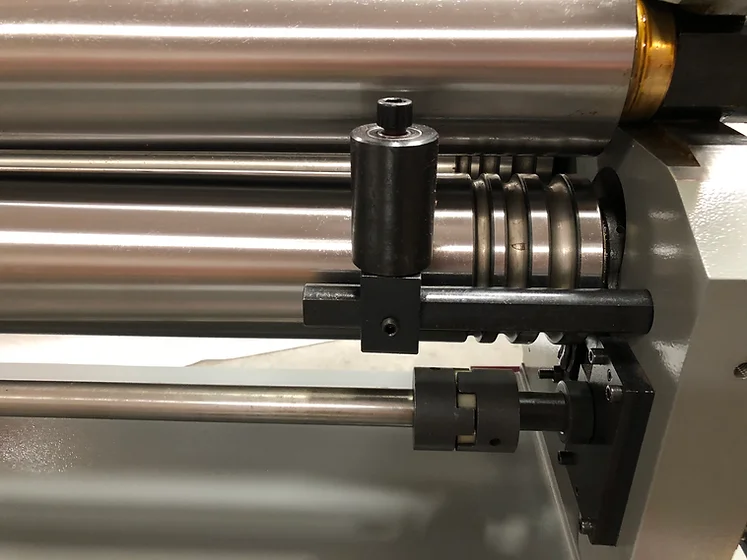

- Adjustable cone attachment included
- 3/8”, ½” and 5/8” grooves on rollers

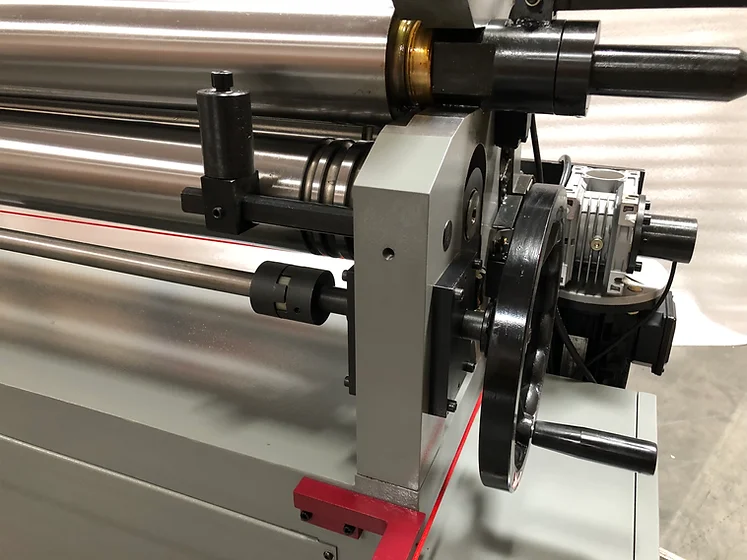

- One wheel one-side operated for bending roll
- One wheel one-site operated for pinch roll (E model is powered)
- Heavy duty casting frame
- Heavy duty all steel welded construction
- 1/3 of full length in middle of roller is straight, and two ends with crown to get perfect round performance.
- Quiet running operation
- Easy swing-out top roller
- Safety line all around the machine for emergency stop
- All rolls run forward and reverse
- Safety type forward/reverse foot pedal
- Power source 220V, (option: 440V, 3 phase)
- One year industrial warranty for parts
STANDARD EQUIPMENT
- Adjustable cone attachment
- 3/8”, ½” and 5/8” grooves on rollers
- All (3) hardened rolls
- Removable safety foot pedal
- Operation & parts manual
- Orange color front cover is optional.
- E models come with motorized bending roll up/down w/ push button and digital display for easy operation of repeat jobs
OPTIONAL EQUIPMENT
Safety fence for enclosure of the back side of the machine - $1,150.00
|
Capacity: Mild Steel |
5'1" x 3/16" |
|
Capacity: Stainless Steel |
5’1” x 10Ga. |
| Roll Dia. | 5 7/8" |
| Min. Bending Dia. Inch | 7 1/2" |
| Pre-bend inch | 0.12" |
| Rolls Speed ft/min | 20 |
| Rolls Opening | 1/2" |

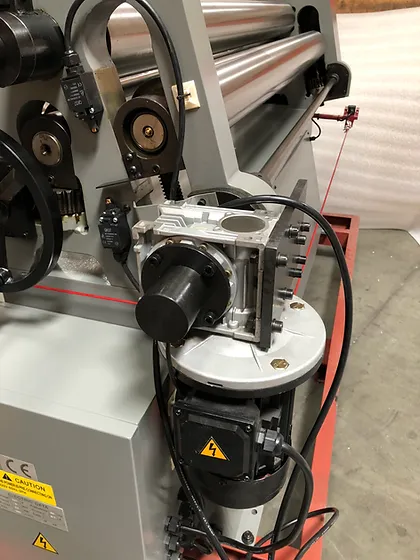

| Main Motor | 4HP 3PH |
| Weight | 3,550 lbs. |
| Overal Dimensions | 96" x 32" x 52" |
