NEW 50" X 16GA GMC MODEL PSR-5016-1PH SLIP ROLL
Year
Not provided
Stock #
19153
Condition
New
Keep Scrolling To Learn More
Specifications
Equipped With
NEW 50" X 16GA GMC MODEL PSR-5014-1PH SLIP ROLL
- ISO 9001 certified
- Heavy welded all steel construction for maximum rigidity
- Silence electrical motor
- Quick release top roller
- Two rolls are driven
- Precision ground rollers
- 1” roll opening

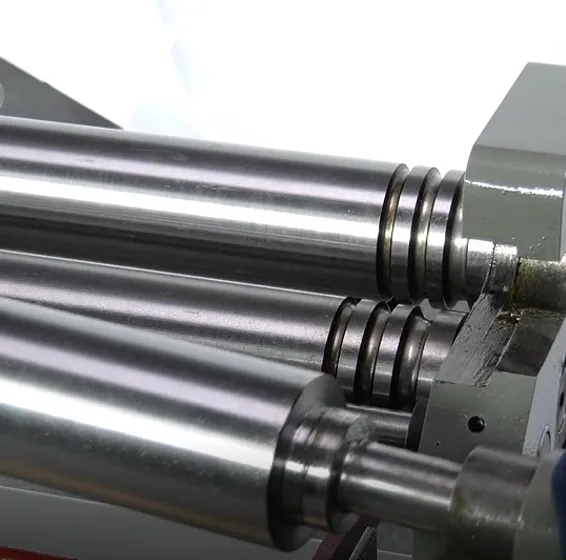

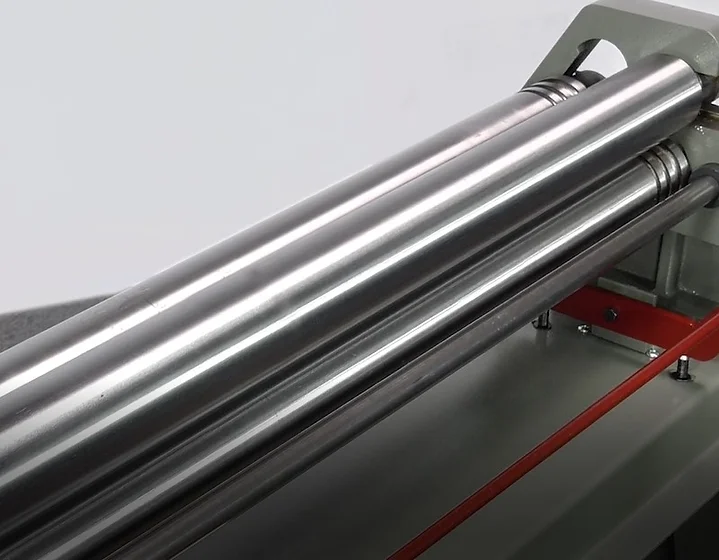

- All three rolls are made of high grade alloy steel, hardened up to 50 HRC
- All rolls run forward and reverse
- Safety type removable foot pedal
- Overload protection and disconnect switch
- One year warranty for parts
STANDARD EQUIPMENT
- Electrical cabinet
- Removable safety foot pedal
|
Rolling capacity: Mild steel Stainless steel Min. thickness capacity |
50"x16Ga. 50"x20Ga. 50"x26Ga. |
|
Rolls size, length x dia Min. roll bending dia. capacity |
50”x 3” 3 1/2" |
| Rolls speed | 201” / min. |
| Rolls opening | ¼” |
| (3) grooves sizes | 5/16”, 3/8” , ½” |
| Main motor | 1.5 HP, 220V, 1PH |
| Net weight | 828 LBS |
|
Machine dimensions, LxWxH |
68x28x47” |
