NEW 6' X 10 GAUGE GMC MODEL HS-0610MD HYDRAULIC SHEAR
Year
Not provided
Stock #
19124
Condition
New
Keep Scrolling To Learn More
Specifications
Equipped With

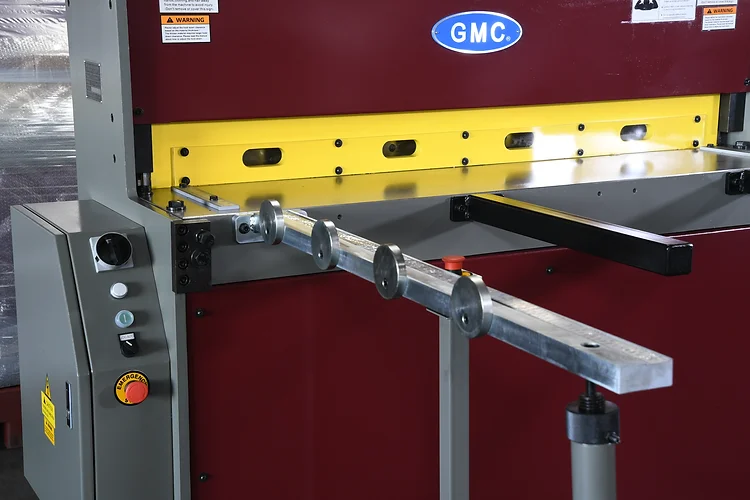

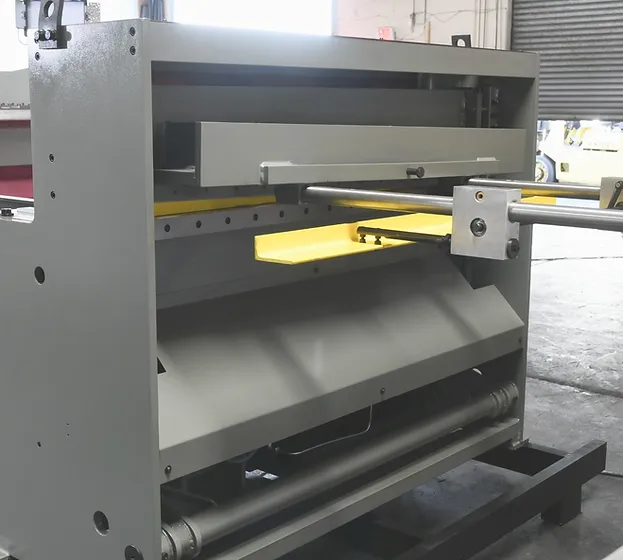

NEW 6' X 10 GAUGE GMC MODEL HS-0610MD HYDRAULIC SHEAR
- Taiwan machines
- ISO 9001 certified
- HD all steel construction for maximum rigidity
- German logic quiet Rexroth hydraulic system
- Adjustable stroke from 16-20 strokes per minute
- 60” long squaring arm with inch / mm scale
- Spring hold-downs
- High grade carbon/chrome alloy steel blades and hardened to 62 HRC, 2-edge indexable upper blade and 2-edge indexable bottom blade
- Full length with full view finger guard
- Front supports and (2) side gauges
- Safety type foot pedal control
- Jog, single continuous auto operation modes
- One year warranty for parts
STANDARD EQUIPMENT
- 26” manual back gauge with inch/metric dual scale & one side operated hand wheel
- 60” long squaring arm with inch / mm scale
- 2 each 24” front support arms
- 2 each 14” Side gauges with inlaid inch/metric dual scale
- Spring independent hold-downs
- Full length finger guard
- Removable safety foot pedal control
- One set of blades
OPTIONAL EQUIPMENT
- Safety fence for enclosure of the back side of the machine…………… $1,150.00
- Special blade set for stainless steel …………………………………… $1,150.00
- Rotary phase converter # PL-20, 20HP ……………………….. $3,150.00
- Special blade set for stainless steel for HS-0810MD/1010MD…... $1,750.00
|
Cutting Capacity: Mild Steel Stainless Steel Minimum Capacity |
6' x 10Ga. 6' x 14Ga. 24 Ga. |
| Blade Length | 78" |
| Strokes per minute adjustable | 16-20 |
| Throat depth | 16" |
| Worktable height | 30 1/2" |
| Front support arm | 24" |
| Back gauge | 26" |
| Blade Rake Angle | 1.5 Degree |
| Oil Tank Capacity | 21 Gal |
| Main Motor |
5 1/2 HP Prewired: 220/3-Phase Optional: 440V 3-Phase |
| Machine Weight | 4,150 lbs. |
| Machine Dimensions | 98" x 35" x 52" |
Attachments
There are no files attached to this listing currently. If you Have any further questions regarding this listing, please contact us for more information.
