Motor type code AXR 5010-2
Motor type Squirrel cage Motor

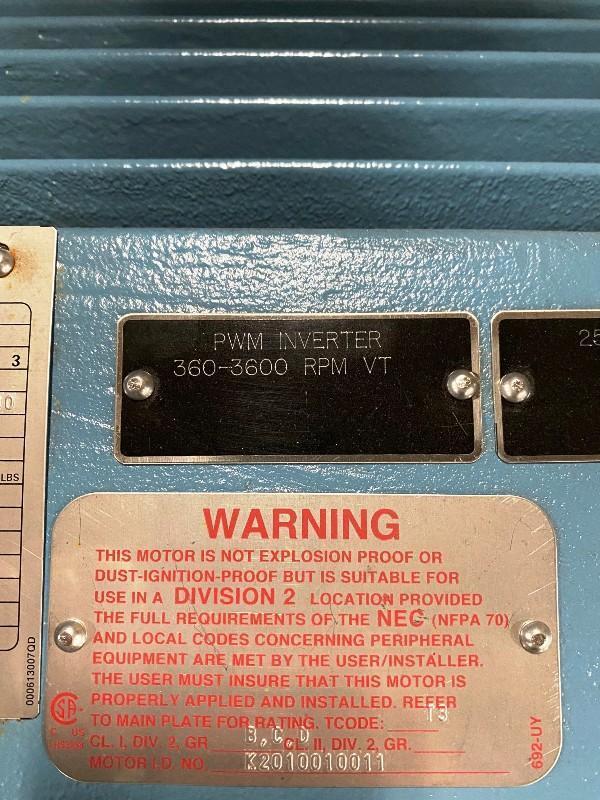

Type of Ex-protection Div. 2, Class I, Group B,C,D, T2D
Mounting designation F-1
Enclosure and cooling TEFC
Insulation Class F
Standards NEMA*
Ambient temperature, max. 40 °C
Altitude, max. 3300 ft.a.s.l.
Converter supply Non ABB inverter
Duty type Continuous
Temp. rise Class F (ETD)
Connection of stator winding Star
Rated output 0 - 300 HP
Voltage 0 - 4000 V
Frequency 0 - 60.4 Hz
Speed 3600.0
-
3600.0 rpm
Current 0 - 39 A
Power Factor 0 - 0.88
Efficiency 0 - 93.5 %
Relat. maximum torque 0 - 2.8
Rated torque 0 - 438 lb-ft
Weight of rotor 657 lb
Total weight of Motor 4488 lb
Inertia rotor Approx. 64 lb-ft²
