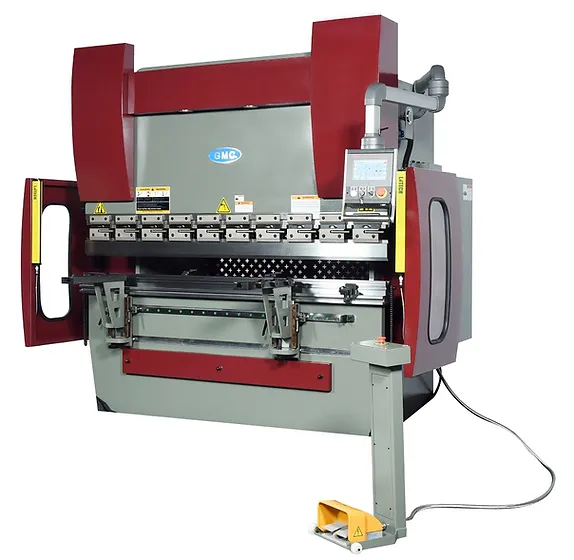

NEW 70 TON X 6' GMC MODEL HPB-7006 HYDRAULIC PRESS BRAKE
Year
Not provided
Stock #
19108
Condition
New
Keep Scrolling To Learn More
Specifications
Equipped With
NEW 70 TON X 6' GMC MODEL HPB-7006 HYDRAULIC PRESS BRAKE
- ISO 9001 certified
- Meet OSHA and CE safety standard
- ESA (Italy) Model 625, 2 Axis CNC Controller
- Die library, offline programming, stores thousands of programs
- Programmable Angle/ Angle Correct
- Germany Rexroth hydraulic system
- Yaskawa Servo motor and Drives
- Schneider electrical components
- Hydraulic crowning
- All steel construction for maximum rigidity
- Hydraulic logic system centrally located and quiet
- Safety type foot pedal with handle and E-stop switch
- Safety 24V low voltage & overload protection
- One year industrial warranty for parts
STANDARD EQUIPMENT
- ESA (Italy) Model 625, 2 Axis CNC Controller
- (2) 24” front support arms, Quick Release for easy positioning

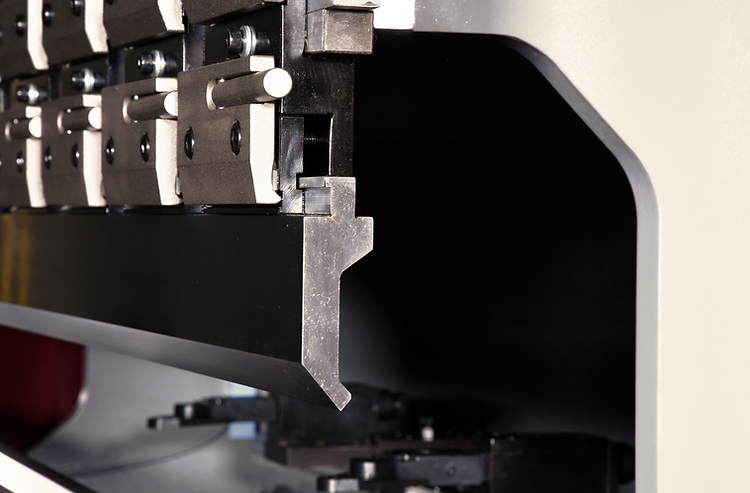

- Quick release segmented (American Style Tooling) punch holder

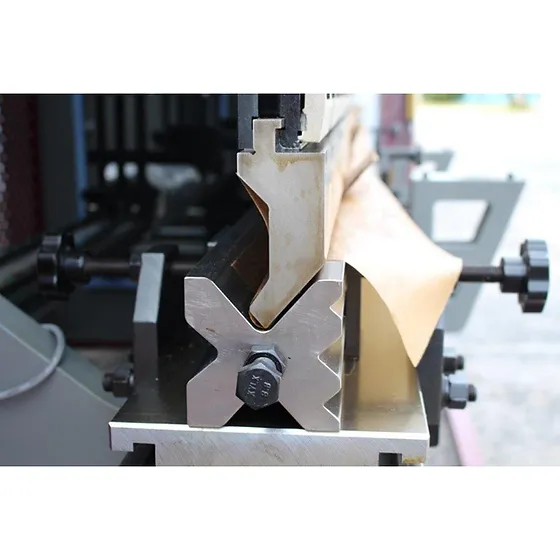

- Full Length Gooseneck Punch HRC 50 ( Punch is rated for 10 gauge and lighter .062” radius punch) Additional Tooling may be required for thicker materials and purchaser’s specific products/parts - Ask your dealer for custom tooling quotes)
- Full Length Vee Die with 6 assorted sizes HRC 50
- Lntech Light Curtain System
- Side and Back Safety Fence
- Movable Foot Pedal with Estop meet OSHA safety standard
OPTIONAL EQUIPMENT
- For ¼” tooling: Need single V die holder $1,595.00
-
4’ of punch and 2.5” single V Die , Flame hardened with safety tang $2,550.00
- On-site training, one day…………………………….. $4995.00
| Maximum Pressure | 70 Tons |
| Bending Lenght Capacity | 80" (6'8") |
| Distance Between Uprights (housing) | 63" |
|
Ram Stroke Travel Cylinder Travel Adjustment (max) |
6" 3 1/8" |
| Table Width | 6" |
|
Distance Between Table and Ram Max Stacked Tooling Height |
15 1/4" 8-1/2" |
| Throat Depth | 10" |
| Back Gauge Distance | 24" |
| Back Gauge Repeatability | .0039" |
| Y-Axis Repeatability | .0039" |
|
Approach speed, inch / second Working speed, inch / second Return speed, inch / second |
3.14” 0.35” 2.36” |
|
Main motor:
Servo motor for back gauge:
Servo motor for bending angle setting |
7-1/2 HP, 3 Phase 30 AMP Prewired: 220VAC (+/- 10%)
1 HP, 3 Phase 220VAC (+/- 10%)
1/2HP, 3 Phase 220VAC (+/- 10%) |
|
Hydraulic oil tank capacity: Recommended Oil: |
52 Gal. Hydraulic Oil Shell #68HD |
|
Machine weight: Machine size, L x W x H: Shipping Dimensions: |
8,650 LBS 103" x 63" x 87” 109"x66"x98" |
Warranty for Rotary Phase Convertor Users : Electrical Parts Warranty is not available if A Rotary Phase Convertor is used. Mechanical parts warranty only
Note: the following models do not work with rotary phase converters:
All EPS models, HS-0825E,HS-0425E, HS-0625E,HS-1010E, HS-1025E, HBB-1010NC, GML-(ALL LATHES)
HPB-4504CNC, HPB-7006CNC, HPB-7006CNC-3R, and HPB-3305CNC
These models listed above cannot run on any phase converters, Warranty will be voided.
GMC will pre-wire the Phase converter to our machine and it is ready to use.
