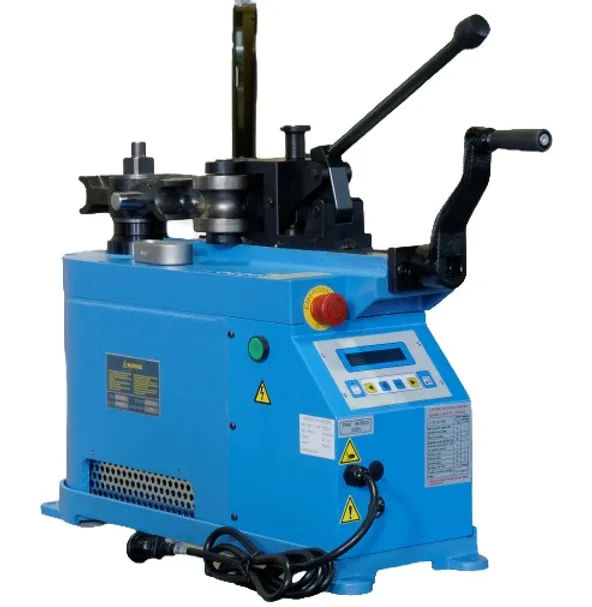

NEW GMC DB-60A 2" TUBE/ 1-1/2" PIPE DRAW BENDER
Year
2025
Stock #
19554
Condition
New
Keep Scrolling To Learn More
Specifications
Equipped With
NEW GMC DB-60A 2" TUBE/ 1-1/2" PIPE DRAW BENDER
Standard Features:
· Taiwan Machine
· ISO 9001 certified
· This easy to use hydraulic tube draw bender has an incredible capacity
of 2” tube with .12” wall thickness and 1-1/2” schedule# 40 pipe
· 1-1/2 HP Heavy Duty AC main motor, 220V, 1 phase

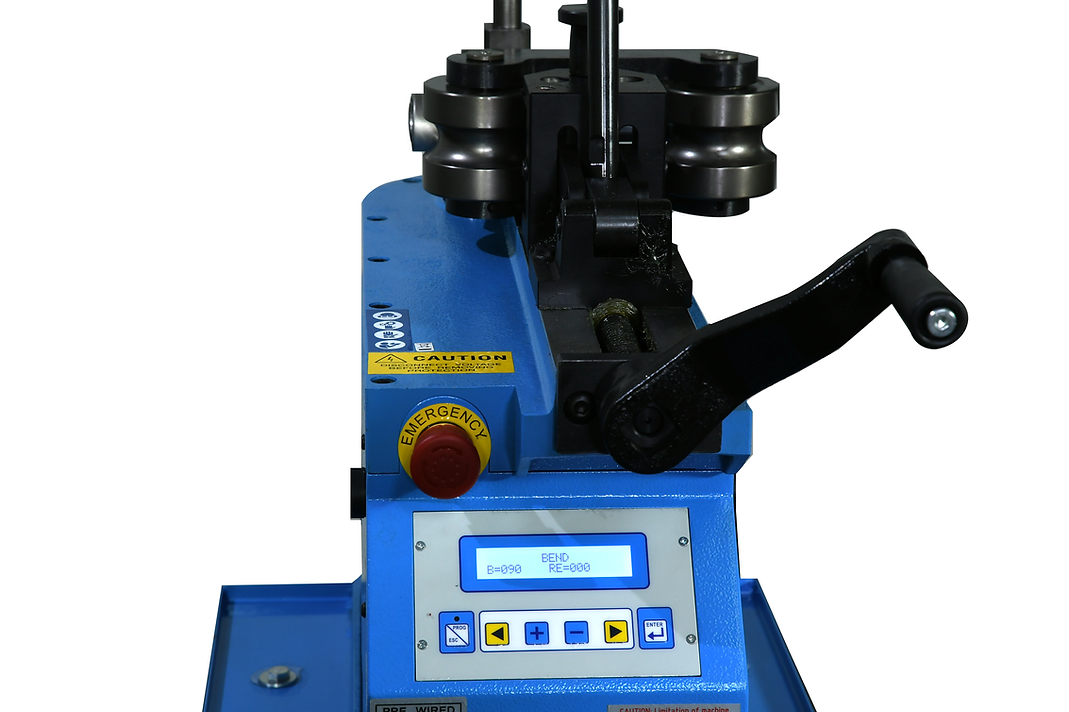

· LED degree indicator with automatic stop programming,
Optional Die Sets:
Each Die Set includes: 2 rolls, 1 former, and 1 ring
1” Tube die set # DB-60A-1T…………...………… $495.00
1-1/4” Tube die set # DB-60A-114T ……………… $795.00
1-1/2” Tube die set # DB-60A-112T ……………… $795.00
2” Tube die set # DB-60A-2T …………………….. $1,395.00
1” Pipe die set # DB-60A-1P ……………………… $495.00
1-1/2” Pipe die set # DB-60A-112P ………………. $795.00
to get as true reading of bending degree.
· 50 jobs memory, each job program contains 9 steps
· Quick tooling changes
· With deluxe stand
· One year warranty for parts
Specifications |
GMC DB-60A |
Capacity:Minimum CLR Minimum OD Solid Rod, mild steel Round Tube, mild steel ( wall thickness ) Round Pipe, mild steel, schedule 40 Round Tube, SS steel ( wall thickness ) Round Pipe, SS steel, schedule 40 Aluminum round Tube ( wall thickness ) |
½” ¼” 1” 2” (.125”) 1-1/2” 1-1/2”(.125”) 1-1/4” 2” (3/16”) |
Maximum centerline Radius |
8-1/2” |
LED programming |
50 job memory |
Main motor |
1.5HP, 220V,1phase |
Weight |
327 LBS |
Machine dimensions, LxWxH |
27”x9”x51” |
|
|
|
