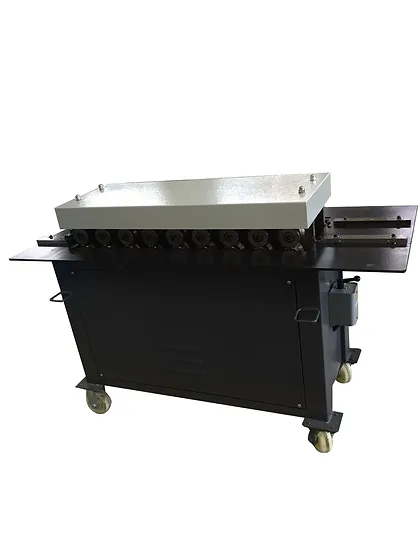

NEW GMC MODEL PL-18HEM HEMMING FORMING MACHINE
Year
Not provided
Stock #
19494
Condition
New
Keep Scrolling To Learn More
Specifications
Equipped With
NEW GMC MODEL PL-18HEM HEMMING FORMING MACHINE
STANDARD FEATURES
- ISO 9001 certified
- 4HP Heavy Duty AC main motor, 220V, 3 phase
- Heavy welded all steel construction for maximum rigidity
- One side forms Flattened Hem and Open Hem
- One side forms Teardrop Hem and Rope Hem
- One year warranty for parts
INCLUDES
- One set of 9 pairs rolls form Flattened Hem and Open Hem
- One set of 9 pairs rolls form Teardrop Hem and Rope Hem
OPTIONS
- Set of rolls for Pittsburgh lock & Double Seam, 2 in 1……………….. $995.00
- Drive Cleat Roll # DCR-18HEM ………………………………. $995.00
SPECIFICATIONS
|
Specifications |
GMC PL-18HEM |
|
Capacity: Galvanized sheet Flattened Hem Open Hem Teardrop Hem Rope Hem Pittsburgh lock , 5/16” width Double seam Drive Cleat |
24 Ga. to 18Ga. 24 Ga. to 18Ga. 24 Ga. to 18Ga. 24 Ga. to 18Ga. 24 Ga. to 18Ga. 24 Ga. to 18Ga. 24 Ga. to 18Ga. |
|
Station numbers |
9 stations with 9 pairs of rolls on each side |
|
Feeding speed |
21 FPM |
|
Main motor Amperage draw |
4 HP, 220V, 3PHASE 15Amp |
|
weight, approx |
685 LBS |
|
Machine dimensions, LxWxH Machine shipping dimensions, LWH |
60”x25”x40” 62” x 27” x43” |
