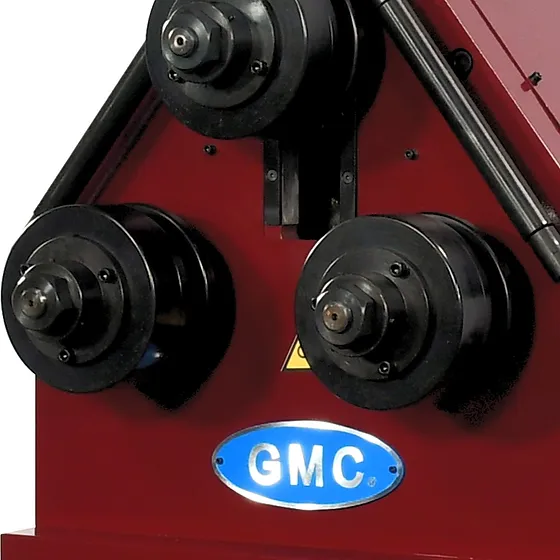

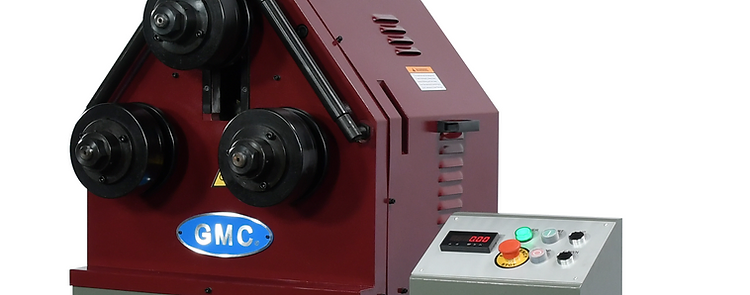

NEW GMC MODEL PRB-55 ANGLE ROLL BENDER WITH MANUAL POSITIONING
Year
Not provided
Stock #
19110
Condition
New
Keep Scrolling To Learn More
Specifications
Equipped With
NEW GMC MODEL PRB-55 ANGLE ROLL BENDER WITH MANUAL POSITIONING
- ISO 9001 certified
- 2” schedule 40 pipe is the maximum bending capacity, 2.5” round tube 14 Ga. and 2” square tube
- Heavy Duty 3HP AC main motor
- 1 top forming roll (manually driven)
- 2 driven bottom rolls
- Robust, all steel and welded framework
- 1-year parts only warranty and lifetime tech support by video and phone
- Equipped with 1-set of universal forming rolls suitable for many applications
- Left and right guide rollers (easily adjustable)
- Foot pedal (controls forward and reverse
- Optional roller sets for pipe & round tubing, any size, one set (3 rolls) - $995.00
- Optional anti-twisting attachment - $595.00
|

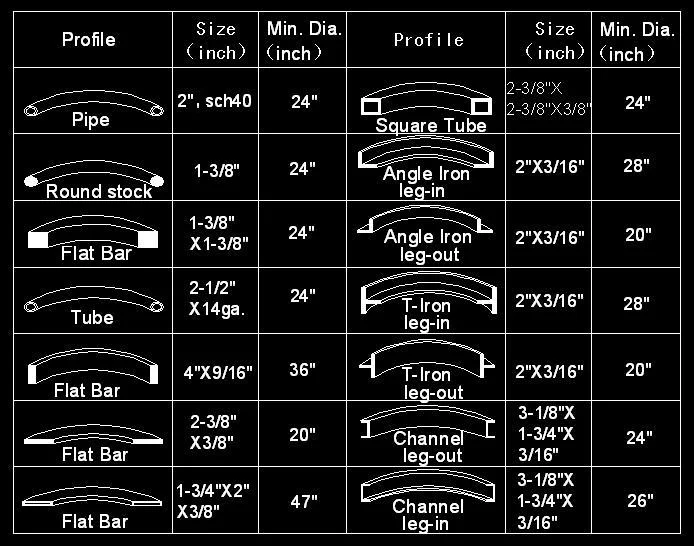

Model |
PRB-55 |
|
Pipe Capacity |
2” schedule 40 / Min. Dia.24” |
|
Tube Capacity |
2-1/2”x14 Ga. (wall) / Min. Dia. 24” |
|
Solid Round Tube |
1-3/8” / Min. Dia. 24” |
|
Square Tube |
2”x2”x3/16” (wall) / Min. Dia. 24” |
|
Solid Square Tube |
1-3/8”x1-3/8” / Min. Dia. 24” |
|
Solid Flat Bar |
4”x9/16” (wall) / Min. Dia. 36” |
|
Solid Flat Bar |
2-3/8”x3/8” (wall) / Min. Dia. 20” |
|
Angle Flat Bar |
2-3/4”x2”x3/8” (wall) / Min. Dia. 47” |
|
Angle Iron Leg-In |
2”x3/16”(wall) / Min. Dia. 28” |
|
Angle Iron Let-Out |
2”x3/16”(wall) / Min. Dia. 20” |
|
T-Iron Leg-In |
2”x3/16” (wall) / Min. Dia. 28” |
|
T-Iron Leg-Out |
2”x3/16” (wall) / Min. Dia. 20” |
|
Channel Leg-In |
3-1/8”x1-3/4”x3/16” / Min. Dia. 26” |
|
Channel Leg-Out |
3-1/8”x1-3/4”x3/16” / Min. Dia. 24” |
|
Dia. of Roller |
7 1/2" |
|
Dia. of Roller Shaft |
2" |
|
Roller Speed |
16 RPM |
|
Motor |
3 HP, 220VAC 3-Phase |
|
Dimensions |
40" x 35" x 65" |
|
Weight |
1,050 lbs. |
AVAILABLE ROLL SETS
| 34T-PRB55 | ROLL SET FOR 3/4 INCH TUBING FOR GMC PRB-55 OR 55H |
| 1T-PRB55 | ROLL SET FOR 1 INCH TUBING FOR GMC PRB-55 OR 55H |
| 114T-PRB55 | ROLL SET FOR 1-1/4 INCH TUBING FOR GMC PRB-55 OR 55H |
| 112T-PRB55 | ROLL SET FOR 1-1/2 INCH TUBING FOR GMC PRB-55 OR 55H |
| 2T-PRB55 | ROLL SET FOR 2 INCH TUBING FOR GMC PRB-55 OR 55H |
| 212T-PRB55 | ROLL SET FOR 2-1/2 INCH TUBING FOR GMC PRB-55 OR 55H |
| 34P-PRB55 | ROLL SET FOR 3/4 INCH PIPE FOR GMC PRB-55 OR 55H |
| 1P-PRB55 | ROLL SET FOR 1 INCH PIPE FOR GMC PRB-55 OR 55H |
| 114P-PRB55 | ROLL SET FOR 1-1/4 INCH PIPE FOR GMC PRB-55 OR 55H |
| 112P-PRB55 | ROLL SET FOR 1-1/2 INCH PIPE FOR GMC PRB-55 OR 55H |
| 2P-PRB55 | ROLL SET FOR 2 INCH PIPE FOR GMC PRB-55 OR 55H |
