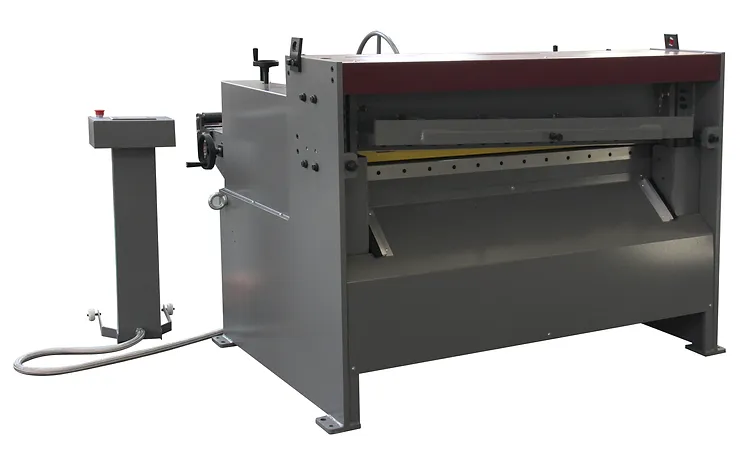

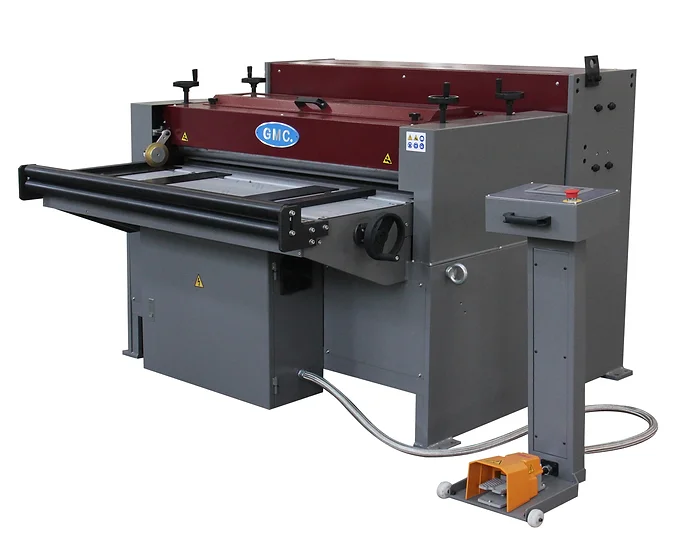

NEW GMC MODEL PS-4816GT GANG TYPE METAL POWERED SLITTER WITH PROGRAMMABLE CUT TO LENGTH
Year
Not provided
Stock #
19496
Condition
New
Keep Scrolling To Learn More
Specifications
Equipped With
NEW GMC MODEL PS-4816GT GANG TYPE METAL POWERED SLITTER WITH PROGRAMMABLE CUT TO LENGTH
STANDARD FEATURES
- ISO 9001 certified
- American design and Taiwan quality machine

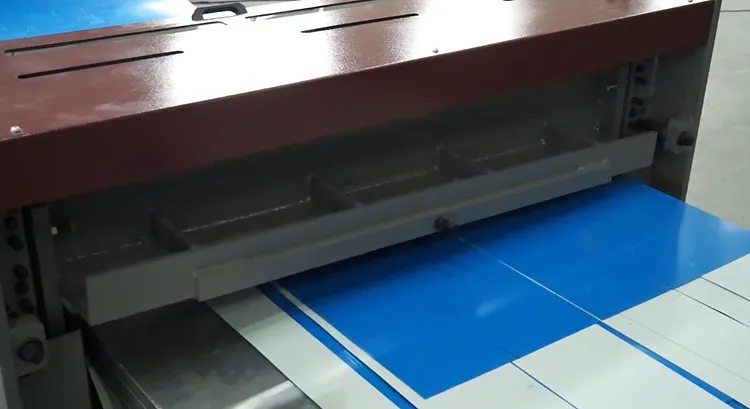

- Slit and cut to length in one unit
- NC programmable cutting length, 100 job memory feature
- Single cycle Mode-manual shearing with foot pedal when programmed length is reach for each cut.
- Auto cycle mode-shearing will auto cycle the programmed cut lengths.
- Easy removal of slitting blades for cut to length operations without slitting.

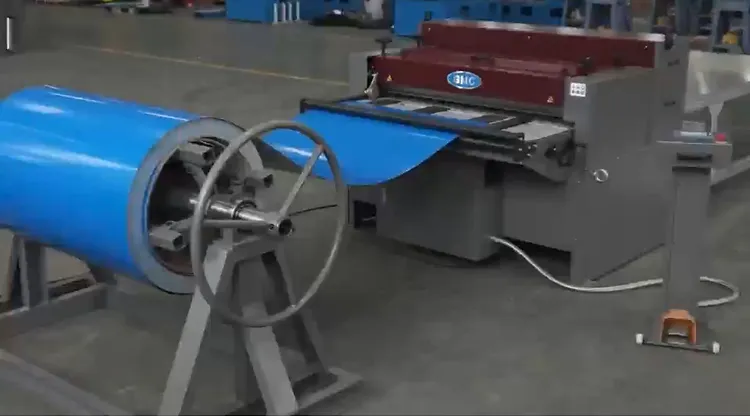

- feed the sheet metal from the manual decoiler to cut to length without slitting blades

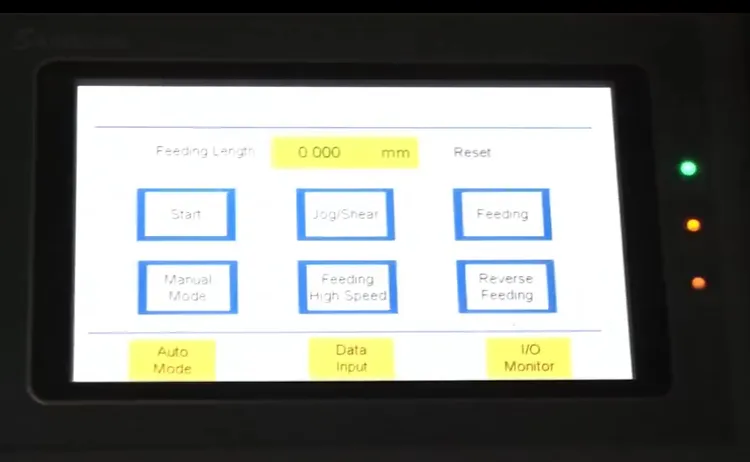

- 5” Omron touch screen
- 3-1/8” diameter shafts mounted in precision ball sealed bearings
- Slitting blades are dual edged
- Safety type foot pedal control
- One year warranty for parts
STANDARD EQUIPMENT
- Comes with 6 sets of slitting blades to slit max 7 trips, change it to 7 strips
- full length finger guard
- Removable safety foot pedal control
- One set of upper & lower shearing blades
OPTIONAL EQUIPMENT

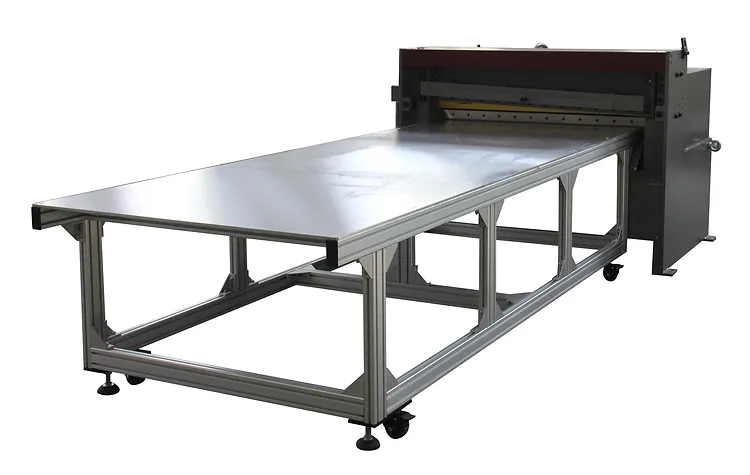

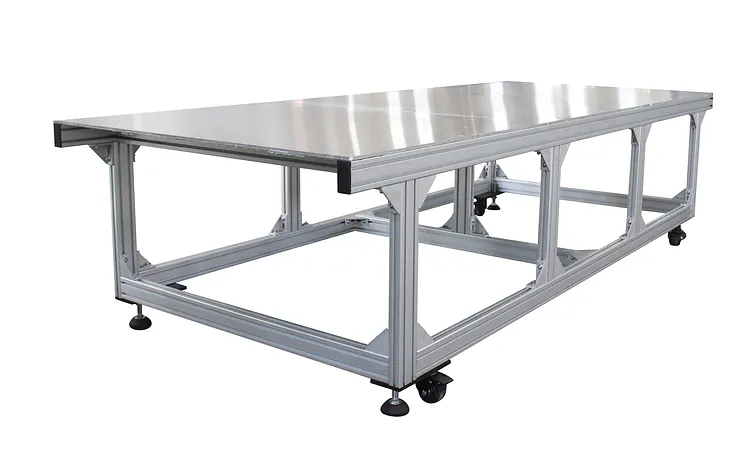

- 10ft Outfeed table #FT-10, 121”x49”x32” LWH……………………………………. call for pricing
- 10ft Infeed table #FT-10 ( when purchase Powered Slitter # PS-4816GT itself )…… call for pricing

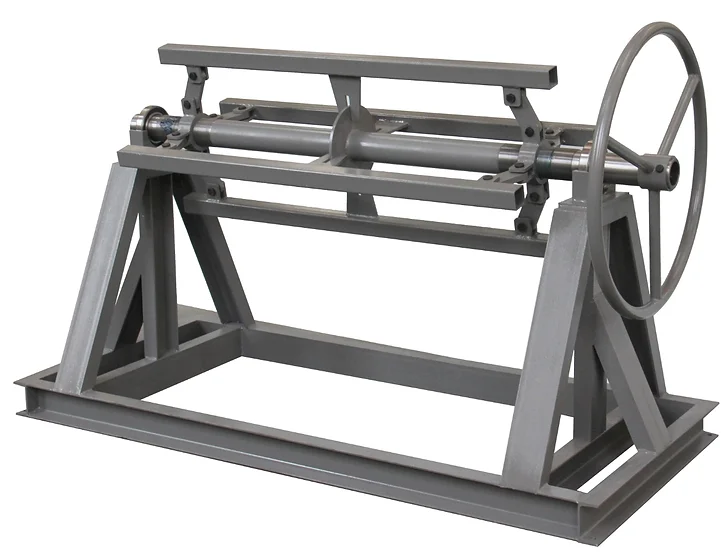

- Decoiler #DC-4820-2T, 48” wide x 20” coil ID, 2Tons=4,500LBS max coil weight....... call for pricing
- Extra set of slitter blades for PS-4816GT …….call for pricing
- Extra set of shear blades ……call for pricing
Package: The line of Power Slitter includes: 1 set Power Slitter # PS-4816GT, 1set outfeed table, and 1 set Decoiler #DC-4820-2T …………… call for pricing
|
Specifications: |
PS-4816GT |
|
Slitting and shearing capacity: width x thickness mild steel(hot roll) Tensile 60,000PSI stainless steel & cold roll, tensile 85,000PSI soft aluminum, tensile 28,000PSI min. thickness Max. slitting length |
48”x16Ga 48”x20Ga 48”x12Ga 30Ga 20ft, NC programmable |
|
Shearing blade length |
50” |
|
Shearing blade rake angle |
2 degree |
|
Infeed/outfeed table height |
32” |
|
Slitting blades |
6 pairs |
|
Slitting feed speed Shearing stroke |
57 FPM 35 |
|
Slitting capacity: Number of cuts / strips 16Ga mild steel 18Ga mild steel 20Ga mild steel 22Ga-24Ga mild steel 26Ga-30Ga mild steel |
1 cut / 2 strips 2 cuts / 3 strips 3 cuts / 4 strips 4 cuts / 5 strips 6 cuts / 7 strips |
|
Slitting motor Shearing motor |
3HP, 220V,1phase 3HP, 220V, 1phase Amperage draw 25A |
|
Decoiler specifications Manually operated |
For coil size 48” width, 20” coil ID, Max coil weight 2T = 4,500LBS Dimensions: 71”x32”x39-1/2” |
|
Machine weight Shipping weight |
2,850LBS 2,950LBS |
|
Machine dimensions LxWxH Shipping dimensions LxWxH |
68” x 63” x 48” 70” x 65” x 51” |
